Isuzu WW
▶
TRUCKS
▶
FSR
▶
11659 - FSR MIDDLE EAST
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

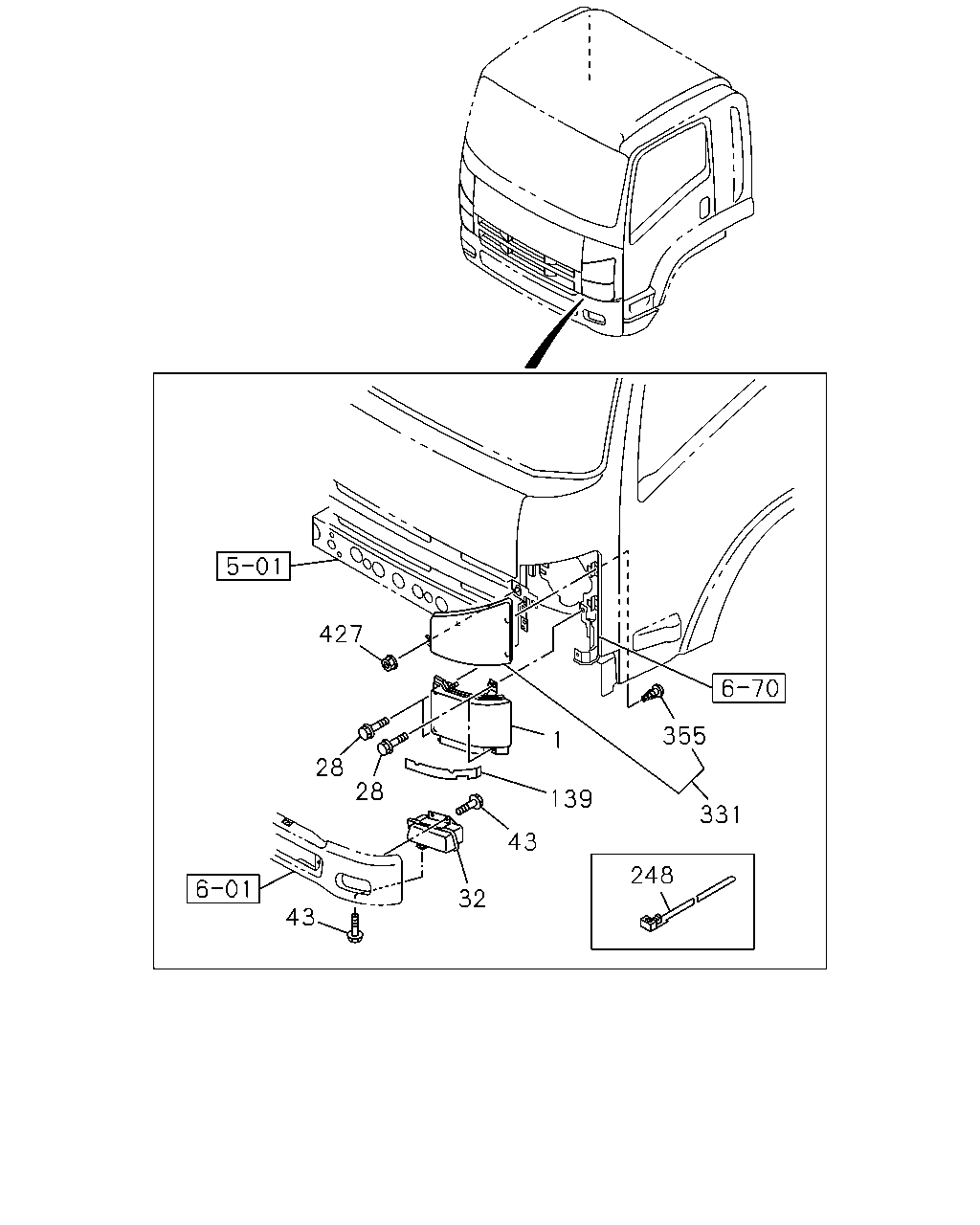

8-01 — LAMP; FRONT AND FRONT SIDE
(#153291) — 56 parça
◀
[801A] COMPONENT;HEAD,SIDE TURN SIGNAL LAMP (24 parça)
[801A] COMPONENT;TURN SIGNAL,FOG LAMP (17 parça)
[801A] FIXING;FRONT LAMP (15 parça)
▶
1
4
338
408
339
420
20
23
457
382
5
5
327
437
427
91
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-324-0
01
1
1412-
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-323-0
01
1
1412-
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-328-0
01
1
1412-
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-327-0
01
1
1412-
4
HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98226-185-0
01
1
1412-
4
HEADLAMP UNIT
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98226-184-0
01
1
1412-
4
HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98226-189-0
01
1
1412-
4
HEADLAMP UNIT
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98226-188-0
01
1
1412-
5
BULB; HEADLAMP
(B) 24V 5W
1-82194-042-0
02
1
1412-
5
BULB; HEADLAMP
(A) 24V 75/70W
1-82194-063-0
02
1
1412-
20
SCREW; HEADLAMP
8-97378-871-0
06
1
1412-
23
COVER; BULB,HEADLAMP
8-97232-491-0
02
1
1412-
91
BULB; SIDE TURN SIGNAL
24V 21W
8-98051-495-0
02
1
1412-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-181-3
01
1
1412-
327
LAMP ASM; SIDE TURN SIGNAL
8-97410-180-4
01
1
1412-
338
LEVELING; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98010-256-0
02
1
1412-
339
GASKET; LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
1-86830-158-0
02
1
1412-
382
PLUG; SOCKET,HEADLAMP
8-98225-685-0
02
1
1412-
408
CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
1412-
420
SPRING; BULB,HEADLAMP
8-98218-601-0
02
1
1412-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1412-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1412-
437
SOCKET; SIDE,TURN
8-98051-390-0
02
1
1412-
457
GRIP; HEADLAMP
8-98241-354-0
02
1
1412-
331
431
357
399
355
432
32
44
49
47
15
448
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
BULB; FOG LAMP
FOG LAMP<T96> 24V 70W
1-82194-106-0
02
1
1412-
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-059-1
01
1
1412-
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-058-1
01
1
1412-
36
CORD; FOG LAMP
FOG LAMP<T96>
1-82118-016-0
01
1
1412-
36
CORD; FOG LAMP
FOG LAMP<T96>
1-82118-015-0
01
1
1412-
44
NUT; FOG LAMP
FOG LAMP<T96> M6
8-98217-430-0
02
1
1412-
47
WASHER; PL,FOG LAMP
FOG LAMP<T96>
8-98217-429-0
02
1
1412-
49
BRACKET; LAMP
FOG LAMP<T96>
8-98051-435-0
01
1
1412-
49
BRACKET; LAMP
FOG LAMP<T96>
8-98051-436-0
01
1
1412-
331
LAMP; TURN SIGNAL
8-98155-459-0
01
1
1412-
331
LAMP; TURN SIGNAL
8-98155-458-0
01
1
1412-
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1412-
357
BULB; TURN SIGNAL
24V 21W AMBER
8-97323-806-0
02
1
1412-
399
SOCKET; TURN SIGNAL
8-98051-387-0
02
1
1412-
431
CAP; TURN SIGNAL,LAMP
8-97378-874-0
02
1
1412-
432
FASTENER; TURN SIGNAL,LAMP
8-98051-431-0
04
1
1412-
448
CAP ASM; LAMP
FOG LAMP<T96>
8-97378-874-0
02
1
1412-
427
28
28
139
1
43
32
43
248
331
355
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-324-0
01
1
1412-
1
LAMP ASM; HEAD
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-323-0
01
1
1412-
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-328-0
01
1
1412-
1
LAMP ASM; HEAD
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98241-327-0
01
1
1412-
28
BOLT; HEADLAMP
M6X23.5 W/LK&PL WASHER
8-98164-723-0
08
1
1412-
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-059-1
01
1
1412-
32
LAMP ASM; FOG
FOG LAMP<T96>
8-98232-058-1
01
1
1412-
43
BOLT; FOG LAMP
FOG LAMP<T96> M6X19.5 W/LK&PL WASHER
8-97360-226-0
06
1
1412-
139
COVER; HEADLAMP
8-98054-342-0
02
1
1412-
248
CLIP; HARNESS
EXC. FOG LAMP<T96> L=140
5-09707-031-1
02
1
1412-
331
LAMP; TURN SIGNAL
8-98155-459-0
01
1
1412-
331
LAMP; TURN SIGNAL
8-98155-458-0
01
1
1412-
355
SCREW; TURN SIGNAL
8-98051-428-0
04
1
1412-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1412-
427
NUT; TURN SIGNAL LAMP
M6 FLANGE
0-91180-106-0
02
1
1412-
