◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11659 - FSR MIDDLE EAST ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#153289) — 14 parça

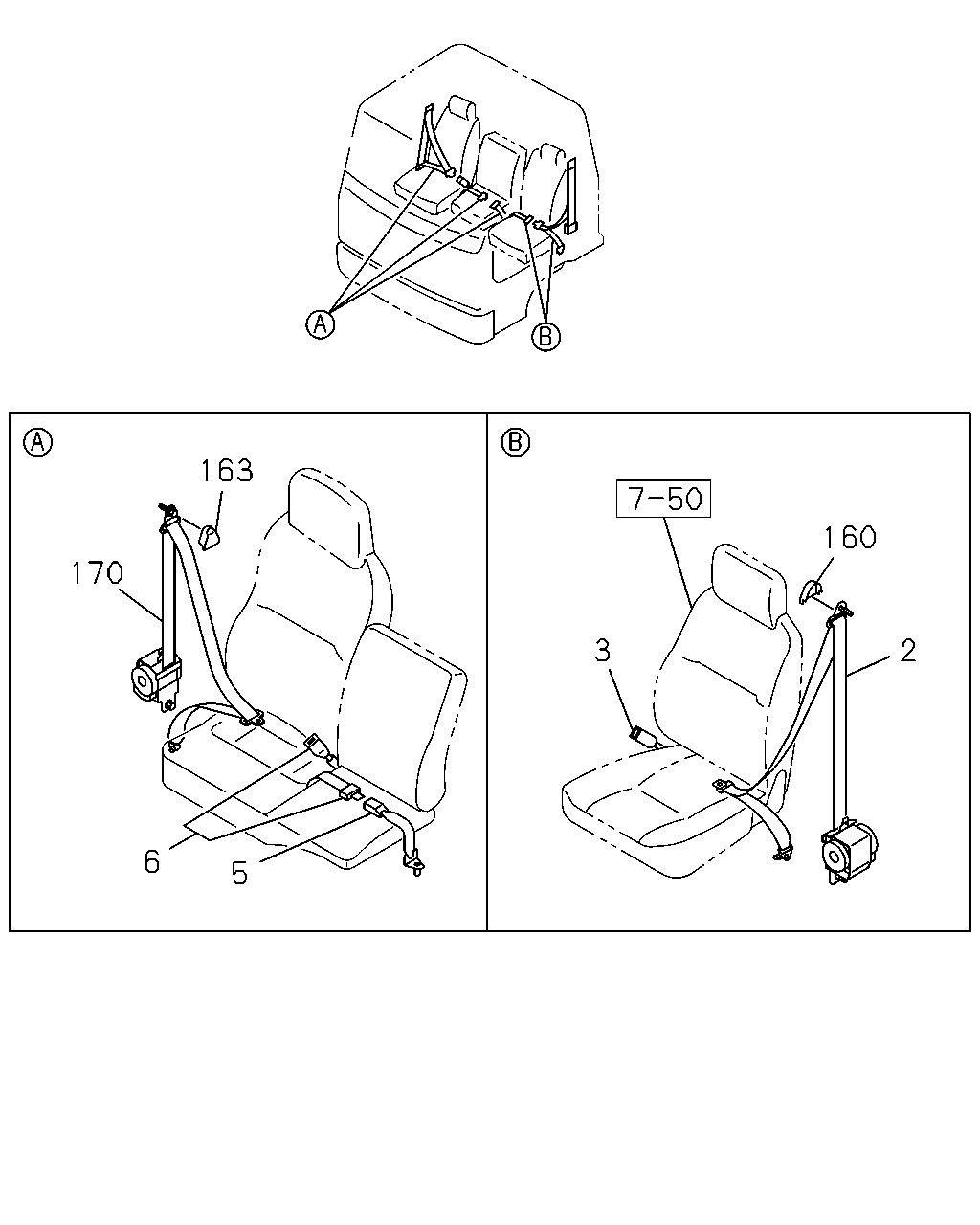

çizim 459235
160 2 3 163 170 6 5
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1412-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97407-374-2 01 1 1412-
5 BELT; CENTER SEAT,BUCKLE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97407-377-1 01 1 1412-
6 BELT; CENTER SEAT,TONGUE SIDE
SEAT ASM - WITH CENTER SEAT<7BC> GRAY 		8-97423-660-1 01 1 1412-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1412-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1412-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1412-
çizim 460325
163 170 4 3 160 2 169
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1412-
3 BELT; SEAT,BUCKLE SIDE
GRAY 		8-97407-374-2 01 1 1412-
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE<SP9> GRAY 		8-97409-769-1 01 1 1412-
160 COVER; THROUGH ANCHOR
GRAY 		8-97405-991-0 01 1 1412-
163 COVER; ADJUSTER
GRAY 		8-97405-991-0 01 1 1412-
169 SEAL
CENTER SEAT DELETE<SP9> OD=25 BLACK 		1-76798-019-0 01 1 1412-
170 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY 		8-97428-435-0 01 1 1412-
