Isuzu WW
▶
TRUCKS
▶
FRR
▶
11584 - FRR MIDDLE EAST SPACE CAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#153248) — 27 parça
◀
[826A] SENSOR;VEHICLE SPEED (2 parça)
[826A] INST PANEL SIDE NO.1 (9 parça)
[826A] INST PANEL SIDE NO.2 (6 parça)
[826A] CAB SIDE (6 parça)
[826A] SENSOR;CRANK ANGLE AND CONNECTOR (4 parça)
▶

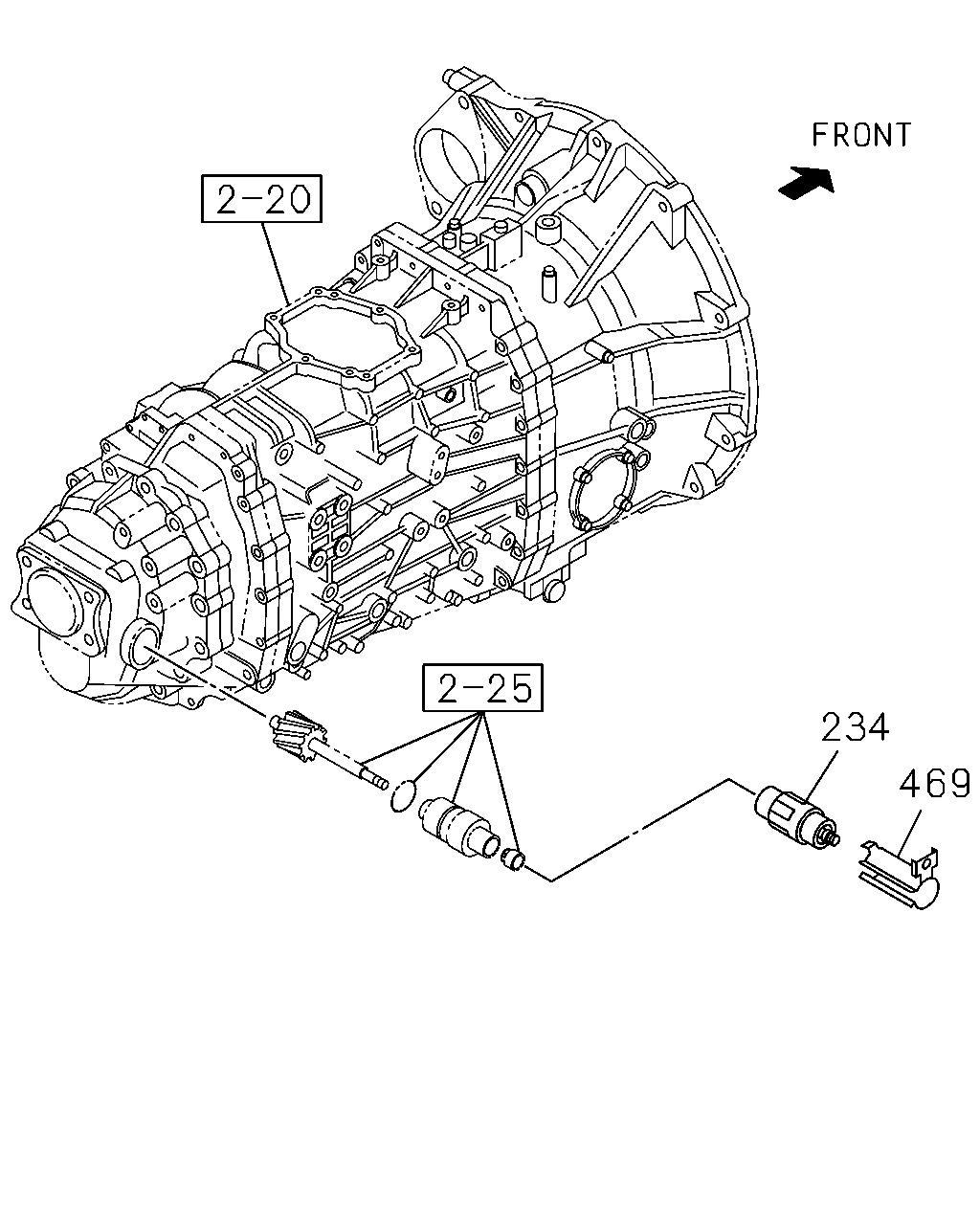

234
469
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE ALUMINUM
8-97328-058-1
01
1
1412-
469
PROTECTOR; SPEED SENSOR
8-98119-901-0
01
1
1412-

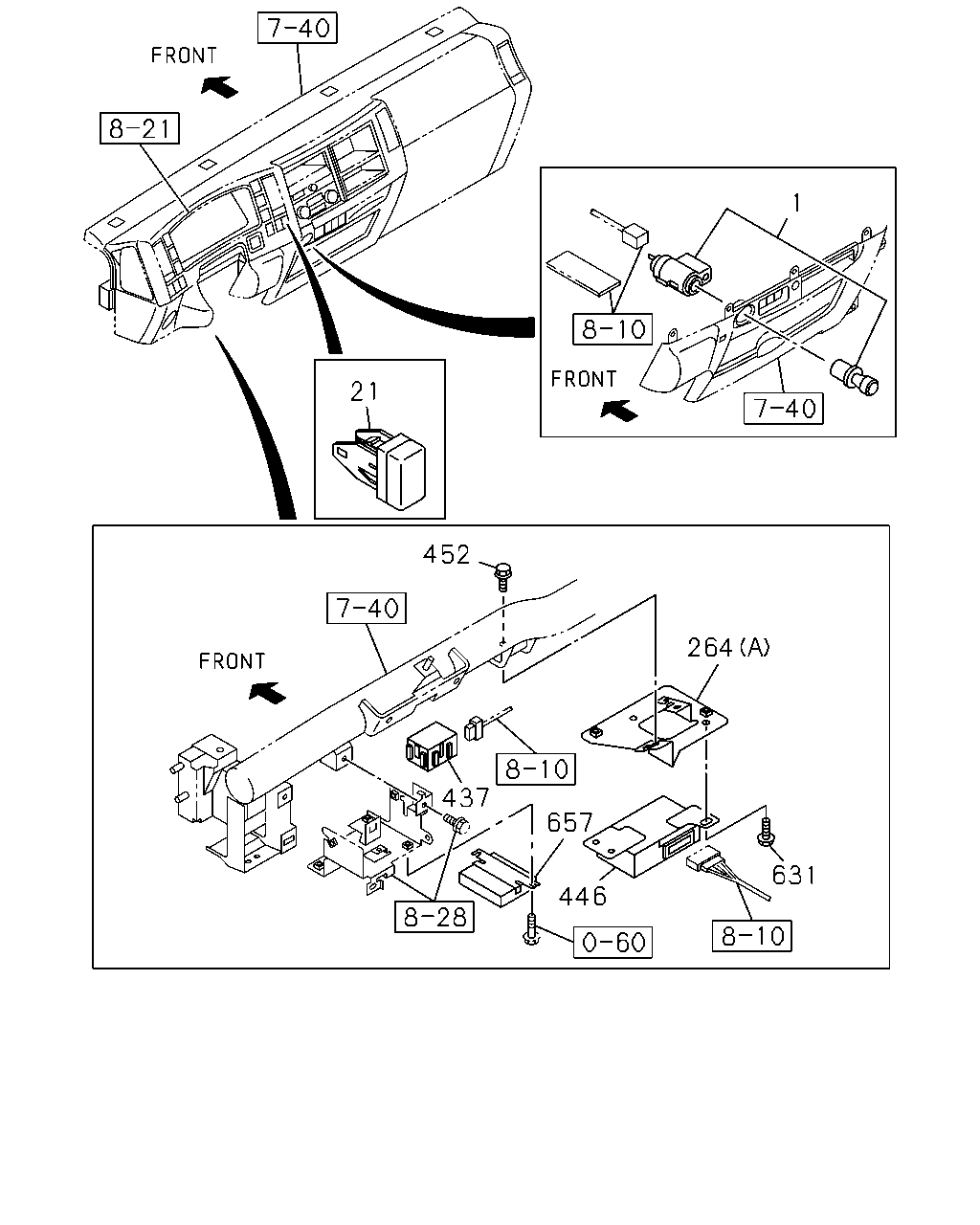

21
452
264
657
437
446
631
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
ASH TRAY PASSENGER DOOR<8LX>
8-98142-962-0
01
1
1412-
21
COVER; HOLE
8-98025-954-1
01
1
1412-
264
BRACKET; CONT UNIT
(B)
8-97616-354-5
01
1
1412-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98088-654-0
01
1
1412-
437
CONVERTER; DC
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO
8-97359-129-0
01
1
1412-
446
CONTROL UNIT; HSA
H.S.A SYSTEM<6EP>
1-80111-116-2
01
1
1412-
452
BOLT; BRKT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1412-
631
BOLT; CONT UNIT
H.S.A SYSTEM<6EP> M6X16 FLANGE
0-28650-616-0
02
1
1412-
657
CONTROL UNIT; MIMAMORI
8-98260-912-1
01
1
1412-

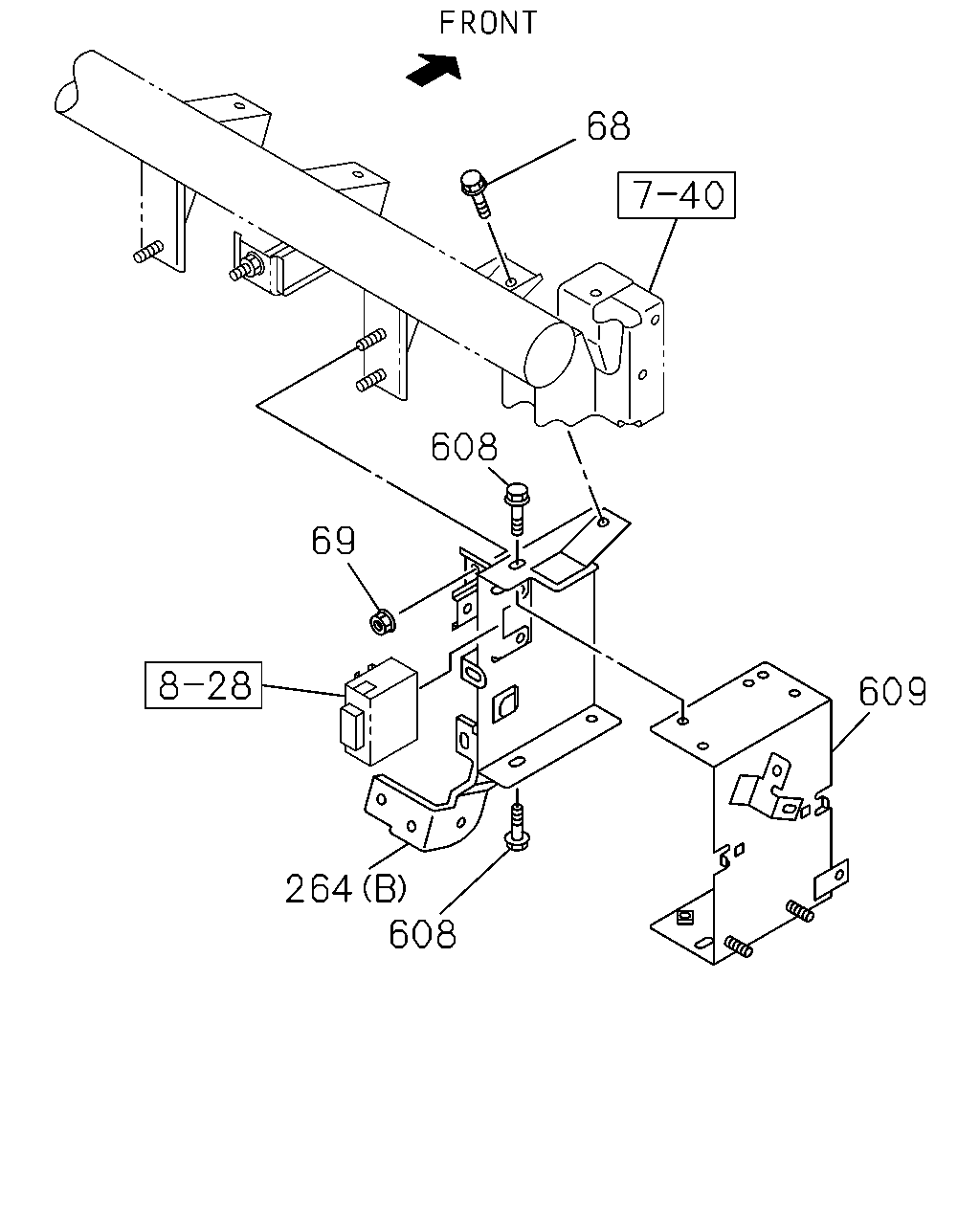

68
608
69
264
608
609
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
68
BOLT; BRKT
M6X16 FLANGE
0-28650-616-0
01
1
1412-
69
NUT; BRKT
M6 FLANGE
0-91180-106-0
01
1
1412-
264
BRACKET; CONT UNIT
(B)
8-97616-354-5
01
1
1412-
264
BRACKET; CONT UNIT
H.S.A SYSTEM<6EP> (A)
8-98088-654-0
01
1
1412-
608
BOLT; CONT UNIT,AIR SUS
AUTO DOOR LOCK<AU4> M6X16 FLANGE
0-28650-616-0
05
1
1412-
609
BRACKET ASM; ELEC UNIT,AIR SUS
AUTO DOOR LOCK<AU4>
8-98226-231-1
01
1
1412-

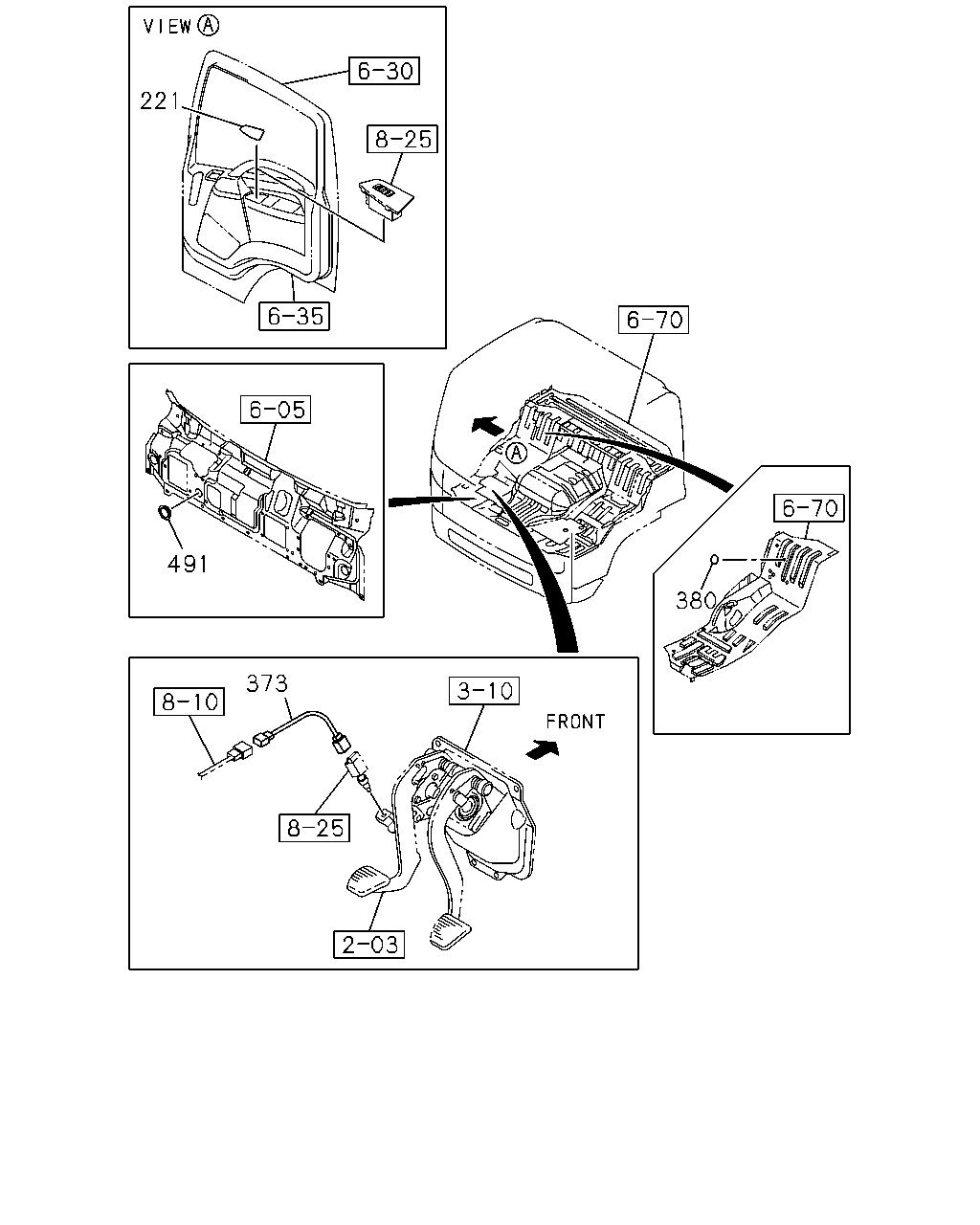

221
491
373
380
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-915-2
01
1
1412-
221
COVER; HOLE,DOOR LOCK SW
EXC. POWER WINDOW FRT DOOR<A32>
8-98029-916-2
01
1
1412-
373
HARNESS; CLU SWITCH
H.S.A SYSTEM<6EP>
8-98110-719-0
01
1
1412-
373
HARNESS; CLU SWITCH
EXC. H.S.A SYSTEM<6EP>
8-98110-720-0
01
1
1412-
380
SEAL
OD=25 BLACK
1-76798-019-0
01
1
1412-
491
PLUG; HOLE,CONT UNIT
OD=60
8-98054-651-0
01
1
1412-

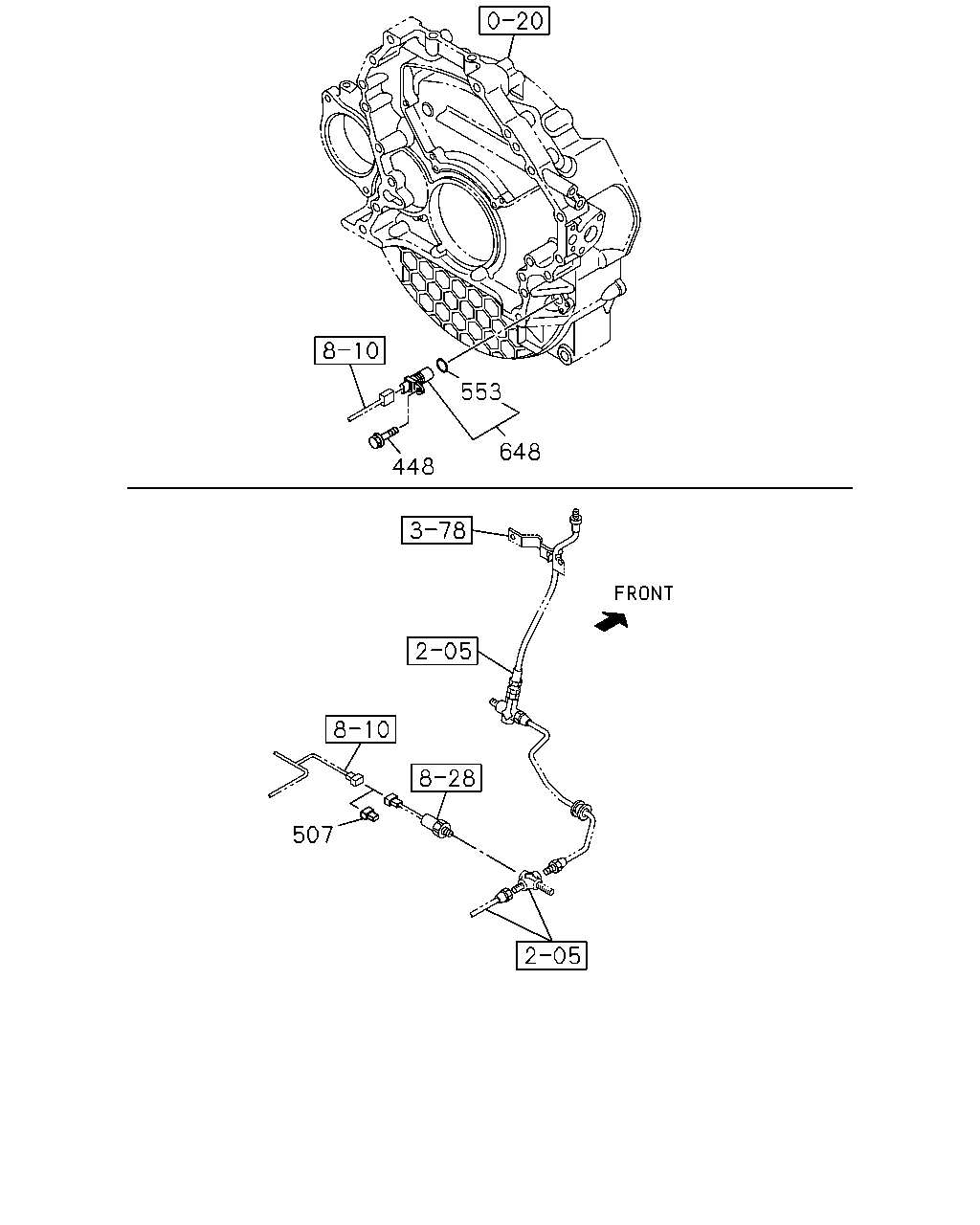

648
448
553
507
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
448
BOLT; SENSOR
M6X16 FLANGE
0-28050-616-0
01
1
1412-
507
CONNECTOR
EXC. H.S.A SYSTEM<6EP>
1-82690-666-0
01
1
1412-
553
GASKET
ID=14.2 OD=18.8
8-97369-404-0
01
1
1412-
648
SENSOR; CRANK ANGLE
8-97606-943-0
01
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
