Isuzu WW
▶
TRUCKS
▶
FSR
▶
11659 - FSR MIDDLE EAST
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶
6-03 — RADIATOR GRILLE
(#153245) — 52 parça
◀

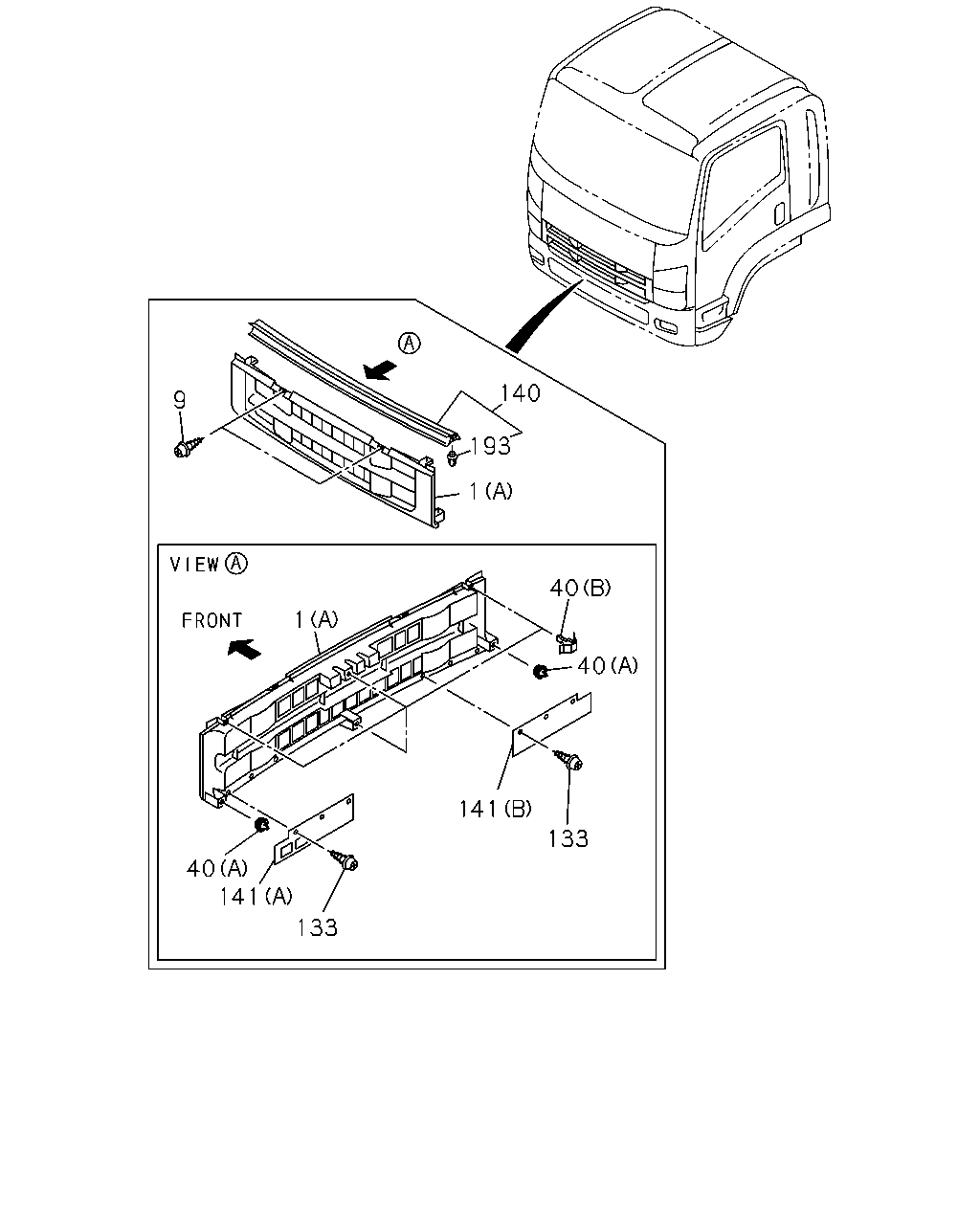

[603A] EXC.BRIGHT RAD GRILLE (26 parça)

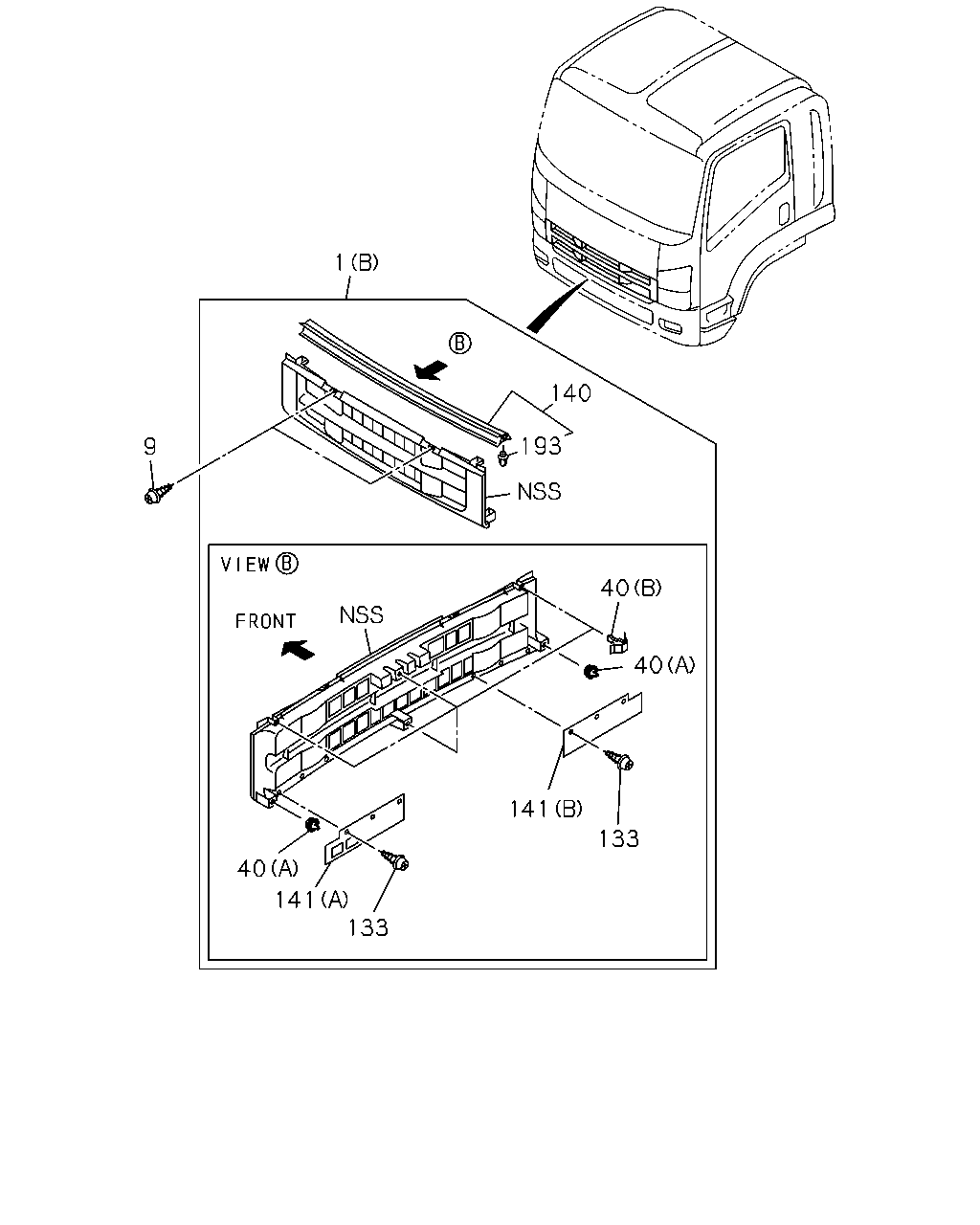

[603A] BRIGHT RAD GRILLE (26 parça)
▶
140
193
1
9
40
40
141
133
1
133
141
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY
8-97413-918-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE
8-97407-867-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97411-380-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97413-927-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97411-383-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97413-926-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW
8-97411-384-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN
8-97413-933-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE
8-97413-931-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97413-930-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE
8-97417-984-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97413-919-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE
8-97411-381-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97411-385-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW
8-97413-929-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN
8-97413-928-5
01
1
1412-
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE
8-98046-504-7
01
1
1412-
1
GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY
8-98040-994-5
01
1
1412-
9
SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER
0-74160-516-0
02
1
1412-
40
CLIP; RAD GRILLE
(A)
8-97581-651-2
02
1
1412-
40
CLIP; RAD GRILLE
(B)
8-98025-698-0
04
1
1412-
133
SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR
8-98081-722-0
06
1
1412-
140
SEAL; RAD GRILLE
8-98060-339-0
01
1
1412-
141
COVER; RAD GRILLE
(B)
8-98041-012-1
01
1
1412-
141
COVER; RAD GRILLE
(A)
8-98060-783-0
01
1
1412-
193
CLIP; SEAL
NATURAL
8-98027-457-0
13
1
1412-
1
140
193
9
40
40
141
133
133
141
40
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY
8-97413-918-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE
8-97407-867-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97411-380-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97413-927-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97411-383-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED
8-97413-926-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW
8-97411-384-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN
8-97413-933-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE
8-97413-931-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97413-930-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE
8-97417-984-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97413-919-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE
8-97411-381-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE
8-97411-385-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW
8-97413-929-5
01
1
1412-
1
GRILLE; RAD
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN
8-97413-928-5
01
1
1412-
1
GRILLE; RAD
BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE
8-98046-504-7
01
1
1412-
1
GRILLE; RAD
EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY
8-98040-994-5
01
1
1412-
9
SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER
0-74160-516-0
02
1
1412-
40
CLIP; RAD GRILLE
(A)
8-97581-651-2
02
1
1412-
40
CLIP; RAD GRILLE
(B)
8-98025-698-0
04
1
1412-
133
SCREW; COVER
T25 M5X12 TAPPING HEXALOBULAR
8-98081-722-0
06
1
1412-
140
SEAL; RAD GRILLE
8-98060-339-0
01
1
1412-
141
COVER; RAD GRILLE
(B)
8-98041-012-1
01
1
1412-
141
COVER; RAD GRILLE
(A)
8-98060-783-0
01
1
1412-
193
CLIP; SEAL
NATURAL
8-98027-457-0
13
1
1412-
