Isuzu WW
▶
TRUCKS
▶
FSR
▶
11659 - FSR MIDDLE EAST
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

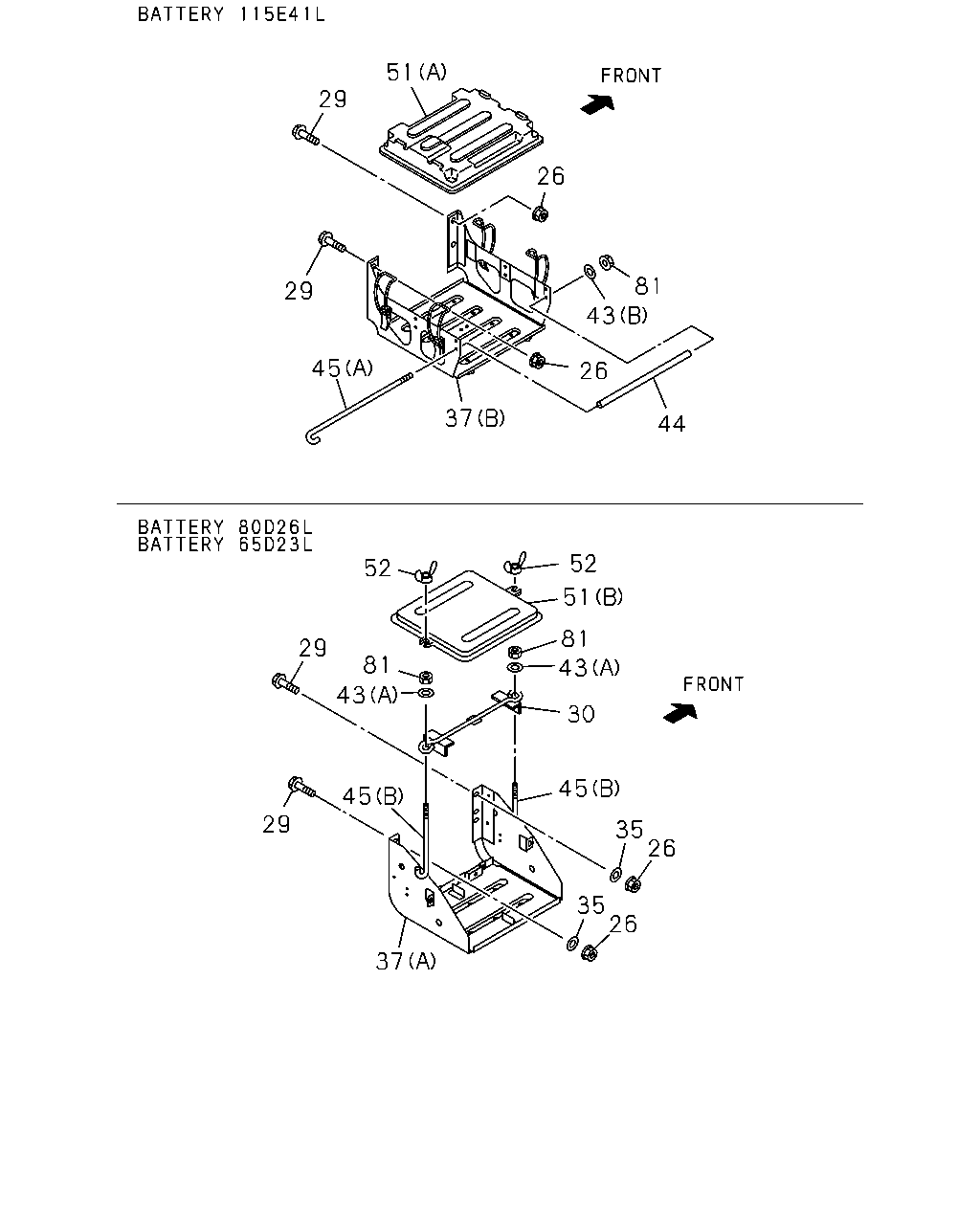

5-20 — BATTERY CARRIER
(#153242) — 16 parça
51
29
26
81
44
43
26
37
45
29
52
81
51
52
81
29
43
45
29
37
35
26
26
35
45
30
43
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M10 FLANGE
0-91180-210-0
04
1
1412-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1412-
30
PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>
5-53615-004-1
01
1
1412-
35
WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22
0-91614-610-0
04
1
1412-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1412-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-97384-068-2
01
1
1412-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-97384-067-2
01
1
1412-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1412-
43
WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1412-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1412-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1412-
45
ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120
9-53616-615-0
02
1
1412-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1412-
51
COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B)
8-97120-747-0
01
1
1412-
52
NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT
0-91118-408-0
02
1
1412-
81
NUT; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>,BATTERY 115E41L<8MA> M8 FLANGE
0-91180-108-0
02
1
1412-
