◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11110 - CYJ NZ JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-60 - HEATER UNIT; FRONT ▶
8-60 — HEATER UNIT; FRONT (#15324) — 39 parça

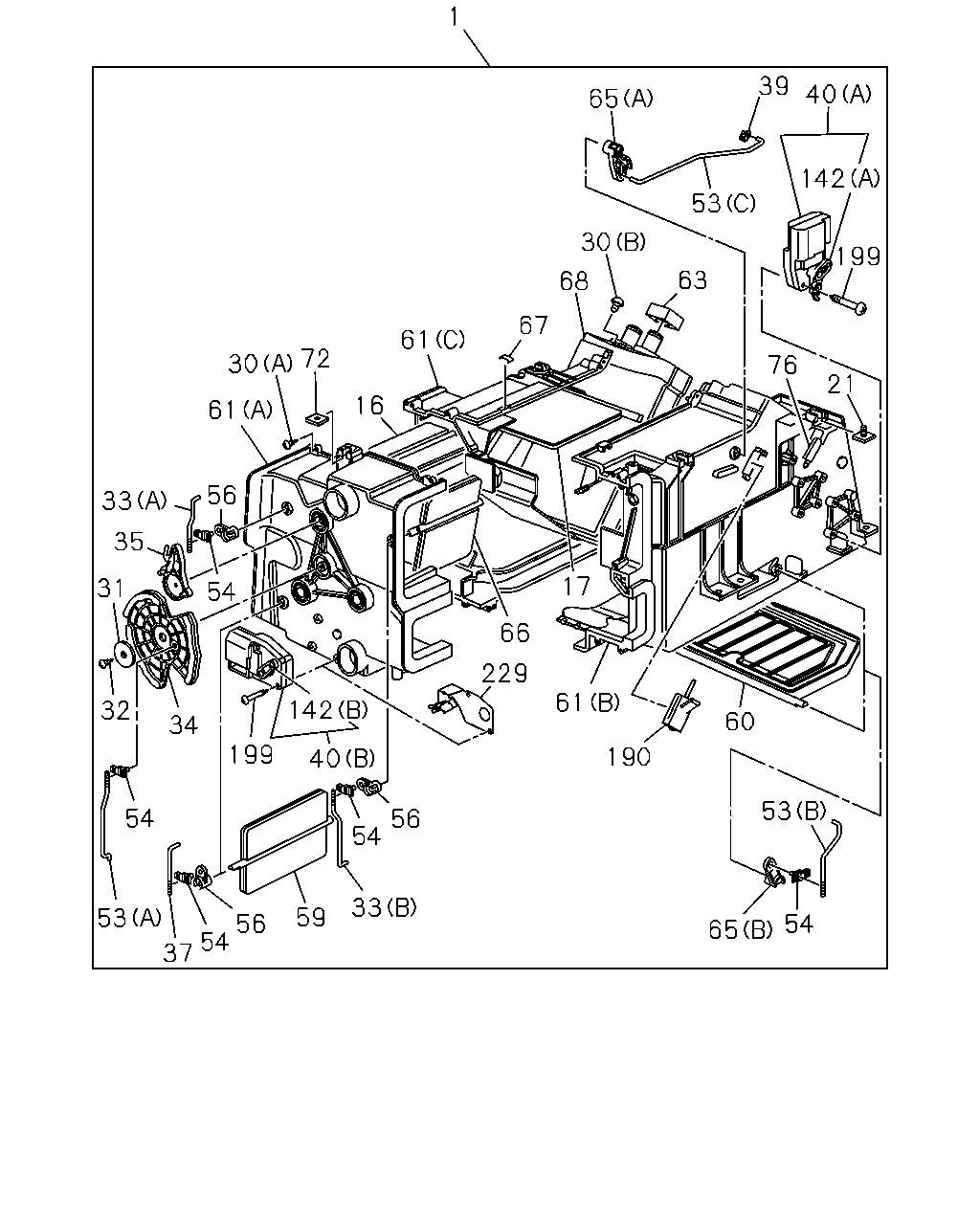

çizim 106855
65 39 40 142 53 30 63 199 21 76 68 67 61 72 16 30 61 33 56 35 31 54 34 32 199 40 142 56 54 54 53 37 54 56 59 33 65 54 53 190 60 61 229 66 17 1
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-182-1 01 1 0710-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0710-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0710-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0710-
30 SCREW; HTR UNIT
(A) M4X16 		8-94324-850-0 12 1 0710-
30 SCREW; HTR UNIT
(B) M5X20 		9-09829-324-1 01 1 0710-
31 WASHER; HTR UNIT 8-94129-950-0 01 1 0710-
32 SCREW; HTR UNIT
M5X20 		9-09829-324-1 01 1 0710-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0710-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0710-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0710-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0710-
37 ROD; LEVER 1-83579-620-1 01 1 0710-
39 CLIP; HTR UNIT 1-83574-136-0 01 1 0710-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0710-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-676-2 01 1 0710-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0710-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0710-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0710-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0710-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0710-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0710-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0710-
61 CASE; HTR UNIT
(B) 		1-83564-323-5 01 1 0710-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0710-
61 CASE; HTR UNIT
(A) 		1-83564-347-3 01 1 0710-
63 LINING; HTR UNIT 1-83579-557-0 02 1 0710-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0710-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0710-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-680-0 01 1 0710-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0710-
68 CORE; HTR UNIT 1-83562-078-1 01 1 0710-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0710-
76 BRACKET; HTR UNIT 1-83571-874-0 01 1 0710-
142 LEVER; ACTUATOR
(B) 		1-83564-409-0 01 1 0710-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0710-
190 SENSOR; HEATER UNIT 1-83579-658-1 01 1 0710-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0710-
229 SWITCH ASM; MICRO,HEATER UNIT 1-83579-688-2 01 1 0710-
