4-50 — FRONT SUSPENSION (#153234) — 29 parça

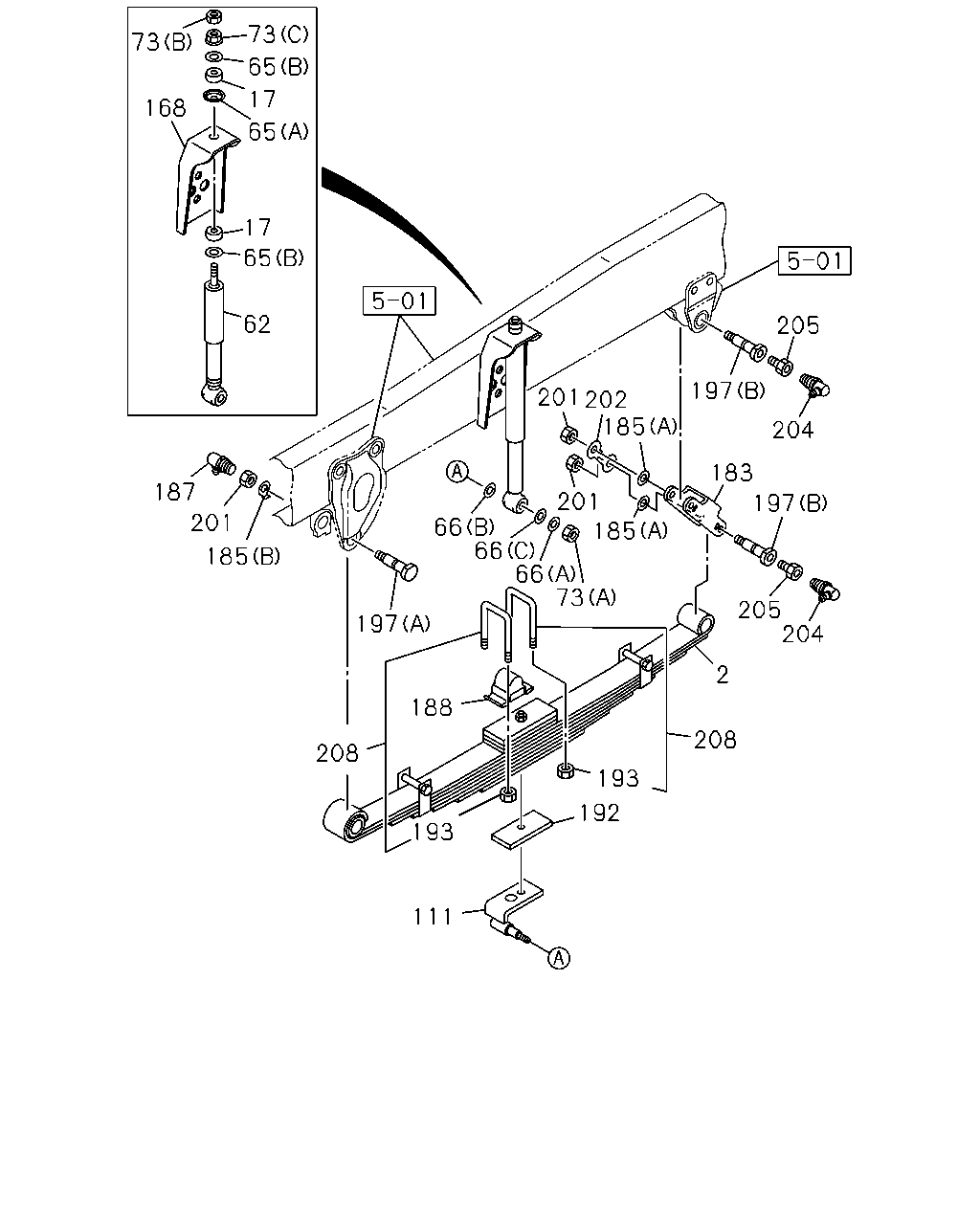

çizim 459236
73 73 65 17 65 17 65 62 168 205 197 202 201 187 201 185 185 204 183 201 185 66 66 66 73 197 205 204 2 208 193 192 193 197 188 208 111
BalonParca AdiParca NoAdetTipApplied Date
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98017-559-0 01 1 1412-
2 SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT. 		8-98017-558-0 01 1 1412-
17 BUSHING; RUBBER,S/ABS 1-51631-004-0 04 1 1412-
62 ABSORBER ASM; SHOCK,FRT 8-98060-332-0 02 1 1412-
65 WASHER; S/ABS
(A) 		1-51631-023-0 02 1 1412-
65 WASHER; S/ABS
(B) ID=10.5 OD=40 T=3.2 		8-98010-405-0 04 1 1412-
66 WASHER; LK,S/ABS SETTING
(A) ID=12.2 		0-91510-812-0 02 1 1412-
66 WASHER; LK,S/ABS SETTING
(B) ID=17 OD=30 		0-91610-516-0 02 1 1412-
66 WASHER; LK,S/ABS SETTING
(C) ID=12.5 		1-09503-171-0 02 1 1412-
73 NUT; BRKT,SHOCK
(A) M12 		0-91110-512-0 02 1 1412-
73 NUT; BRKT,SHOCK
(B) M10 		0-91111-510-0 02 1 1412-
73 NUT; BRKT,SHOCK
(C) M10 FLANGE 		0-91180-210-0 02 1 1412-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-587-4 01 1 1412-
111 SUPPORTER; S/ABS,FRT SUSP 1-51681-586-4 01 1 1412-
168 BRACKET; S/ABS,FRT SUSP 1-51681-494-0 02 1 1412-
183 SHACKLE; FRT SUSP 1-51162-037-0 02 1 1412-
185 WASHER; LK,PIN
(A) ID=25.5 		8-98010-404-0 04 1 1412-
185 WASHER; LK,PIN
(B) ID=23 		8-98010-411-0 02 1 1412-
187 NIPPLE; GREASE,FRT
PT1/8 ELBOW 		0-90301-610-0 02 1 1412-
188 RUBBER; CLAMP,U-BOLT,FRT SPR 1-51172-112-0 02 1 1412-
192 PIECE; DIST
T=4.5 		1-51177-149-0 AR 1 1412-
193 NUT; U BOLT
M16 		8-97360-121-0 08 1 1412-
197 PIN; FRT SPR,FRT
(B) 		8-98060-333-0 04 1 1412-
197 PIN; FRT SPR,FRT
(A) 		8-98060-335-0 02 1 1412-
201 NUT; PIN LK
M22 		0-91111-522-0 06 1 1412-
202 PLATE; LK,SPR PIN 8-98010-648-0 02 1 1412-
204 NIPPLE; GREASE,RR
PT1/8 ELBOW 		0-90301-610-0 04 1 1412-
205 ATTACHMENT; GREASE NIPPLE 9-43165-001-0 04 1 1412-
208 U-BOLT SET; FRT SPRING
L=165 		1-87870-483-0 04 1 1412-
