8-52 — PIPING; AIR CONDITIONING (#15323) — 52 parça

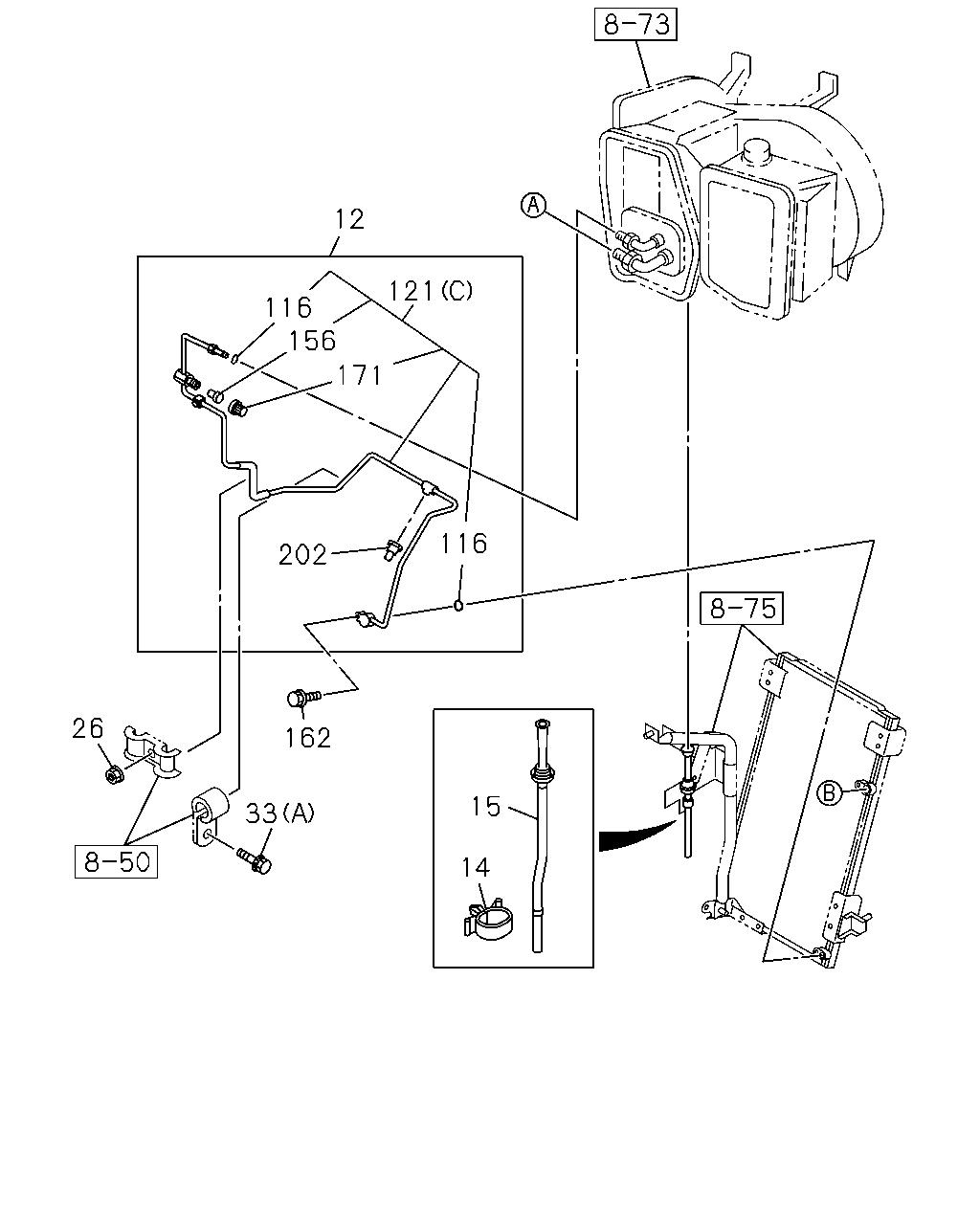

çizim 93436
12 121 116 156 171 116 202 26 162 15 33 14
BalonParca AdiParca NoAdetTipApplied Date
12 PIPE; COOLER,EVAP TO TANK 1-83567-877-1 01 1 0710-
14 CLIP; BAND,EVAP DRAIN HOSE
ID=20 		8-94410-200-0 01 1 0710-
15 HOSE; DRAIN 1-83572-635-0 01 1 0710-
26 NUT; PIPE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0710-
33 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
116 GASKET; PIPE
ID=7.4 		8-97095-906-0 02 1 0710-
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0710-
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0710-
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0710-
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0710-
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0710-
156 VALVE; PIPE 8-97095-909-0 01 1 0710-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0710-
171 CAP; PIPE
CAP MARK H 		8-97095-911-0 01 1 0710-
202 SWITCH; PRESSURE 1-83564-392-1 01 1 0710-

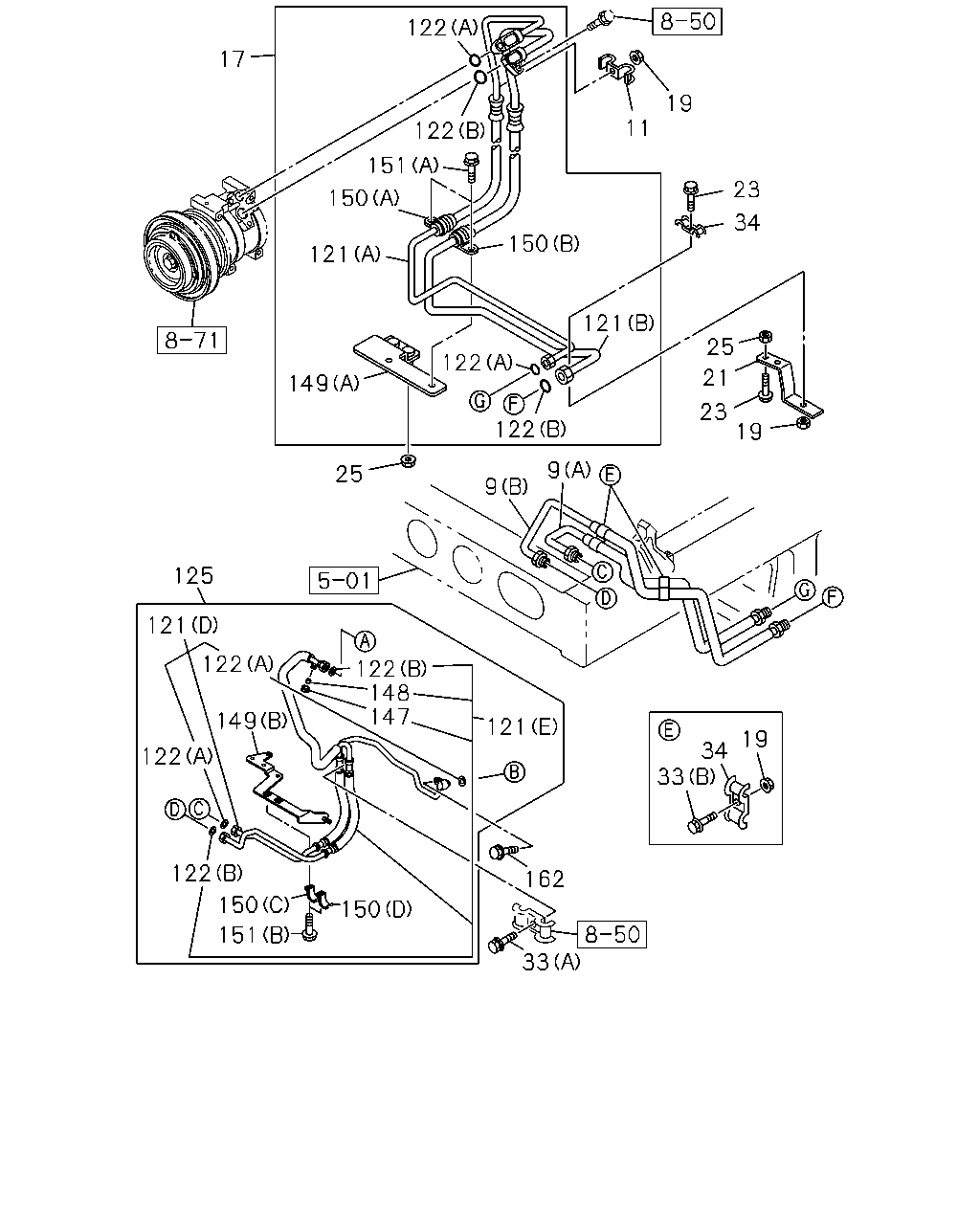

çizim 106860
122 17 19 11 122 151 23 150 34 150 121 121 25 122 21 149 122 23 19 9 25 9 125 121 122 122 148 147 149 121 19 34 33 122 122 162 150 150 151 33
BalonParca AdiParca NoAdetTipApplied Date
9 PIPE; COOLER,HOSE TO HOSE
(A) 		1-83567-888-0 01 1 0710-
9 PIPE; COOLER,HOSE TO HOSE
(B) 		1-83567-889-1 01 1 0710-
11 CLIP; COOLER PIPE
ID=12 & 14.5 		1-83574-257-0 01 1 0710-
17 HOSE; FLEX,CMPR TO PIPE 1-83577-062-1 01 1 0710-
19 NUT; CLIP FIX
M8 FLANGE 		0-91180-108-0 03 1 0710-
21 BRACKET; COOLER HOSE 1-83573-297-0 01 1 0710-
23 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 02 1 0710-
25 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1210-
25 NUT; BRKT
M8 FLANGE 		0-91180-108-0 03 1 0710-1209
25 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1210-
33 BOLT; CLIP
(B) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0710-0904
33 BOLT; CLIP
(A) M8X24.5 W/LK&PL WASHER 		8-98059-720-0 02 1 0905-
34 CLIP; COOLER PIPE
ID=20 & 20 		1-83574-195-1 03 1 0710-
121 HOSE; COOLER
(C) 		1-83577-054-0 01 1 0710-
121 HOSE; COOLER
(D) 		1-83577-055-0 01 1 0710-
121 HOSE; COOLER
(A) 		1-83577-070-0 01 1 0710-
121 HOSE; COOLER
(B) 		1-83577-071-0 01 1 0710-
121 HOSE; COOLER
(E) 		1-83577-086-0 01 1 0710-
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0710-
122 GASKET
(A) ID=11.7 		8-97095-907-0 02 1 0710-
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0710-
122 GASKET
(B) ID=14.5 		8-97095-908-0 02 1 0710-
125 HOSE; FLEX,UNIT TO CMPR 1-83577-026-1 01 1 0710-
147 CAP; FLEX HOSE
CAP MARK L 		8-97095-910-0 01 1 0710-
148 VALVE; FLEX HOSE 8-97095-909-0 01 1 0710-
149 BRACKET; COOLER HOSE
(A) 		1-83573-255-0 01 1 0710-
149 BRACKET; COOLER HOSE
(B) 		1-83573-265-0 01 1 0710-
150 CLIP; HOSE
(A) 		1-83574-249-0 01 1 0710-
150 CLIP; HOSE
(C) 		1-83574-262-0 01 1 0710-
150 CLIP; HOSE
(D) 		1-83574-263-0 01 1 0710-
150 CLIP; HOSE
(B) 		1-83574-264-0 01 1 0710-
151 BOLT; CLIP FIX,COOLER HOSE
(B) 		1-83539-336-0 02 1 0710-
151 BOLT; CLIP FIX,COOLER HOSE
(A) 		1-83578-098-0 02 1 0710-
162 BOLT; FLEX HOSE
M6X25 FLANGE 		0-28050-625-0 02 1 0710-
