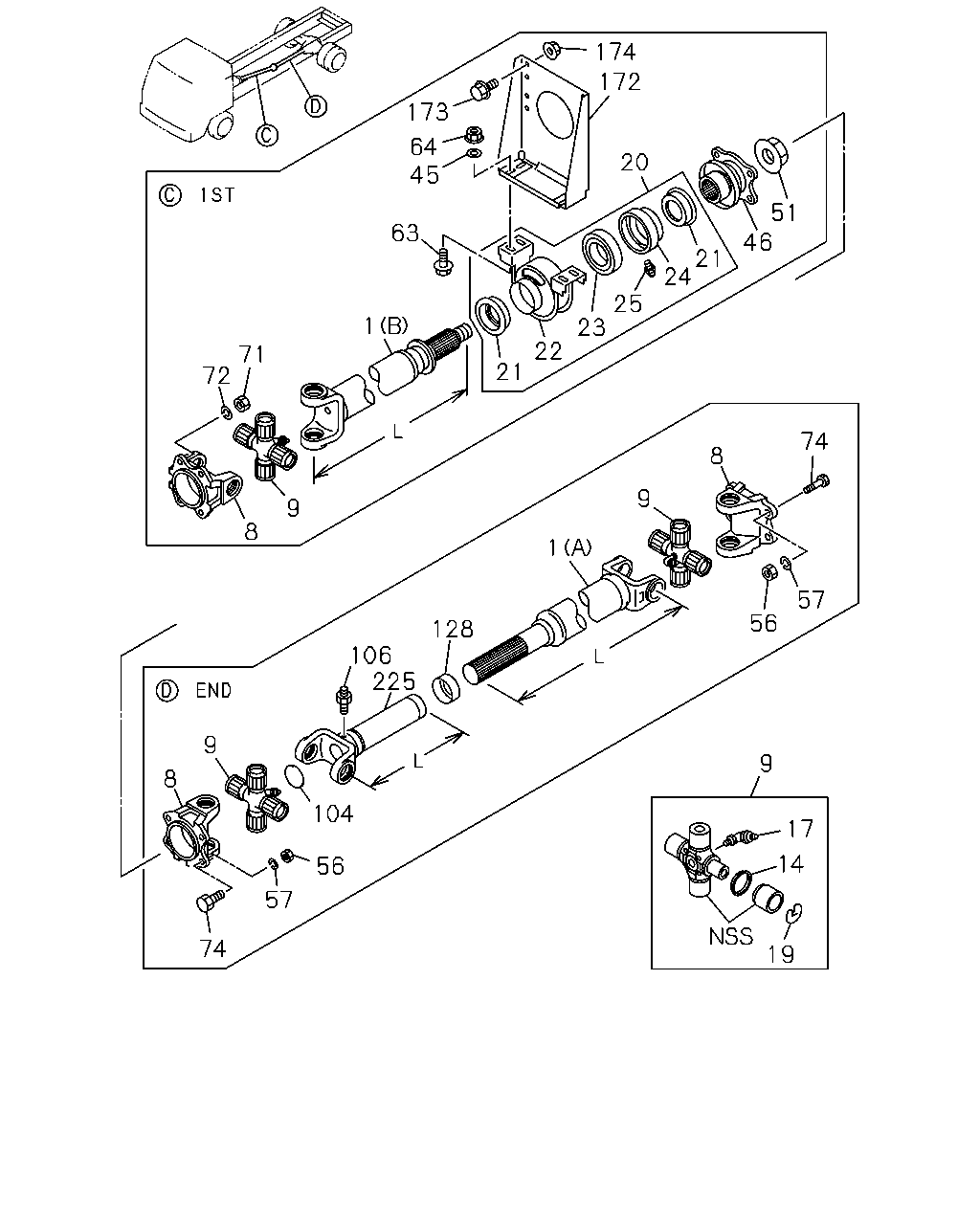

4-01 — PROPELLER SHAFT (#153222) — 109 parça

173 64 45 63 1 71 72 21 22 23 25 24 21 46 51 20 172 174 9 8 9 8 74 57 104 56 225 106 128 1 9 8 74 57 56 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (A) L=931	8-98069-695-0	01	1	1412-	●
1	SHAFT; PROP (B) L=684	8-98208-718-0	01	1	1412-	●
1	SHAFT; PROP (A) L=1381	8-98069-693-0	01	1	1412-		●
1	SHAFT; PROP (B) L=1294	8-98208-719-0	01	1	1412-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1412-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1412-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1412-		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1412-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	1412-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1412-		●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1412-	●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1412-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1412-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1412-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1412-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1412-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1412-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1412-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1412-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1412-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1412-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1412-		●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1412-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1412-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1412-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1412-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1412-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1412-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1412-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1412-		●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1412-	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1412-		●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1412-	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1412-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1412-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1412-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1412-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1412-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1412-		●
56	NUT; YOKE M14	0-91110-514-0	08	1	1412-	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1412-	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1412-	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1412-	●	●
71	NUT; YOKE M14	0-91110-514-0	04	1	1412-	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1412-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1412-	●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1412-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1412-	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1412-	●	●
172	BRACKET; CENTER BRG	8-98044-076-0	01	1	1412-		●
173	BOLT; BRKT M10X25 FLANGE	0-28651-025-0	04	1	1412-		●
174	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	1412-		●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1412-	●	●

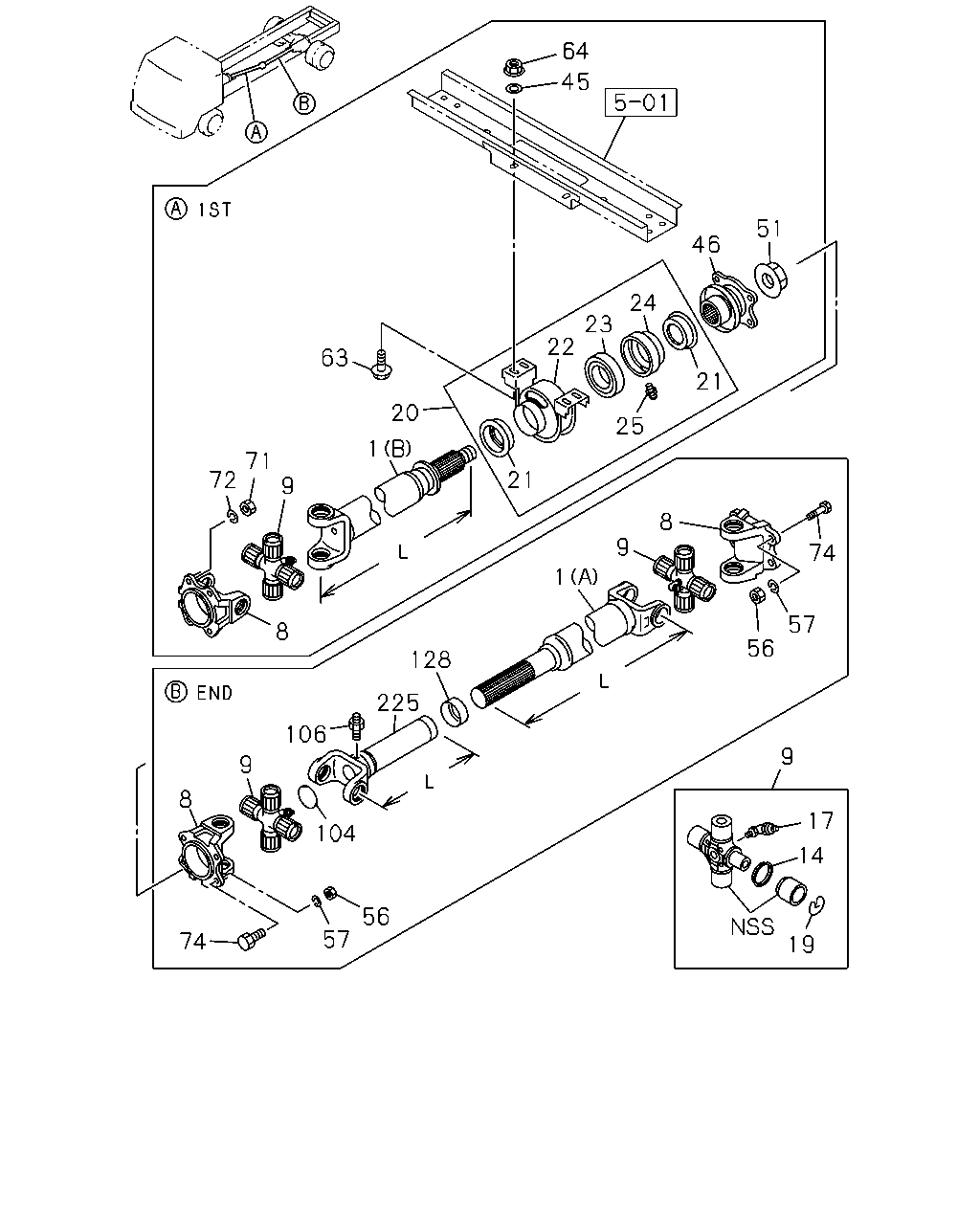

9 17 14 19 56 57 74 104 106 128 225 1 9 8 9 8 74 57 56 71 72 8 1 20 21 25 21 24 23 22 46 51 64 45 63 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; PROP (A) L=931	8-98069-695-0	01	1	1412-	●
1	SHAFT; PROP (B) L=684	8-98208-718-0	01	1	1412-	●
1	SHAFT; PROP (A) L=1381	8-98069-693-0	01	1	1412-		●
1	SHAFT; PROP (B) L=1294	8-98208-719-0	01	1	1412-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1412-	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	02	1	1412-	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-056-3	01	1	1412-		●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	01	1	1412-	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-1	02	1	1412-	●	●
9	JOURNAL ASM; PROP SHAFT	8-98048-925-0	01	1	1412-		●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1412-	●
14	COVER; DUST,SPIDER	8-98020-800-0	08	1	1412-	●	●
14	COVER; DUST,SPIDER	8-98020-800-0	04	1	1412-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1412-	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	02	1	1412-	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW	0-90301-610-0	01	1	1412-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1412-	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	08	1	1412-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	08	1	1412-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	08	1	1412-	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=1.95 BLUE	1-09587-086-0	04	1	1412-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.00 WHITE	1-09587-087-2	04	1	1412-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST OD=45.5 T=2.05 YELLOW	1-09587-088-1	04	1	1412-		●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1412-	●
20	BEARING ASM; CTR,PROP SHAFT	8-98020-881-0	01	1	1412-		●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1412-	●
21	SEAL; OIL,CENTER BRG ID=54	1-09625-161-0	02	1	1412-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1412-	●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-059-0	01	1	1412-		●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1412-	●
23	BEARING; CENTER,PROP SHAFT	9-00090-071-0	01	1	1412-		●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1412-	●
24	RETAINER; CENTER BRG,1ST	8-98020-882-0	01	1	1412-		●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1412-	●
25	NIPPLE; GREASE,CENTER BRG	8-98020-889-0	01	1	1412-		●
45	WASHER; PL,RET TO BRKT ID=10.5 OD=22	0-91614-610-0	04	1	1412-	●	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1412-	●
46	FLANGE; SPLINED,PROP SHAFT,1ST	8-98020-815-0	01	1	1412-		●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1412-	●
51	NUT; FLANGE,SPLINED M30	8-97160-857-0	01	1	1412-		●
56	NUT; YOKE M14	0-91110-514-0	08	1	1412-	●	●
57	WASHER; LK,YOKE ID=14.2	0-91510-614-0	08	1	1412-	●	●
63	BOLT; RET TO BRKT,PROP SHAFT,1ST M10X35 FLANGE	0-28651-035-0	04	1	1412-	●	●
64	NUT; RET TO BRKT M10 FLANGE	0-91180-210-0	04	1	1412-	●	●
71	NUT; YOKE M14	0-91110-514-0	04	1	1412-	●	●
72	WASHER; LK,YOKE ID=14.2	0-91510-614-0	04	1	1412-	●	●
74	BOLT; YOKE,TRANS M14X37	1-09000-121-0	08	1	1412-	●	●
104	PLUG; SLEEVE YOKE	1-09600-064-0	01	1	1412-	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT M6 STRAIGHT	0-90301-406-0	01	1	1412-	●	●
128	SEAL; SLEEVE	1-37247-024-0	01	1	1412-	●	●
225	YOKE; SLEEVE,PROP SHAFT L=254	8-98020-885-0	01	1	1412-	●	●
