8-50 — AIR CONDITIONING SYSTEM; FRONT (#15322) — 22 parça

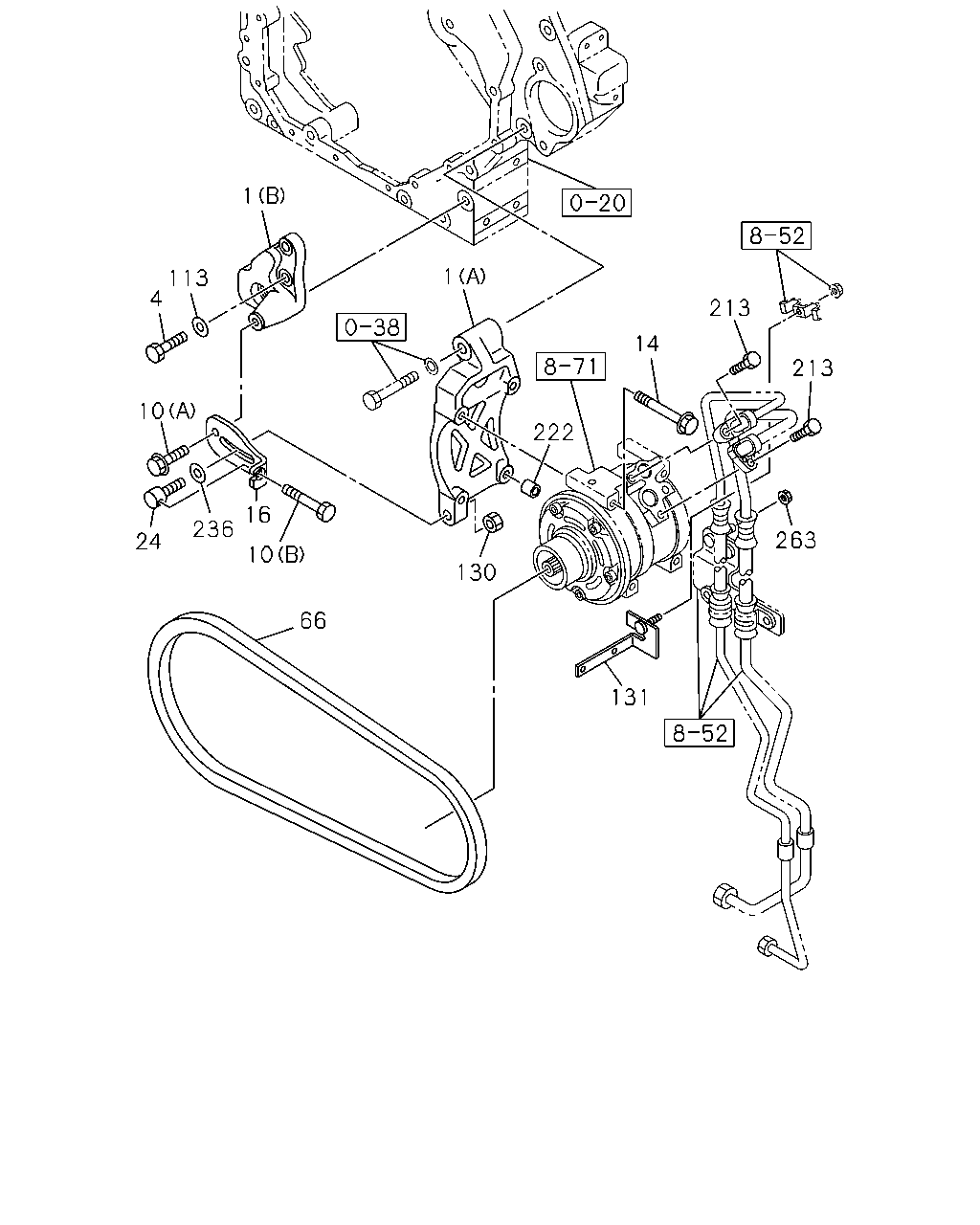

çizim 93111
113 4 1 1 14 213 213 263 131 130 222 66 10 16 236 24 10
BalonParca AdiParca NoAdetTipApplied Date
1 BRACKET; A/C
(A) 		1-83573-095-3 01 1 0710-
1 BRACKET; A/C
(B) 		1-83573-119-0 01 1 0710-
4 BOLT; A/C CMPR BRKT
M14X135 		1-09020-055-0 03 1 0710-
10 BOLT; ADJ PLATE
(A) M12X40 FLANGE 		0-28181-240-0 01 1 0710-0804
10 BOLT; ADJ PLATE
(A) M12X40 FLANGE 		0-28151-240-0 01 1 0805-
10 BOLT; ADJ PLATE
(B) M10X90 		1-09009-151-0 01 1 0710-
14 BOLT; CMPR
M8X80 FLANGE 		0-28050-880-0 04 1 0710-
16 PLATE; ADJ,CMPR 1-13674-293-2 01 1 0710-
24 PIECE; SLIDING
M12X45 		1-13674-160-0 01 1 0710-
66 BELT; A/C CMPR
L=1196 		1-13671-464-1 01 1 0710-0910
66 BELT; A/C CMPR
L=1189 		8-97604-138-1 01 1 0911-
113 WASHER; PL,BRKT
ID=15 OD=26 		9-09164-514-0 03 1 0710-
130 NUT; ADJ BRKT
M12 FLANGE 		0-91180-112-0 01 1 0710-
131 STAY; CMPR BRKT 1-83573-244-0 01 1 0710-
213 BOLT; FLEX HOSE TO CMPR
M6X25 FLANGE 		0-28050-625-0 02 1 0710-
222 GASKET; CONNECTOR
ID=8.4 OD=19 		5-11779-001-0 02 1 0710-
236 WASHER; PL,ADJ BOLT
ID=12.5 OD=32 		9-09160-712-0 01 1 0710-
263 NUT; FLEX HOSE
M8 FLANGE 		0-91180-108-0 02 1 0710-

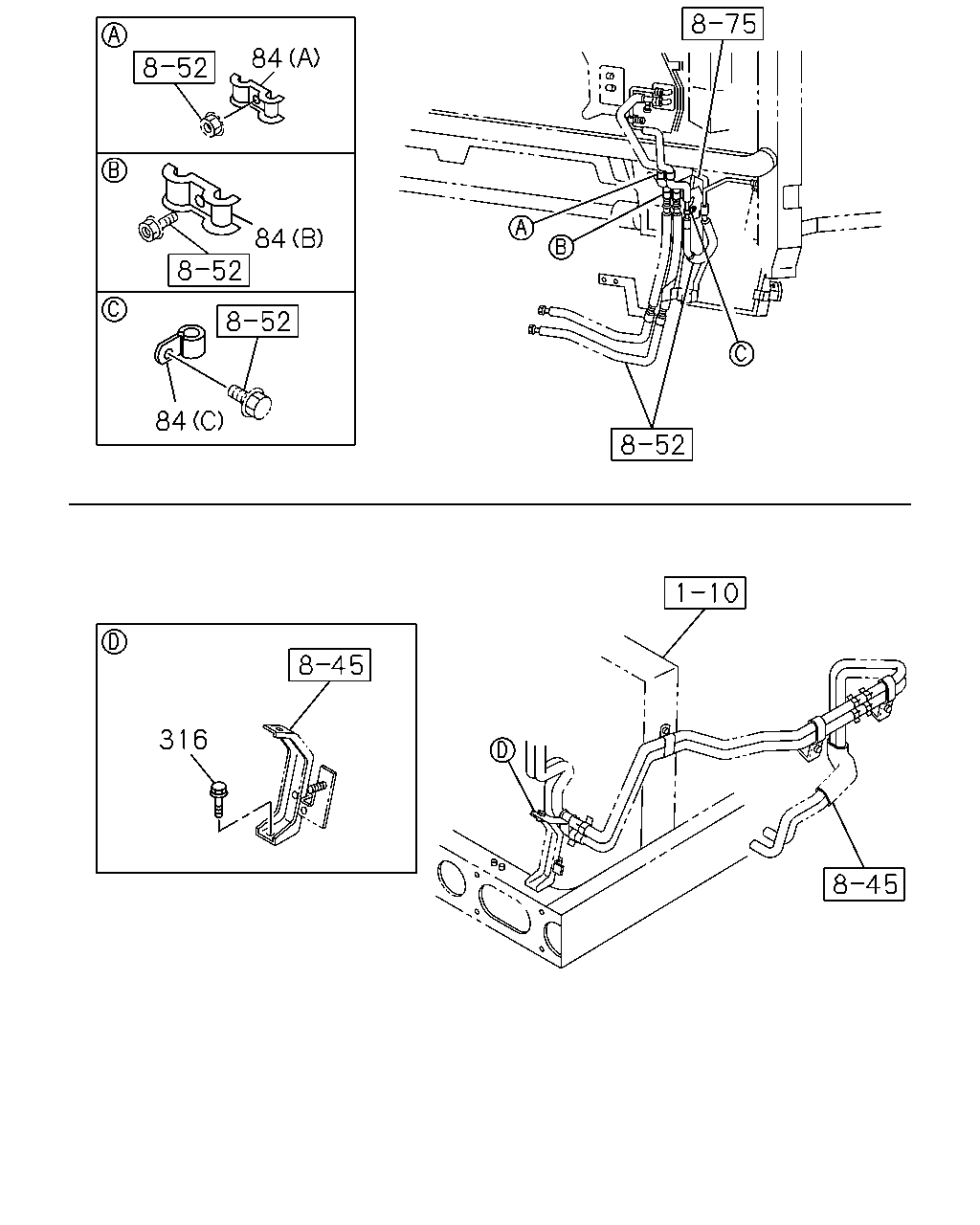

çizim 106862
84 84 84 316
BalonParca AdiParca NoAdetTipApplied Date
84 CLIP; PIPE
(C) ID=9 L=20 		0-95234-835-0 01 1 0710-
84 CLIP; PIPE
(A) ID=12.2 & 16.2 		1-83574-190-0 01 1 0710-
84 CLIP; PIPE
(B) ID=20 & 20 		1-83574-195-1 01 1 0710-
316 BOLT; BRKT FIX
M8X18 FLANGE 		0-28080-818-0 01 1 0710-
