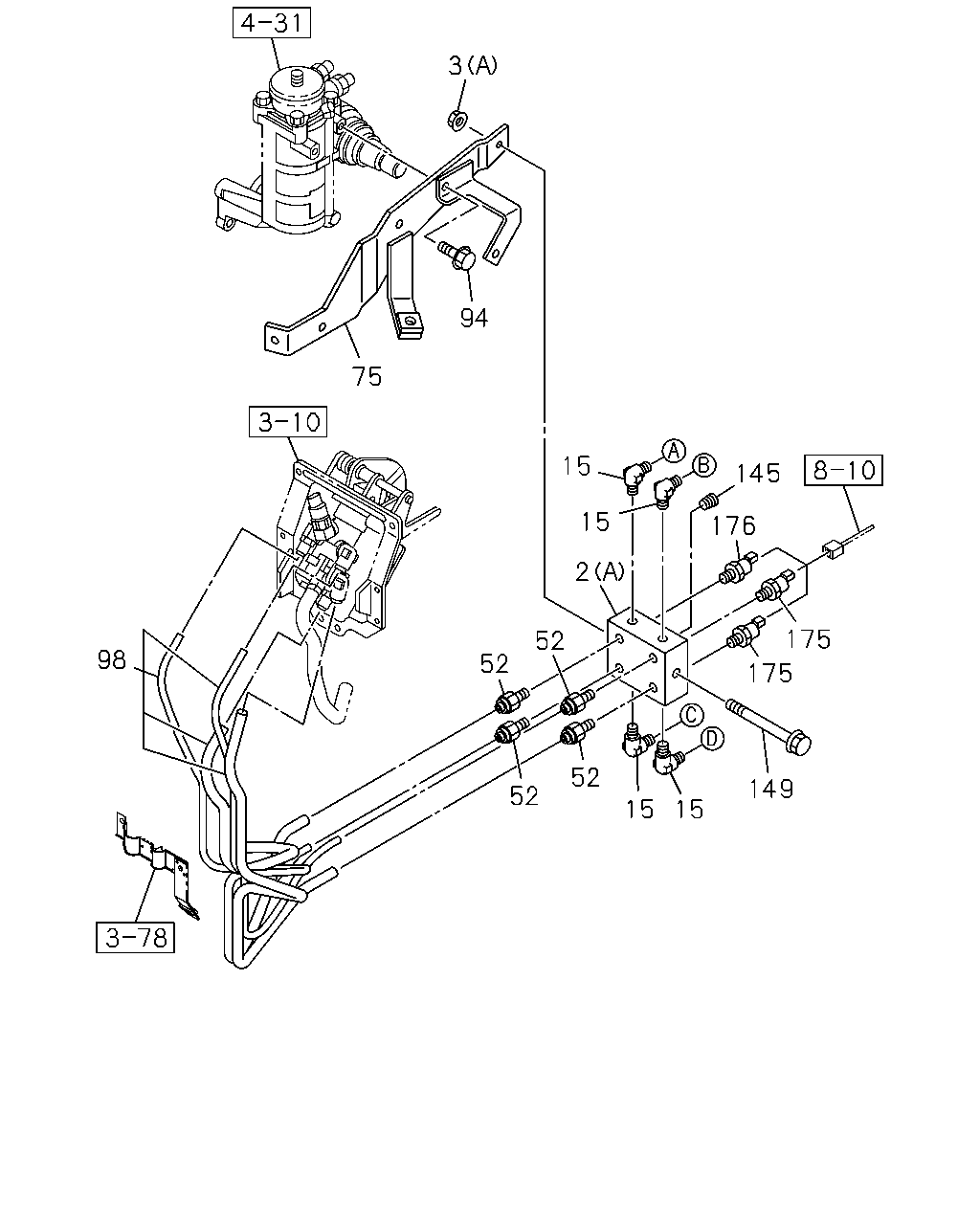

3-75 — BRAKE PIPING; AIR,FRONT (#153219) — 24 parça

3 94 75 98 52 52 52 52 15 15 149 175 175 2 15 15 145 176

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	1412-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1412-
3	NUT; PIPE UNION (B) M16	0-91111-516-0	01	1	1412-
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	1412-
15	CONNECTOR; AIR PIPE M16 & PT1/4 ELBOW	0-92134-310-0	04	1	1412-
52	CONNECTOR; NYLON TUBE DIN12 & R1/4 STRAIGHT	1-09660-967-0	04	1	1412-
75	BRACKET; UNION	8-98124-802-0	01	1	1412-
94	BOLT; BRKT M10X20 FLANGE	0-28151-020-0	02	1	1412-
98	TUBE; NYLON	8-98123-961-0	01	1	1412-
145	PLUG PT1/4	9-99204-513-0	01	1	1412-
149	BOLT; UNION M8X100 FLANGE	0-28050-800-0	01	1	1412-
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1412-
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1412-

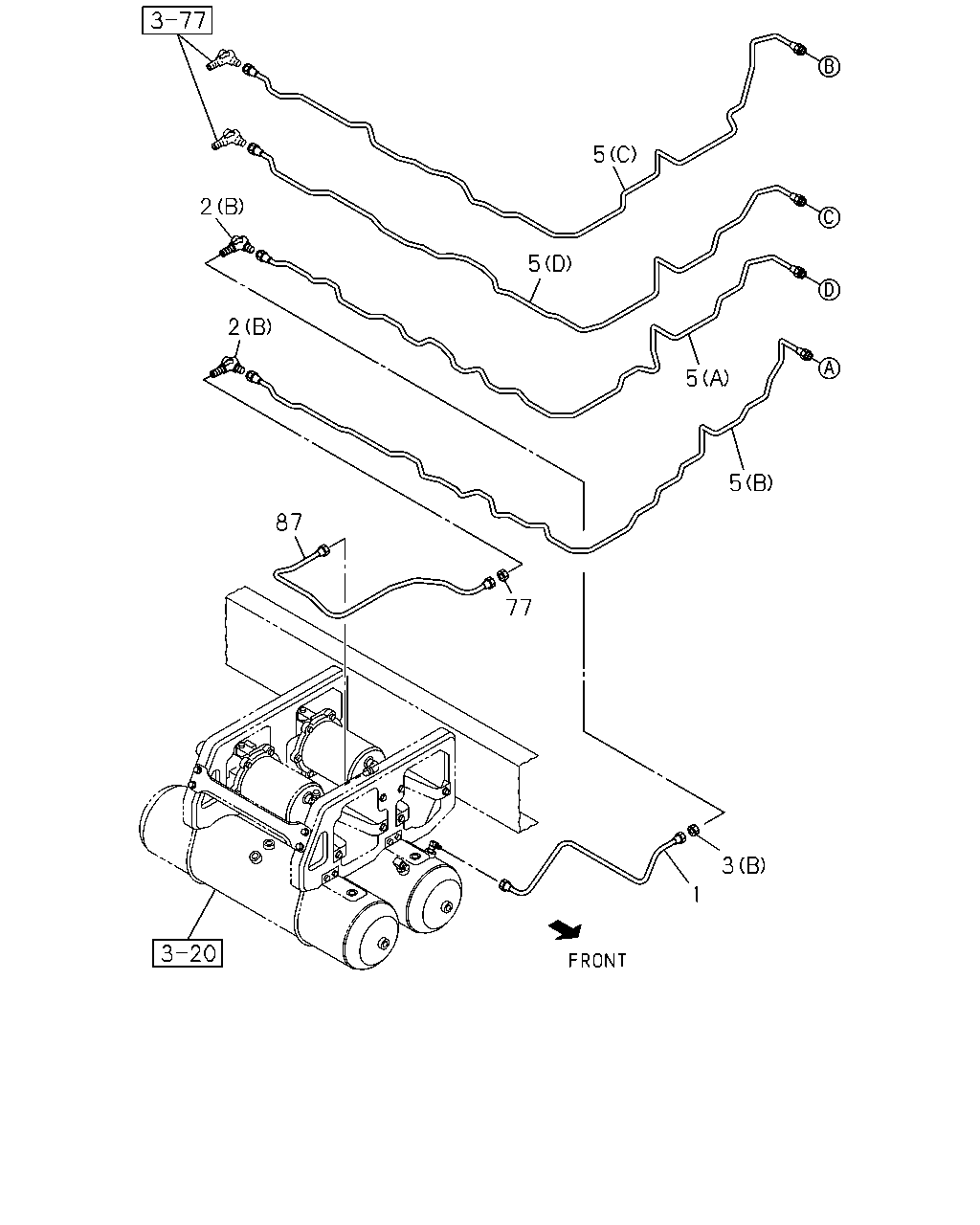

5 5 5 5 77 87 2 2 3 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,AIR TANK TO UNION L=643 SERVICED BY L=660	1-47428-869-0	01	1	1412-
2	UNION; AIR PIPE (B) M16 ELBOW	0-92135-210-0	02	1	1412-
2	UNION; AIR PIPE (A)	8-98057-394-1	01	1	1412-
3	NUT; PIPE UNION (B) M16	0-91111-516-0	01	1	1412-
3	NUT; PIPE UNION (A) M8 FLANGE	0-91180-108-0	01	1	1412-
5	PIPE; AIR,UNION TO UNION (D) L=3233 SERVICED BY L=3300	1-47428-886-0	01	1	1412-
5	PIPE; AIR,UNION TO UNION (A) L=3500	8-98239-045-0	01	1	1412-
5	PIPE; AIR,UNION TO UNION (B) L=3786	8-98239-046-0	01	1	1412-
5	PIPE; AIR,UNION TO UNION (C) L=3618	8-98239-047-0	01	1	1412-
77	NUT; PIPE UNION M16	0-91111-516-0	01	1	1412-
87	PIPE; AIR,UNION TO AIR MASTER L=865 SERVICED BY L=900	1-47428-873-0	01	1	1412-
