◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11659 - FSR MIDDLE EAST ▶ 3 - Brakes, Brake System ▶ 3-70 - BRAKE PIPING; AIR,AIR MASTER ▶
3-70 — BRAKE PIPING; AIR,AIR MASTER (#153218) — 45 parça

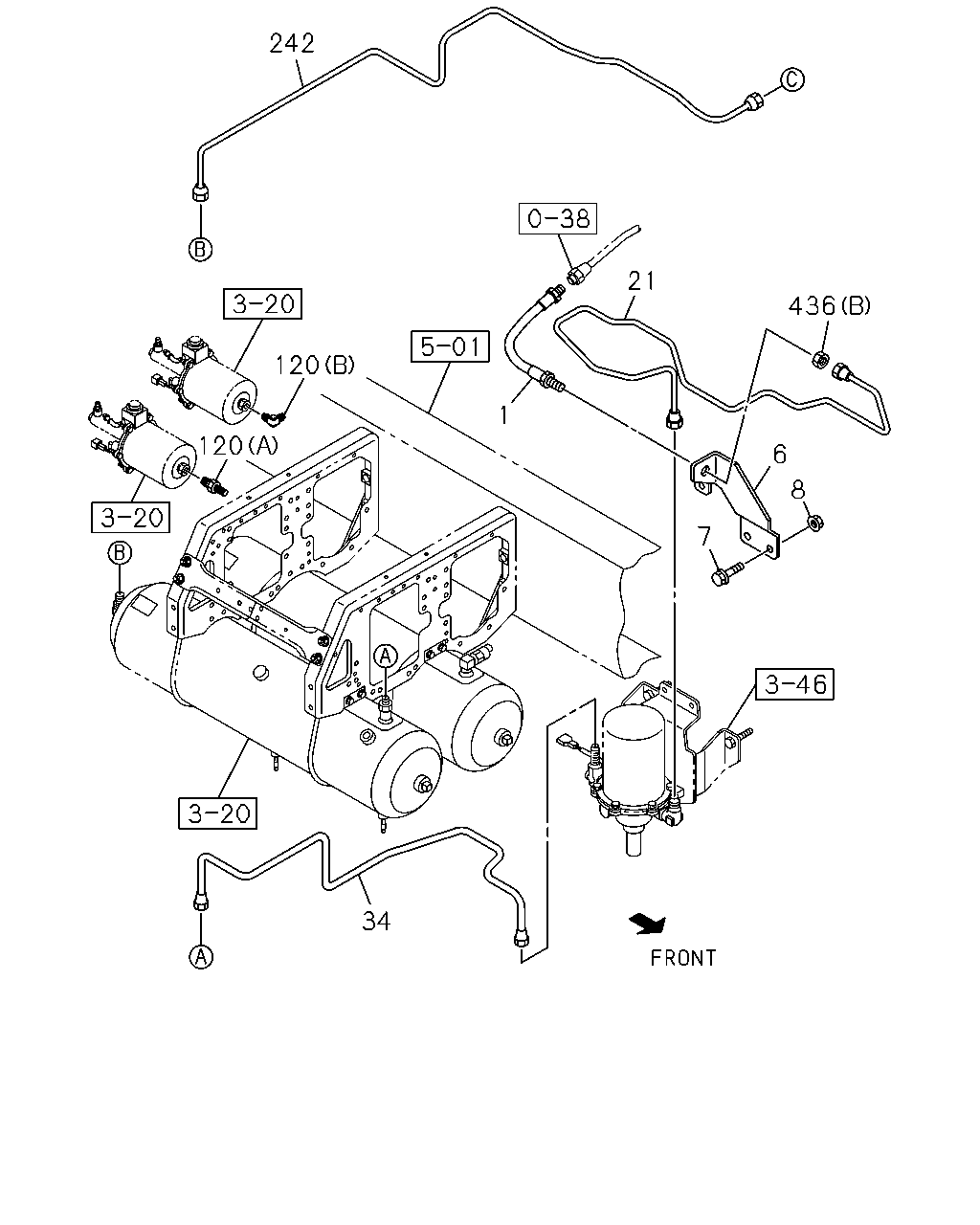

çizim 458756
34 7 8 6 436 21 1 120 120 242
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-913-0 01 1 1412-
6 BRACKET; FLEX HOSE,AIR TANK 8-98227-136-0 01 1 1412-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 1412-
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91180-108-0 02 1 1412-
21 PIPE; AIR,UNION TO AIR DRYER
L=1848 		8-98213-157-0 01 1 1412-
34 PIPE; AIR
L=1253 SERVICED BY L=1300 		1-49115-488-0 01 1 1412-
120 CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT 		1-09650-179-1 01 1 1412-
120 CONNECTOR; AIR PIPE
(B) M16 & PT3/8 ELBOW 		1-09650-438-0 01 1 1412-
242 PIPE; AIR,AIR TANK TO UNION
L=1222 SERVICED BY L=1250 		1-47428-817-0 01 1 1412-
436 NUT; CLIP
(B) M22 		0-91111-522-0 01 1 1412-
436 NUT; CLIP
(A) M8 FLANGE 		0-91180-108-0 02 1 1412-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		0-91180-108-0 01 1 1412-

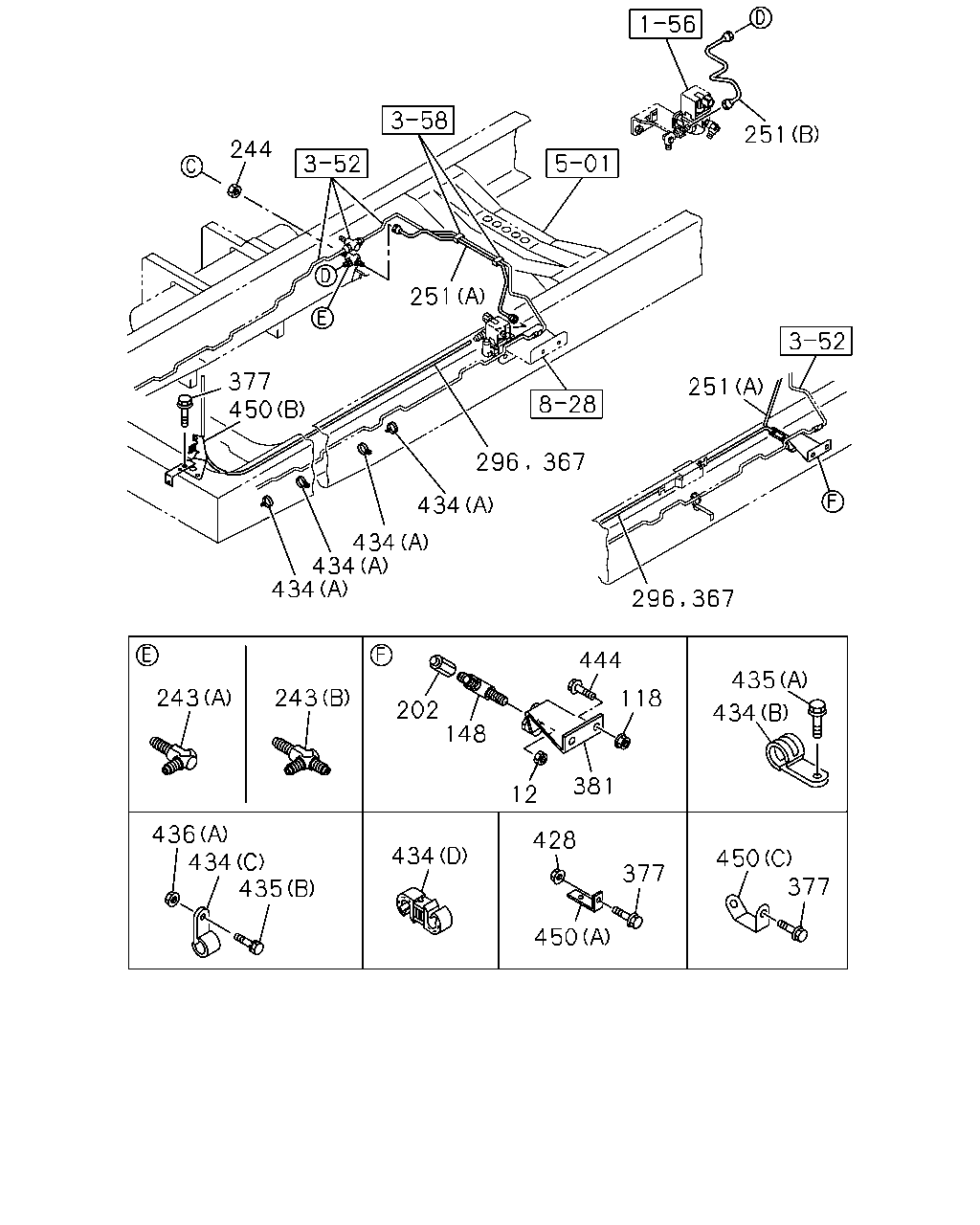

çizim 459198
377 450 434 435 444 118 381 12 148 202 243 243 436 434 435 434 428 377 450 367 296 434 434 434 434 296 367 251 251 251 244 377 450
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 1412-
118 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE 		0-91180-210-0 02 1 1412-
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 1412-
202 ADAPTER
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1412-
243 UNION; AIR PIPE
PTO CONTROL<SV6> (B) M12 3WAY 		0-92138-906-0 01 1 1412-
243 UNION; AIR PIPE
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (B) M12 3WAY 		0-92138-906-0 01 1 1412-
243 UNION; AIR PIPE
RIGID SEAT WO/ARM REST<TAZ> EXC. PTO CONTROL<SV6> (A) M12 ELBOW 		0-92125-206-0 01 1 1412-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 1412-
251 PIPE; AIR,UNION TO MAG VLV
(B) L=308 		8-98208-549-0 01 1 1412-
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> (A) L=884 SERVICED BY L=900 		1-47428-813-0 01 1 1412-
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> (A) L=884 SERVICED BY L=900 		1-47428-813-0 01 1 1412-
296 TUBE; NYLON
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 OD=6 		1-87411-002-0 01 1 1412-
367 TUBE; CORRUGATE
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=4000 ID=7 		1-87411-017-0 01 1 1412-
377 BOLT; BRKT FIX
M8X25 FLANGE 		0-28650-825-0 01 1 1412-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 03 1 1412-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 04 1 1412-
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> 		8-98119-700-0 01 1 1412-
428 NUT; BRKT
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 1412-
434 CLIP
(B) ID=16 L=20 		0-95235-536-0 02 1 1412-
434 CLIP
(D) ID=10 & 12 		1-09709-278-1 01 1 1412-
434 CLIP
(D) ID=10 & 15 		1-09709-279-1 01 1 1412-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) ID=7 L=20 		0-95234-635-0 01 1 1412-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 09 1 1412-
435 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1412-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) M8X20 FLANGE 		0-28650-820-0 01 1 1412-
436 NUT; CLIP
(B) M22 		0-91111-522-0 01 1 1412-
436 NUT; CLIP
(A) M8 FLANGE 		0-91180-108-0 02 1 1412-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE 		0-91180-108-0 01 1 1412-
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 1412-
450 BRACKET; CLIP
(A) L=90 B=25 		1-47475-530-0 01 1 1412-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=50 B=25 		1-47477-694-0 01 1 1412-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (C) 		8-98117-686-0 02 1 1412-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) 		8-98180-947-0 01 1 1412-
