3-55 — BRAKE PIPING; OIL,REAR (#153216) — 19 parça

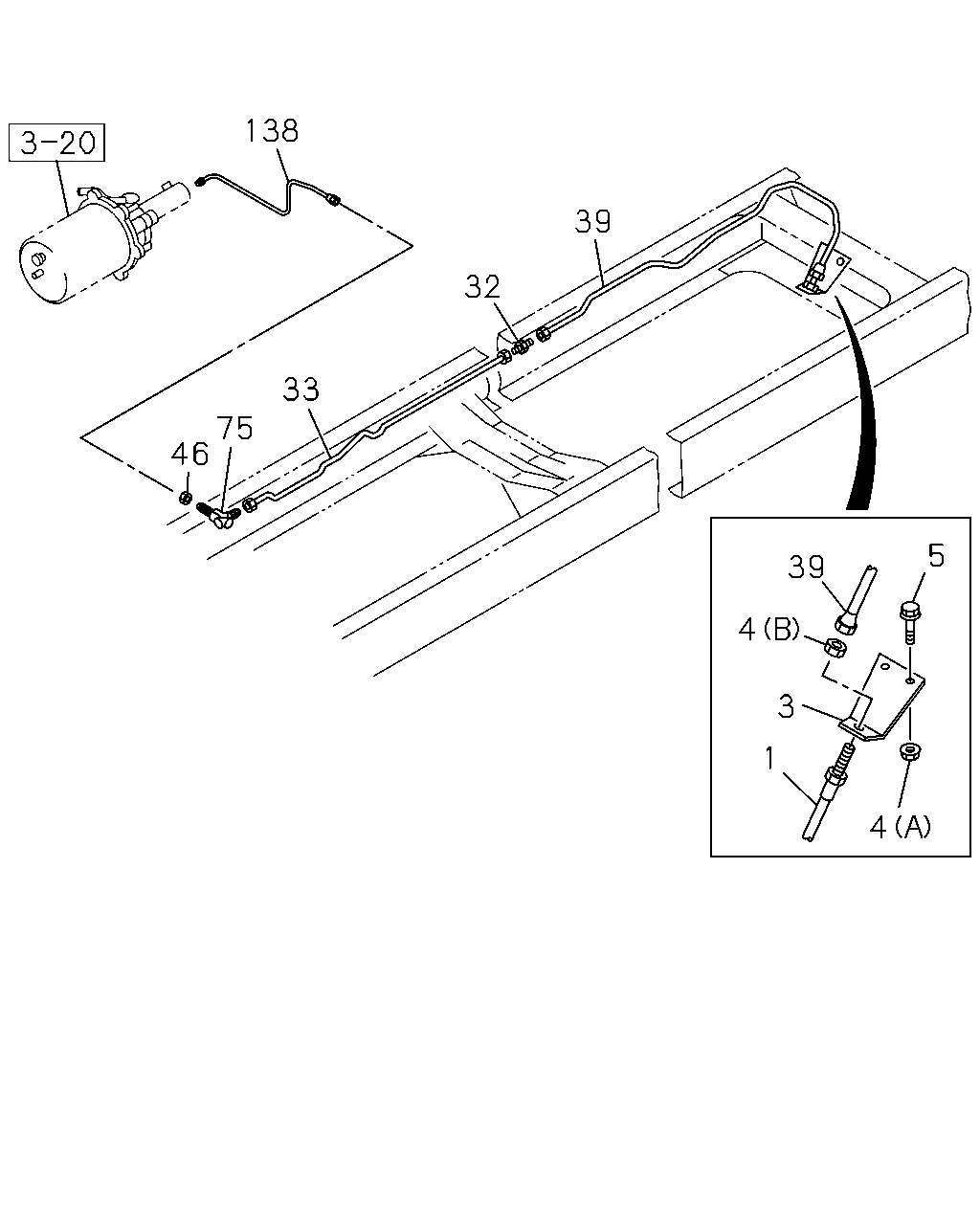

46 75 33 32 39 138 4 39 5 3 1 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,RR BRK BRAKE ADJUSTER MANUAL<BJR> L=610	0-05213-610-0	01	1	1412-
1	HOSE; FLEX,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=730	0-05213-730-0	01	1	1412-
3	BRACKET; FLEX HOSE,RR BRK BRAKE ADJUSTER MANUAL<BJR>	1-47465-251-0	01	1	1412-
3	BRACKET; FLEX HOSE,RR BRK EXC. BRAKE ADJUSTER MANUAL<BJR>	8-98119-699-1	01	1	1412-
4	NUT; BRKT,FLEX HOSE,RR BRK (A) M8 FLANGE	0-91180-108-0	02	1	1412-
4	NUT; BRKT,FLEX HOSE,RR BRK (B) M12	9-09840-280-0	01	1	1412-
5	BOLT; BRKT,FLEX HOSE,RR BRK M8X30 FLANGE	0-28650-830-0	02	1	1412-
32	UNION; OIL PIPE M12 L=40	0-92113-006-0	01	1	1412-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 3700MM(37W) L=501 SERVICED BY L=550	1-47428-724-0	01	1	1412-
33	PIPE; OIL,UNION TO UNION WHEEL BASE 4800MM(48W) L=1593 SERVICED BY L=1620	1-47428-736-0	01	1	1412-
39	PIPE; OIL,UNION TO RR FLEX HOSE BRAKE ADJUSTER MANUAL<BJR> L=1987	8-98208-563-0	01	1	1412-
39	PIPE; OIL,UNION TO RR FLEX HOSE EXC. BRAKE ADJUSTER MANUAL<BJR> L=2269 SERVICED BY L=2350	1-47428-741-0	01	1	1412-
46	NUT; UNION,OIL PIPE M12	9-09840-280-0	01	1	1412-
75	UNION; OIL PIPE M12 ELBOW	0-92125-206-0	01	1	1412-
138	PIPE; HYDRAULIC UNIT L=414	8-98216-686-0	01	1	1412-

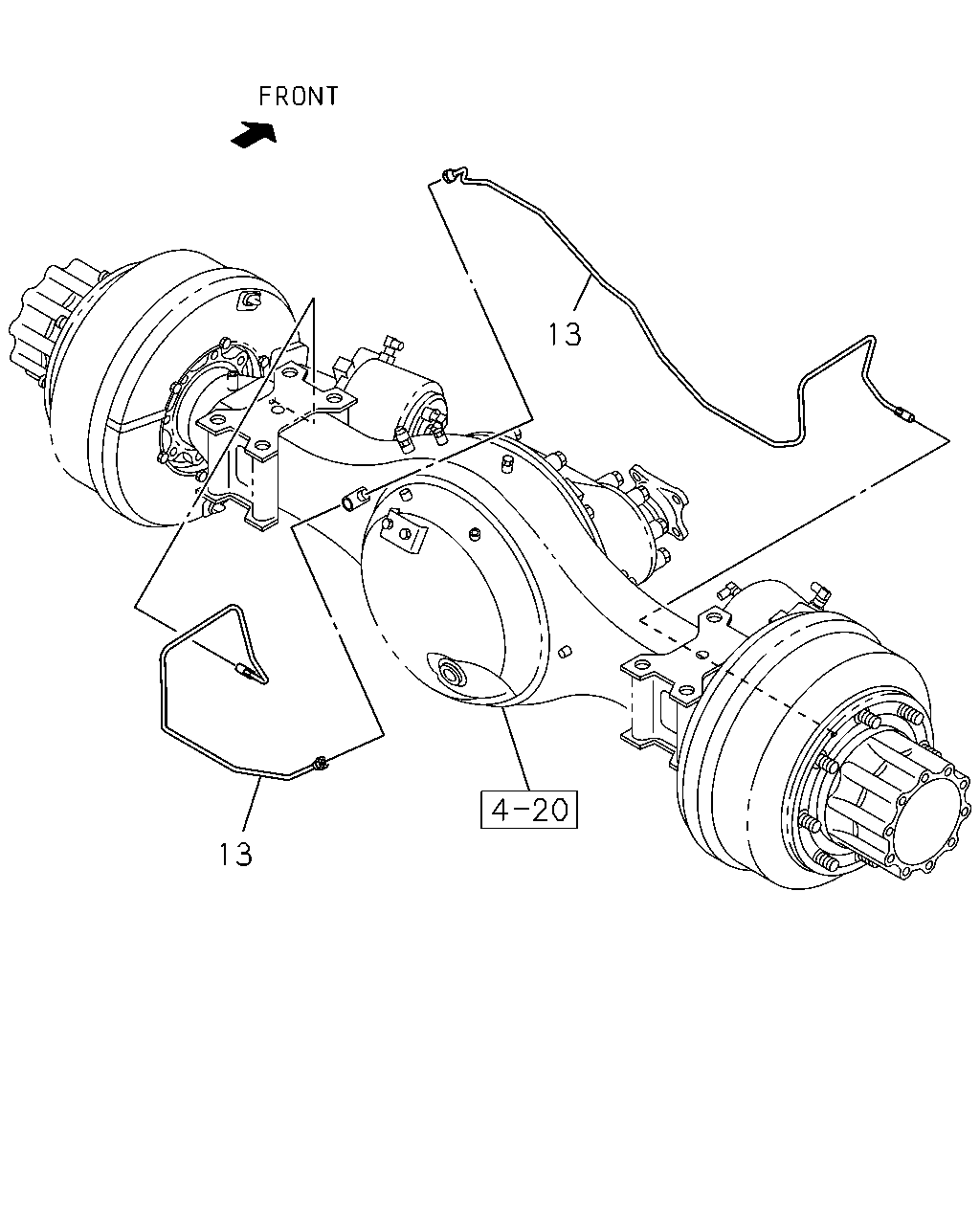

13 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> L=685	1-47427-107-0	01	1	1412-
13	PIPE; BRK,RR AXLE BRAKE ADJUSTER MANUAL<BJR> L=858	1-47427-108-0	01	1	1412-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> L=1190	8-98012-467-0	01	1	1412-
13	PIPE; BRK,RR AXLE EXC. BRAKE ADJUSTER MANUAL<BJR> L=600	8-98012-468-0	01	1	1412-
