◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11659 - FSR MIDDLE EAST ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#153215) — 20 parça

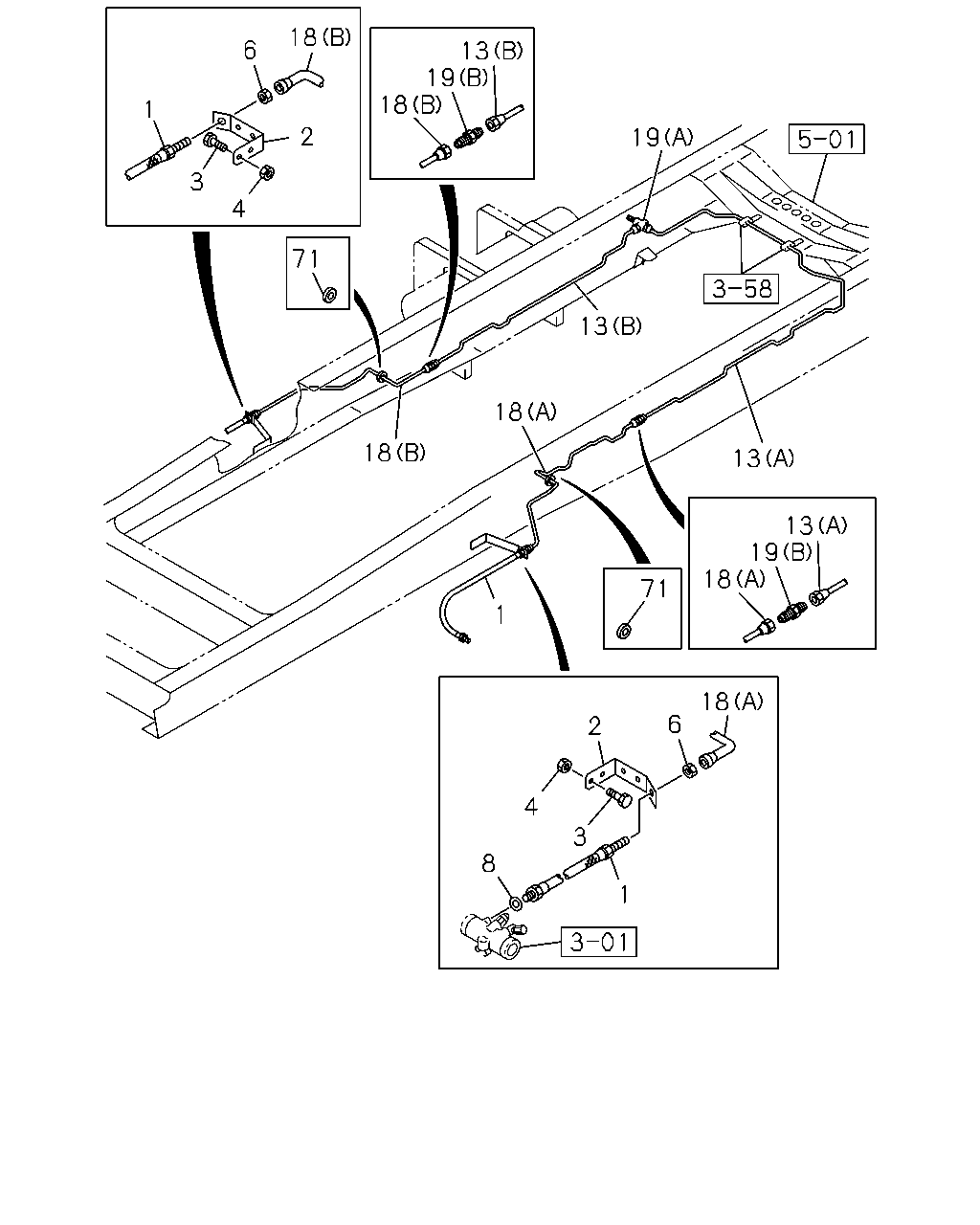

çizim 458695
1 3 4 8 2 6 18 71 1 18 19 13 13 13 18 18 19 13 19 18 18 6 2 4 3 1 71
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,FRT BRK
BRAKE ADJUSTER MANUAL<BJR> 		8-98187-085-0 02 1 1412-
1 HOSE; FLEX,FRT BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		8-98119-714-0 02 1 1412-
2 BRACKET; FLEX HOSE,FRT BRK 8-98213-219-0 02 1 1412-
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X25 FLANGE 		0-28650-825-0 04 1 1412-
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91180-108-0 04 1 1412-
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 1412-
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 1412-
13 PIPE; OIL,UNION TO UNION
(A) L=2071 SERVICED BY L=2200 		1-47428-740-0 01 1 1412-
13 PIPE; OIL,UNION TO UNION
(B) L=1328 SERVICED BY L=1370 		1-47428-734-0 01 1 1412-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=721 SERVICED BY L=800 		1-47428-728-0 01 1 1412-
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=562 SERVICED BY L=600 		1-47428-725-0 01 1 1412-
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1412-
19 UNION; OIL PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1412-
71 GROMMET; OIL PIPE
ID=24 OD=30 T=17 		9-09956-092-1 02 1 1412-

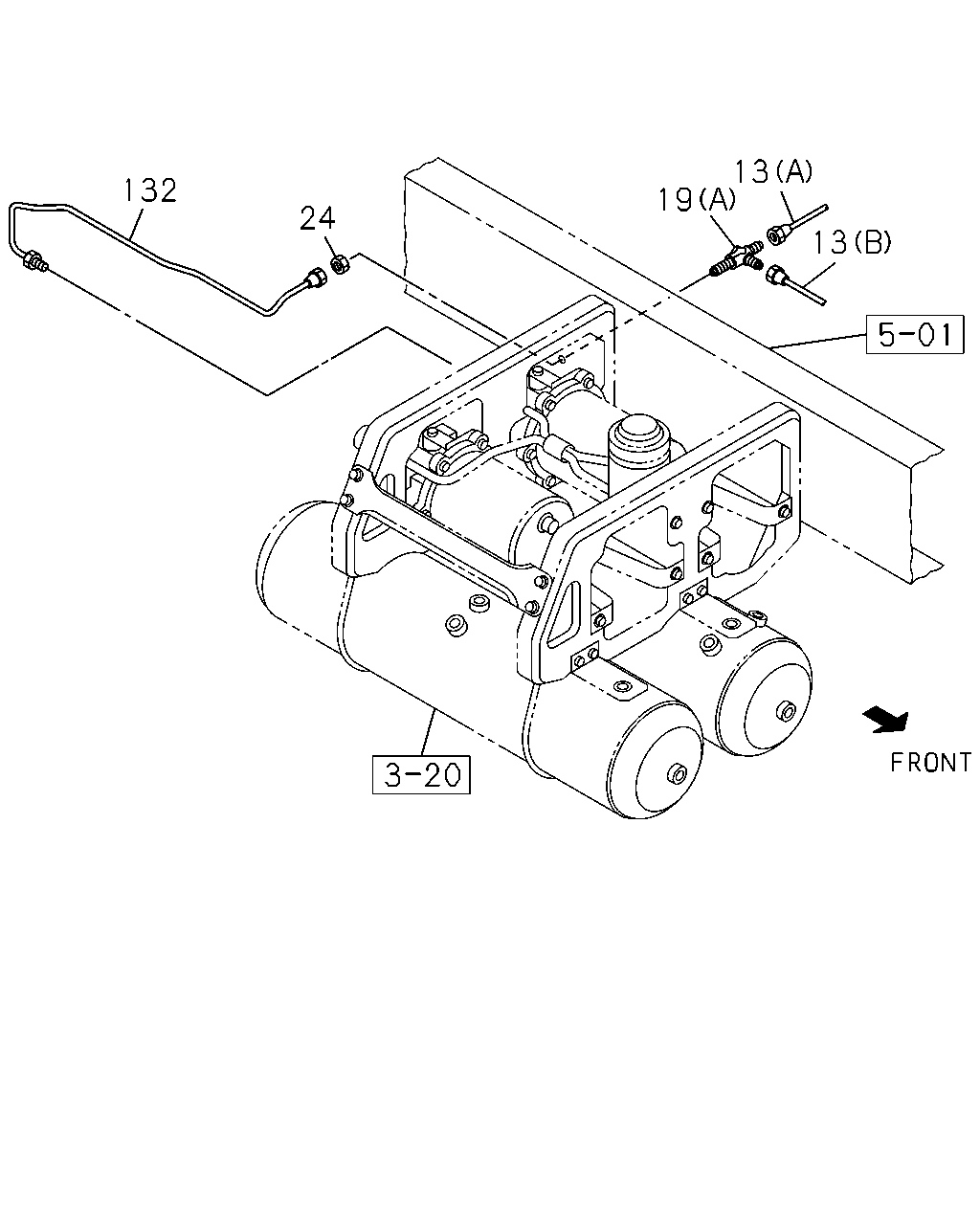

çizim 459011
13 13 19 24 132
BalonParca AdiParca NoAdetTipApplied Date
13 PIPE; OIL,UNION TO UNION
(A) L=2071 SERVICED BY L=2200 		1-47428-740-0 01 1 1412-
13 PIPE; OIL,UNION TO UNION
(B) L=1328 SERVICED BY L=1370 		1-47428-734-0 01 1 1412-
19 UNION; OIL PIPE
(B) M12 L=40 		0-92113-006-0 02 1 1412-
19 UNION; OIL PIPE
(A) M12 3WAY 		0-92138-906-0 01 1 1412-
24 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1412-
132 PIPE; OIL,BRK,HYD UNIT
L=662 		8-98208-565-0 01 1 1412-
