3-20 — AIR TANK (#153210) — 69 parça

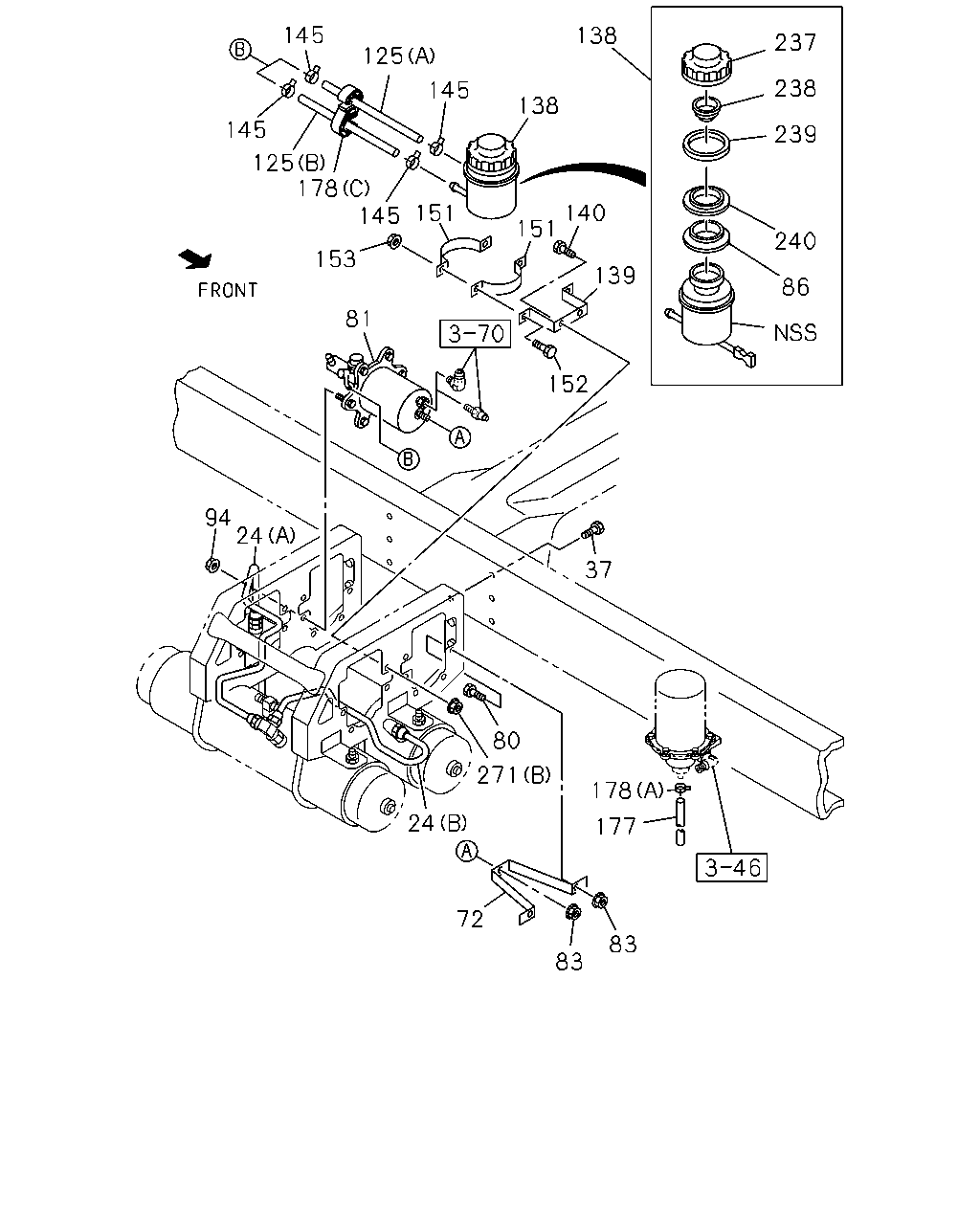

çizim 458763
83 83 177 178 72 24 271 80 24 94 37 152 81 139 151 140 151 145 153 178 125 145 145 125 145 138 138 237 238 239 240 86
BalonParca AdiParca NoAdetTipApplied Date
24 PIPE ASM; AIR TANK
(A) 		8-98227-506-0 01 1 1412-
24 PIPE ASM; AIR TANK
(B) 		8-98227-507-0 01 1 1412-
37 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 06 1 1412-
72 BRACKET; AIR MASTER 8-98120-254-0 02 1 1412-
80 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 04 1 1412-
81 AIR MASTER ASM; BRK
SEE FIG-NO 3-33 FOR COMPONENT. 		1-47800-663-1 02 1 1412-
83 NUT; AIR MASTER
M10 FLANGE 		0-91180-210-0 08 1 1412-
86 SEAL; DUST 1-47529-019-0 01 1 1412-
94 NUT; BRKT FIX
M10 FLANGE 		0-91180-210-0 06 1 1412-
125 HOSE; OIL TANK TO AIR MASTER
(A) L=270 SERVICED BY L=1800 		1-09360-320-0 01 1 1412-
125 HOSE; OIL TANK TO AIR MASTER
(B) 		8-98197-596-0 01 1 1412-
138 TANK ASM; OIL,AIR MASTER 1-47530-185-1 01 1 1412-
139 BRACKET; OIL TANK 1-47537-081-2 01 1 1412-
140 BOLT; OIL TANK TO BRKT
M10X20 FLANGE 		0-28651-020-0 02 1 1412-
145 CLIP; OIL TANK TO AIR MASTER HOSE
ID=14 		1-09704-102-0 04 1 1412-
151 BAND; OIL TANK,AIR MASTER 1-47537-056-2 02 1 1412-
152 BOLT; OIL TANK TO BAND
M8X20 FLANGE 		0-28650-820-0 02 1 1412-
153 NUT; OIL TANK TO BAND
M8 FLANGE 		0-91180-108-0 02 1 1412-
177 HOSE; RUBBER,DRAIN
L=55 SERVICED BY L=3000 		0-03566-300-0 01 1 1412-
178 CLIP; HOSE
(C) ID=12 & 12 		1-09709-280-1 01 1 1412-
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 01 1 1412-
178 CLIP; HOSE
(B) DIN15X2 		9-09917-171-0 01 1 1412-
237 CAP; OIL TANK 1-47525-030-0 01 1 1412-
238 PLATE; BAFFLE 1-47529-022-0 01 1 1412-
239 FILTER; DUST 1-47529-017-0 01 1 1412-
240 HOLDER; FILTER 1-47529-018-0 01 1 1412-
271 NUT; BRKT,HOSE
(A) M8 FLANGE 		0-91180-108-0 01 1 1412-
271 NUT; BRKT,HOSE
(B) M10 FLANGE 		0-91180-210-0 02 1 1412-

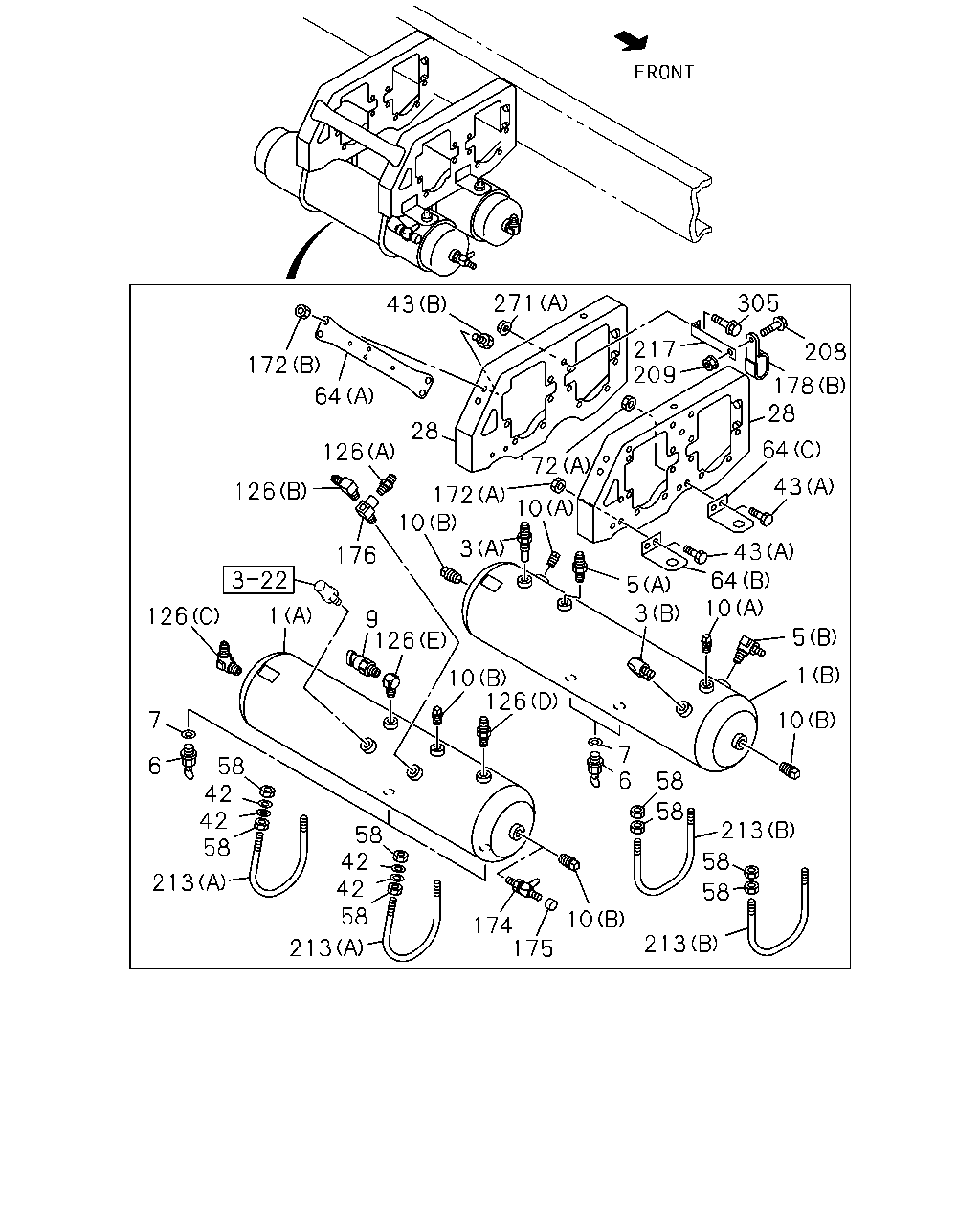

çizim 459001
43 172 64 126 126 176 28 271 126 7 6 58 42 42 58 213 1 9 126 172 10 3 10 126 58 42 42 58 213 174 175 10 213 58 58 213 58 58 6 7 10 172 217 209 305 208 178 28 64 43 5 3 43 64 10 5 1 10
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48330-598-0 01 1 1412-
1 TANK ASM; AIR
(B) 		1-48370-541-0 01 1 1412-
3 VALVE; CHECK,AIR TANK
(A) M20 & PT3/4 STRAIGHT 		1-48410-182-3 01 1 1412-
3 VALVE; CHECK,AIR TANK
(B) M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 1412-
5 UNION; AIR TANK
(A) M16 & PT1/4 STRAIGHT 		0-92121-810-0 01 1 1412-
5 UNION; AIR TANK
(B) M16 & PT1/4 ELBOW 		0-92134-310-0 01 1 1412-
6 COCK; DRAIN,AIR TANK 1-48312-015-0 04 1 1412-
7 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 04 1 1412-
9 SWITCH; LOW PRESSURE GAGE,AIR TANK
STAMP 5.5 		8-97609-249-0 01 1 1412-
10 PLUG; AIR TANK
(A) PT3/8 		9-09204-517-0 02 1 1412-
10 PLUG; AIR TANK
TIRE INFLATOR DEVICE<SG4> (B) PT1/4 		9-99204-513-0 03 1 1412-
10 PLUG; AIR TANK
EXC. TIRE INFLATOR DEVICE<SG4> (B) PT1/4 		9-99204-513-0 04 1 1412-
28 BRACKET; AIR TANK 1-53318-338-6 02 1 1412-
42 WASHER; PL
ID=8.4 OD=18 		0-91610-608-0 04 1 1412-
43 BOLT; STAY,AIR TANK,MAIN
(A) M8X20 FLANGE 		0-28650-820-0 04 1 1412-
43 BOLT; STAY,AIR TANK,MAIN
(B) M10X25 FLANGE 		0-28651-025-0 04 1 1412-
58 NUT; BAND,AIR TANK
M8 		0-91110-508-0 16 1 1412-
64 STAY; AIR TANK,MAIN
(C) 		1-48317-349-0 01 1 1412-
64 STAY; AIR TANK,MAIN
(A) 		1-53318-293-1 01 1 1412-
64 STAY; AIR TANK,MAIN
(B) 		8-98213-729-0 01 1 1412-
126 CONNECTOR; ELBOW
(A) M20 		0-92121-812-0 01 1 1412-
126 CONNECTOR; ELBOW
(B) M20 & PT3/8 ELBOW 		0-92134-312-0 01 1 1412-
126 CONNECTOR; ELBOW
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 1412-
126 CONNECTOR; ELBOW
(D) 		1-09650-536-0 01 1 1412-
126 CONNECTOR; ELBOW
(E) PT1/4 & PT1/4 2WAY 		1-09660-693-0 01 1 1412-
172 NUT; STAY,AIR TANK,MAIN
(A) M8 FLANGE 		0-91180-108-0 04 1 1412-
172 NUT; STAY,AIR TANK,MAIN
(B) M10 FLANGE 		0-91180-210-0 04 1 1412-
174 COCK; AIR,INFLATOR
TIRE INFLATOR DEVICE<SG4> 		1-09680-099-0 01 1 1412-
175 CAP; AIR COCK
TIRE INFLATOR DEVICE<SG4> 		9-48319-102-0 01 1 1412-
176 ADAPTER
DIN9 & RC3/8 ELBOW 		8-98203-578-0 01 1 1412-
178 CLIP; HOSE
(C) ID=12 & 12 		1-09709-280-1 01 1 1412-
178 CLIP; HOSE
(A) ID=21 		8-94242-034-0 01 1 1412-
178 CLIP; HOSE
(B) DIN15X2 		9-09917-171-0 01 1 1412-
208 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1412-
209 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1412-
213 BOLT; U AIR TANK
(A) L=97.5 		1-48317-323-1 02 1 1412-
213 BOLT; U AIR TANK
(B) L=195 		1-48317-367-2 02 1 1412-
217 BRACKET; RUBBER HOSE
L=112 		1-47475-694-1 01 1 1412-
271 NUT; BRKT,HOSE
(A) M8 FLANGE 		0-91180-108-0 01 1 1412-
271 NUT; BRKT,HOSE
(B) M10 FLANGE 		0-91180-210-0 02 1 1412-
305 BOLT; BRKT,HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 1412-
