Isuzu WW
▶
TRUCKS
▶
FSR
▶
11659 - FSR MIDDLE EAST
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶

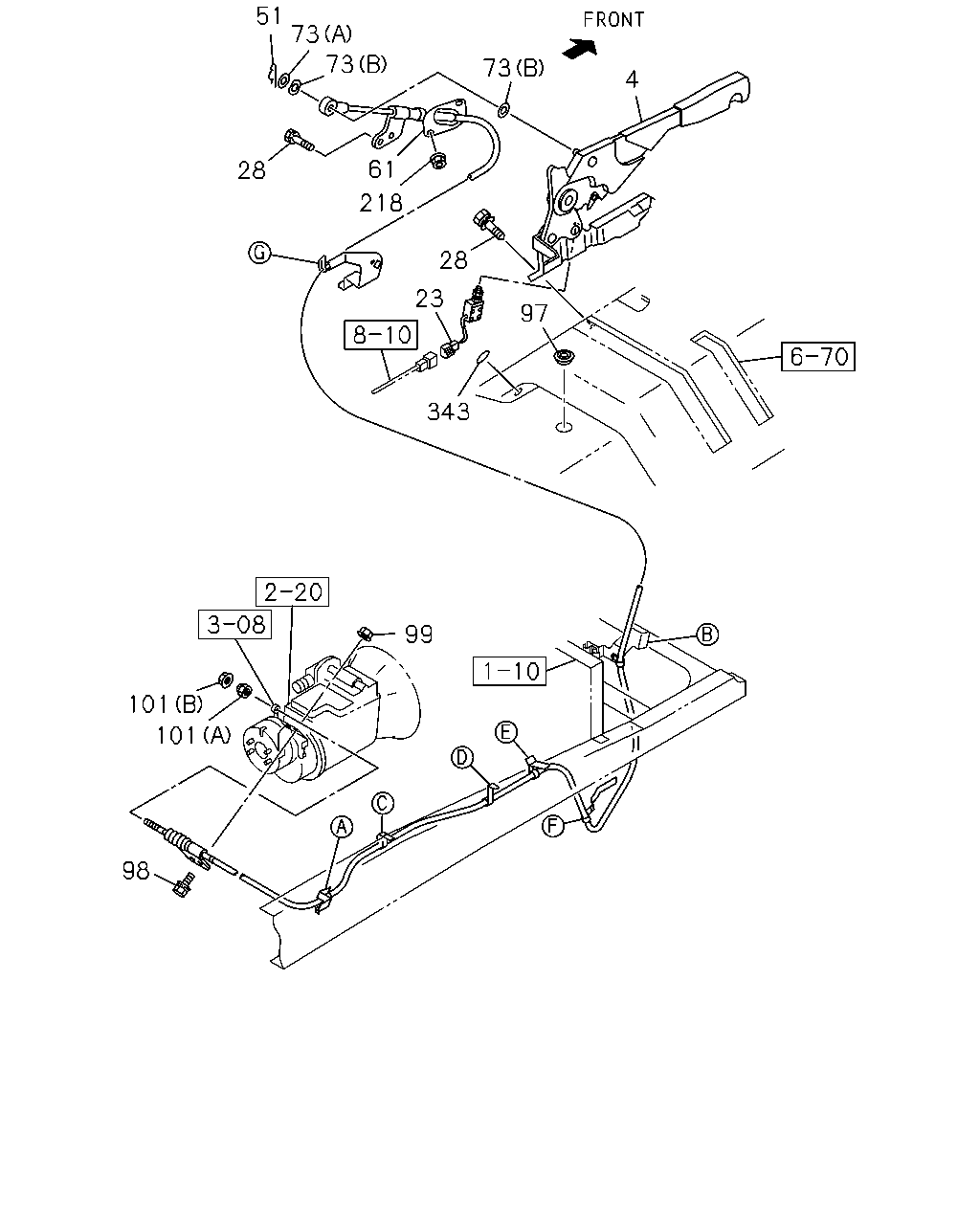

3-11 — PARKING BRAKE CONTROL
(#153209) — 36 parça
◀

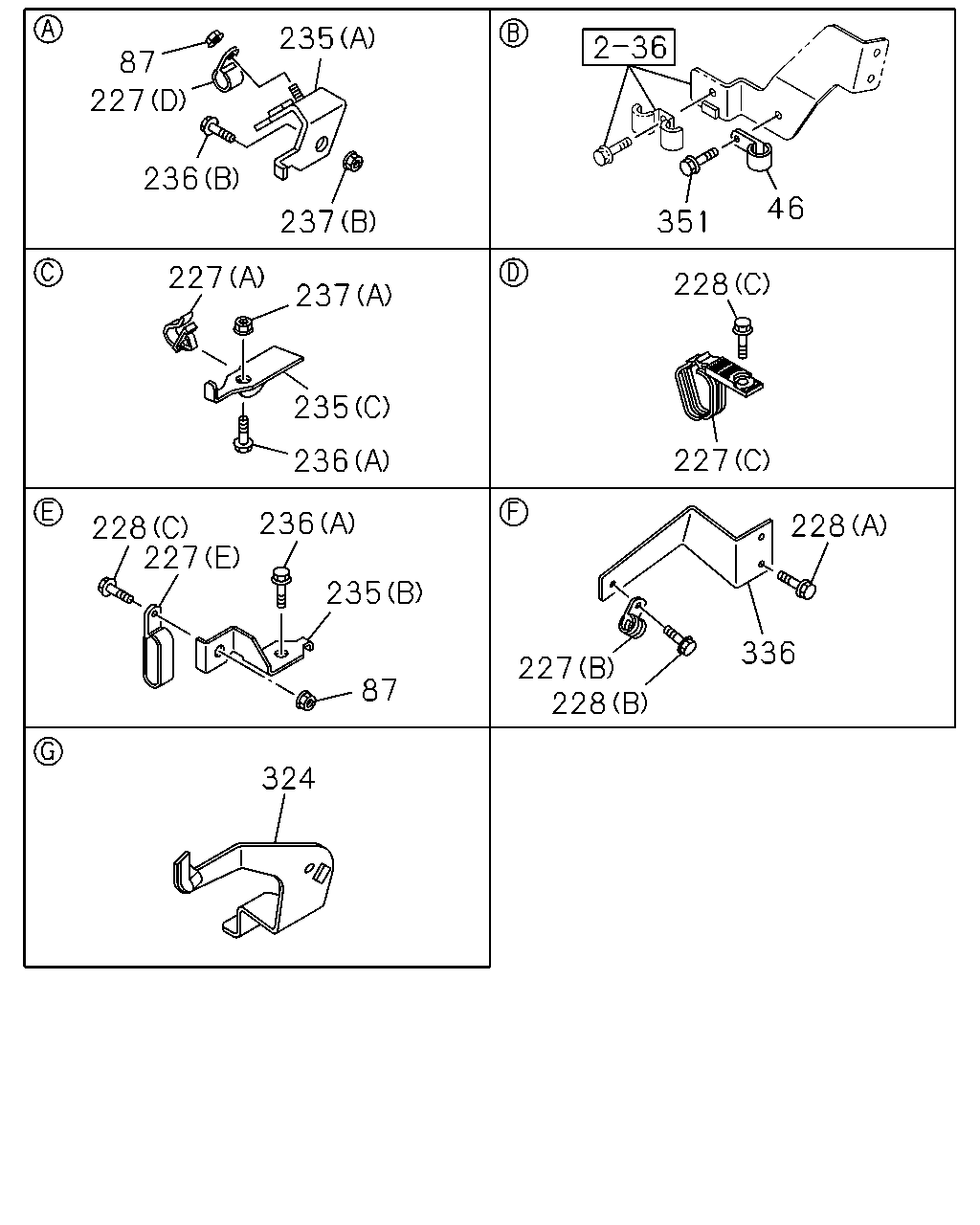

[311A] NO.1 (14 parça)
[311A] NO.2 (22 parça)
▶
98
99
101
101
343
97
23
28
218
61
73
4
73
73
51
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
1-79996-565-0
01
1
1412-
23
SWITCH; PARKING BRK
1-82440-100-0
01
1
1412-
28
BOLT; HAND BRK LEVER
M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
1412-
51
PIN; JOINT,RELAY LEVER
1-09987-243-1
01
1
1412-
61
CABLE; PARKING BRK
L=4408
8-98242-040-0
01
1
1412-
73
WASHER; PL,CABLE
(A) ID=17 OD=30
0-91610-516-0
01
1
1412-
73
WASHER; PL,CABLE
(B) ID=19
8-94206-429-1
02
1
1412-
97
GROMMET; PARKING BRK CABLE
OD=35
8-94122-971-0
01
1
1412-
98
BOLT; RR COVER
M10X30 FLANGE
0-28651-030-0
02
1
1412-
99
NUT; CONT CABLE
M10 FLANGE
0-91180-210-0
02
1
1412-
101
NUT; CABLE TO LEVER
(B) M8 FLANGE
0-91180-108-0
01
1
1412-
101
NUT; CABLE TO LEVER
(A) M8
1-46259-007-0
01
1
1412-
218
NUT; BRKT,PARKING BRK CABLE
M8 FLANGE
0-91180-108-0
02
1
1412-
343
SEAL
OD=25 BLACK
1-76798-019-0
08
1
1412-
228
227
336
228
227
228
46
351
235
87
227
236
237
227
237
235
236
228
227
236
235
87
324
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
ID=16 L=20
0-95235-535-0
01
1
1412-
87
NUT
M8 FLANGE
0-91180-108-0
02
1
1412-
227
CLIP; RAD
(D) ID=16 L=20
0-95235-535-0
01
1
1412-
227
CLIP; RAD
(B) ID=26 L=26
1-09701-236-0
01
1
1412-
227
CLIP; RAD
(A) ID=9.5
5-09709-020-0
01
1
1412-
227
CLIP; RAD
(E) ID=13 & 13 L=32
8-97389-264-0
01
1
1412-
227
CLIP; RAD
(C) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1412-1504
227
CLIP; RAD
(C) ID=13 & 10 & 10 L=43.5
8-98292-921-0
01
1
1505-
228
BOLT; CLIP RAD MTG
(B) M8X16 FLANGE
0-28050-816-0
01
1
1412-
228
BOLT; CLIP RAD MTG
(C) M8X25 FLANGE
0-28650-825-0
02
1
1412-
228
BOLT; CLIP RAD MTG
(A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1412-
235
BRACKET; CONT CABLE TO FRAME
(A)
8-98077-903-2
01
1
1412-
235
BRACKET; CONT CABLE TO FRAME
(C)
8-98100-153-0
01
1
1412-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98126-426-0
01
1
1412-
236
BOLT; BRKT TO FRAME
(A) M8X25 FLANGE
0-28650-825-0
02
1
1412-
236
BOLT; BRKT TO FRAME
(B) M10X30 FLANGE
0-28651-030-0
01
1
1412-1504
236
BOLT; BRKT TO FRAME
(B) M10X30 FLANGE
0-28051-030-0
01
1
1505-
237
NUT; BRKT TO FRAME
(A) M8 FLANGE
0-91180-108-0
01
1
1412-
237
NUT; BRKT TO FRAME
(B) M10 FLANGE
0-91180-210-0
01
1
1412-
324
BRACKET
8-98208-213-4
01
1
1412-
336
BRACKET; RADIATOR
8-98065-276-0
01
1
1412-
351
BOLT; CLIP
M8X25 W/WASHER
0-51640-825-0
03
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
