◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11659 - FSR MIDDLE EAST ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#153206) — 126 parça

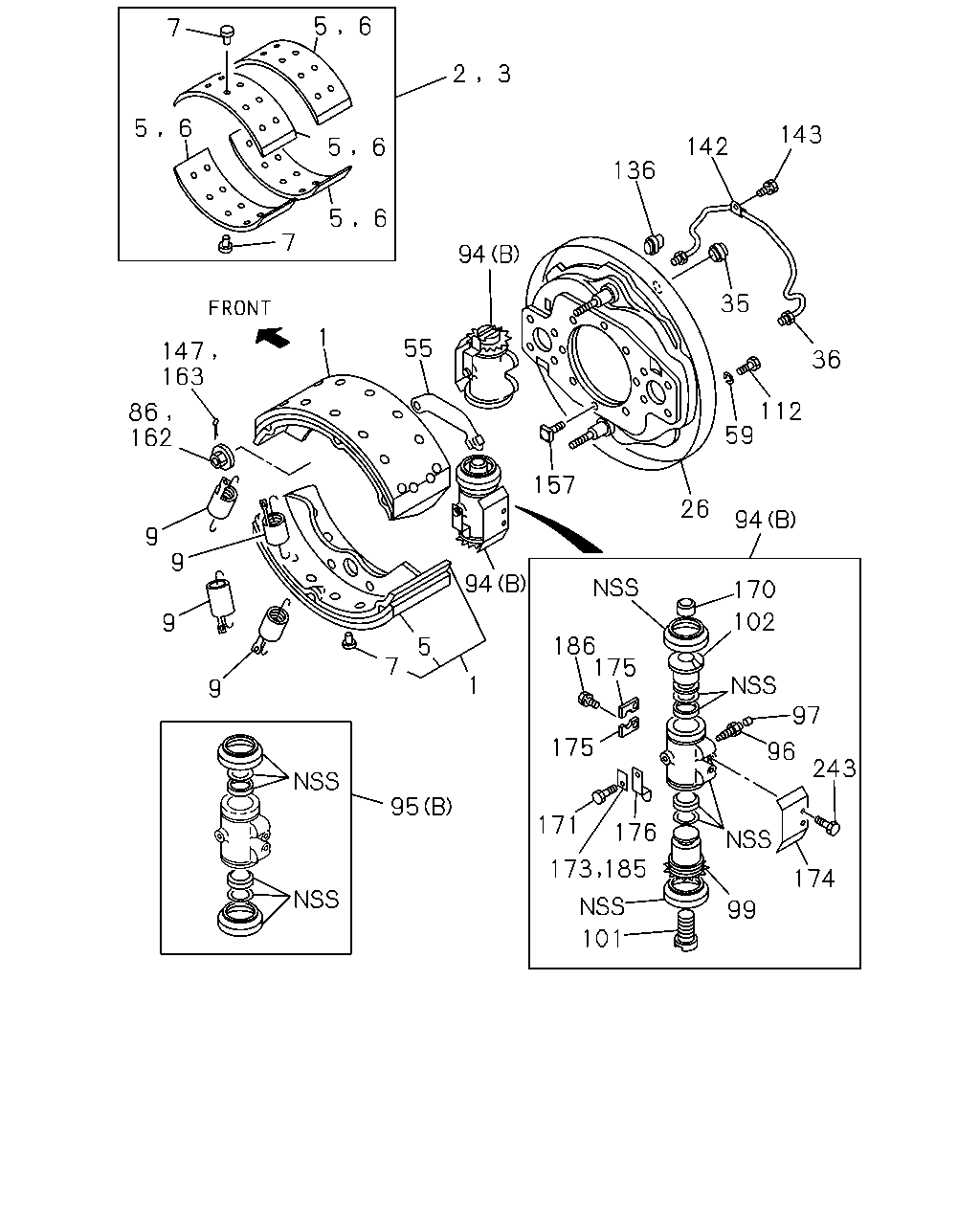

çizim 458965
95 136 5 112 243 55 1 147 142 1 170 102 97 96 174 99 101 175 175 35 143 36 94 2 9 5 5 5 6 6 6 6 7 7 162 163 86 9 9 9 7 5 176 94 157 171 173 185 186 26 94 59 3
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
BRAKE ADJUSTER MANUAL<BJR> 		1-47120-629-0 04 1 1412-
1 SHOE; BRK,RR
EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-496-0 01 1 1412-
1 SHOE; BRK,RR
EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-497-0 01 1 1412-
1 SHOE; BRK,RR
EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-498-0 01 1 1412-
1 SHOE; BRK,RR
EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-499-0 01 1 1412-
2 LINING SET; RR BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> 		1-88310-525-0 01 1 1412-
2 LINING SET; RR BRK,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-390-0 01 1 1412-
2 LINING SET; RR BRK,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-394-0 01 1 1412-
2 LINING SET; RR BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BEST VALUE PARTS 		1-87610-130-0 01 1 1412-
3 LINING SET; RR BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> 		1-88310-526-0 01 1 1412-
3 LINING SET; RR BRK,OVER SIZE
EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-391-0 01 1 1412-
3 LINING SET; RR BRK,OVER SIZE
EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-395-0 01 1 1412-
5 LINING; RR BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> 		1-47125-807-0 04 1 1412-
5 LINING; RR BRK SHOE,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-812-0 08 1 1412-
6 LINING; RR BRK SHOE,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> 		1-47125-808-0 04 1 1412-
6 LINING; RR BRK SHOE,OVER SIZE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-813-0 08 1 1412-
7 RIVET; LINING,RR BRK
BRAKE ADJUSTER MANUAL<BJR> D6X11.5 		1-09732-019-0 80 1 1412-
7 RIVET; LINING,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING L=18.5 		1-09732-034-0 40 1 1412-
7 RIVET; LINING,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING L=15.5 		1-09732-053-0 40 1 1412-
9 SPRING; RETURN,BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> 		1-09583-167-0 08 1 1412-
9 SPRING; RETURN,BRK SHOE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09583-359-0 04 1 1412-
26 PLATE; BACK,RR BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47150-442-0 01 1 1412-
26 PLATE; BACK,RR BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47150-443-0 01 1 1412-
35 GROMMET; CHECK HOLE
BRAKE ADJUSTER MANUAL<BJR> 		1-09333-066-1 04 1 1412-
36 PIPE; OIL,RR BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47416-356-0 02 1 1412-
55 PLATE; LK,RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47139-068-0 04 1 1412-
59 WASHER; LK,RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		8-98188-786-0 16 1 1412-
86 NUT; FLANGE
BRAKE ADJUSTER MANUAL<BJR> 		1-09440-009-0 02 1 1412-
94 CYLINDER; WHEEL,RR BRK
BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD 		8-98188-486-0 01 1 1412-
94 CYLINDER; WHEEL,RR BRK
BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD 		8-98188-487-0 01 1 1412-
94 CYLINDER; WHEEL,RR BRK
BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD 		8-98188-488-0 01 1 1412-
94 CYLINDER; WHEEL,RR BRK
BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD 		8-98188-489-0 01 1 1412-
94 CYLINDER; WHEEL,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) 		8-98166-405-0 02 1 1412-
95 CUP SET; RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> (B) 		1-87831-414-0 04 1 1412-
95 CUP SET; RR WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) 		1-87830-922-0 02 1 1412-
96 SCREW; BLEEDER,RR BRK
BRAKE ADJUSTER MANUAL<BJR> L=44 		1-47615-007-0 02 1 1412-
97 CAP; BLEEDER,RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> OD=9.5 		9-47619-005-0 02 1 1412-
97 CAP; BLEEDER,RR WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12 		1-47619-011-0 02 1 1412-
99 PISTON; RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		8-98188-747-0 02 1 1412-
99 PISTON; RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		8-98188-748-0 02 1 1412-
99 PISTON; RR WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47624-357-0 04 1 1412-
101 SCREW; ADJ,RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47622-028-0 02 1 1412-
101 SCREW; ADJ,RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47622-029-0 02 1 1412-
102 PISTON; REAR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		8-98188-760-0 04 1 1412-
112 BOLT; WHEEL CYL SETTING
BRAKE ADJUSTER MANUAL<BJR> 		0-23951-435-0 16 1 1412-
112 BOLT; WHEEL CYL SETTING
EXC. BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER 		0-50551-232-0 04 1 1412-
136 GROMMET
BRAKE ADJUSTER MANUAL<BJR> 		1-09333-065-2 04 1 1412-
142 CLAMP; OIL PIPE
BRAKE ADJUSTER MANUAL<BJR> 		1-09700-454-0 02 1 1412-
143 BOLT; CLAMP,OIL PIPE
BRAKE ADJUSTER MANUAL<BJR> 		8-98188-788-0 02 1 1412-
147 PIN; HOLDER
BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20 		0-81122-020-0 02 1 1412-
157 BOLT; RR BRK SET
BRAKE ADJUSTER MANUAL<BJR> M14X56 		1-09060-004-0 12 1 1412-
162 NUT; SHOE HOLD DOWN
BRAKE ADJUSTER MANUAL<BJR> 		1-09440-009-0 02 1 1412-
163 PIN; SPLIT,SHOE HOLD
BRAKE ADJUSTER MANUAL<BJR> OD=1.8 L=20 		0-81122-020-0 02 1 1412-
170 PIECE; ANCHOR,RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47619-019-0 04 1 1412-
171 BOLT; RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> M6X10 		8-98030-649-0 04 1 1412-
173 PLATE; LK,RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47169-009-0 02 1 1412-
174 COVER; CYL,RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47619-016-0 04 1 1412-
174 COVER; CYL,RR WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-197-0 02 1 1412-
175 HANGER; RR WHEEL BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47118-084-0 08 1 1412-
175 HANGER; RR WHEEL BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47619-145-0 02 1 1412-
176 STOPPER; RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47169-008-0 04 1 1412-
185 PLATE; LK,RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47169-009-0 02 1 1412-
186 BOLT; HANGER
BRAKE ADJUSTER MANUAL<BJR> 		8-98188-787-0 08 1 1412-
186 BOLT; HANGER
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER 		0-50540-816-0 02 1 1412-
243 BOLT; WHEEL CYL COVER SETTING
BRAKE ADJUSTER MANUAL<BJR> 		8-98188-788-0 08 1 1412-

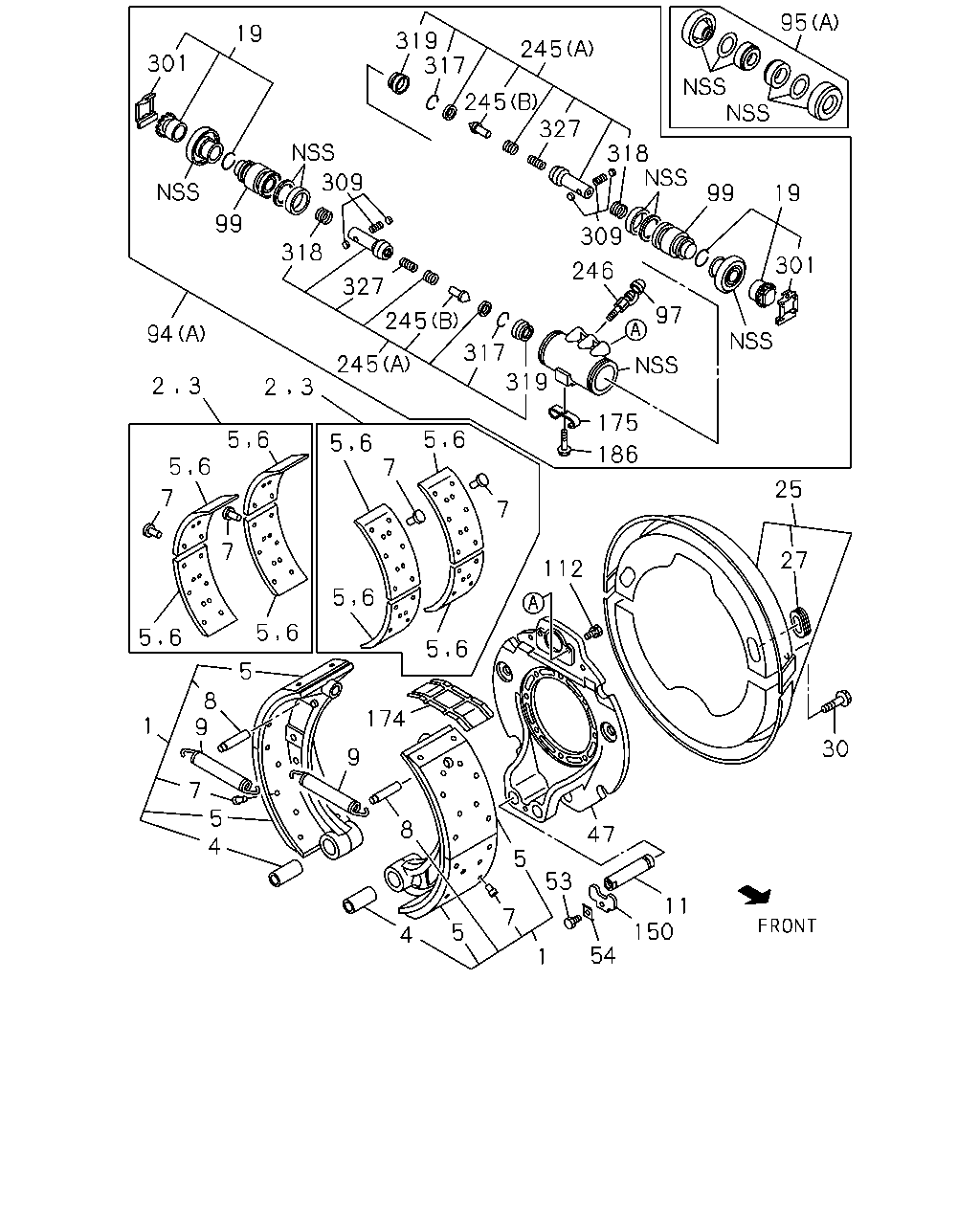

çizim 459100
1 54 19 25 19 6 6 309 95 319 245 2 2 3 3 9 8 1 112 175 245 301 99 245 7 7 6 6 30 150 318 245 7 6 317 5 186 99 27 4 8 94 47 97 11 53 327 5 174 5 5 5 5 5 5 4 7 6 6 5 5 317 7 5 5 9 6 7 327 246 319 309 301 318
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,RR
BRAKE ADJUSTER MANUAL<BJR> 		1-47120-629-0 04 1 1412-
1 SHOE; BRK,RR
EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-496-0 01 1 1412-
1 SHOE; BRK,RR
EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-497-0 01 1 1412-
1 SHOE; BRK,RR
EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-47170-498-0 01 1 1412-
1 SHOE; BRK,RR
EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-47170-499-0 01 1 1412-
2 LINING SET; RR BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> 		1-88310-525-0 01 1 1412-
2 LINING SET; RR BRK,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-390-0 01 1 1412-
2 LINING SET; RR BRK,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-394-0 01 1 1412-
2 LINING SET; RR BRK,STANDARD
BRAKE ADJUSTER MANUAL<BJR> BEST VALUE PARTS 		1-87610-130-0 01 1 1412-
3 LINING SET; RR BRK,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> 		1-88310-526-0 01 1 1412-
3 LINING SET; RR BRK,OVER SIZE
EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING 		1-88311-391-0 01 1 1412-
3 LINING SET; RR BRK,OVER SIZE
EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING 		1-88311-395-0 01 1 1412-
4 BUSHING; BRK SHOE,RR WHEEL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47112-011-0 04 1 1412-
5 LINING; RR BRK SHOE,STANDARD
BRAKE ADJUSTER MANUAL<BJR> 		1-47125-807-0 04 1 1412-
5 LINING; RR BRK SHOE,STANDARD
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-812-0 08 1 1412-
6 LINING; RR BRK SHOE,OVER SIZE
BRAKE ADJUSTER MANUAL<BJR> 		1-47125-808-0 04 1 1412-
6 LINING; RR BRK SHOE,OVER SIZE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47126-813-0 08 1 1412-
7 RIVET; LINING,RR BRK
BRAKE ADJUSTER MANUAL<BJR> D6X11.5 		1-09732-019-0 80 1 1412-
7 RIVET; LINING,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING L=18.5 		1-09732-034-0 40 1 1412-
7 RIVET; LINING,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING L=15.5 		1-09732-053-0 40 1 1412-
8 PIN; RETURN SPRING,RR BRK SHOE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47119-134-0 04 1 1412-
9 SPRING; RETURN,BRK SHOE
BRAKE ADJUSTER MANUAL<BJR> 		1-09583-167-0 08 1 1412-
9 SPRING; RETURN,BRK SHOE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09583-359-0 04 1 1412-
11 PIN; ANCHOR,RR WHEEL BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> L=106.5 		1-47131-038-0 04 1 1412-
19 ADJUSTER; RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47621-015-0 04 1 1412-
25 COVER SET; RR BRK DRUM
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47151-458-1 02 1 1412-
27 COVER; CHECK HOLE,DRUM COVER
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09333-151-0 04 1 1412-
30 BOLT; DRUM COVER
EXC. BRAKE ADJUSTER MANUAL<BJR> M10X12 		1-47159-187-0 12 1 1412-
47 BRACKET; ANCHOR PIN,RR WHEEL BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47137-577-0 02 1 1412-
53 BOLT; LOCK PLATE
EXC. BRAKE ADJUSTER MANUAL<BJR> M10X16 		0-20851-016-0 02 1 1412-
54 WASHER; LK,ANCHOR PIN,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47133-011-0 02 1 1412-
94 CYLINDER; WHEEL,RR BRK
BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD 		8-98188-486-0 01 1 1412-
94 CYLINDER; WHEEL,RR BRK
BRAKE ADJUSTER MANUAL<BJR> (B) BACKWARD 		8-98188-487-0 01 1 1412-
94 CYLINDER; WHEEL,RR BRK
BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD 		8-98188-488-0 01 1 1412-
94 CYLINDER; WHEEL,RR BRK
BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD 		8-98188-489-0 01 1 1412-
94 CYLINDER; WHEEL,RR BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) 		8-98166-405-0 02 1 1412-
95 CUP SET; RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> (B) 		1-87831-414-0 04 1 1412-
95 CUP SET; RR WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) 		1-87830-922-0 02 1 1412-
97 CAP; BLEEDER,RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> OD=9.5 		9-47619-005-0 02 1 1412-
97 CAP; BLEEDER,RR WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12 		1-47619-011-0 02 1 1412-
99 PISTON; RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		8-98188-747-0 02 1 1412-
99 PISTON; RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		8-98188-748-0 02 1 1412-
99 PISTON; RR WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47624-357-0 04 1 1412-
112 BOLT; WHEEL CYL SETTING
BRAKE ADJUSTER MANUAL<BJR> 		0-23951-435-0 16 1 1412-
112 BOLT; WHEEL CYL SETTING
EXC. BRAKE ADJUSTER MANUAL<BJR> M12X32 W/LK WASHER 		0-50551-232-0 04 1 1412-
150 PLATE; LK,ANCHOR PIN
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47133-005-0 02 1 1412-
174 COVER; CYL,RR WHEEL CYL
BRAKE ADJUSTER MANUAL<BJR> 		1-47619-016-0 04 1 1412-
174 COVER; CYL,RR WHEEL CYL
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47159-197-0 02 1 1412-
175 HANGER; RR WHEEL BRK
BRAKE ADJUSTER MANUAL<BJR> 		1-47118-084-0 08 1 1412-
175 HANGER; RR WHEEL BRK
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47619-145-0 02 1 1412-
186 BOLT; HANGER
BRAKE ADJUSTER MANUAL<BJR> 		8-98188-787-0 08 1 1412-
186 BOLT; HANGER
EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER 		0-50540-816-0 02 1 1412-
245 SHAFT
EXC. BRAKE ADJUSTER MANUAL<BJR> (A) 		1-47623-027-1 04 1 1412-
245 SHAFT
EXC. BRAKE ADJUSTER MANUAL<BJR> (B) 		1-47629-121-0 04 1 1412-
246 BLEEDER
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47615-002-0 02 1 1412-
301 CLIP; ANTI LOTATION
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47621-016-0 04 1 1412-
309 SPRING; ADJUSTER SHAFT
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09580-544-0 04 1 1412-
317 RING; RETAINER
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47629-119-0 04 1 1412-
318 SPRING; ADJ
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09580-542-0 04 1 1412-
319 RING; DRIVE
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-47629-120-0 04 1 1412-
327 SPRING; ADJ
EXC. BRAKE ADJUSTER MANUAL<BJR> 		1-09580-543-0 04 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
