3-01 — FRONT WHEEL BRAKE (#153205) — 110 parça

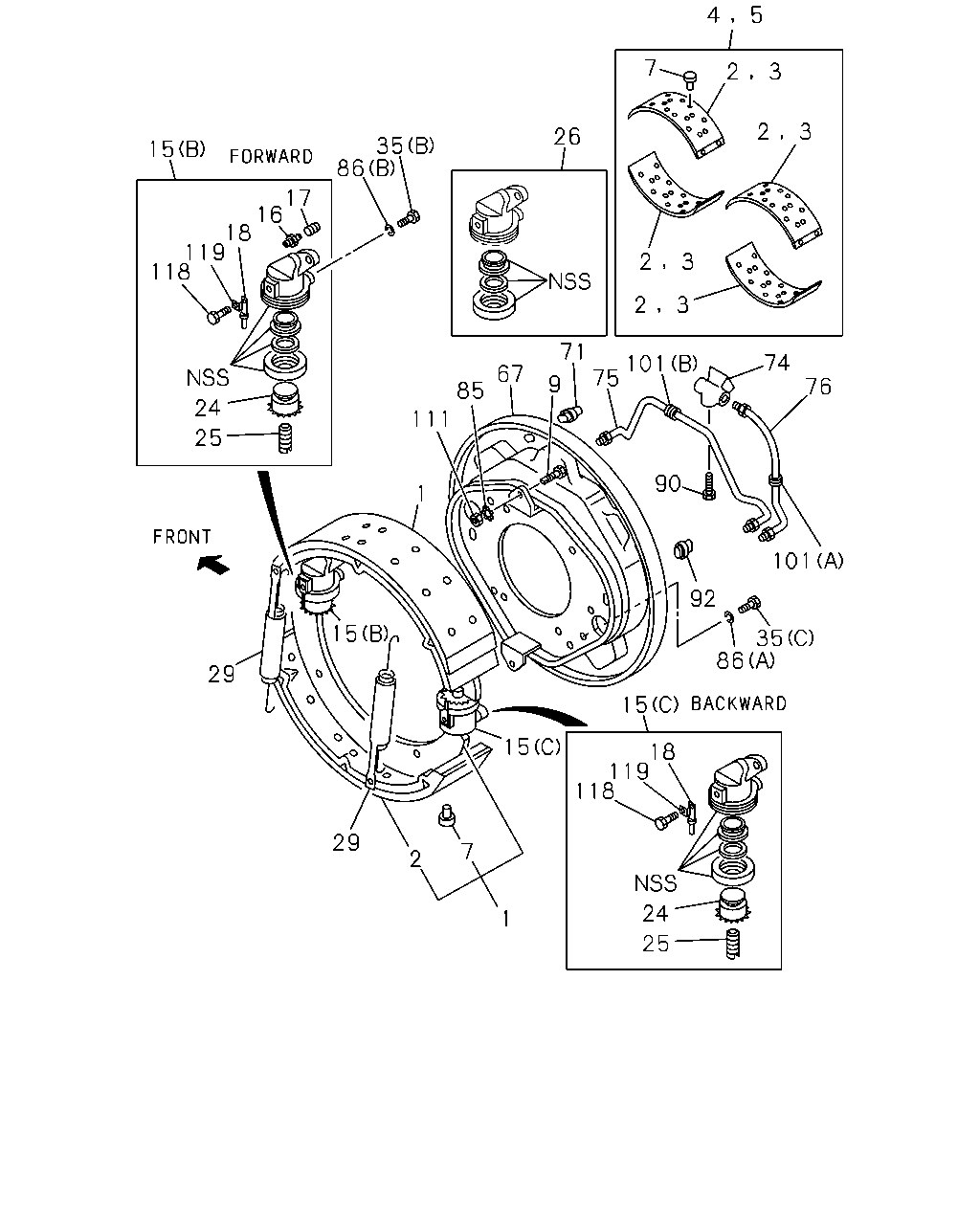

25 118 24 119 1 7 2 29 15 15 18 92 86 101 35 90 101 74 76 75 71 9 67 85 111 1 15 29 25 24 118 119 18 16 17 15 86 35 26 2 2 3 3 3 3 2 2 5 4 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47120-628-0	04	1	1412-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-518-0	02	1	1412-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-519-0	02	1	1412-
2	LINING; FRT BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-805-0	04	1	1412-
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-818-0	08	1	1412-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47125-806-0	04	1	1412-
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-819-0	08	1	1412-
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-505-0	01	1	1412-
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-402-0	02	1	1412-
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> BEST VALUE PARTS	1-87610-127-0	01	1	1412-
5	LINING SET; FRT BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88310-506-0	01	1	1412-
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-403-0	02	1	1412-
7	RIVET; LINING,FRT BRK BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	64	1	1412-
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	80	1	1412-
9	PIN; SHOE HOLDER BRAKE ADJUSTER MANUAL<BJR>	1-47162-036-0	04	1	1412-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	8-98188-480-0	01	1	1412-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	8-98188-481-0	01	1	1412-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-482-0	01	1	1412-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-483-0	01	1	1412-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47601-202-0	01	1	1412-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47601-203-0	01	1	1412-
16	SCREW; BLEEDER,FRT BRK BRAKE ADJUSTER MANUAL<BJR> L=44	1-47615-007-0	02	1	1412-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> OD=9.5	9-47619-005-0	02	1	1412-
17	CAP; BLEEDER,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1412-
18	STOPPER; ADJ SCREW BRAKE ADJUSTER MANUAL<BJR>	1-47169-008-0	04	1	1412-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-756-0	02	1	1412-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-757-0	02	1	1412-
24	PISTON; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-357-0	04	1	1412-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47622-014-0	02	1	1412-
25	SCREW; ADJ,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-47622-015-0	02	1	1412-
26	CUP SET; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87831-417-0	04	1	1412-
26	CUP SET; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-922-0	02	1	1412-
29	SPRING; RETURN,FRT BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-126-1	04	1	1412-
29	SPRING; RETURN,FRT BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-362-0	04	1	1412-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (B)	0-23851-022-0	08	1	1412-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (C)	0-23851-630-0	04	1	1412-
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M12X35 W/LK WASHER	0-50551-235-0	04	1	1412-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-500-0	01	1	1412-
67	PLATE; BACK,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47150-501-0	01	1	1412-
71	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-058-1	04	1	1412-
71	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-151-0	04	1	1412-
74	CONNECTOR; FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47630-029-0	01	1	1412-
74	CONNECTOR; FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47630-030-0	01	1	1412-
75	PIPE; OIL,FWD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47423-927-0	02	1	1412-
76	PIPE; OIL,BACKWARD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47424-939-0	01	1	1412-
76	PIPE; OIL,BACKWARD,FRT BRK BRAKE ADJUSTER MANUAL<BJR>	1-47424-940-0	01	1	1412-
85	PLATE; LK,CONNECTOR BRAKE ADJUSTER MANUAL<BJR>	1-09533-006-0	04	1	1412-
86	WASHER; LK,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (A)	8-98188-784-0	04	1	1412-
86	WASHER; LK,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (B)	8-98188-785-0	08	1	1412-
90	BOLT; CONNECTOR BRAKE ADJUSTER MANUAL<BJR>	8-98188-787-0	02	1	1412-
92	GROMMET; ADJ HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-010-0	04	1	1412-
101	PROTECTOR; OIL PIPE,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (B) ID=5 OD=18 T=8	1-09332-063-0	02	1	1412-
101	PROTECTOR; OIL PIPE,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (A)	1-09332-133-0	02	1	1412-
111	NUT; FLANGE,SHOE HOLD BRAKE ADJUSTER MANUAL<BJR> M16	0-91111-516-0	04	1	1412-
118	BOLT; STOPPER BRAKE ADJUSTER MANUAL<BJR> M6X10	8-98030-649-0	04	1	1412-
119	PLATE; LK,STOPPER BRAKE ADJUSTER MANUAL<BJR>	1-47169-009-0	04	1	1412-

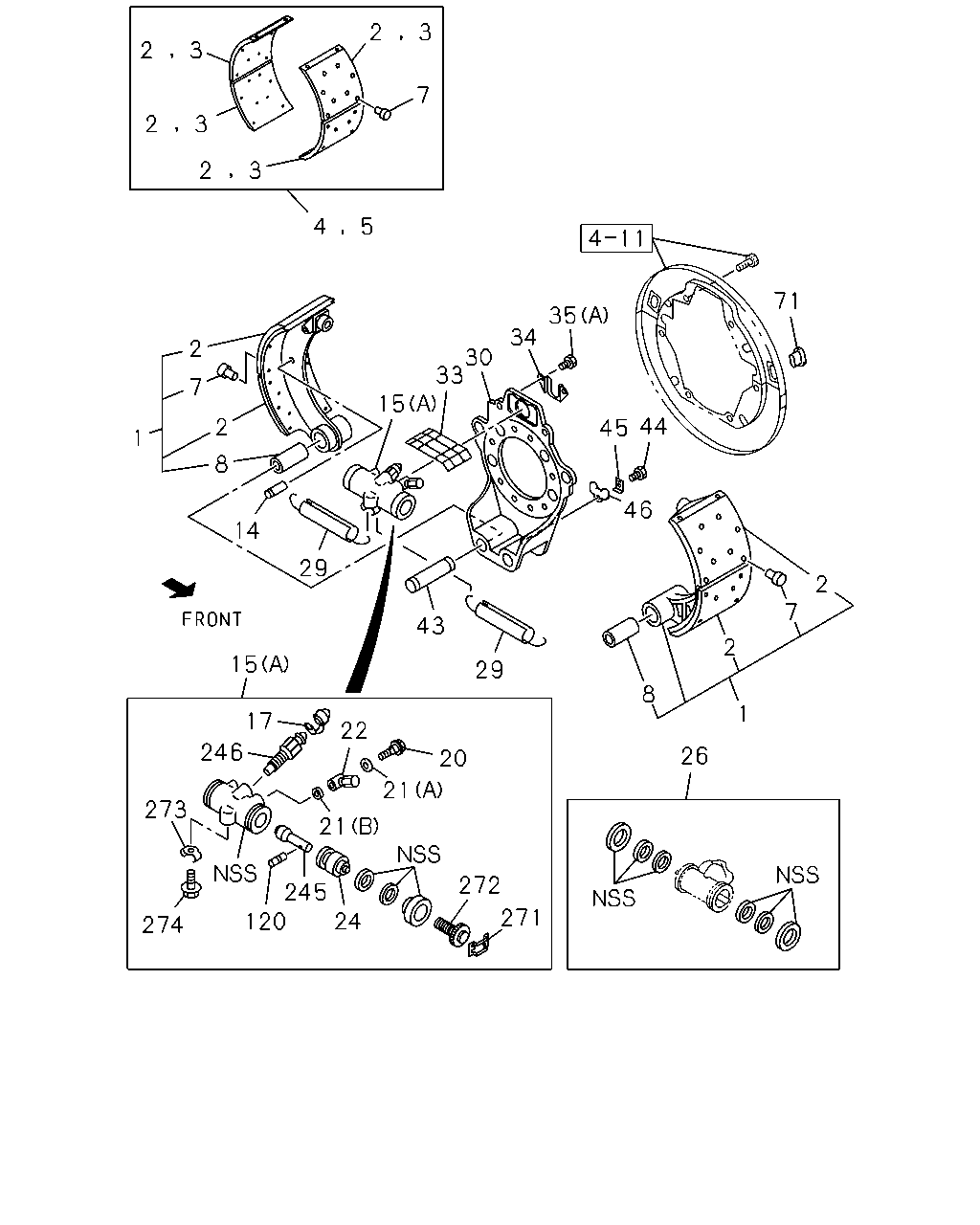

271 272 21 24 245 120 274 273 246 22 17 20 21 26 2 1 8 29 43 29 14 8 2 7 2 1 2 2 2 3 3 3 2 3 7 5 4 15 33 30 34 35 71 45 44 46 15 7 2

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,FRT BRAKE ADJUSTER MANUAL<BJR>	1-47120-628-0	04	1	1412-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> LEADING	1-47170-518-0	02	1	1412-
1	SHOE; BRK,FRT EXC. BRAKE ADJUSTER MANUAL<BJR> TRAILING	1-47170-519-0	02	1	1412-
2	LINING; FRT BRK SHOE,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-47125-805-0	04	1	1412-
2	LINING; FRT BRK SHOE,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-818-0	08	1	1412-
3	LINING; FRT BRK SHOE,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-47125-806-0	04	1	1412-
3	LINING; FRT BRK SHOE,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47126-819-0	08	1	1412-
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR>	1-88310-505-0	01	1	1412-
4	LINING SET; FRT BRK,STANDARD EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-402-0	02	1	1412-
4	LINING SET; FRT BRK,STANDARD BRAKE ADJUSTER MANUAL<BJR> BEST VALUE PARTS	1-87610-127-0	01	1	1412-
5	LINING SET; FRT BRK,OVER SIZE BRAKE ADJUSTER MANUAL<BJR>	1-88310-506-0	01	1	1412-
5	LINING SET; FRT BRK,OVER SIZE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-88311-403-0	02	1	1412-
7	RIVET; LINING,FRT BRK BRAKE ADJUSTER MANUAL<BJR> D6X11.5	1-09732-019-0	64	1	1412-
7	RIVET; LINING,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> L=18.5	1-09732-034-0	80	1	1412-
8	BUSHING; BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47112-011-0	04	1	1412-
14	PIN; SHOE RETURN SPR EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47119-134-0	04	1	1412-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	8-98188-480-0	01	1	1412-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (B) FORWARD	8-98188-481-0	01	1	1412-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-482-0	01	1	1412-
15	CYLINDER; WHEEL,FRT BRK BRAKE ADJUSTER MANUAL<BJR> (C) BACKWARD	8-98188-483-0	01	1	1412-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47601-202-0	01	1	1412-
15	CYLINDER; WHEEL,FRT BRK EXC. BRAKE ADJUSTER MANUAL<BJR> (A)	1-47601-203-0	01	1	1412-
17	CAP; BLEEDER,FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> OD=9.5	9-47619-005-0	02	1	1412-
17	CAP; BLEEDER,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> OD=12	1-47619-011-0	02	1	1412-
20	BOLT; JOINT EXC. BRAKE ADJUSTER MANUAL<BJR> M12X40.5 EYE BOLT	1-47634-006-0	02	1	1412-
21	GASKET; UNION BOLT EXC. BRAKE ADJUSTER MANUAL<BJR> (A) ID=15.2	1-09630-019-0	02	1	1412-
21	GASKET; UNION BOLT EXC. BRAKE ADJUSTER MANUAL<BJR> (B) ID=12.2	1-09630-020-0	02	1	1412-
22	JOINT; PIPE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47631-057-1	02	1	1412-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-756-0	02	1	1412-
24	PISTON; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	8-98188-757-0	02	1	1412-
24	PISTON; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47624-357-0	04	1	1412-
26	CUP SET; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR>	1-87831-417-0	04	1	1412-
26	CUP SET; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-87830-922-0	02	1	1412-
29	SPRING; RETURN,FRT BRK SHOE BRAKE ADJUSTER MANUAL<BJR>	1-09583-126-1	04	1	1412-
29	SPRING; RETURN,FRT BRK SHOE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09583-362-0	04	1	1412-
30	BRACKET; ANCHOR,FRT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47137-578-0	02	1	1412-
33	COVER; WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-197-0	02	1	1412-
34	PLATE; DIRECTION,FRT EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47159-094-0	02	1	1412-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (B)	0-23851-022-0	08	1	1412-
35	BOLT; FRT WHEEL CYL BRAKE ADJUSTER MANUAL<BJR> (C)	0-23851-630-0	04	1	1412-
35	BOLT; FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR> (A) M12X35 W/LK WASHER	0-50551-235-0	04	1	1412-
43	PIN; ANCHOR EXC. BRAKE ADJUSTER MANUAL<BJR> L=106.5	1-47131-038-0	04	1	1412-
44	BOLT; LOCK,ANCHOR PIN EXC. BRAKE ADJUSTER MANUAL<BJR> M10X16	0-20851-016-0	02	1	1412-
45	WASHER; LK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-011-0	02	1	1412-
46	PLATE; LOCK EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47133-005-0	02	1	1412-
71	GROMMET; CHECK HOLE BRAKE ADJUSTER MANUAL<BJR>	1-09333-058-1	04	1	1412-
71	GROMMET; CHECK HOLE EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09333-151-0	04	1	1412-
120	SPRING; LK,ADJ,FRT WHEEL CYL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-09580-544-0	04	1	1412-
245	SHAFT; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47623-027-1	04	1	1412-
246	BLEEDER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47615-002-0	02	1	1412-
271	CLIP; ADJ EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-016-0	04	1	1412-
272	ADJUSTER; MANUAL EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47621-015-0	04	1	1412-
273	HANGER EXC. BRAKE ADJUSTER MANUAL<BJR>	1-47619-145-0	02	1	1412-
274	BOLT; HANGER EXC. BRAKE ADJUSTER MANUAL<BJR> M8X16 W/LK WASHER	0-50540-816-0	02	1	1412-
