Isuzu WW
▶
TRUCKS
▶
FSR
▶
11659 - FSR MIDDLE EAST
▶
2 - Clutch, Transmission, Trans Axle
▶
2-39 - POWER ASSISTOR
▶
2-39 — POWER ASSISTOR
(#153201) — 27 parça
◀

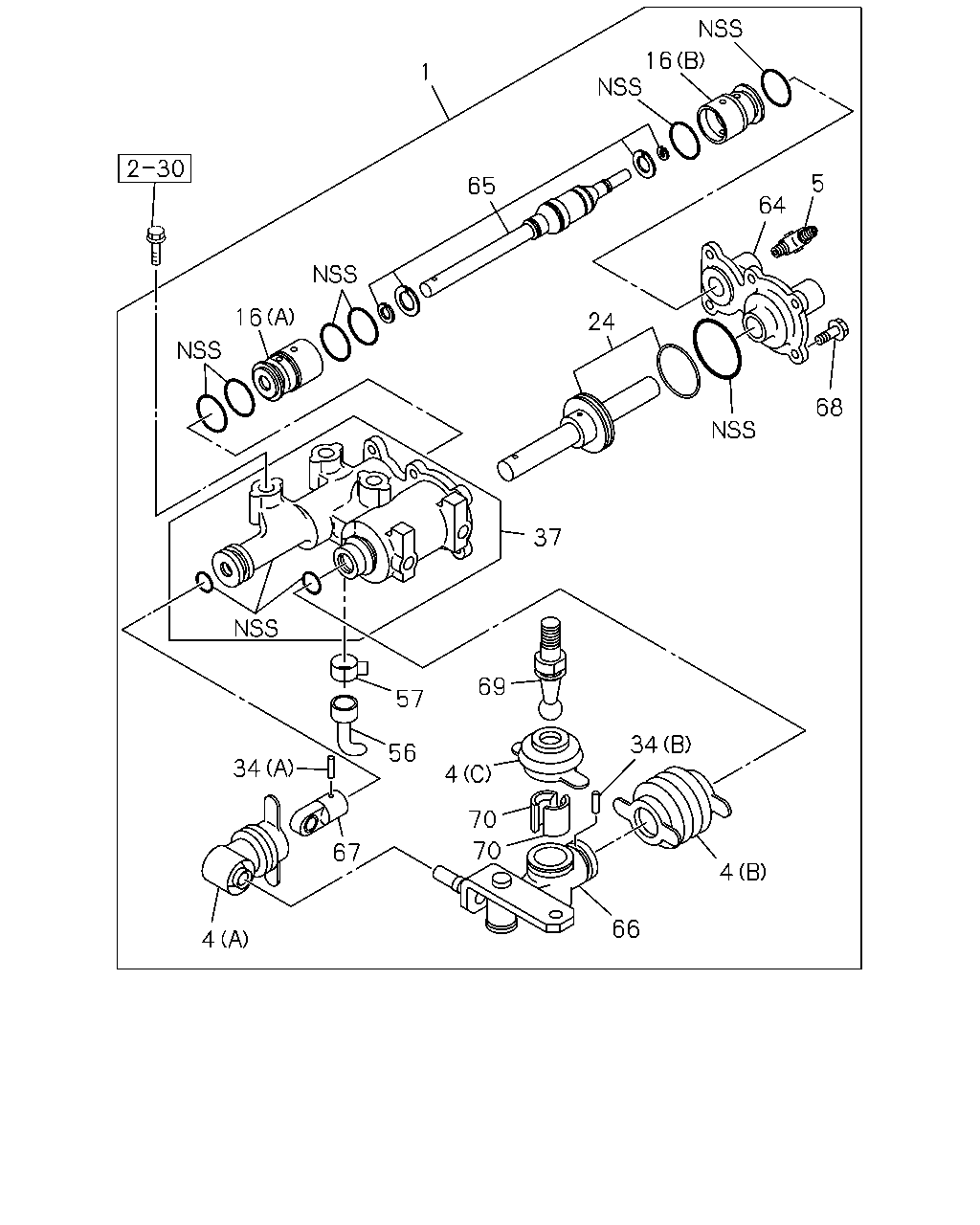

[239A] COMPONENT (20 parça)

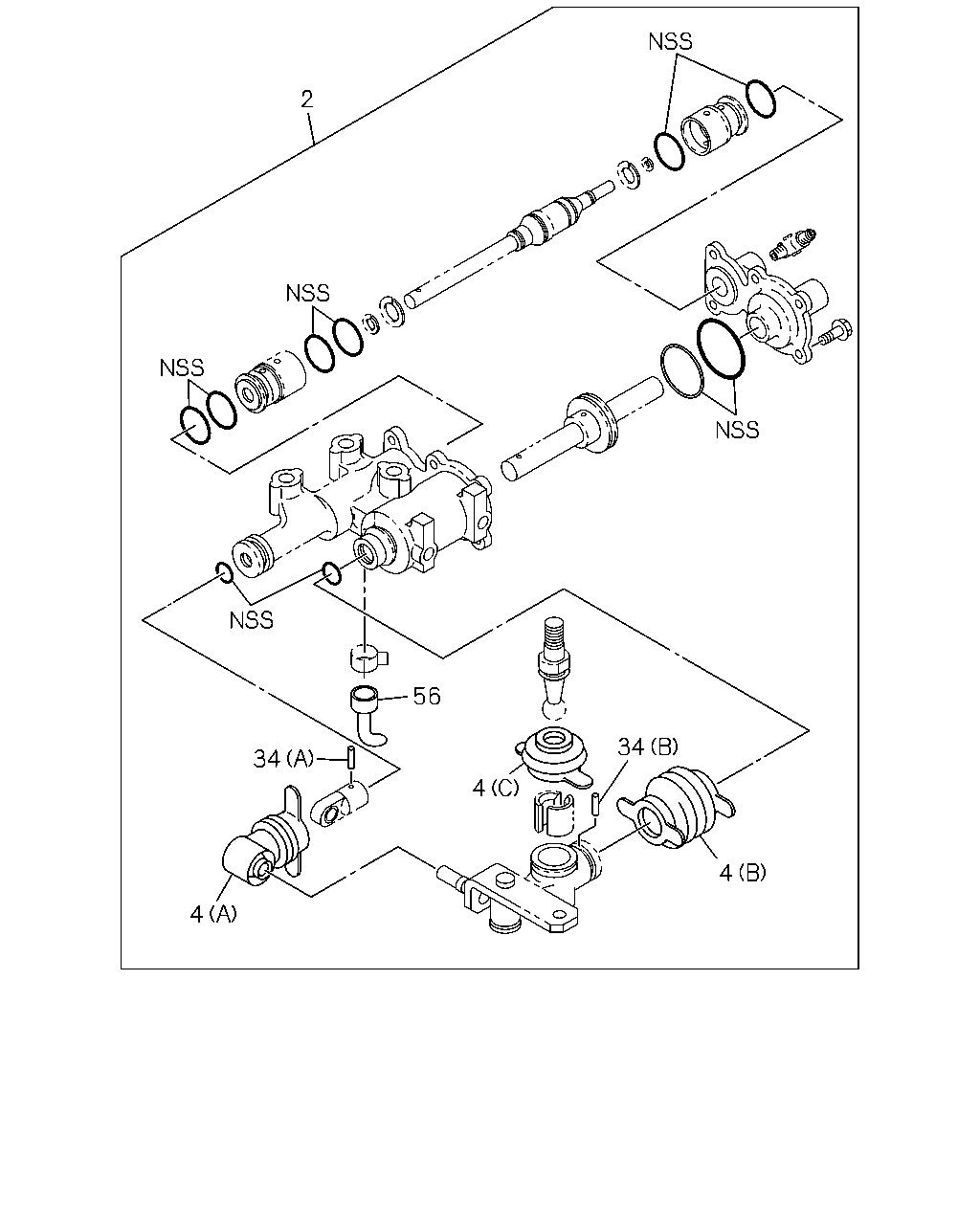

[239A] REPAIR KIT (7 parça)
▶
66
4
34
69
37
68
64
5
16
1
65
24
16
57
56
67
4
34
4
70
70
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ASSISTOR ASM; POWER,SHIFT
ASSISTOR SHIFT CONTROL<WX8>
8-98022-853-1
01
1
1412-
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A)
1-33739-843-0
01
1
1412-
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B)
1-33739-844-0
01
1
1412-
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C)
1-33739-847-0
01
1
1412-
5
CONNECTOR; CYL
ASSISTOR SHIFT CONTROL<WX8> M12 & PT1/8
0-92124-306-0
01
1
1412-
16
SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (A)
8-97388-032-0
01
1
1412-
16
SEAT; VALVE
ASSISTOR SHIFT CONTROL<WX8> (B)
8-97388-033-0
01
1
1412-
24
PISTON
ASSISTOR SHIFT CONTROL<WX8>
8-98065-242-0
01
1
1412-
34
PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B)
1-33739-885-0
01
1
1412-
34
PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A)
1-33739-974-0
01
1
1412-
37
HOUSING; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
8-97388-027-0
01
1
1412-
56
HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
1-33739-848-0
01
1
1412-
57
CLAMP; HOSE
ASSISTOR SHIFT CONTROL<WX8>
1-33739-849-0
01
1
1412-
64
COVER; HOUSING
ASSISTOR SHIFT CONTROL<WX8>
8-98025-483-0
01
1
1412-
65
VALVE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
8-97388-029-0
01
1
1412-
66
JOINT ASM; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
8-97388-137-0
01
1
1412-
67
JOINT; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
1-33739-973-0
01
1
1412-
68
BOLT; COVER
ASSISTOR SHIFT CONTROL<WX8> M6X12 FLANGE
1-33739-842-0
06
1
1412-
69
STUD; BALL,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
1-33739-846-0
01
1
1412-
70
SEAT; BALL STUD
ASSISTOR SHIFT CONTROL<WX8>
1-33659-118-0
02
1
1412-
4
34
4
56
34
4
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
8-97388-035-0
01
1
1412-
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A)
1-33739-843-0
01
1
1412-
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B)
1-33739-844-0
01
1
1412-
4
BOOT; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (C)
1-33739-847-0
01
1
1412-
34
PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (B)
1-33739-885-0
01
1
1412-
34
PIN; STRAIGHT,POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8> (A)
1-33739-974-0
01
1
1412-
56
HOSE; POWER SHIFTER
ASSISTOR SHIFT CONTROL<WX8>
1-33739-848-0
01
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
