Isuzu WW
▶
TRUCKS
▶
FSR
▶
11659 - FSR MIDDLE EAST
▶
2 - Clutch, Transmission, Trans Axle
▶
2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER
▶

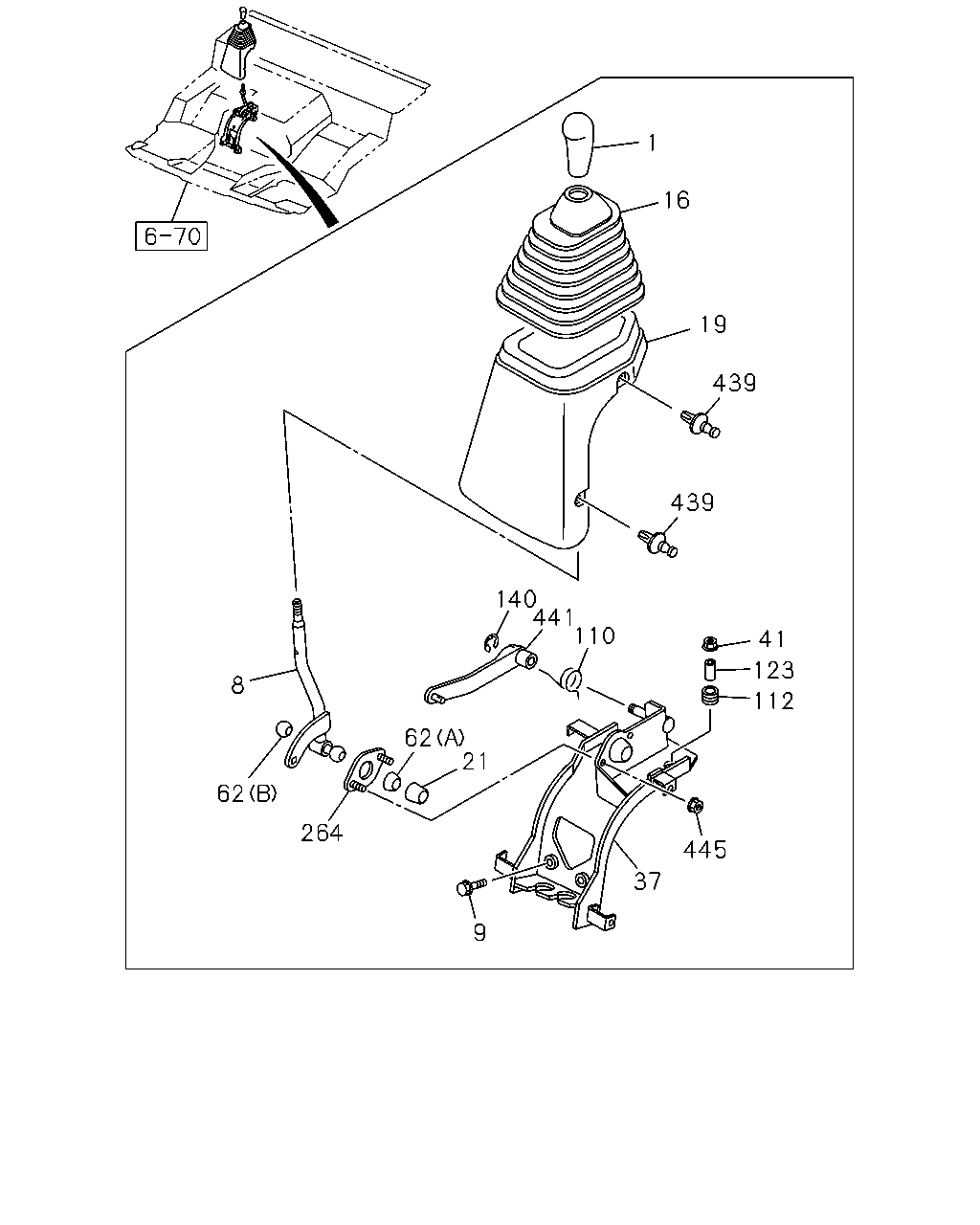

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER
(#153198) — 18 parça
1
16
19
439
439
41
123
112
445
37
9
21
62
264
62
8
140
441
110
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
KNOB; CHANGE LEVER
1-33611-070-1
01
1
1412-
8
LEVER; CHANGE
8-98093-452-0
01
1
1412-
9
BOLT; CHANGE LEVER
M8X25 W/WAVE&PL WASHER
8-94412-342-0
02
1
1412-
16
BOOT; CHANGE LEVER
1-79998-913-1
01
1
1412-
19
COVER; CHANGE LEVER
GRAY
8-97409-847-0
01
1
1412-
21
SEAT; CHANGE LEVER
1-33619-429-0
01
1
1412-
37
BRACKET; CHANGE LEVER SUPPORT
8-98093-441-0
01
1
1412-
41
NUT; CHANGE LEVER
M8 W/DISHED WASHER
8-97329-625-0
02
1
1412-
62
SEAT; BALL,CHANGE LEVER
(A)
1-33619-427-0
01
1
1412-
62
SEAT; BALL,CHANGE LEVER
(B)
8-97049-147-0
01
1
1412-
110
SPRING; RETURN,CHANGE LEVER
1-33619-586-0
01
1
1412-
112
RUBBER; CUSHION
1-33619-442-0
04
1
1412-
123
COLLAR; DIST,CHANGE LEVER
1-33619-443-0
04
1
1412-
140
RING; SNAP
ID=10
0-91805-510-0
01
1
1412-
264
PLATE; COVER
1-33619-430-0
01
1
1412-
439
FASTENER; COVER
GRAY
8-97407-955-0
04
1
1412-
441
LEVER; SELECT
8-98071-283-0
01
1
1412-
445
NUT; PLATE
M6 FLANGE
0-91180-106-0
02
1
1412-
