Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#153197) — 116 parça

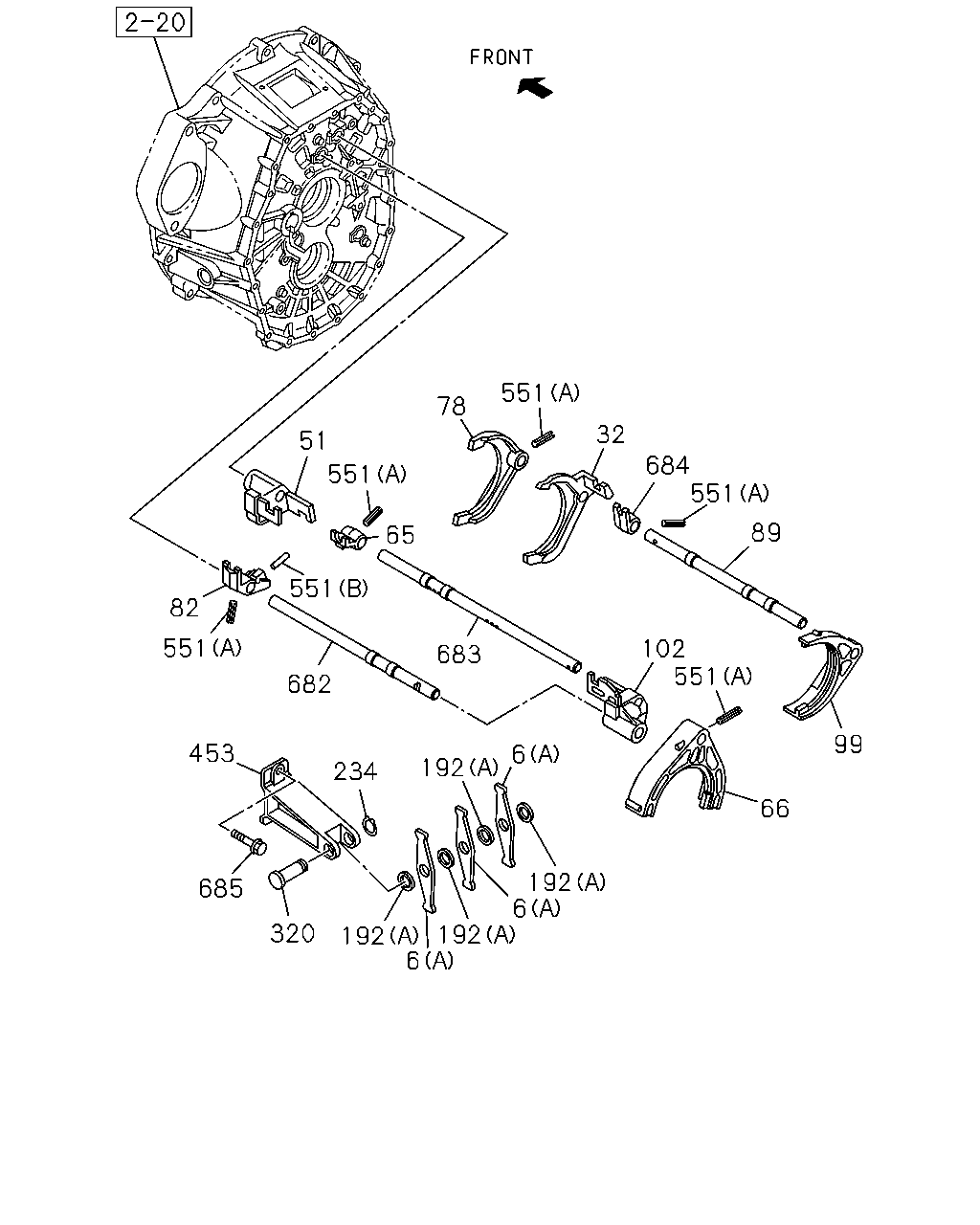

551 78 551 51 551 82 551 682 683 234 453 685 320 192 6 192 192 66 99 551 102 89 551 684 32 65 192 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1412-
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1412-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1412-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1412-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1412-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1412-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1412-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1412-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1412-
99	ARM; SHIFT,4TH & 3RD	8-98062-170-0	01	1	1412-1506
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1507-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1412-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1412-
192	WASHER; PL (B)	8-97305-661-0	02	1	1412-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1412-
320	SHAFT; LEVER	8-97377-928-0	01	1	1412-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1412-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1412-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1412-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1412-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1412-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1412-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1412-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1412-

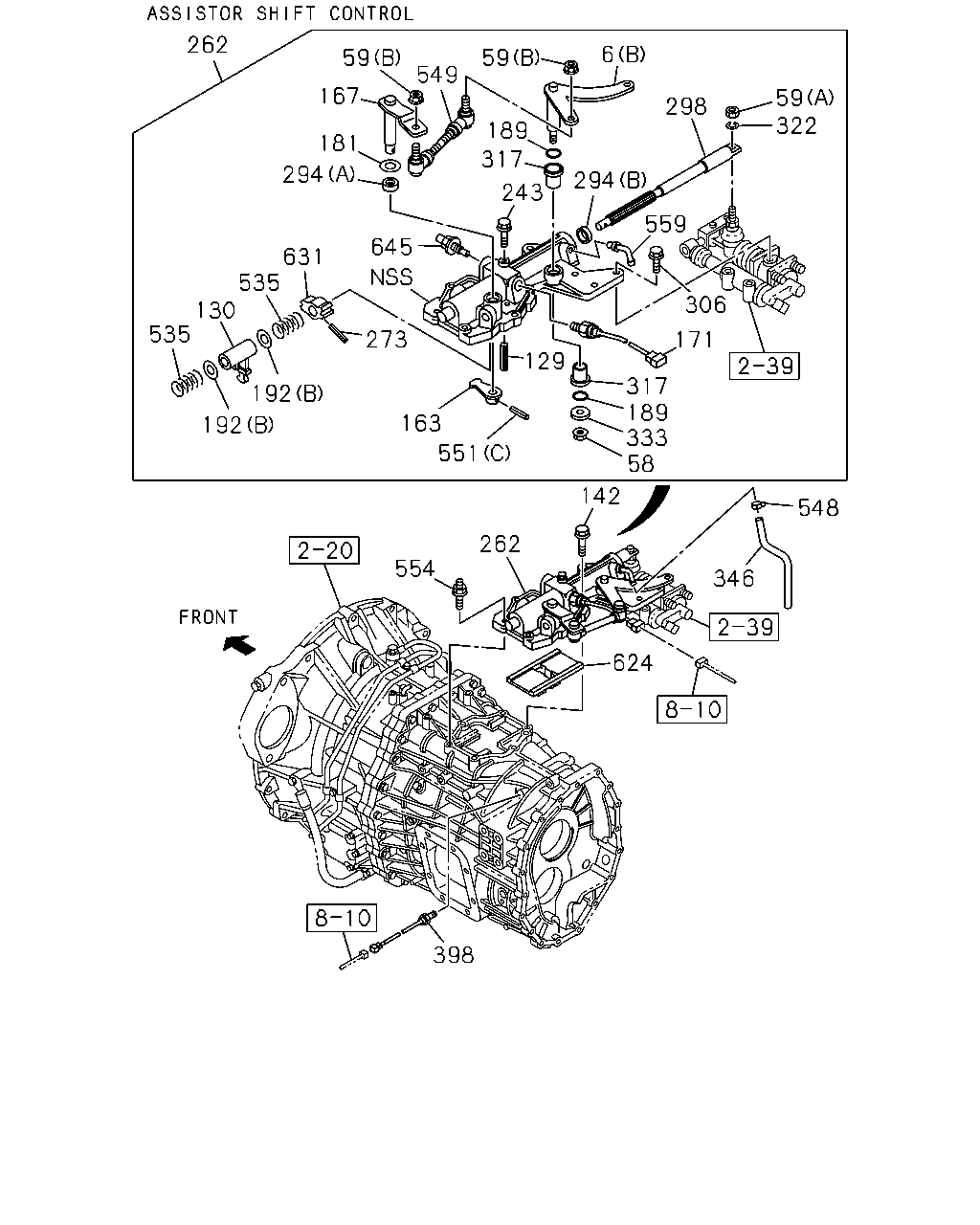

398 554 142 548 346 624 262 58 333 189 317 171 306 559 322 59 298 294 129 551 163 273 192 192 535 130 535 631 645 243 317 189 6 59 549 59 167 181 294 262

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1412-
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1412-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1412-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1412-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1412-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1412-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1412-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1412-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1412-
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1412-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1412-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1412-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1412-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1412-
192	WASHER; PL (B)	8-97305-661-0	02	1	1412-
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1412-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98276-158-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98276-157-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1412-
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98097-117-0	01	1	1412-1507
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	8-98305-343-0	01	1	1508-
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X50 FLANGE	0-28051-050-0	03	1	1412-
317	BUSHING; LEVER	1-09330-119-0	02	1	1412-
322	WASHER; LK ASSISTOR SHIFT CONTROL<WX8>	8-98031-750-0	01	1	1412-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1412-
346	HOSE; AIR	8-97309-855-0	01	1	1412-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1412-
535	SPRING; LEVER	8-97385-713-0	02	1	1412-
548	CLIP; HOSE	8-97031-674-0	01	1	1412-
549	ROD; LINK	8-98023-095-0	01	1	1412-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1412-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1412-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1412-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1412-
559	PIPE; BREATHER	8-97358-318-0	01	1	1412-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1412-
631	STOPPER; SPRING	8-98014-158-0	01	1	1412-
645	DETENT ASM	8-98019-536-0	01	1	1412-

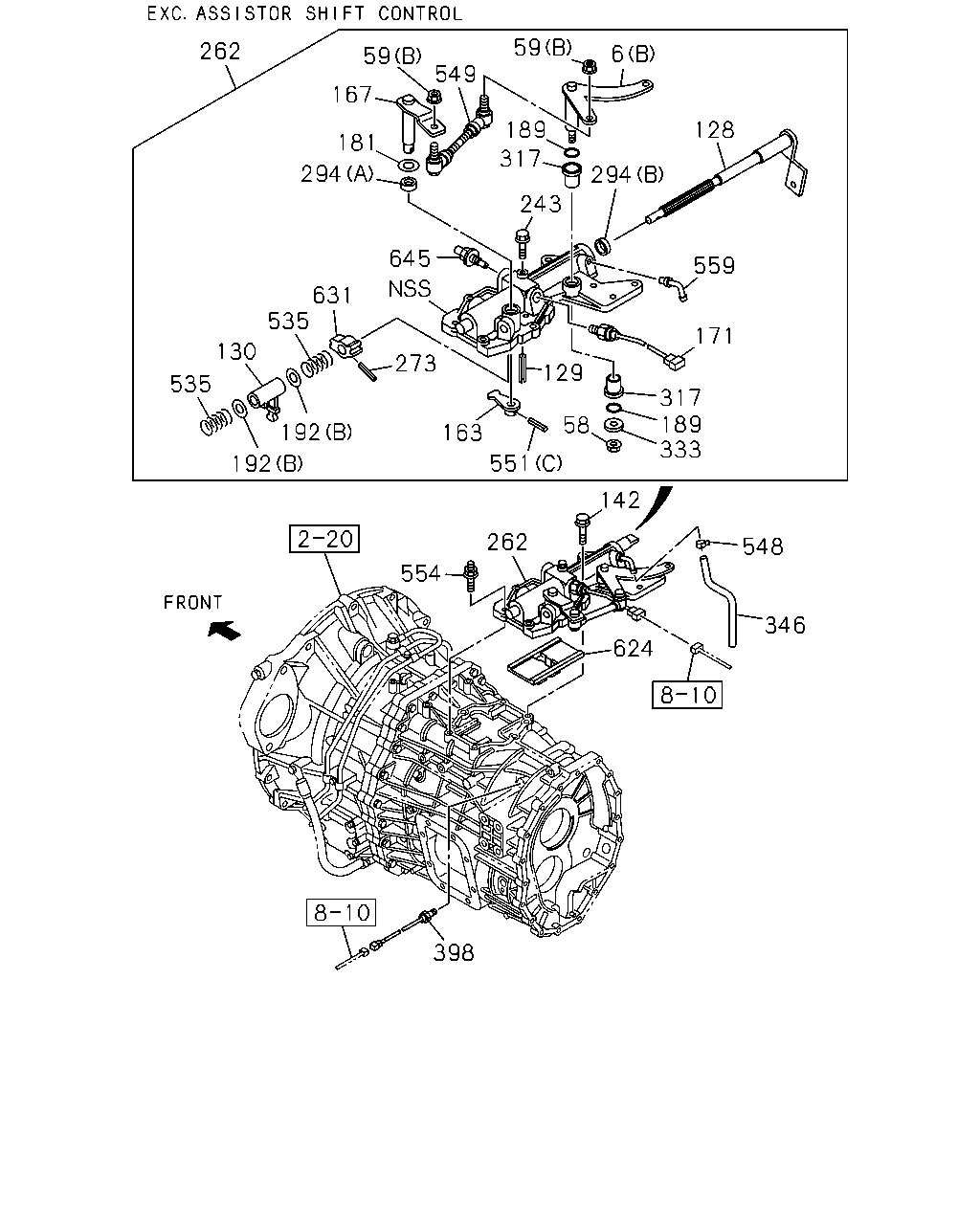

262 59 167 181 294 549 59 6 189 317 243 294 128 559 171 317 189 333 551 163 273 645 631 535 130 535 192 192 129 58 142 262 554 548 346 624 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1412-
6	LEVER; RELAY (B)	8-98014-157-1	01	1	1412-
58	NUT M10 FLANGE	0-91180-110-0	01	1	1412-
59	NUT (B) M8 FLANGE	0-91180-108-0	02	1	1412-
59	NUT ASSISTOR SHIFT CONTROL<WX8> (A) M12	0-91110-512-0	01	1	1412-
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98212-106-0	01	1	1412-1507
128	LEVER; SHIFT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-345-0	01	1	1508-
129	PIN; SPR,SHIFT L=30 OD=4	1-09748-031-0	01	1	1412-
130	LEVER; SHIFT,INTERNAL	8-97306-647-0	01	1	1412-
142	BOLT; QUAD BOX M8X22 FLANGE	8-97365-376-0	04	1	1412-
163	LEVER; SELECT,INTERNAL	8-97305-663-0	01	1	1412-
167	LEVER; SELECT,EXTERNAL	8-98021-489-0	01	1	1412-
171	SWITCH; NEUTRAL	8-98242-172-1	01	1	1412-1509
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1510-
181	WASHER; PL,SELECT LEVER	8-97367-327-0	01	1	1412-
189	GASKET; SELECT LEVER,CONT BOX	1-09623-594-0	02	1	1412-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1412-
192	WASHER; PL (B)	8-97305-661-0	02	1	1412-
243	BOLT; COVER M6X12 FLANGE	1-33739-842-0	01	1	1412-
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98276-158-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT ASSISTOR SHIFT CONTROL<WX8>	8-98305-333-1	01	1	1508-
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98276-157-1	01	1	1412-1507
262	BOX ASM; SHIFT CONT EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98305-332-1	01	1	1508-
273	PIN; SPR,STOPPER D=4.2 L=25	8-97103-142-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (A)	8-97305-662-0	01	1	1412-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). (B)	8-97363-225-0	01	1	1412-
317	BUSHING; LEVER	1-09330-119-0	02	1	1412-
333	WASHER; PL,LEVER ID=10.5	0-91610-710-0	01	1	1412-
346	HOSE; AIR	8-97309-855-0	01	1	1412-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1412-
535	SPRING; LEVER	8-97385-713-0	02	1	1412-
548	CLIP; HOSE	8-97031-674-0	01	1	1412-
549	ROD; LINK	8-98023-095-0	01	1	1412-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1412-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1412-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1412-
554	STUD; CONT BOX M8X15,M8X25 L=49	8-97365-378-0	02	1	1412-
559	PIPE; BREATHER	8-97358-318-0	01	1	1412-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1412-
631	STOPPER; SPRING	8-98014-158-0	01	1	1412-
645	DETENT ASM	8-98019-536-0	01	1	1412-

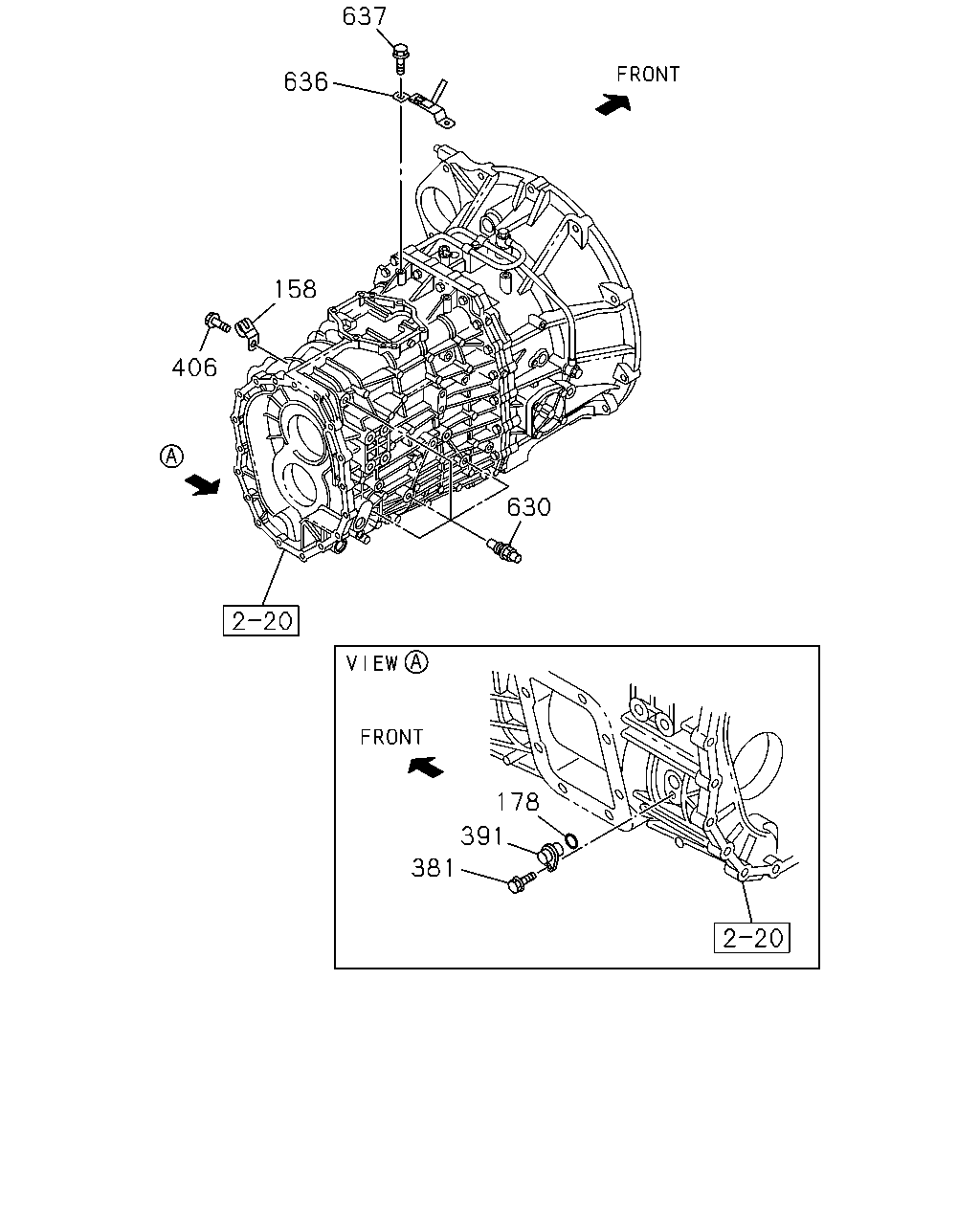

630 406 158 636 637 391 381 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1412-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T).	9-09567-113-0	01	1	1412-
381	BOLT M6X16 FLANGE	0-28650-616-0	01	1	1412-
391	PLUG; SW HOLE	8-97300-273-1	01	1	1412-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1412-
630	DETENT ASM	8-98019-536-0	04	1	1412-
636	BRACKET; CLIP	8-97610-092-1	01	1	1412-1502
637	BOLT; BRACKET M8X16 FLANGE	0-28050-816-0	02	1	1412-1502
