◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11659 - FSR MIDDLE EAST ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#153190) — 26 parça

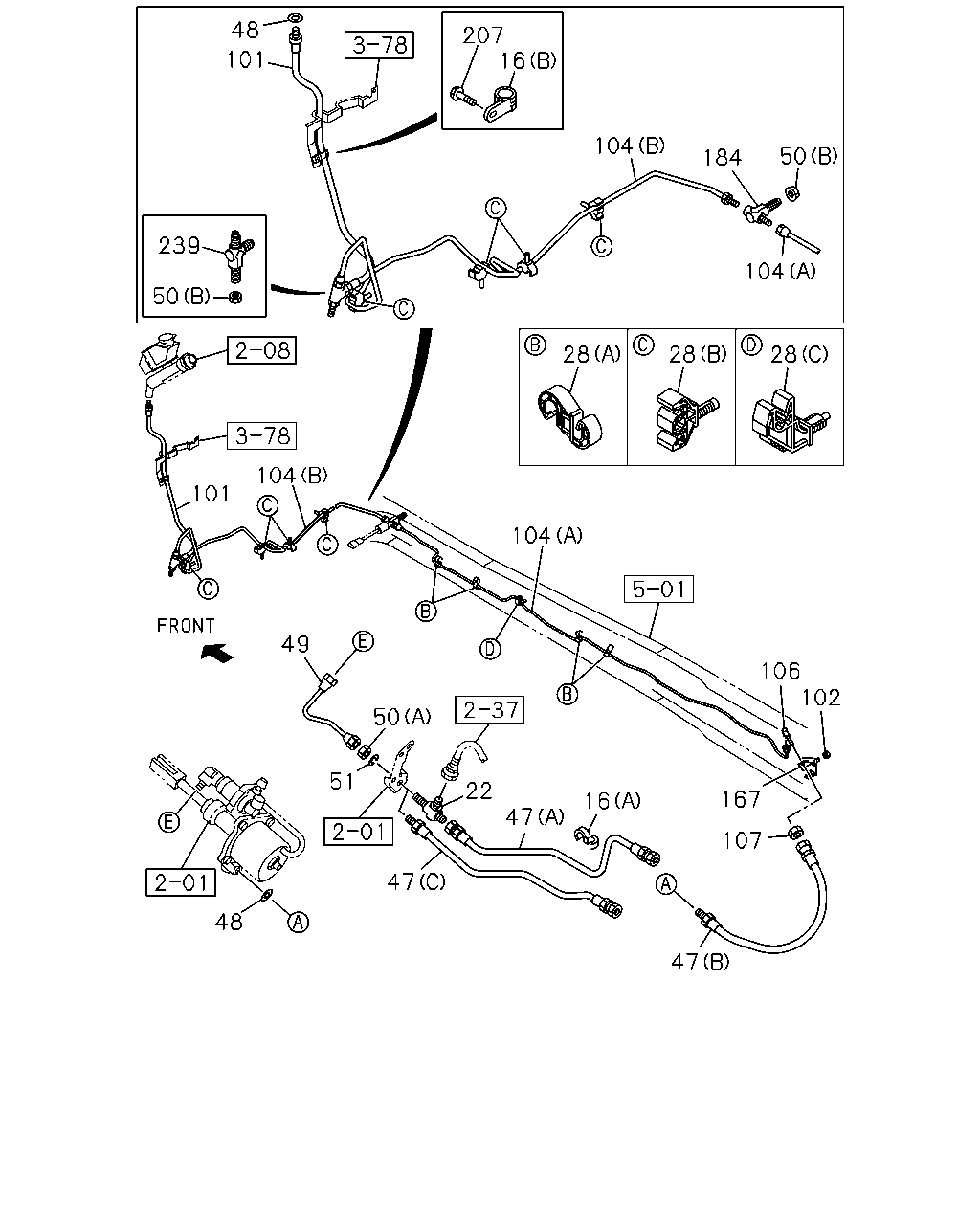

çizim 458529
47 107 102 106 16 47 22 47 48 51 50 49 104 28 28 28 104 101 50 239 101 48 207 16 104 184 50 104 167
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 1412-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 1412-
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1412-
28 CLIP; OIL PIPE
(C) ID=6.35 		1-09701-247-1 01 1 1412-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1412-
28 CLIP; OIL PIPE
(B) 		8-98012-254-1 04 1 1412-
47 HOSE; FLEX,CLU CONT
(B) L=390 		8-98080-980-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (A) L=500 		1-09363-733-0 01 1 1412-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=580 		1-09363-692-0 01 1 1412-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1412-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 1412-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1412-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1412-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1412-
51 WASHER; LK
ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1412-
51 WASHER; LK
EXC. ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-512-0 01 1 1412-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=570 		8-98116-741-0 01 1 1412-
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE 		0-91180-210-0 02 1 1412-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2183 SERVICED BY L=2200 		1-47428-740-0 01 1 1412-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=1519 		8-98217-131-0 01 1 1412-
106 UNION; OIL PIPE
M12 ELBOW 		0-92125-206-0 01 1 1412-
107 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 1412-
167 BRACKET; UNION 8-98078-147-0 01 1 1412-
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1412-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1412-
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
