◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11110 - CYJ NZ JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#15319) — 338 parça

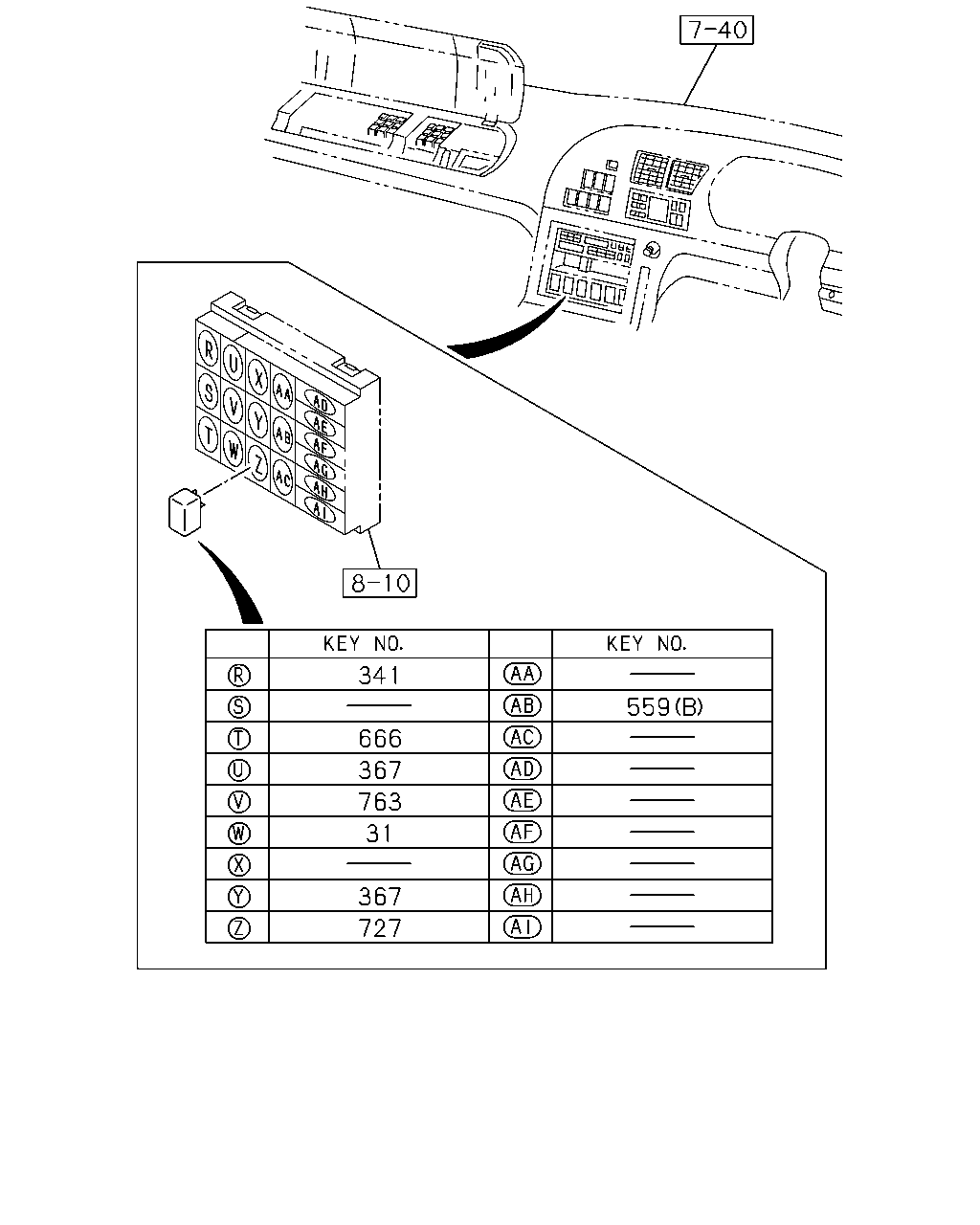

çizim 93076
341 666 367 763 31 367 727 559
BalonParca AdiParca NoAdetTipApplied Date
31 RELAY; PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
341 RELAY
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
559 RELAY; MAG VLV
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
559 RELAY; MAG VLV
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
666 RELAY; STARTER
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
727 RELAY; START CUT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
763 RELAY; EGRTTERY
24V 10A PANASONIC 		8-97173-035-1 01 1 0710-

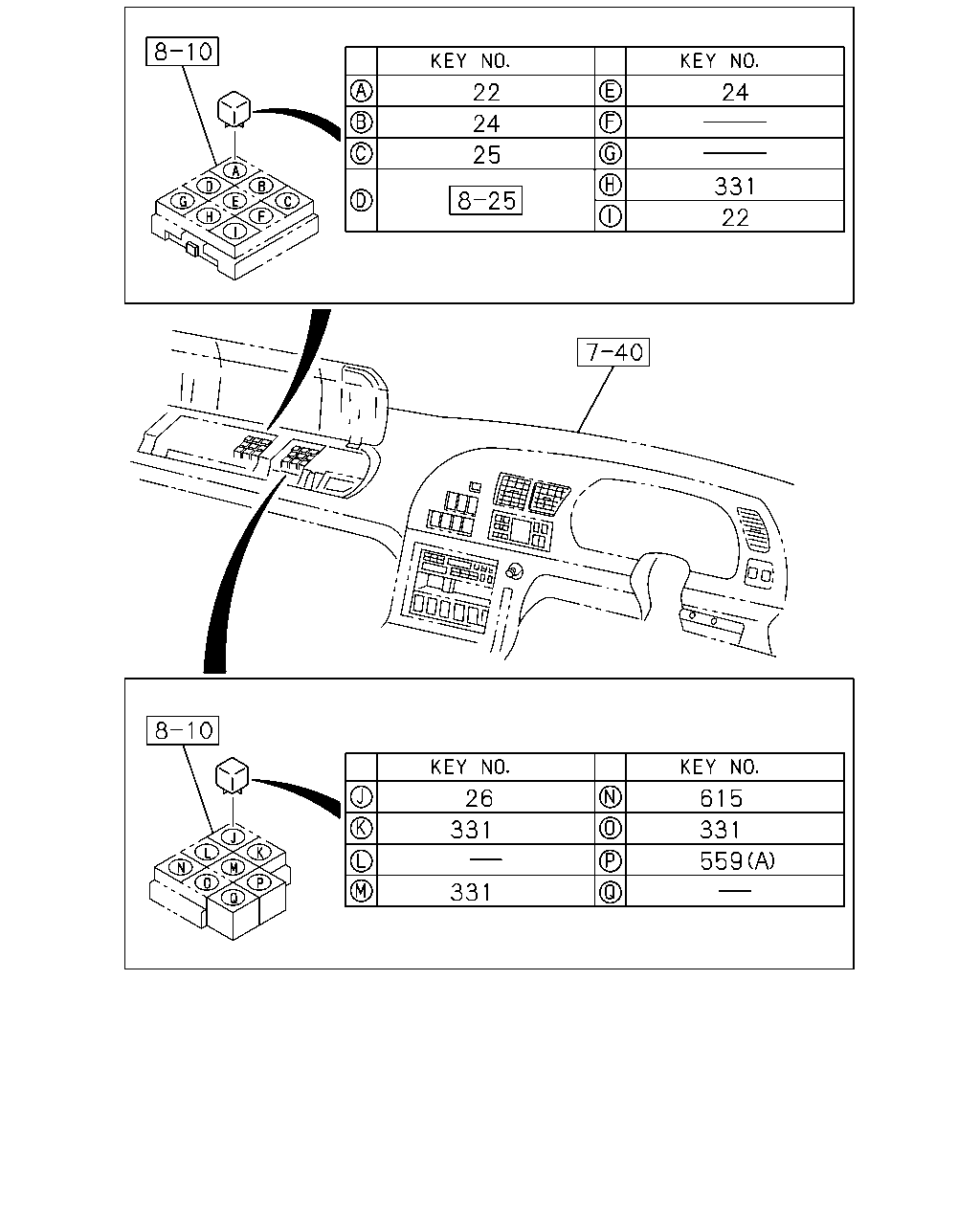

çizim 93134
24 22 24 25 331 22 26 331 331 615 331 559
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-
331 RELAY; A/C
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0710-
559 RELAY; MAG VLV
(B) 24V 10A PANASONIC 		8-97173-035-1 01 1 0710-
559 RELAY; MAG VLV
(A) 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-
615 RELAY; TRAILER
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0710-

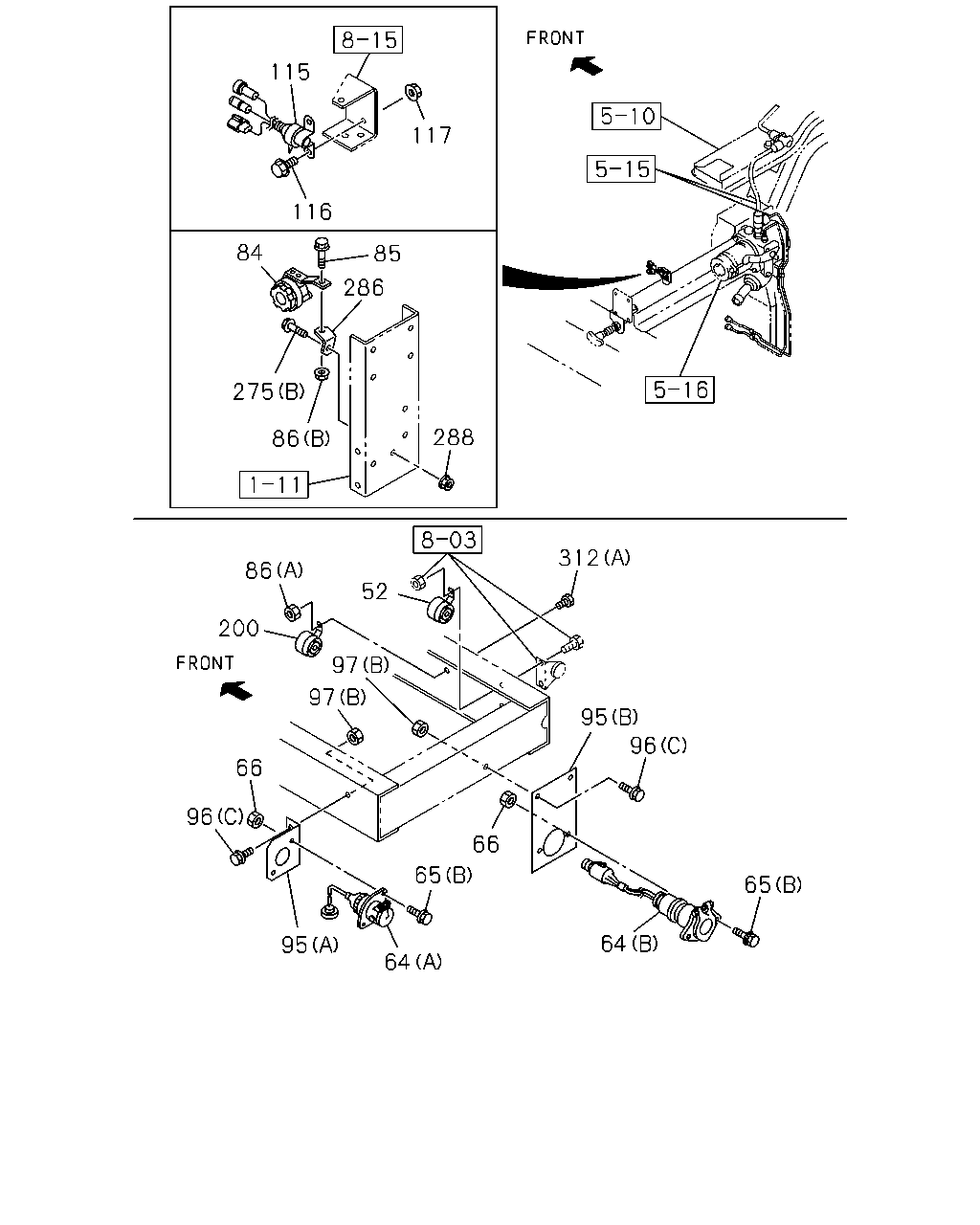

çizim 93379
115 117 116 84 85 286 275 86 288 86 52 312 97 200 97 66 96 95 64 65 66 95 96 65 64
BalonParca AdiParca NoAdetTipApplied Date
52 BUZZER; BACK
METRO DENSO 		8-98069-861-0 01 1 0710-
64 SOCKET; TRAILER
(B) 7P 		1-82523-014-0 01 1 0710-
64 SOCKET; TRAILER
(A) L=860 		1-82699-449-2 01 1 0710-1008
64 SOCKET; TRAILER
(A) L=860 		8-98172-008-0 01 1 1009-
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0710-
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0710-
66 NUT; SOCKET FIX
M8 FLANGE 		0-91180-108-0 04 1 0710-
84 BUZZER; POWER CAB TILT
METRO DENSO 		8-98069-860-0 01 1 0710-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28650-820-0 01 1 0710-
86 NUT; BUZZER
(B) M8 FLANGE 		0-91180-108-0 01 1 0710-
86 NUT; BUZZER
(A) M10 FLANGE 		0-91180-210-0 01 1 0710-
95 BRACKET; SOCKET,TRAILER
(B) 		1-82699-387-0 01 1 0710-
95 BRACKET; SOCKET,TRAILER
(A) 		1-82699-979-0 01 1 0710-1008
95 BRACKET; SOCKET,TRAILER
(A) 		8-97985-137-0 01 1 1009-
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0710-
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0710-
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0710-
97 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-
97 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 05 1 0710-
97 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 01 1 0710-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0710-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28050-816-0 02 1 0710-
117 NUT; RELAY FIX
M8 FLANGE 		0-91180-108-0 02 1 0710-
200 BUZZER; WARNING,AIR SUSP 1-83460-104-0 01 1 0710-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0710-
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
286 BRACKET 1-82699-199-0 01 1 0710-
288 NUT; BRKT FIX
M8 FLANGE 		0-91180-108-0 01 1 0710-
312 BOLT; BUZZER
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0710-
312 BOLT; BUZZER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-

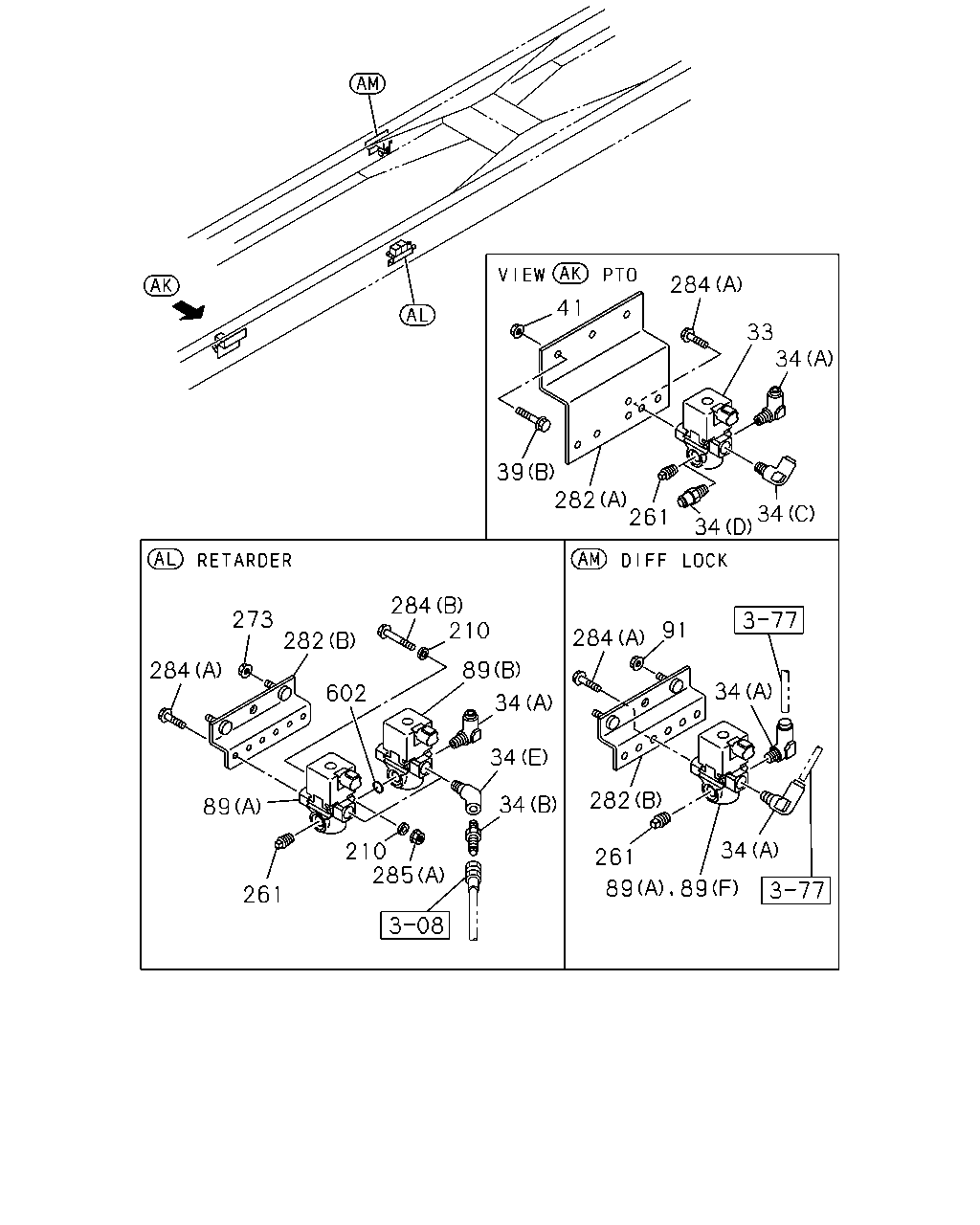

çizim 93416
33 34 284 39 282 261 34 34 91 284 34 282 34 261 89 89 34 34 34 89 210 284 282 273 284 602 89 261 210 285 41
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) 		1-82563-871-2 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4 		1-09664-211-0 02 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) M8 FLANGE 		0-91180-108-0 02 1 0710-
89 VALVE; MAG,DIFF LOCK
(F) 		8-97641-594-0 01 1 1206-
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82563-872-1 01 1 0710-
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0710-1205
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0710-1205
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 1206-
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-094-2 01 1 0710-
89 VALVE; MAG,DIFF LOCK
(E) 		1-82564-095-1 02 1 0710-
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-407-1 01 1 0710-
91 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0710-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0710-1110
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0710-1110
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1111-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 1111-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 1111-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1111-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 02 1 0710-1110
273 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> M8 FLANGE 		0-91180-108-0 02 1 0710-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0710-
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0710-
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0710-
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0710-
282 BRACKET; MAG VLV
(D) 		1-82569-298-0 01 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0710-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0710-

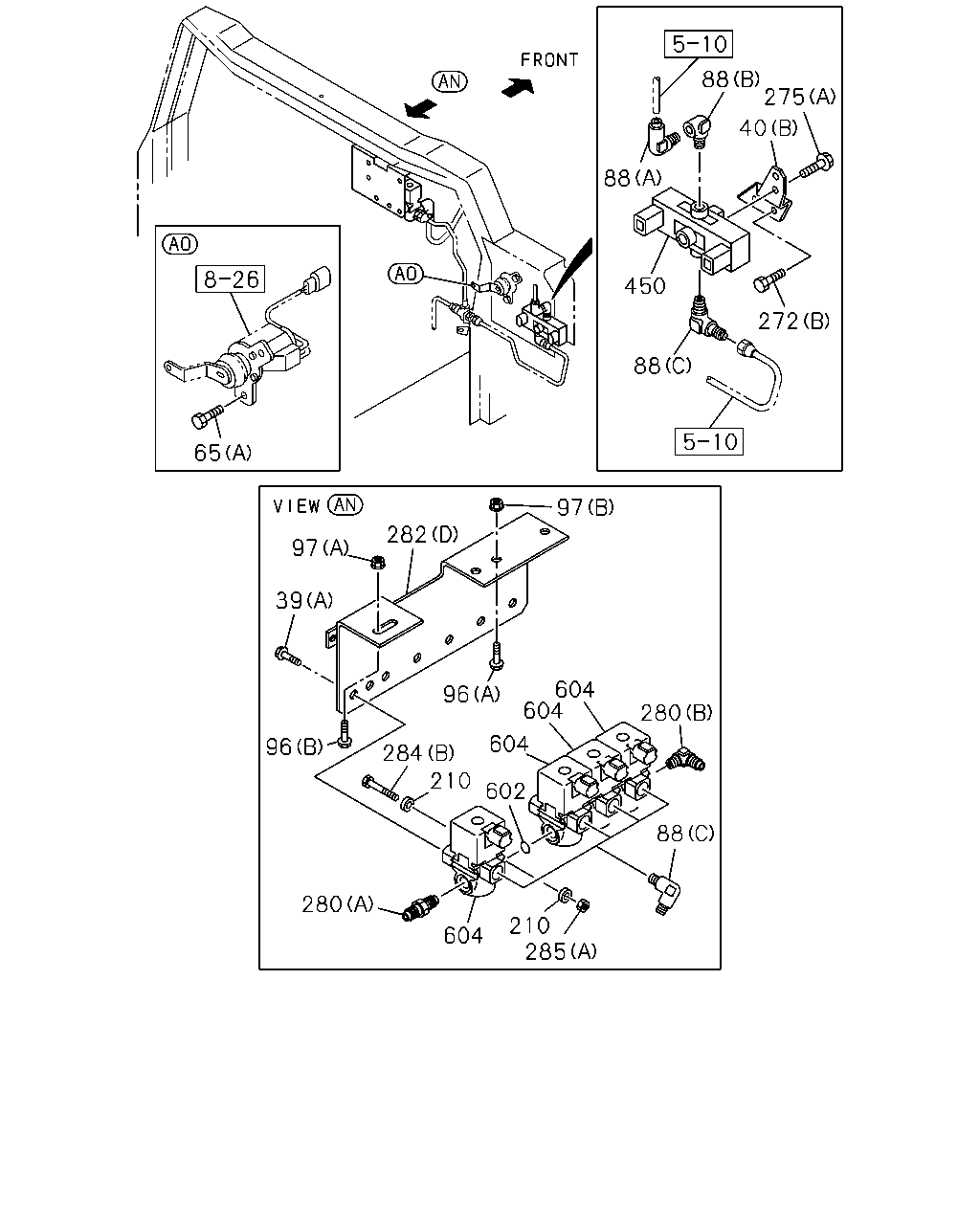

çizim 93420
88 40 275 88 450 88 272 65 97 282 97 39 96 96 604 604 604 284 210 602 280 88 210 285 604 280
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0710-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0710-
40 BRACKET; MAG VLV
(C) 		1-82569-420-0 01 1 0710-
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28050-616-0 02 1 0710-
65 BOLT; SOCKET FIX
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0710-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0710-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-
88 CONNECTOR; MAG VLV
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0710-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0710-
88 CONNECTOR; MAG VLV
(F) 		1-09661-065-0 02 1 0710-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
88 CONNECTOR; MAG VLV
(K) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-
88 CONNECTOR; MAG VLV
(H) PT3/8 3WAY 		1-09661-300-0 01 1 0710-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0710-
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0710-
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0710-
97 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-
97 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 05 1 0710-
97 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 01 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0710-
272 BOLT; MAG VLV
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
272 BOLT; MAG VLV
(B) M10X20 FLANGE 		0-28651-020-0 02 1 0710-1208
272 BOLT; MAG VLV
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1209-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0710-
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710-
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0710-
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0710-
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0710-
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0710-
282 BRACKET; MAG VLV
(D) 		1-82569-298-0 01 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0710-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0710-
450 VALVE; MAG 1-53458-378-2 01 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0710-
604 VALVE; MAG,ENG CONT 1-82563-871-2 02 1 0710-
604 VALVE; MAG,ENG CONT 1-82563-871-2 04 1 0710-

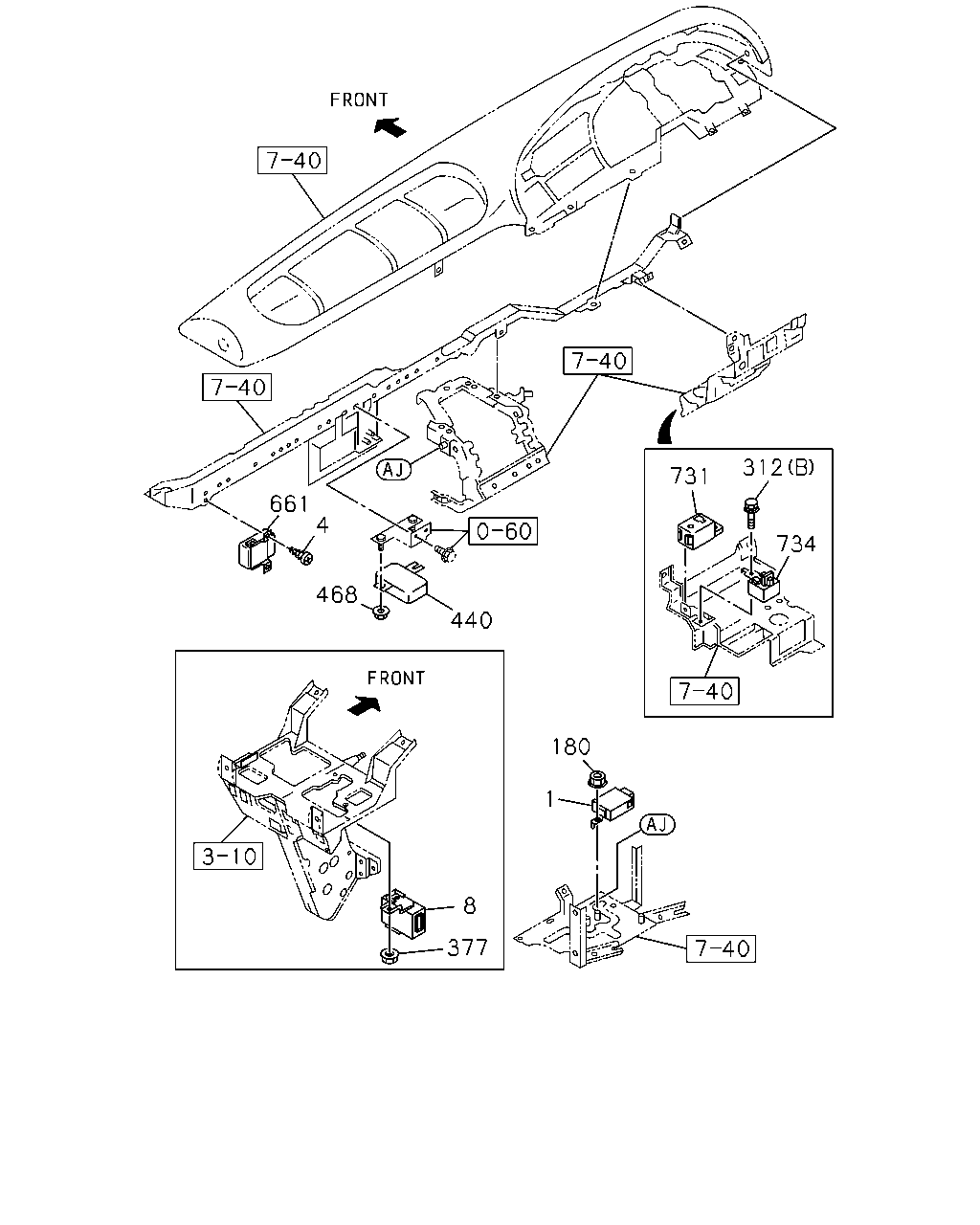

çizim 93437
661 4 468 440 731 312 734 180 1 8 377
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER 1-83470-062-1 01 1 0710-
4 SCREW; FLASHER UNIT
M5X14 		8-94279-325-0 01 1 0710-
8 RELAY; WIPER 1-83316-002-4 01 1 0710-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91180-106-0 01 1 0710-
312 BOLT; BUZZER
(A) M10X35 FLANGE 		0-28651-035-0 01 1 0710-
312 BOLT; BUZZER
(B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 01 1 0710-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0710-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 02 1 0710-
440 MODULE; INFORMATION,ABS 1-81510-701-0 01 1 0710-
468 NUT; MODULE
M6 FLANGE 		0-91180-106-0 02 1 0710-
661 CONTROL UNIT; FLASHER 1-83470-066-1 01 1 0710-
731 ALARM; INFORMATION 1-83460-051-1 01 1 0710-
734 ALARM; MULTI 1-83460-106-0 01 1 0710-

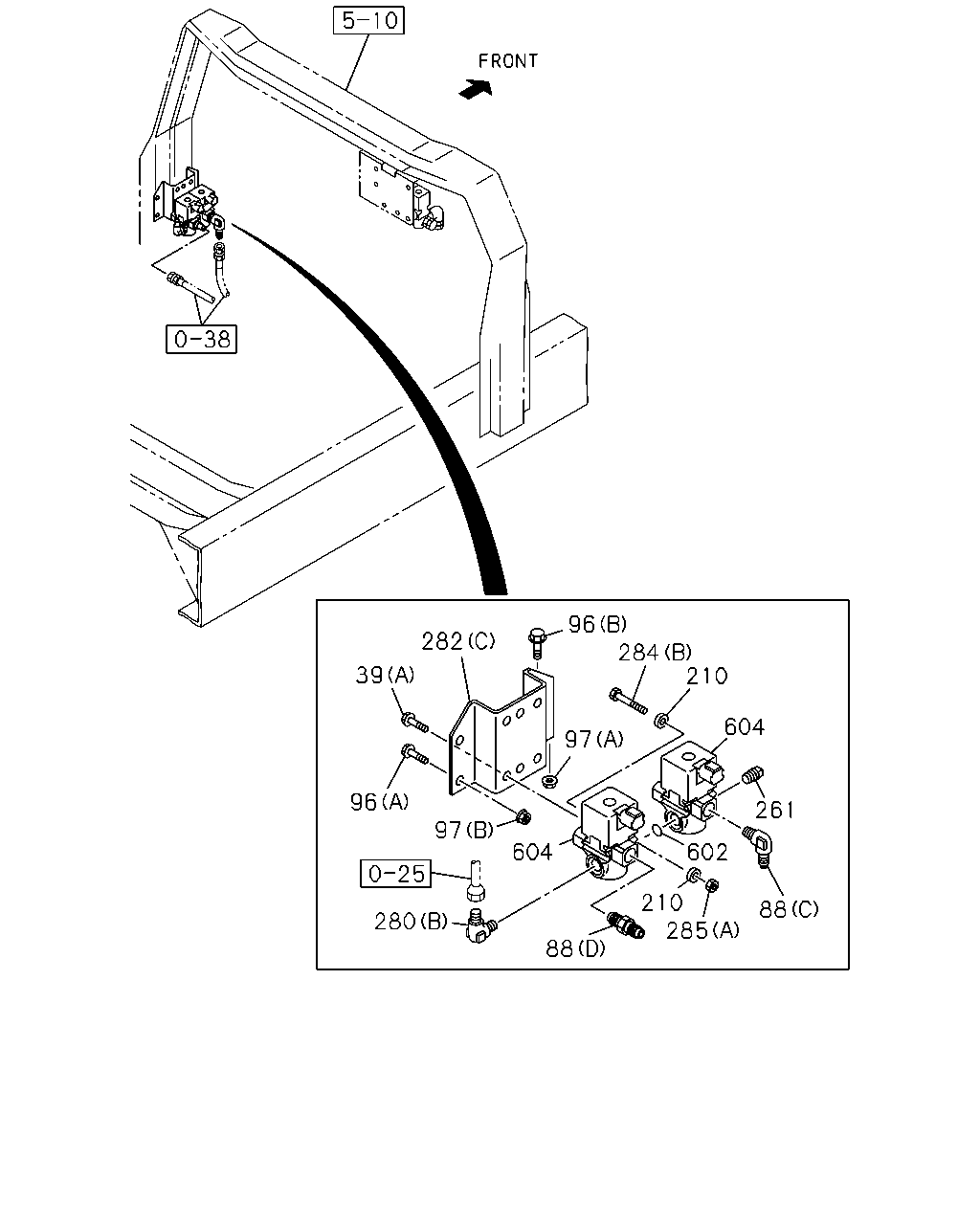

çizim 93441
39 282 95 284 210 604 261 602 285 210 88 88 604 97 96 97 280
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (B) M8X25 FLANGE 		0-28650-825-0 02 1 0710-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0710-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-
88 CONNECTOR; MAG VLV
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0710-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0710-
88 CONNECTOR; MAG VLV
(F) 		1-09661-065-0 02 1 0710-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
88 CONNECTOR; MAG VLV
(K) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-
88 CONNECTOR; MAG VLV
(H) PT3/8 3WAY 		1-09661-300-0 01 1 0710-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
95 BRACKET; SOCKET,TRAILER
(B) 		1-82699-387-0 01 1 0710-
95 BRACKET; SOCKET,TRAILER
(A) 		1-82699-979-0 01 1 0710-1008
95 BRACKET; SOCKET,TRAILER
(A) 		8-97985-137-0 01 1 1009-
96 BOLT; BRKT FIX
(A) M8X20 FLANGE 		0-28650-820-0 05 1 0710-
96 BOLT; BRKT FIX
(C) M8X25 FLANGE 		0-28650-825-0 04 1 0710-
96 BOLT; BRKT FIX
(B) M10X25 FLANGE 		0-28651-025-0 01 1 0710-
97 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 04 1 0710-
97 NUT; BRKT FIX
(B) M8 FLANGE 		0-91180-108-0 05 1 0710-
97 NUT; BRKT FIX
(A) M10 FLANGE 		0-91180-210-0 01 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0710-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0710-1110
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 0710-1110
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1111-
261 PLUG; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 1111-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) EXC. BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> PT1/4 		9-99204-513-0 01 1 1111-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 1111-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 02 1 0710-1110
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) 		1-47479-364-1 01 1 0710-
282 BRACKET; MAG VLV
(B) 		1-82569-358-0 01 1 0710-
282 BRACKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82569-358-0 01 1 0710-
282 BRACKET; MAG VLV
(C) 		1-82569-290-0 01 1 0710-
282 BRACKET; MAG VLV
(D) 		1-82569-298-0 01 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0710-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0710-
604 VALVE; MAG,ENG CONT 1-82563-871-2 02 1 0710-
604 VALVE; MAG,ENG CONT 1-82563-871-2 04 1 0710-

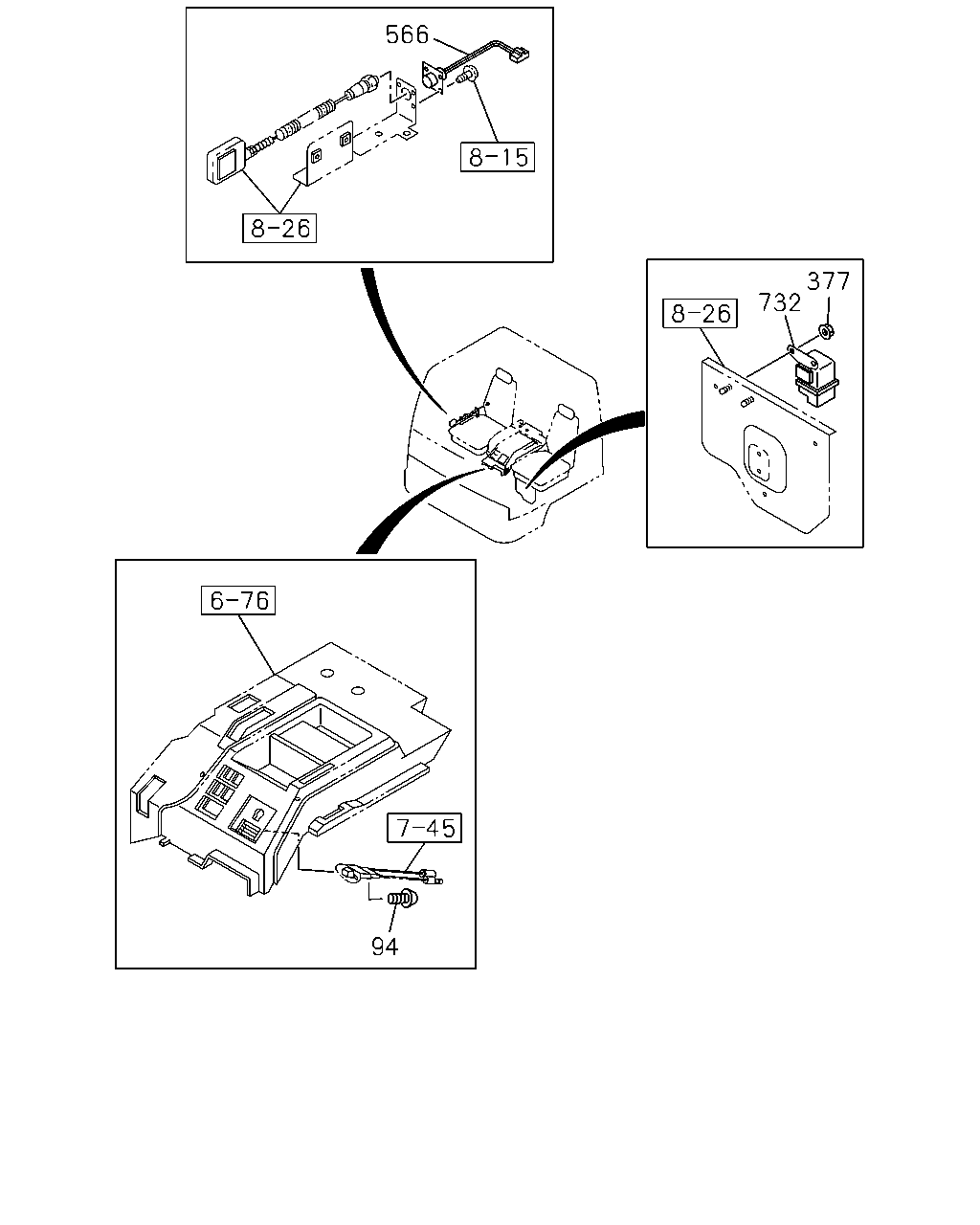

çizim 106820
566 732 377 94
BalonParca AdiParca NoAdetTipApplied Date
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74160-510-0 02 1 0710-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 01 1 0710-
377 NUT; RELAY
M6 FLANGE 		0-91180-106-0 02 1 0710-
566 HARNESS; REMOTE CONT 1-82626-888-1 01 1 0710-
732 RELAY; EDS 1-82550-337-1 01 1 0710-

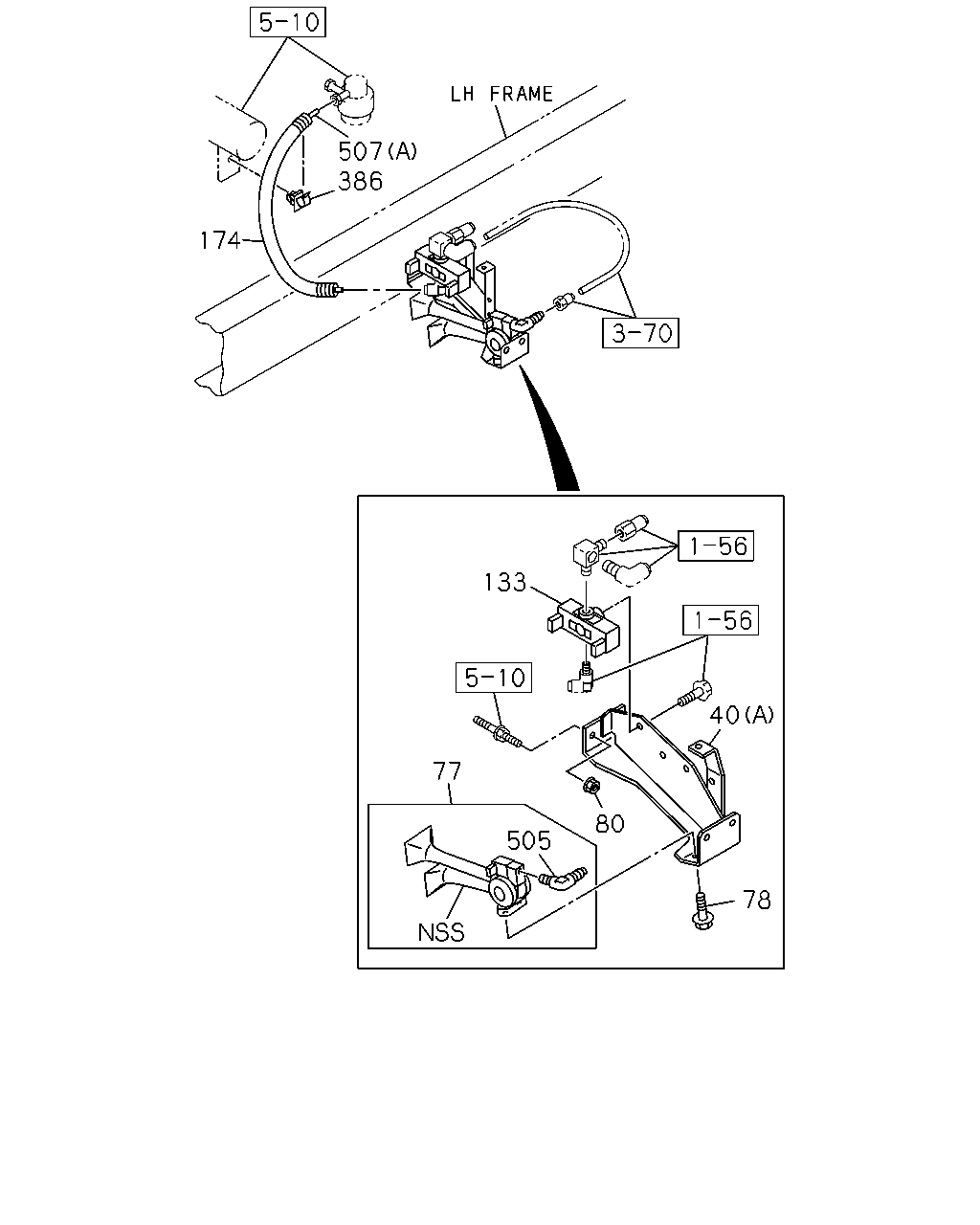

çizim 106838
507 386 174 133 40 80 77 505 78
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0710-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0710-
40 BRACKET; MAG VLV
(C) 		1-82569-420-0 01 1 0710-
77 HORN ASM 1-83430-041-2 01 1 0710-
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
80 NUT; MAG VLV
M12 FLANGE 		0-91180-212-0 02 1 0710-
133 VALVE; MAG,AIR HORN 1-53458-378-2 01 1 0710-
174 COVER
L=800 		1-83129-031-1 01 1 0710-
386 CLIP; HARNESS
ID=9.5 		5-09709-020-0 01 1 0710-
505 JOINT; AIR HORN 1-83439-006-0 01 1 0710-
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0710-
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0710-

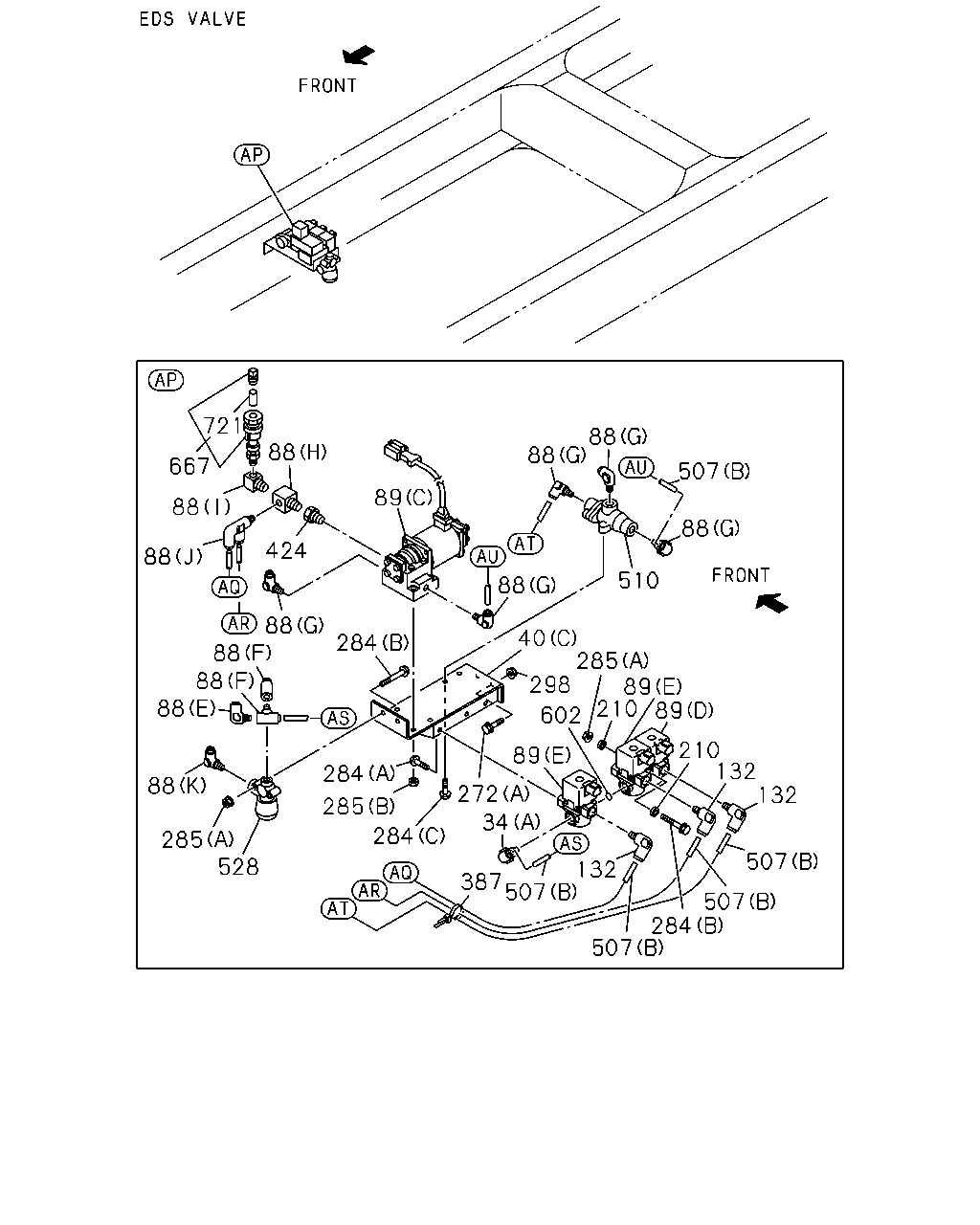

çizim 106840
667 721 88 88 88 424 89 88 88 507 88 510 88 40 285 89 89 210 132 132 507 507 284 507 132 507 387 34 272 89 602 298 284 88 88 88 88 88 285 528 284 285 284 210
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (C) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (D) DIN8 R1/4 STRAIGHT 		1-09660-963-0 01 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) R1/4 & RC1/4 		1-09664-211-0 02 1 0710-
34 CONNECTOR; MAG VLV,INL PORT
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0710-
40 BRACKET; MAG VLV
(A) 		1-53457-180-0 01 1 0710-
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0710-
40 BRACKET; MAG VLV
(C) 		1-82569-420-0 01 1 0710-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 04 1 0710-
88 CONNECTOR; MAG VLV
(I) PT1/4 & PT3/8 2WAY 		1-09660-809-0 01 1 0710-
88 CONNECTOR; MAG VLV
(E) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0710-
88 CONNECTOR; MAG VLV
(G) DIN8 & R3/8 ELBOW 		1-09660-957-0 05 1 0710-
88 CONNECTOR; MAG VLV
(J) DIN8X2 & PT3/8 DOUBLE ELBOW 		1-09661-025-0 01 1 0710-
88 CONNECTOR; MAG VLV
(F) 		1-09661-065-0 02 1 0710-
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0710-
88 CONNECTOR; MAG VLV
(K) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0710-
88 CONNECTOR; MAG VLV
(H) PT3/8 3WAY 		1-09661-300-0 01 1 0710-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0710-
89 VALVE; MAG,DIFF LOCK
(F) 		8-97641-594-0 01 1 1206-
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) 		1-82563-872-1 01 1 0710-
89 VALVE; MAG,DIFF LOCK
(A) 		1-82563-871-2 01 1 0710-1205
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 0710-1205
89 VALVE; MAG,DIFF LOCK
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) 		1-82563-871-2 01 1 1206-
89 VALVE; MAG,DIFF LOCK
(D) 		1-82564-094-2 01 1 0710-
89 VALVE; MAG,DIFF LOCK
(E) 		1-82564-095-1 02 1 0710-
89 VALVE; MAG,DIFF LOCK
(C) 		1-82564-407-1 01 1 0710-
132 CONNECTOR; OUTLET,MAG VLV
DIN8 & R1/4 ELBOW 		1-09660-956-0 03 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82569-266-0 02 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 04 1 0710-
210 WASHER; PL,BRKT 1-82569-266-0 06 1 0710-
272 BOLT; MAG VLV
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0710-
272 BOLT; MAG VLV
(B) M10X20 FLANGE 		0-28651-020-0 02 1 0710-1208
272 BOLT; MAG VLV
(B) M10X25 FLANGE 		0-28651-025-0 02 1 1209-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY(BBC) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M6X50 FLANGE 		0-28050-650-0 01 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 03 1 0710-
284 BOLT; MAG VLV
(B) M6X50 FLANGE 		0-28050-650-0 04 1 0710-
284 BOLT; MAG VLV
(C) M8X14 FLANGE 		0-28080-814-0 02 1 0710-
284 BOLT; MAG VLV
(A) M8X20 FLANGE 		0-28650-820-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) M6 FLANGE 		0-91180-106-0 01 1 0710-
285 NUT; MAG VLV
(B) M5 		0-91110-505-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 03 1 0710-
285 NUT; MAG VLV
(A) M6 FLANGE 		0-91180-106-0 04 1 0710-
298 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0710-
387 CLIP; BAND
L=350 		1-09707-183-0 01 1 0710-
424 ADAPTER
PT3/8 		1-09664-210-0 01 1 0710-
507 TUBE; NYLON
(A) SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0710-
507 TUBE; NYLON
(B) SERVICED BY L=2000 OD=8 		1-87411-006-0 05 1 0710-
510 VALVE; CHECK 1-48410-531-1 01 1 0710-
528 VALVE; PRESSURE REDUCING 1-48410-744-0 01 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> ID=16.8 		9-09565-117-0 01 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 02 1 0710-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 03 1 0710-
667 LUBRICATION 8-98063-001-0 01 1 0710-
721 ELEMENT; LUBRICATION 1-33779-028-0 01 1 0710-

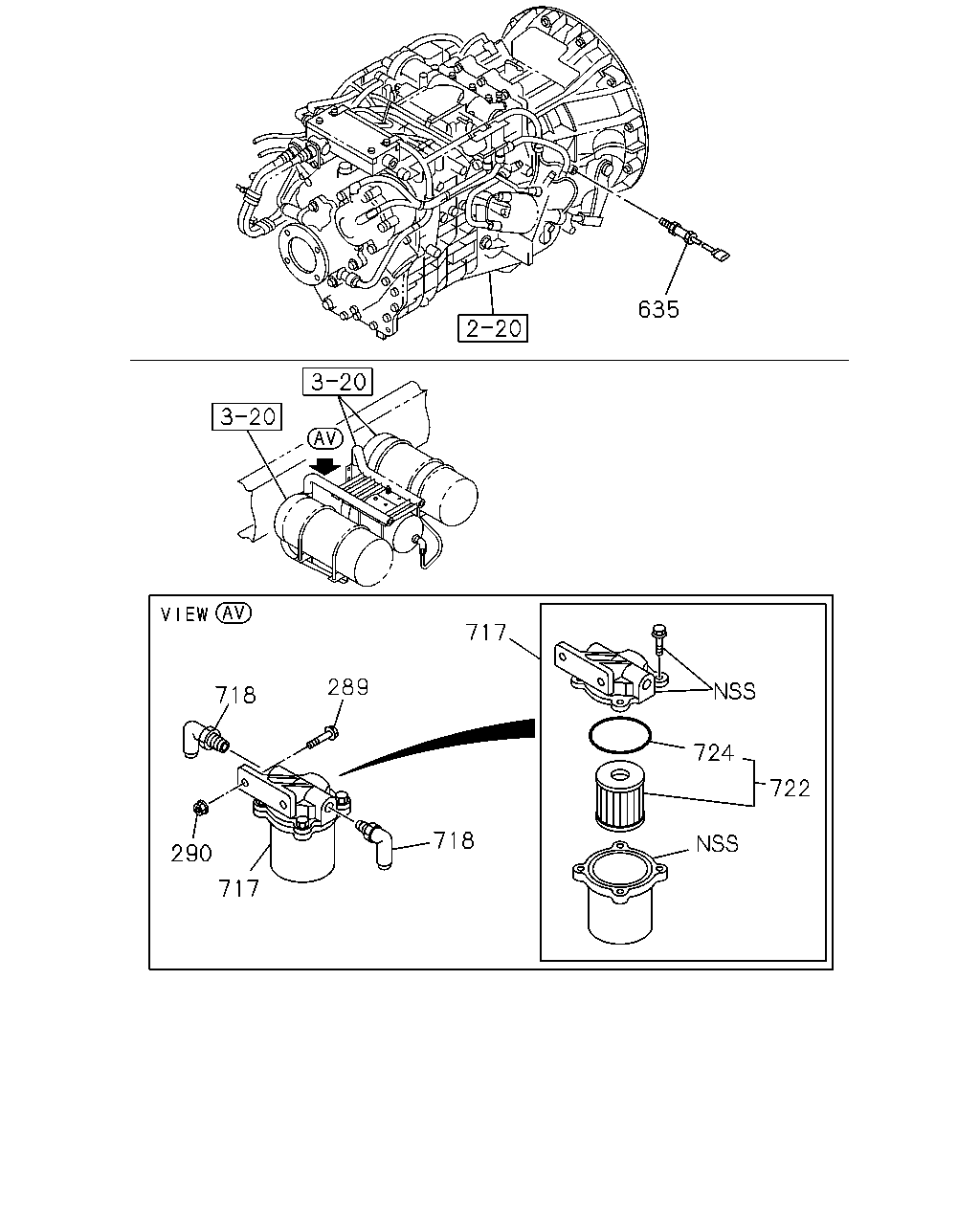

çizim 106854
635 717 289 718 724 722 718 290 717
BalonParca AdiParca NoAdetTipApplied Date
289 BOLT
M8X35 FLANGE 		0-28650-835-0 02 1 0710-
290 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710-
635 SENSOR; PICK UP,INPUT SHAFT 1-81510-736-1 01 1 0710-
717 FILTER; MAG VLV 8-98092-703-0 01 1 0710-
718 CONNECTOR; FILTER
DIN8 & M16 ELBOW 		1-09661-531-0 02 1 0710-
722 ELEMENT; AIR FILTER 1-33779-040-0 01 1 0710-
724 GASKET; AIR FILTER 5-09623-075-0 01 1 0710-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
