1-41 — FUEL PIPING; CHASSIS (#153183) — 83 parça

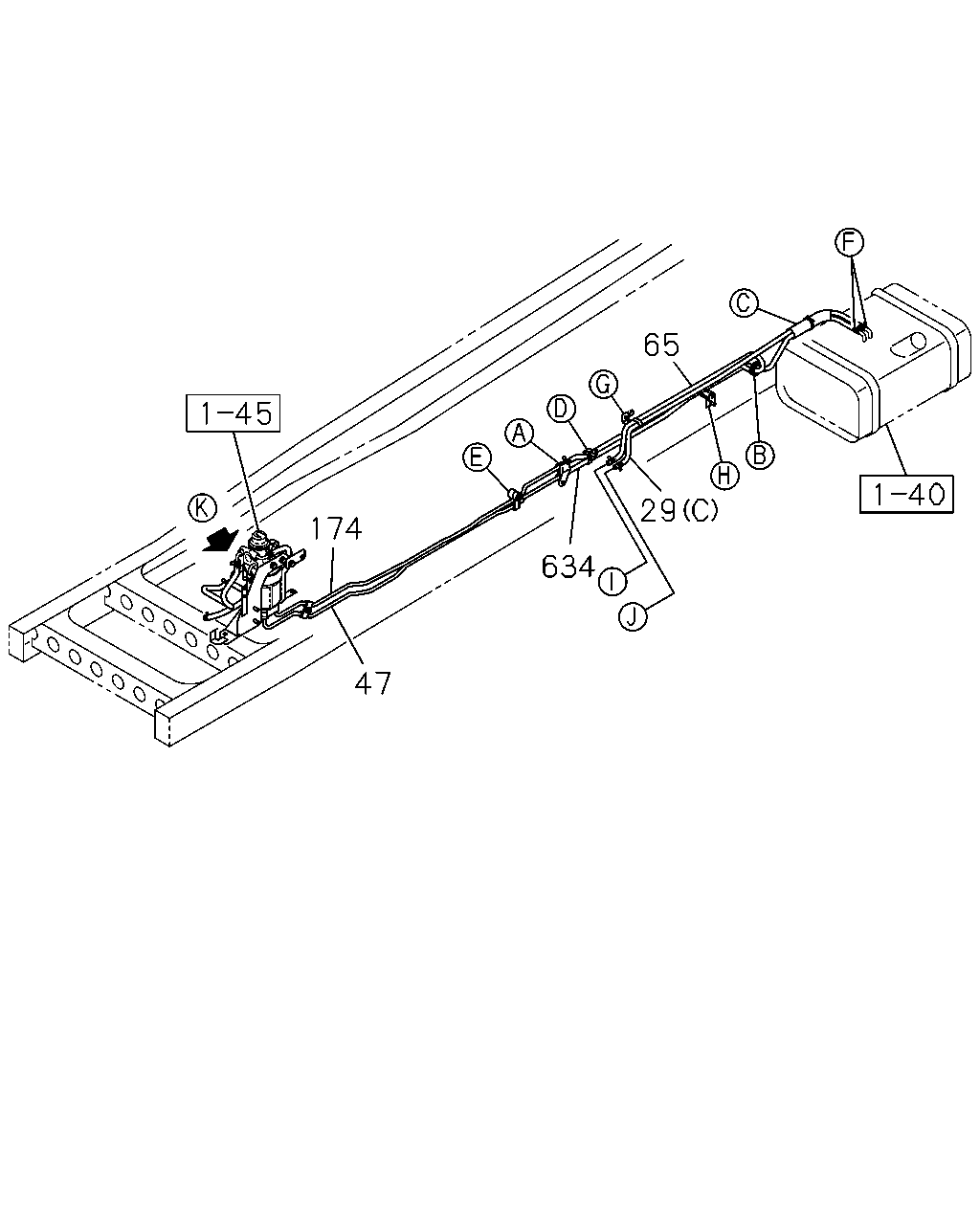

çizim 458425
65 29 634 174 47
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
(C) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 1412-
29 HOSE; FUEL
(A) ID=9.3 		8-98239-029-0 01 1 1412-
29 HOSE; FUEL
(B) ID=7.5 		8-98239-030-0 01 1 1412-
47 PIPE; FUEL,RETURN
L=1619 		8-98239-080-0 01 1 1412-
65 HOSE; FUEL,DELIVERY PIPE
L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 1412-
174 PIPE; FUEL,FEED,FRT
L=1488 		8-98239-079-0 01 1 1412-
634 HOSE; RUBBER RETURN
L=1000 SERVICED BY L=3000 		0-01558-300-0 01 1 1412-

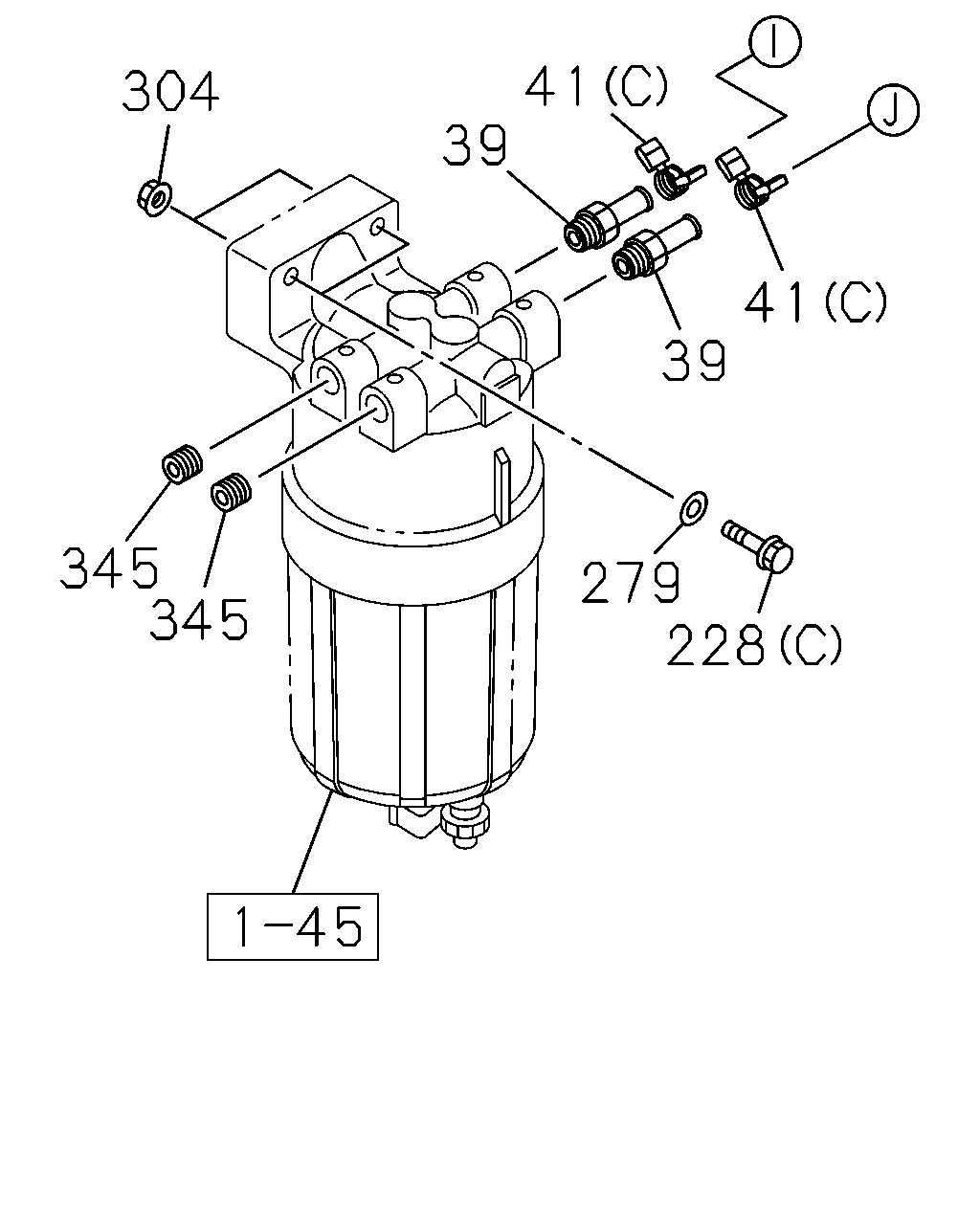

çizim 458452
41 41 39 279 345 345 304 39 228
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 05 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1412-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1412-
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1412-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1412-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1412-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1412-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1412-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1412-

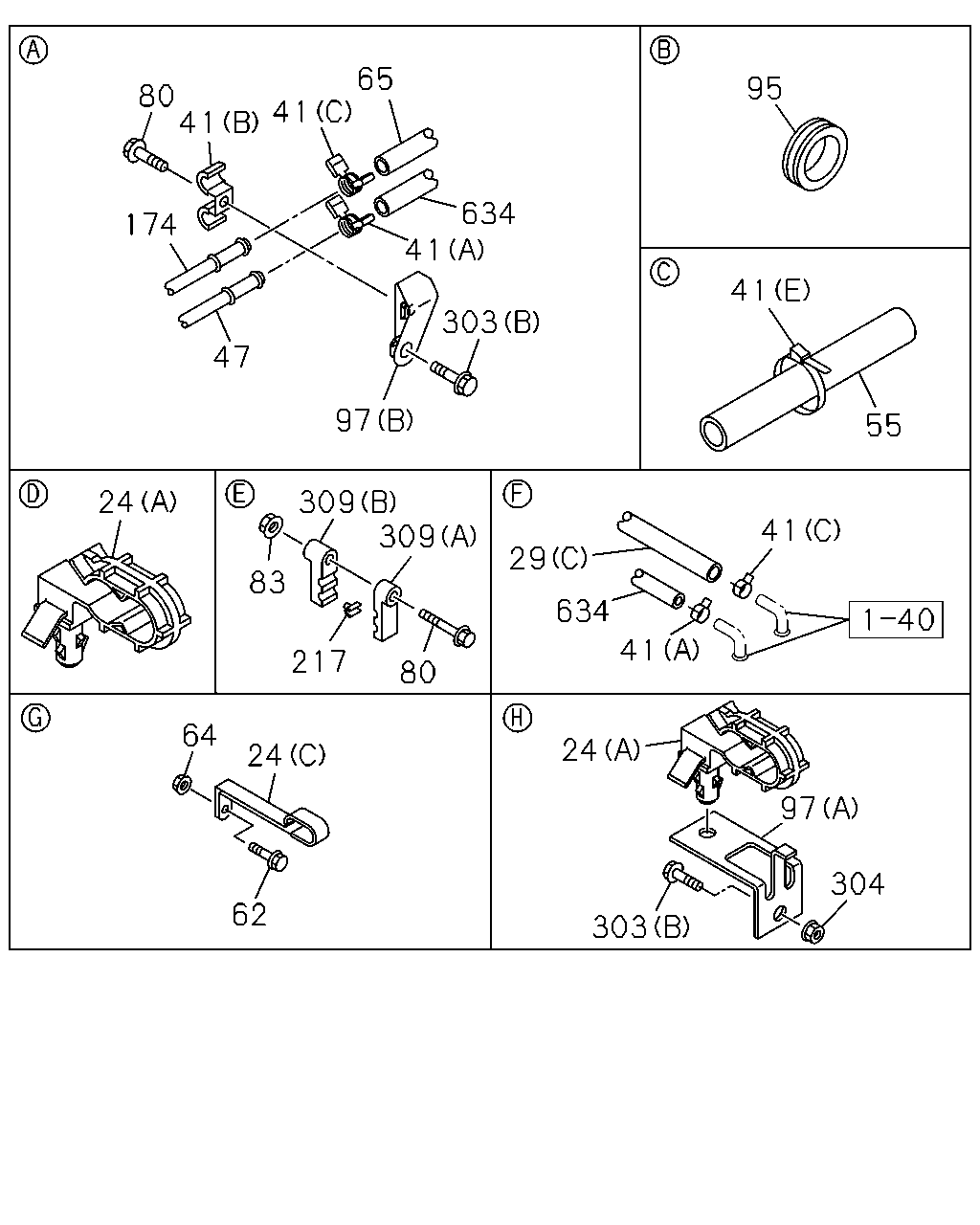

çizim 458581
80 174 41 41 65 634 41 303 47 97 24 83 217 309 309 80 64 24 62 303 24 41 634 29 41 55 41 95 97 304
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1412-
24 CLIP; FUEL HOSE
(C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1412-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 02 1 1412-
29 HOSE; FUEL
(C) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 1412-
29 HOSE; FUEL
(A) ID=9.3 		8-98239-029-0 01 1 1412-
29 HOSE; FUEL
(B) ID=7.5 		8-98239-030-0 01 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 05 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1412-
47 PIPE; FUEL,RETURN
L=1619 		8-98239-080-0 01 1 1412-
55 COVER; PIPE,FUEL TANK
L=250 SERVICED BY L=1300 		1-09360-677-1 01 1 1412-
55 COVER; PIPE,FUEL TANK
ID=27 L=500 		8-98119-327-0 01 1 1412-
62 BOLT; CLIP FIX
M8X30 FLANGE 		0-28650-830-0 01 1 1412-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1412-
65 HOSE; FUEL,DELIVERY PIPE
L=1450 SERVICED BY L=3000 		0-01260-300-0 01 1 1412-
80 BOLT; CLIP,FUEL TANK
M8X50 FLANGE 		0-28050-850-0 02 1 1412-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1412-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE 		0-28650-820-0 02 1 1412-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1412-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1412-
97 BRACKET; CLIP
(A) 		8-98109-768-0 01 1 1412-
97 BRACKET; CLIP
(B) 		8-98117-691-0 02 1 1412-
97 BRACKET; CLIP
(C) 		8-98234-127-0 01 1 1412-
174 PIPE; FUEL,FEED,FRT
L=1488 		8-98239-079-0 01 1 1412-
217 COLLAR; FUEL PIPE FIX
ID=8 		1-47459-011-0 02 1 1412-
303 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1412-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1412-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1412-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1412-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1412-
309 CLIP; PIPE
(A) ID=10 & 10 		1-09709-241-0 02 1 1412-
309 CLIP; PIPE
(B) ID=10 & 10 		1-09709-243-0 02 1 1412-
634 HOSE; RUBBER RETURN
L=1000 SERVICED BY L=3000 		0-01558-300-0 01 1 1412-

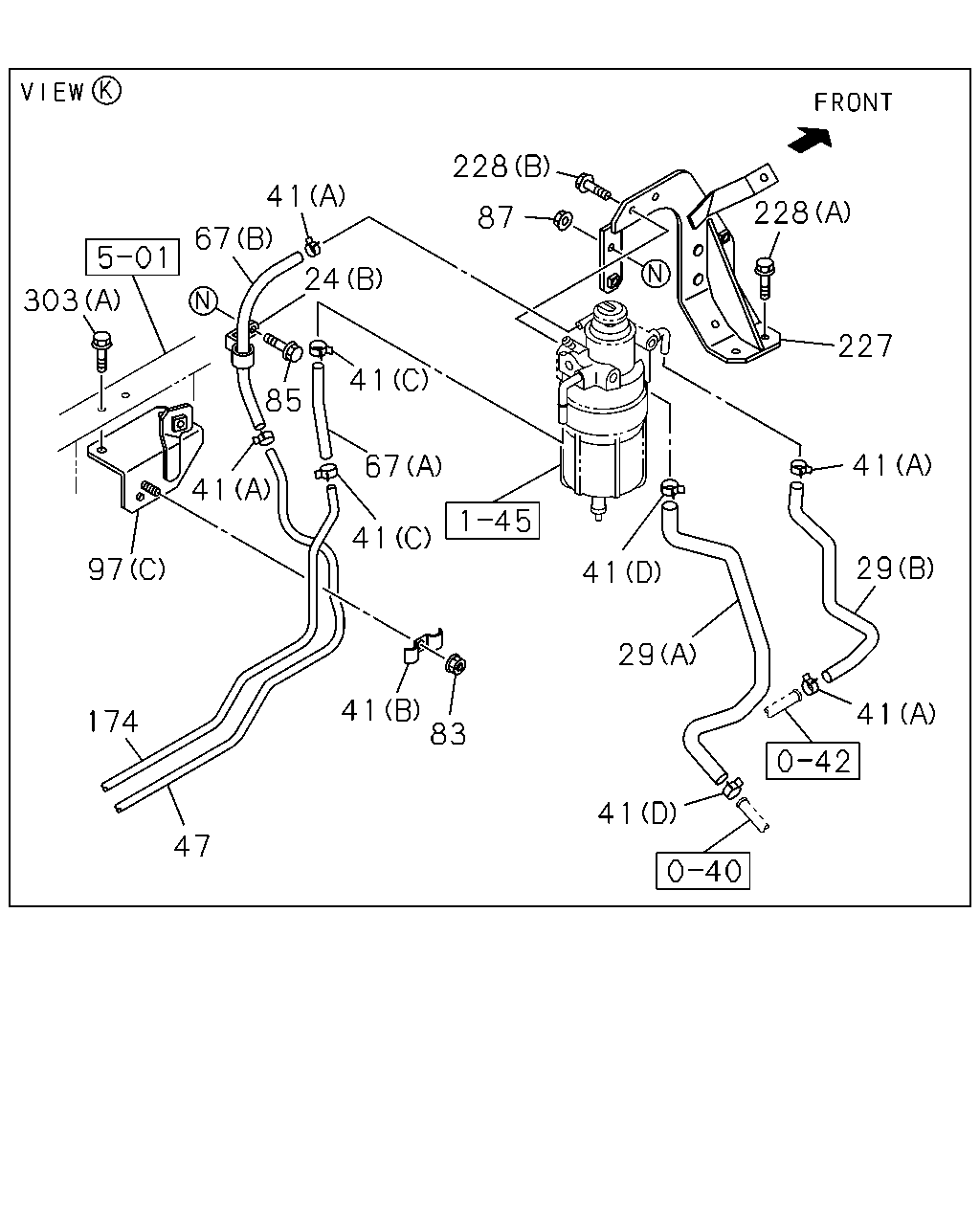

çizim 458582
228 228 227 41 29 41 41 29 41 83 41 47 174 97 41 85 67 61 41 24 41 87 303 67
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1412-
24 CLIP; FUEL HOSE
(C) ID=14X29 H=30 L=25 		1-09701-101-0 01 1 1412-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 02 1 1412-
29 HOSE; FUEL
(C) L=1300 SERVICED BY L=3000 		0-01260-300-0 01 1 1412-
29 HOSE; FUEL
(A) ID=9.3 		8-98239-029-0 01 1 1412-
29 HOSE; FUEL
(B) ID=7.5 		8-98239-030-0 01 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 		1-09704-102-0 06 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 		5-09707-030-1 05 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 		8-94238-568-0 02 1 1412-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1412-
47 PIPE; FUEL,RETURN
L=1619 		8-98239-080-0 01 1 1412-
67 HOSE; FUEL,DELIVERY
(A) L=190 SERVICED BY L=3000 		0-01260-300-0 01 1 1412-
67 HOSE; FUEL,DELIVERY
(B) L=310 		0-01508-310-0 01 1 1412-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 03 1 1412-
85 BOLT; CLIP,FUEL HOSE
M8X20 FLANGE 		0-28650-820-0 01 1 1412-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 01 1 1412-
97 BRACKET; CLIP
(A) 		8-98109-768-0 01 1 1412-
97 BRACKET; CLIP
(B) 		8-98117-691-0 02 1 1412-
97 BRACKET; CLIP
(C) 		8-98234-127-0 01 1 1412-
174 PIPE; FUEL,FEED,FRT
L=1488 		8-98239-079-0 01 1 1412-
227 BRACKET; FUEL SEDIMENTER 8-98208-173-0 01 1 1412-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1412-
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1412-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE 		0-28650-820-0 02 1 1412-
303 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1412-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 01 1 1412-
303 BOLT; BRKT
(B) M10X30 FLANGE 		0-28651-030-0 02 1 1412-
