1-40 — FUEL TANK (#153182) — 28 parça

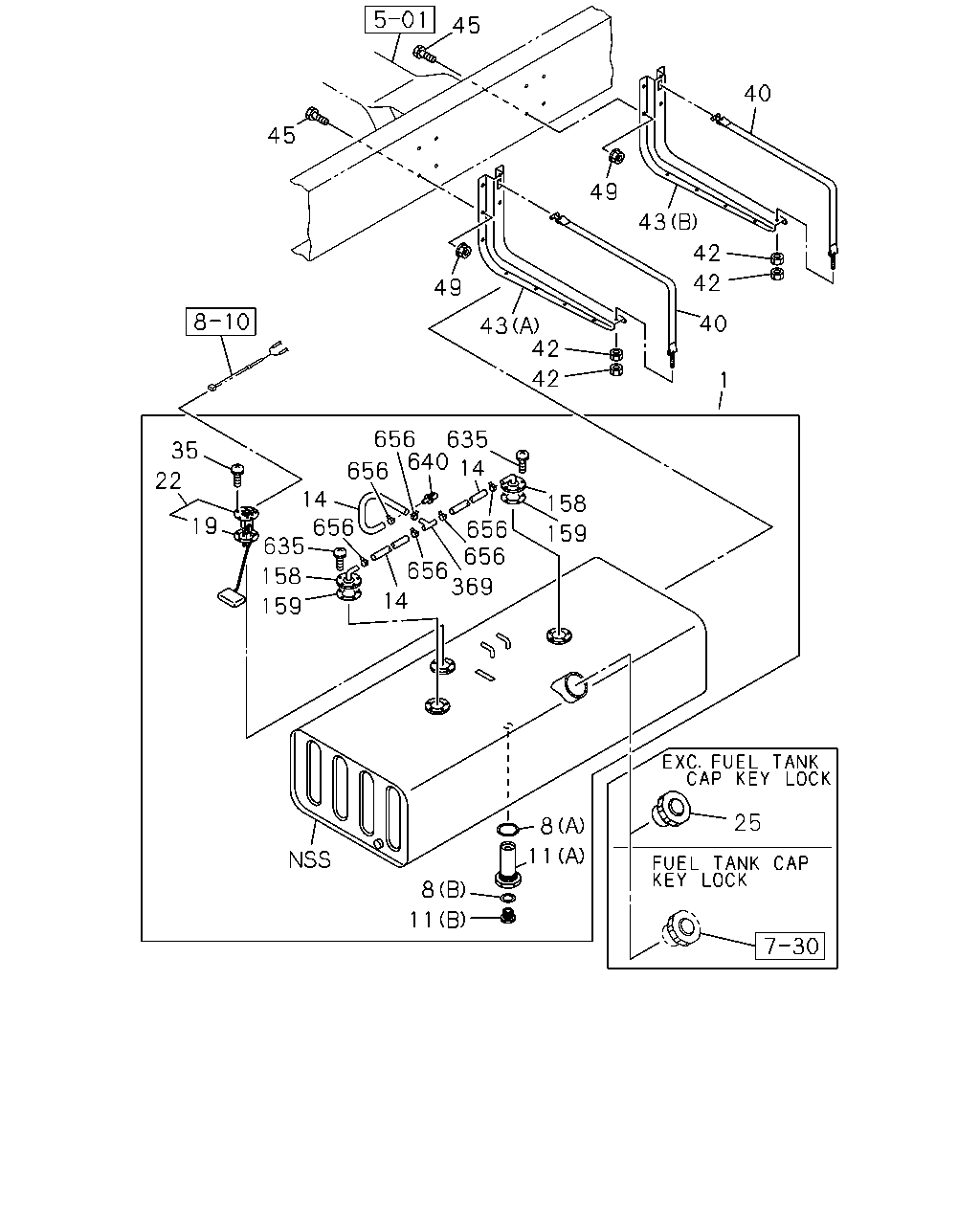

çizim 458559
45 49 43 42 42 1 40 42 42 43 49 40 635 656 656 640 14 158 159 656 656 369 656 14 159 158 635 656 14 19 22 35 8 11 8 11 25 45
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; FUEL
1345X532X322 200L 		8-98122-992-3 01 1 1412-
8 GASKET; DRAIN PLUG,FUEL TANK
(B) ID=30 		8-98067-041-0 01 1 1412-
8 GASKET; DRAIN PLUG,FUEL TANK
(A) ID=18.2 OD=26.0 		9-09571-418-0 01 1 1412-
11 PLUG; DRAIN,FUEL TANK
(A) M18X12 		0-92002-418-0 01 1 1412-1504
11 PLUG; DRAIN,FUEL TANK
(A) M18 		8-98068-006-0 01 1 1505-
11 PLUG; DRAIN,FUEL TANK
(B) M30 		8-98067-038-0 01 1 1412-
14 HOSE; BREATHER,OUTLET
L=90 SERVICED BY L=3000 		0-01256-300-0 01 1 1412-1504
14 HOSE; BREATHER,OUTLET
L=430 		8-98131-037-0 01 1 1505-
14 HOSE; BREATHER,OUTLET
L=440 SERVICED BY L=3000 		0-01256-300-0 01 1 1412-1504
14 HOSE; BREATHER,OUTLET
L=460 		8-98304-414-0 01 1 1505-
14 HOSE; BREATHER,OUTLET
L=450 SERVICED BY L=3000 		0-01256-300-0 01 1 1412-1504
14 HOSE; BREATHER,OUTLET
L=90 		8-98304-415-0 01 1 1505-
19 GASKET; FUEL TANK UNIT
ID=42 OD=71 		5-83148-001-0 01 1 1412-
22 UNIT; FUEL TANK 8-98099-320-0 01 1 1412-
25 CAP; FILLER,FUEL TANK
EXC. FUEL TANK CAP KEY LOCK<N05> 		8-97387-179-0 01 1 1412-
35 SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER 		0-36220-512-0 05 1 1412-
40 BELT; SUPPORT,FUEL TANK
L=880 		8-98042-715-1 02 1 1412-
42 NUT; SUPPORT BELT
M12 		0-91110-512-0 04 1 1412-
43 BRACKET; FUEL TANK
(A) 		8-98088-123-0 01 1 1412-
43 BRACKET; FUEL TANK
(B) 		8-98122-883-0 01 1 1412-
45 BOLT; BRKT,FUEL TANK
M10X35 FLANGE 		0-28651-035-0 12 1 1412-
49 NUT; BRKT
M10 FLANGE 		0-91180-210-0 12 1 1412-
158 VALVE; ROLL OVER & FLOAT 8-98067-039-0 02 1 1412-
159 SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67 		1-83149-003-0 02 1 1412-
369 JOINT; HOSE 8-98067-080-0 01 1 1412-
635 SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER 		0-36220-512-0 10 1 1412-
640 VENTILATOR; HOSE,BREATHER 8-98092-398-0 01 1 1412-
656 CLAMP; FUEL TANK 8-98304-416-0 06 1 1505-
