Isuzu WW
▶
TRUCKS
▶
FSR
▶
11659 - FSR MIDDLE EAST
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-31 - AIR DUCT
▶
1-31 — AIR DUCT
(#153180) — 67 parça
◀

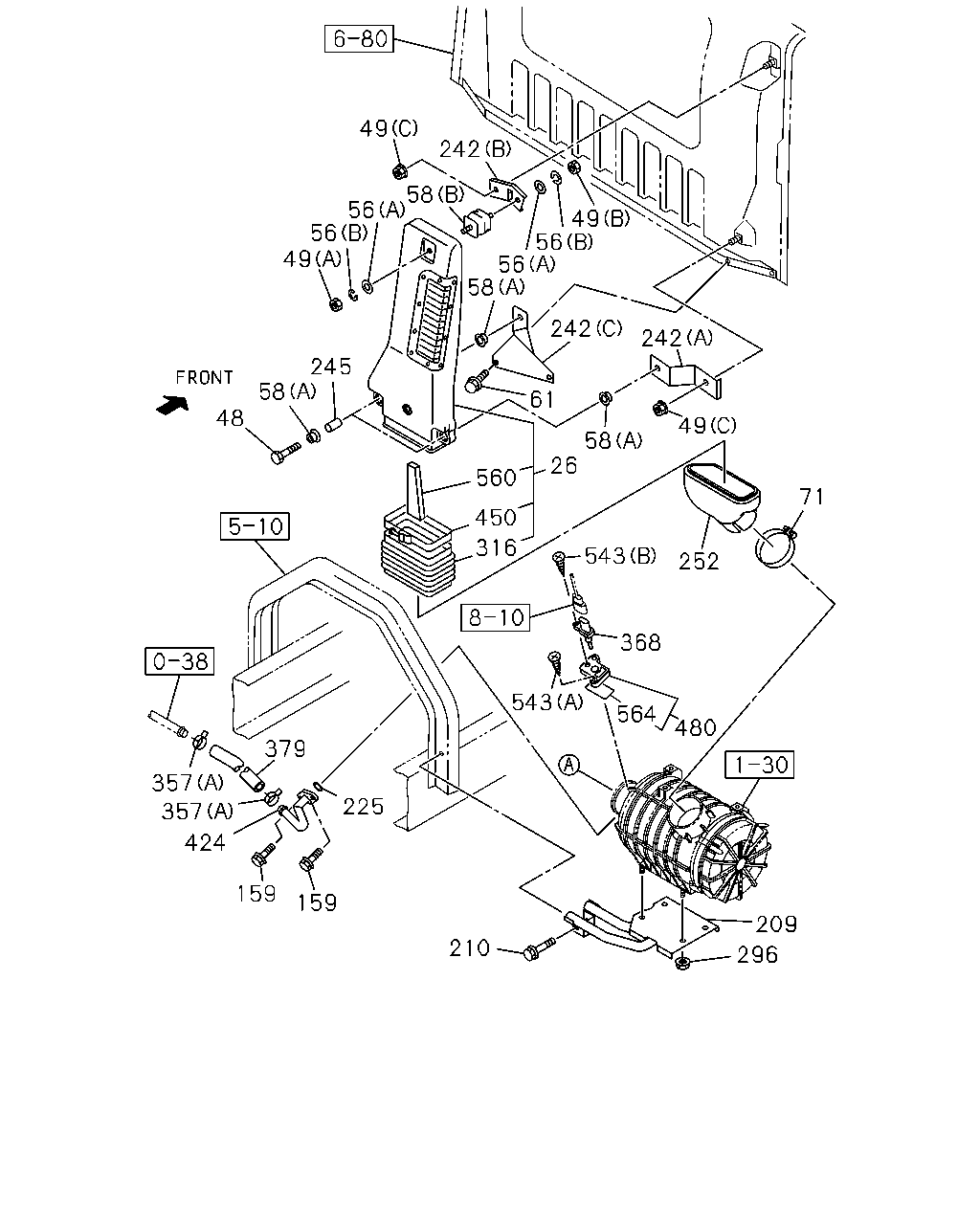

[131A] DUCT FIXING (37 parça)
[131A] PIPING (30 parça)
▶
159
159
210
296
480
209
564
368
543
379
225
357
357
424
543
252
316
560
26
450
58
49
61
242
242
58
56
56
49
242
49
58
56
56
49
245
58
48
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
DUCT; AIR INT
8-98010-361-2
01
1
1412-
48
BOLT; AIR DUCT
M10X60
1-09030-044-1
02
1
1412-
49
NUT; AIR DUCT
(B) M8 FLANGE
1-09984-122-0
01
1
1412-
49
NUT; AIR DUCT
(A) M8 FLANGE
1-09984-126-0
01
1
1412-
49
NUT; AIR DUCT
(C) M8 FLANGE
8-94279-517-0
02
1
1412-
56
WASHER; LK,AIR INT DUCT
(A) ID=8.2
1-09985-177-0
02
1
1412-
56
WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22
1-09985-188-0
02
1
1412-
58
SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5
1-14119-267-0
04
1
1412-
58
SUPPORT; AIR INL DUCT
(B)
8-98125-944-1
01
1
1412-
61
BOLT; BRKT,AIR DUCT
M8X25 FLANGE
8-98074-570-0
02
1
1412-
71
CLIP; AIR DUCT
ID=120-140
8-98133-367-0
01
1
1412-
159
BOLT; AIR PIPE
M6X16 FLANGE
0-28050-616-0
02
1
1412-
209
BRACKET; ACL
8-98099-677-0
01
1
1412-
210
BOLT; ACL BRKT
M10X25 FLANGE
0-28651-025-0
03
1
1412-
225
GASKET; AIR PIPE
ID=24.4
1-09623-057-0
01
1
1412-
242
BRACKET; AIR DUCT
(B)
8-98019-301-3
01
1
1412-
242
BRACKET; AIR DUCT
(C)
8-98019-302-1
01
1
1412-
242
BRACKET; AIR DUCT
(A)
8-98019-303-1
01
1
1412-
245
PIECE; DIST,AIR DUCT
1-79998-228-0
02
1
1412-
252
DUCT; AIR INT
8-98019-843-0
01
1
1412-
296
NUT; ACL
M8 FLANGE
0-91180-108-0
04
1
1412-
316
RUBBER; CUSHION,DUCT
8-98152-269-0
01
1
1412-
357
CLIP; RUBBER HOSE
(A) ID=24
8-98025-921-0
02
1
1412-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=55-75
8-98133-349-0
02
1
1412-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95
8-98133-357-0
01
1
1412-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79
1-09707-136-0
02
1
1412-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99
1-09707-141-0
01
1
1412-
368
SENSOR; TEMP
8-98065-377-0
01
1
1412-
379
HOSE; RUBBER
8-98214-447-1
01
1
1412-
424
PIPE; AIR,INL
8-98081-837-0
01
1
1412-
450
CLAMP; HOSE
9-09915-504-1
01
1
1412-
480
ADAPTER
8-98086-417-0
01
1
1412-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1412-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1412-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1412-
560
FILTER; VERTICAL DUCT
8-98061-675-0
01
1
1412-
564
GASKET; ADAPTER
8-98071-416-0
01
1
1412-
543
215
353
488
353
411
211
411
155
199
474
530
157
357
353
5
320
5
548
353
487
357
548
357
411
474
411
232
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (B) ID=65-85
8-98133-350-0
01
1
1412-
5
CLIP; AIR DUCT
KD PREPARATORY PACK<6HF> (A) ID=110-130
8-98133-359-0
01
1
1412-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (A) ID=104-142
1-09707-139-0
01
1
1412-
5
CLIP; AIR DUCT
EXC. KD PREPARATORY PACK<6HF> (B) ID=75
8-98206-613-0
01
1
1412-
155
BOLT; BRKT
M10X17,M10X30 L=105
8-97233-428-0
02
1
1412-
157
PIPE; AIR
8-98010-719-3
01
1
1412-
199
BRACKET; PIPE
8-97385-293-1
01
1
1412-
211
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1412-
215
SENSOR; MAP
8-98009-418-0
01
1
1412-
232
HOSE; CONN
8-98067-929-0
01
1
1412-
320
HOSE; CONN,ACL
8-98208-854-0
01
1
1412-
353
CLIP; RUBBER HOSE
(A) ID=60-65
8-98096-418-0
02
1
1412-
353
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=55-75
8-98133-349-0
02
1
1412-
353
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=58-79
1-09707-136-0
02
1
1412-
357
CLIP; RUBBER HOSE
(A) ID=24
8-98025-921-0
02
1
1412-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (C) ID=55-75
8-98133-349-0
02
1
1412-
357
CLIP; RUBBER HOSE
KD PREPARATORY PACK<6HF> (B) ID=75-95
8-98133-357-0
01
1
1412-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (C) ID=58-79
1-09707-136-0
02
1
1412-
357
CLIP; RUBBER HOSE
EXC. KD PREPARATORY PACK<6HF> (B) ID=77-99
1-09707-141-0
01
1
1412-
411
RUBBER; CUSHION
(A) OD=32
8-94395-766-0
02
1
1412-
411
RUBBER; CUSHION
(B) OD=23
8-97105-689-6
02
1
1412-
474
BOLT; PIPE
M8X40 FLANGE
0-28650-840-0
02
1
1412-
487
PIPE; TURBO TO CHARGE AIR COOLER
8-98073-592-0
01
1
1412-
488
HOSE; RUBBER,PIPE
8-98010-723-0
01
1
1412-
530
CLAMP; AIR DUCT
ID=75-95
8-98133-357-0
01
1
1412-
543
SCREW; SENSOR
(B) M5X14 W/LK WASHER
0-36220-514-0
01
1
1412-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1412-
543
SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER
0-36230-412-0
02
1
1412-
548
HOSE; RUBBER,TURBO TO INL PIPE
(A)
8-98181-971-1
01
1
1412-
548
HOSE; RUBBER,TURBO TO INL PIPE
(B)
8-98181-972-1
01
1
1412-
