1-01 — ACCELERATOR PEDAL AND CONTROL (#153176) — 19 parça

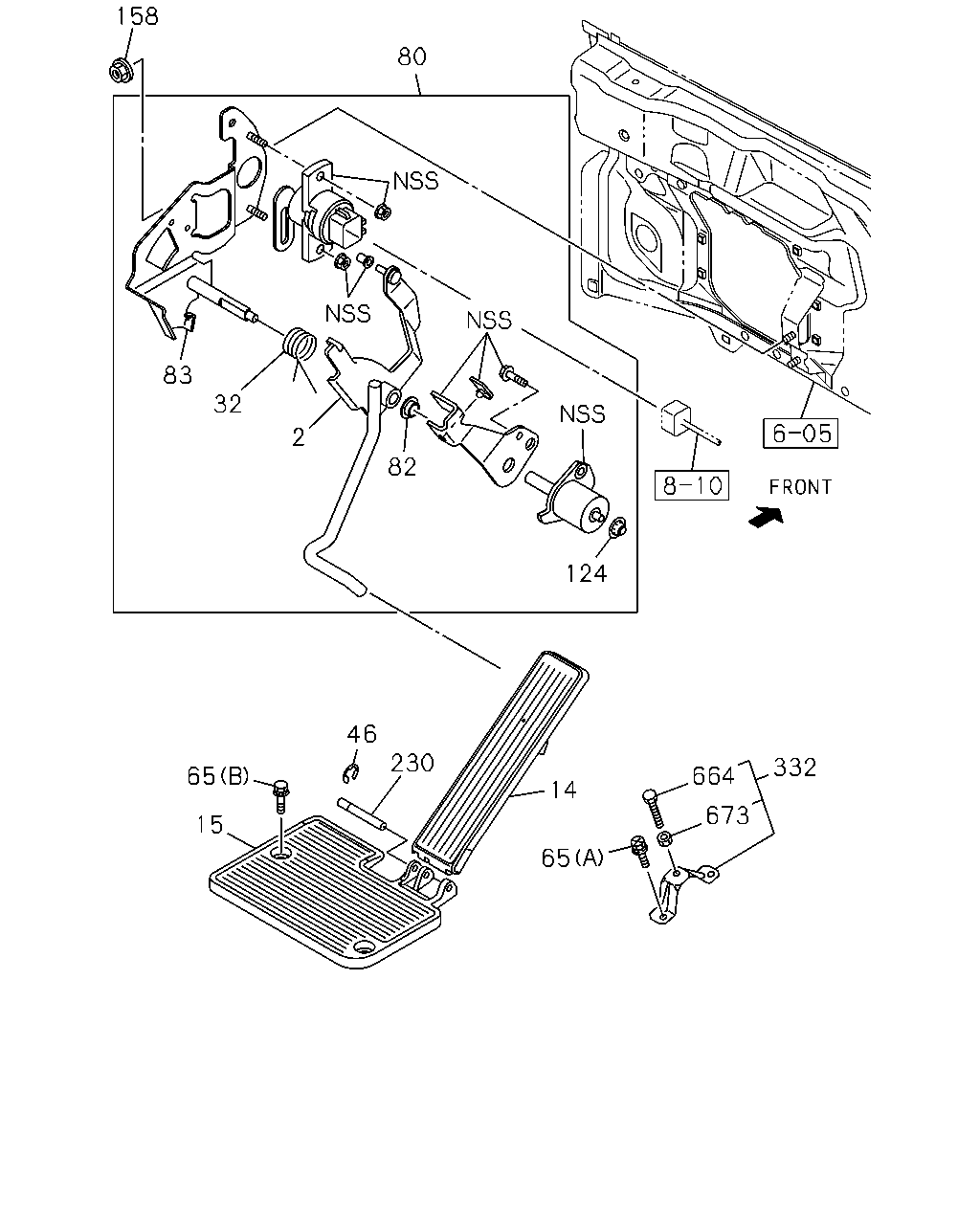

çizim 458489
124 14 65 664 673 332 82 2 32 83 158 80 46 230 65 15
BalonParca AdiParca NoAdetTipApplied Date
2 LEVER; ENG CONT 8-98118-386-0 01 1 1412-
14 PAD; PEDAL,ACCEL 8-97859-101-0 01 1 1412-
15 STAND; HEEL,ACCEL PEDAL 8-98022-259-2 01 1 1412-
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 1412-
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 1412-
65 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 02 1 1412-
65 BOLT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 1412-
80 LINK ASM; ENG CONT 8-98117-200-2 01 1 1412-
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 1412-
83 BRACKET; CONT LINK 8-98023-885-2 01 1 1412-
124 NUT; LEVER
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 1412-
158 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1412-
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98026-806-0 01 1 1412-
332 BRACKET; ACCEL PEDAL STOPPER 8-98050-879-2 01 1 1412-
664 BOLT; STOPPER
M8X40 		0-20850-840-0 01 1 1412-
673 NUT; STOPPER
M8 		0-91110-508-0 01 1 1412-

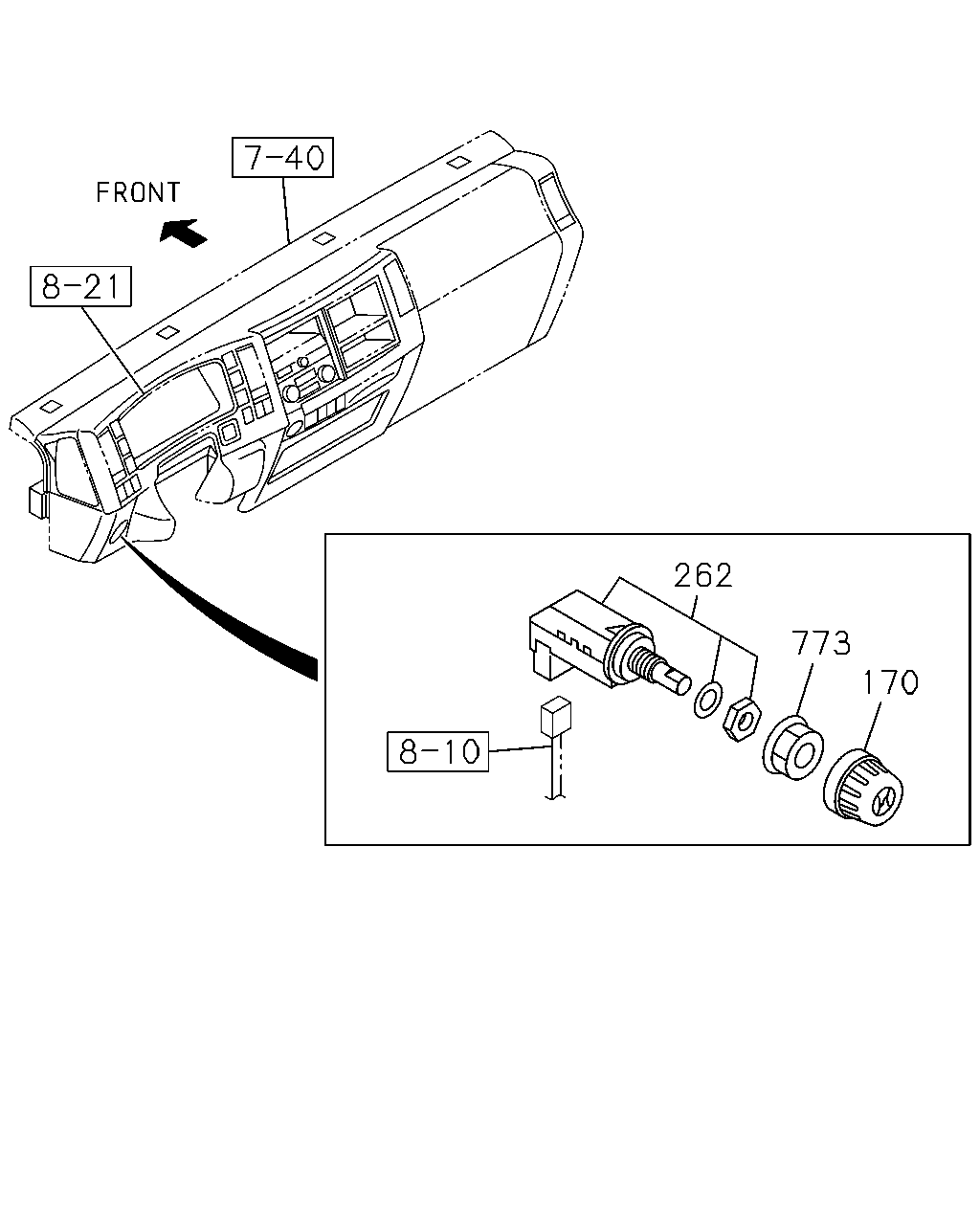

çizim 458963
262 773 170
BalonParca AdiParca NoAdetTipApplied Date
170 KNOB 8-98013-420-0 01 1 1412-
262 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 1412-
773 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 1412-
