Isuzu WW
▶
TRUCKS
▶
FSR
▶
11659 - FSR MIDDLE EAST
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#153170) — 29 parça
◀

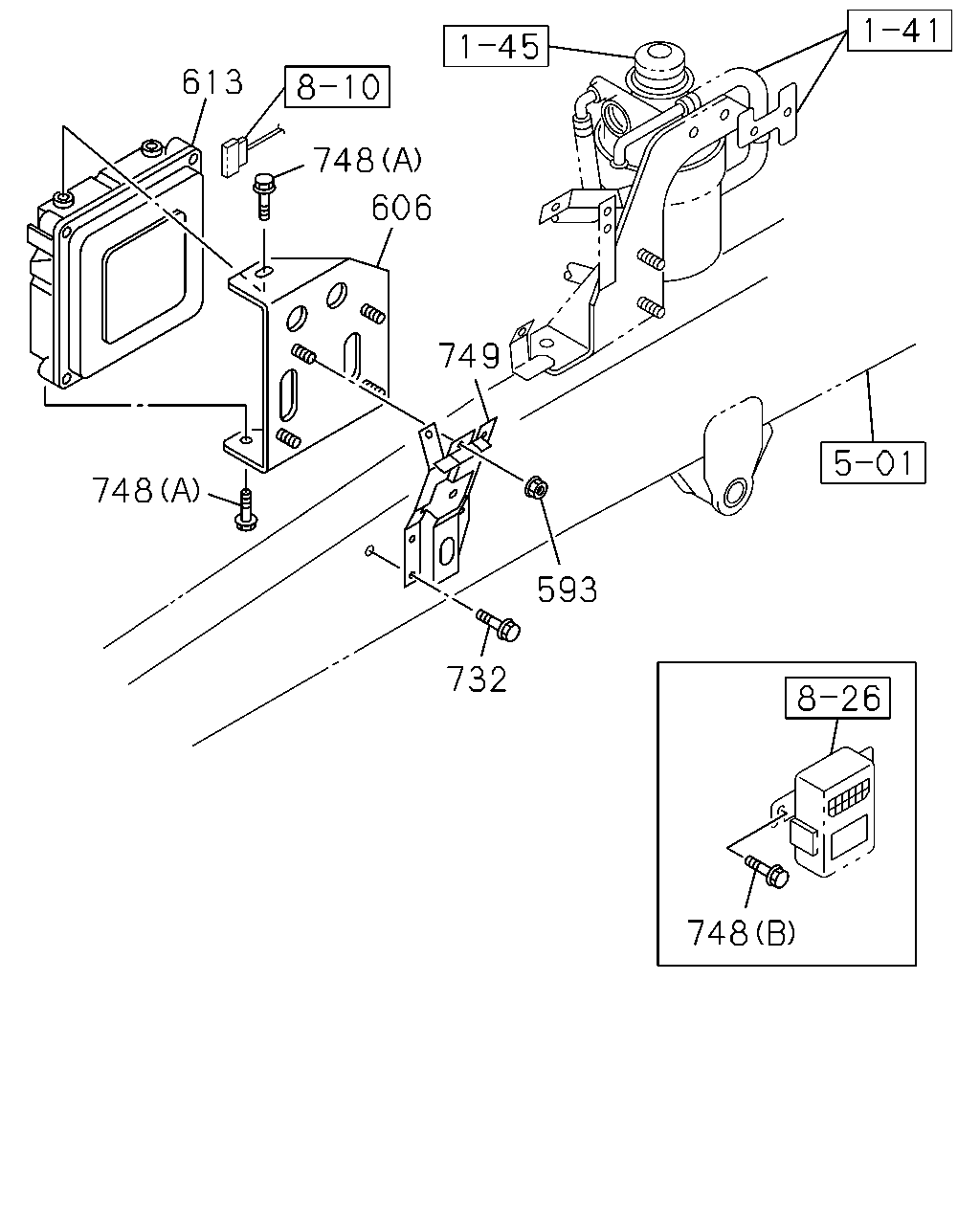

[060A] CONTROL UNIT AND DRM (7 parça)

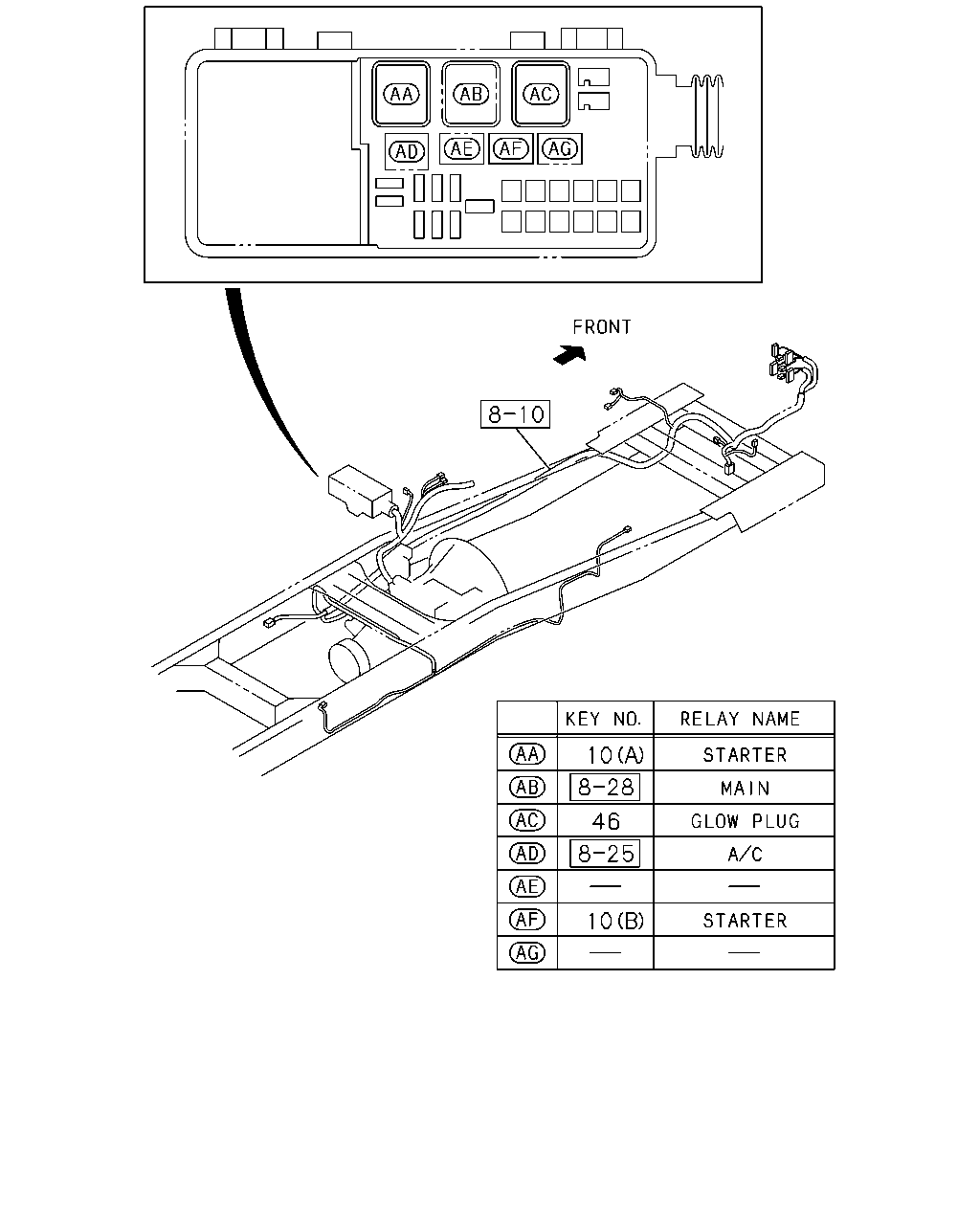

[060A] RELAY (3 parça)

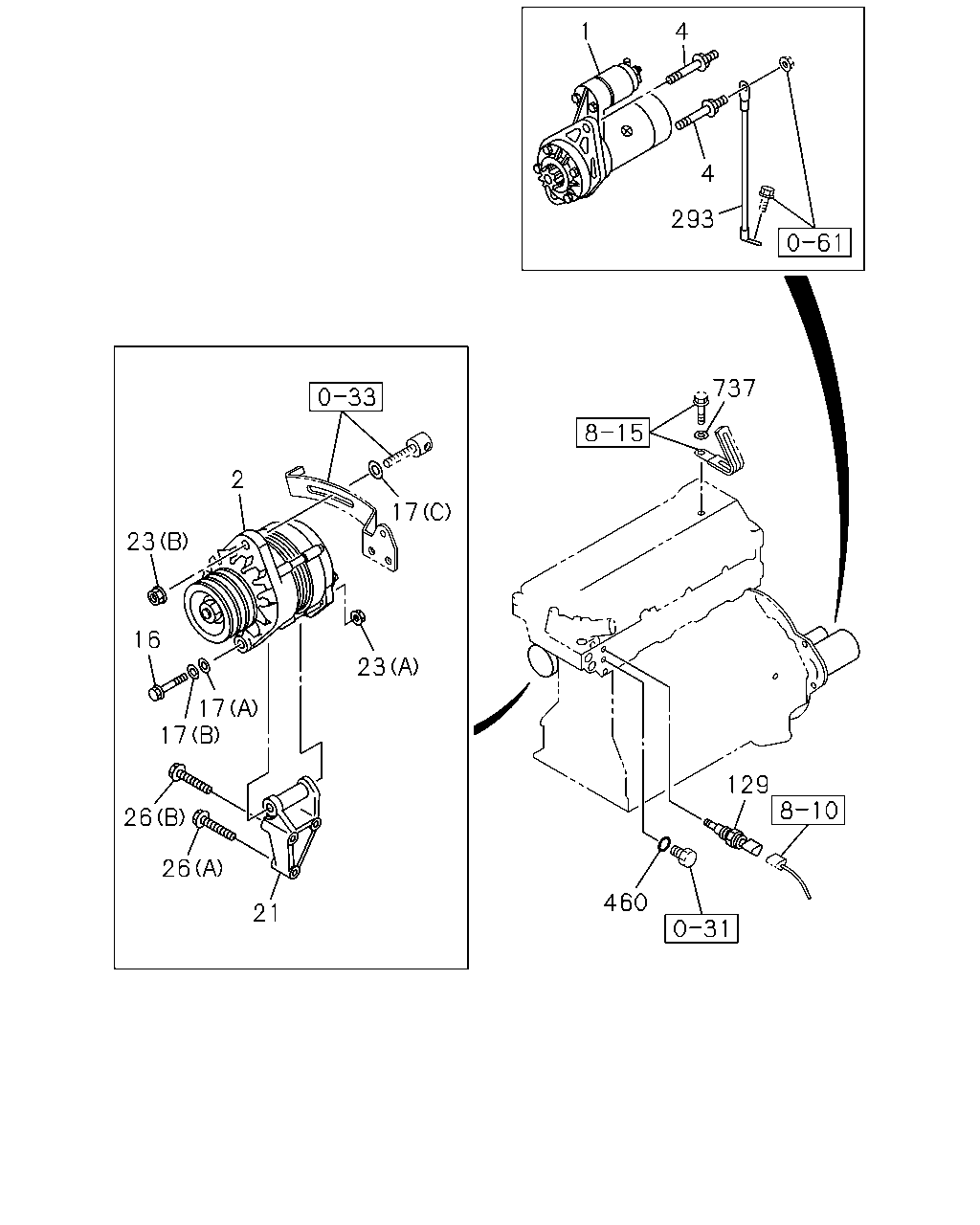

[060A] STARTER AND GENERATOR (19 parça)
▶
613
748
748
606
749
593
732
748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
593
NUT; BRKT
M6 FLANGE
0-91180-106-0
04
1
1412-
606
BRACKET; CONT UNIT
1-53194-675-0
01
1
1412-
613
CONTROL UNIT; ENG
8-98081-130-4
01
1
1412-
732
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
03
1
1412-
748
BOLT; CONT UNIT
(A) M6X12 FLANGE
0-28050-612-0
03
1
1412-
748
BOLT; CONT UNIT
(B) M6X16 FLANGE
0-28650-616-0
02
1
1412-
749
STAY; CONT UNIT
1-53194-596-3
01
1
1412-
10
10
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(A) 24V 50A
8-97264-947-0
01
1
1412-
10
RELAY; STARTER
(B) 24V 10A PANASONIC
8-98167-173-0
01
1
1412-
46
RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
1412-
1
4
4
293
737
17
2
23
16
17
17
23
26
26
21
460
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI
8-98245-260-1
01
1
1412-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V50A(K89) 24V 50A NIKKO
8-98013-455-4
01
1
1412-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO
8-98013-456-4
01
1
1412-
4
BOLT; STARTER
M10X15,M14X82 L=110
8-98029-095-0
02
1
1412-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
1412-
17
WASHER; PL,GEN
(A) ID=14.2
0-91510-514-0
01
1
1412-
17
WASHER; PL,GEN
(B) ID=15
0-91610-514-0
01
1
1412-
17
WASHER; PL,GEN
(C) ID=12.5 OD=32
9-09160-712-0
01
1
1412-
21
BRACKET; GEN
8-97381-404-0
01
1
1412-
23
NUT; GEN
(A) M14
0-91110-514-0
01
1
1412-
23
NUT; GEN
(B) M12 FLANGE
0-91180-112-0
01
1
1412-
26
BOLT; GEN BRKT
(A) M10X50 FLANGE
0-28151-050-0
01
1
1412-
26
BOLT; GEN BRKT
(B) M10X70 FLANGE
0-28151-070-0
02
1
1412-
129
SENSOR; GLOW PLUG,THERMO
MITSUBISHI
8-98023-883-0
01
1
1412-1503
129
SENSOR; GLOW PLUG,THERMO
NISHIDA
8-98260-257-0
01
1
1504-
293
CABLE; STARTER EARTH
L=410
8-97620-375-0
01
1
1412-
460
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2
1-09630-086-0
01
1
1412-
737
WASHER; PL
ID=6.4 OD=18
0-91610-706-0
02
1
1412-
737
WASHER; PL
ID=9 OD=18 T=5
9-14149-173-0
01
1
1412-
