◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CYJ ▶ 11110 - CYJ NZ JAPAN NEW SHORT TERM 2004 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#15315) — 27 parça

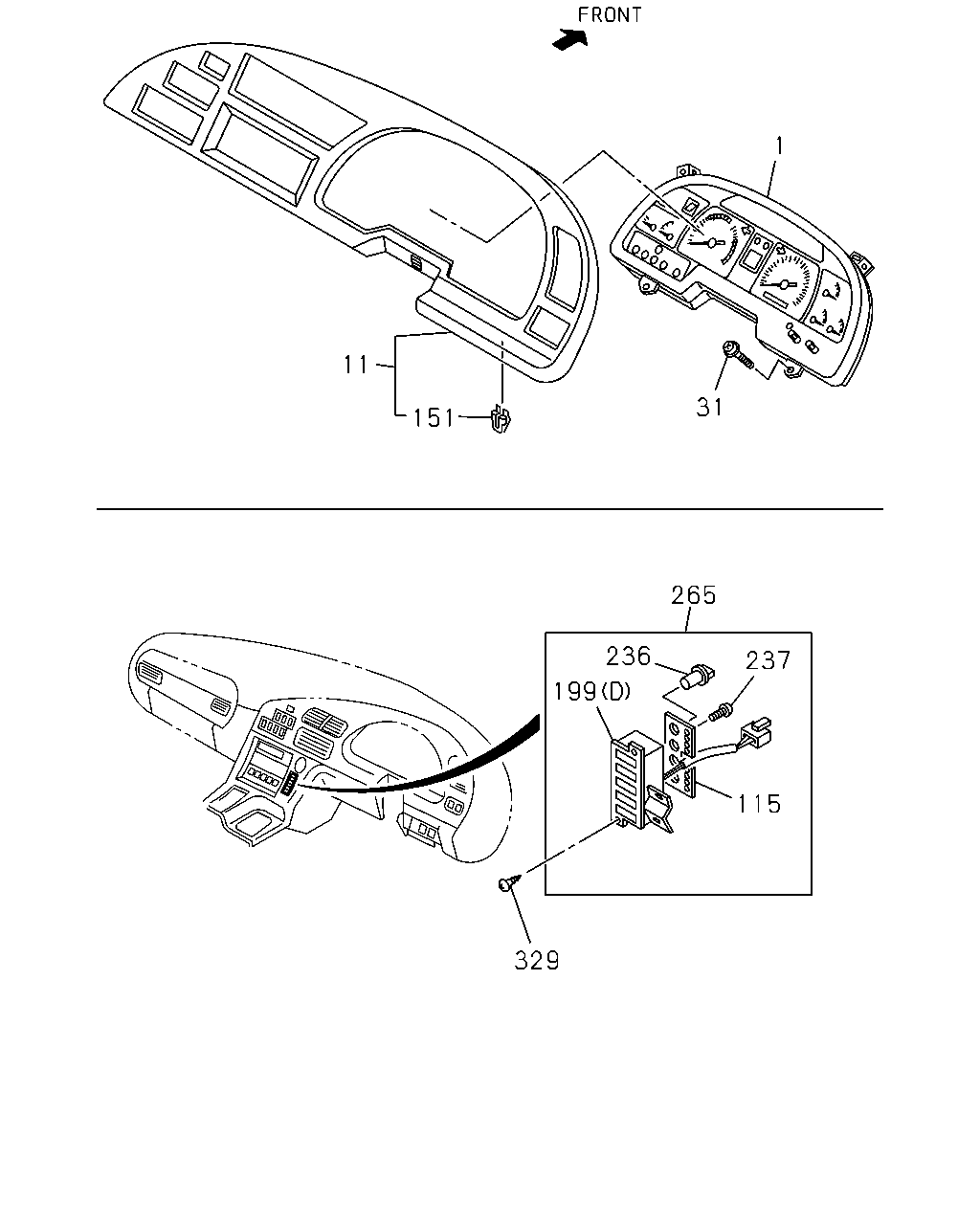

çizim 93082
11 151 31 1 265 236 237 199 115 329
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83116-408-2 01 1 0710-0802
1 METER COMPL; CLUSTER 8-98118-160-1 01 1 0803-1107
1 METER COMPL; CLUSTER 8-97638-830-1 01 1 1108-
11 CLUSTER ASM; METER 1-72418-014-9 01 1 0710-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0710-
115 CIRCUIT; PRINTED,CLUSTER METER 1-82259-006-0 01 1 0710-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0710-
199 LENS; WARNING LAMP
(D) 		1-82255-313-0 01 1 0710-
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 0710-
199 LENS; WARNING LAMP
(B) 		1-83119-928-1 01 1 0710-
199 LENS; WARNING LAMP
(A) 		1-83119-944-1 01 1 0710-
236 BULB ASM; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 05 1 0710-
237 SCREW; CIRCUIT PRINT FIX,WARNING LAMP
M3 TAPPING 		1-83119-052-0 03 1 0710-
265 LAMP ASM; WARNING 1-82250-359-0 01 1 0710-
329 SCREW; WARNING LAMP
M5X14 		8-94279-325-0 02 1 0710-

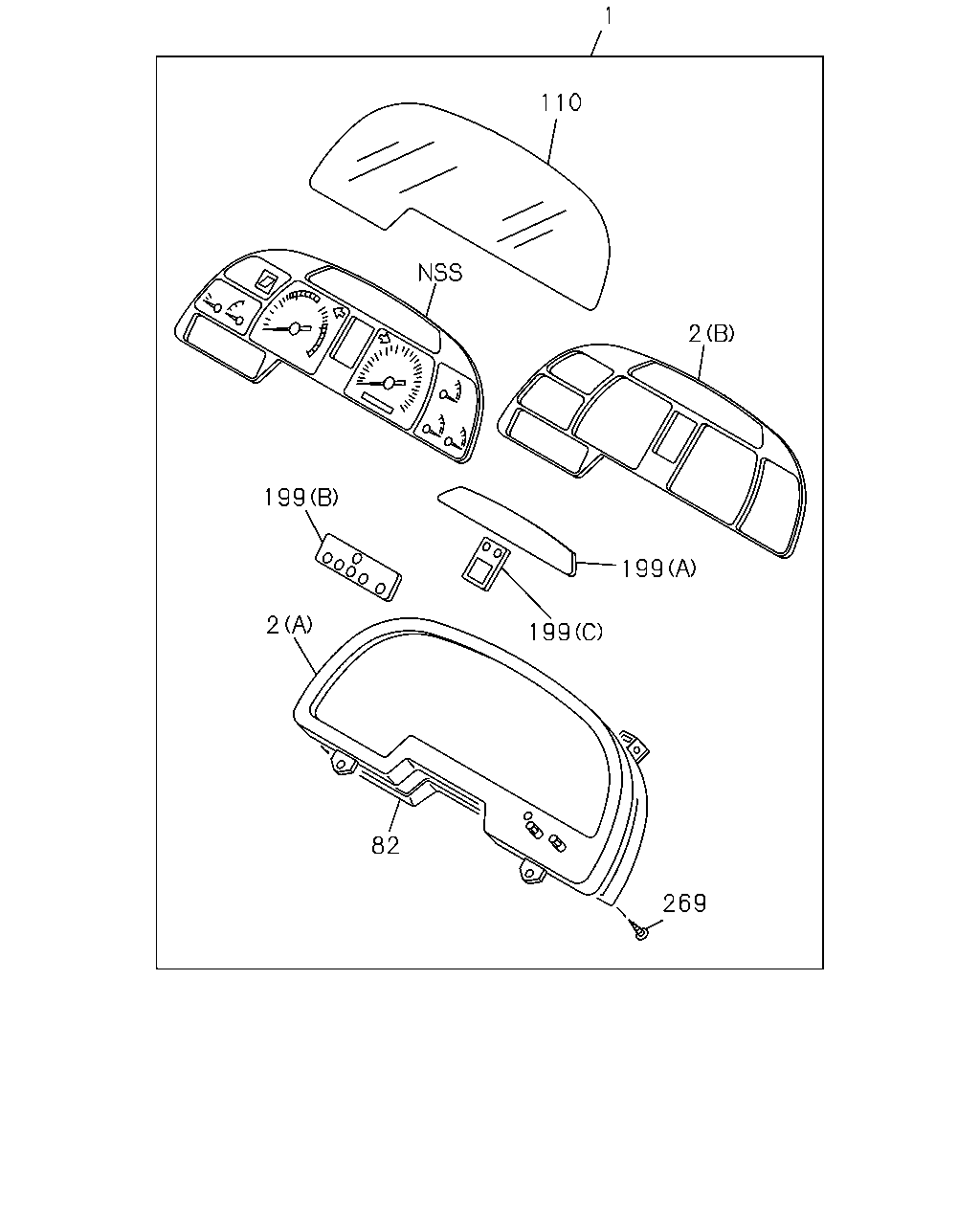

çizim 106821
1 110 2 199 199 199 2 82 269
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83116-408-2 01 1 0710-0802
1 METER COMPL; CLUSTER 8-98118-160-1 01 1 0803-1107
1 METER COMPL; CLUSTER 8-97638-830-1 01 1 1108-
2 PANEL; CLUSTER
(B) 		1-83119-885-0 01 1 0710-
2 PANEL; CLUSTER
(A) 		1-83119-887-0 01 1 0710-
82 CASE ASM; CLUSTER METER 1-83119-892-0 01 1 0710-
110 GLASS; CLUSTER METER 1-83119-886-0 01 1 0710-
199 LENS; WARNING LAMP
(D) 		1-82255-313-0 01 1 0710-
199 LENS; WARNING LAMP
(C) 		1-83119-891-0 01 1 0710-
199 LENS; WARNING LAMP
(B) 		1-83119-928-1 01 1 0710-
199 LENS; WARNING LAMP
(A) 		1-83119-944-1 01 1 0710-
269 SCREW; METER CLUSTER 1-83119-893-0 09 1 0710-
