Isuzu WW
▶
TRUCKS
▶
FRR
▶
11584 - FRR MIDDLE EAST SPACE CAB
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-10 - WIRING HARNESS AND FUSE
▶
8-10 — WIRING HARNESS AND FUSE
(#153139) — 108 parça
◀
[810A] AIR TANK HARNESS (3 parça)
[810A] OTHER HARNESS NO.2 (9 parça)
[810A] CAB HARNESS NO.2 (7 parça)
[810A] ENGINE HARNESS (7 parça)
[810A] TRANSMISSION SIDE (2 parça)
[810A] ENGINE SIDE NO.1 (10 parça)
[810A] CIGAR LIGHTER SIDE (7 parça)
[810A] FRAME HARNESS NO.2 (2 parça)
[810A] FRAME HARNESS NO.1 (16 parça)
[810A] OTHER HARNESS NO.1 (7 parça)
[810A] ENGINE SIDE NO.2 (7 parça)
[810A] RELAY;CAB HARNESS (2 parça)
[810A] CAB HARNESS NO.1 (29 parça)
▶

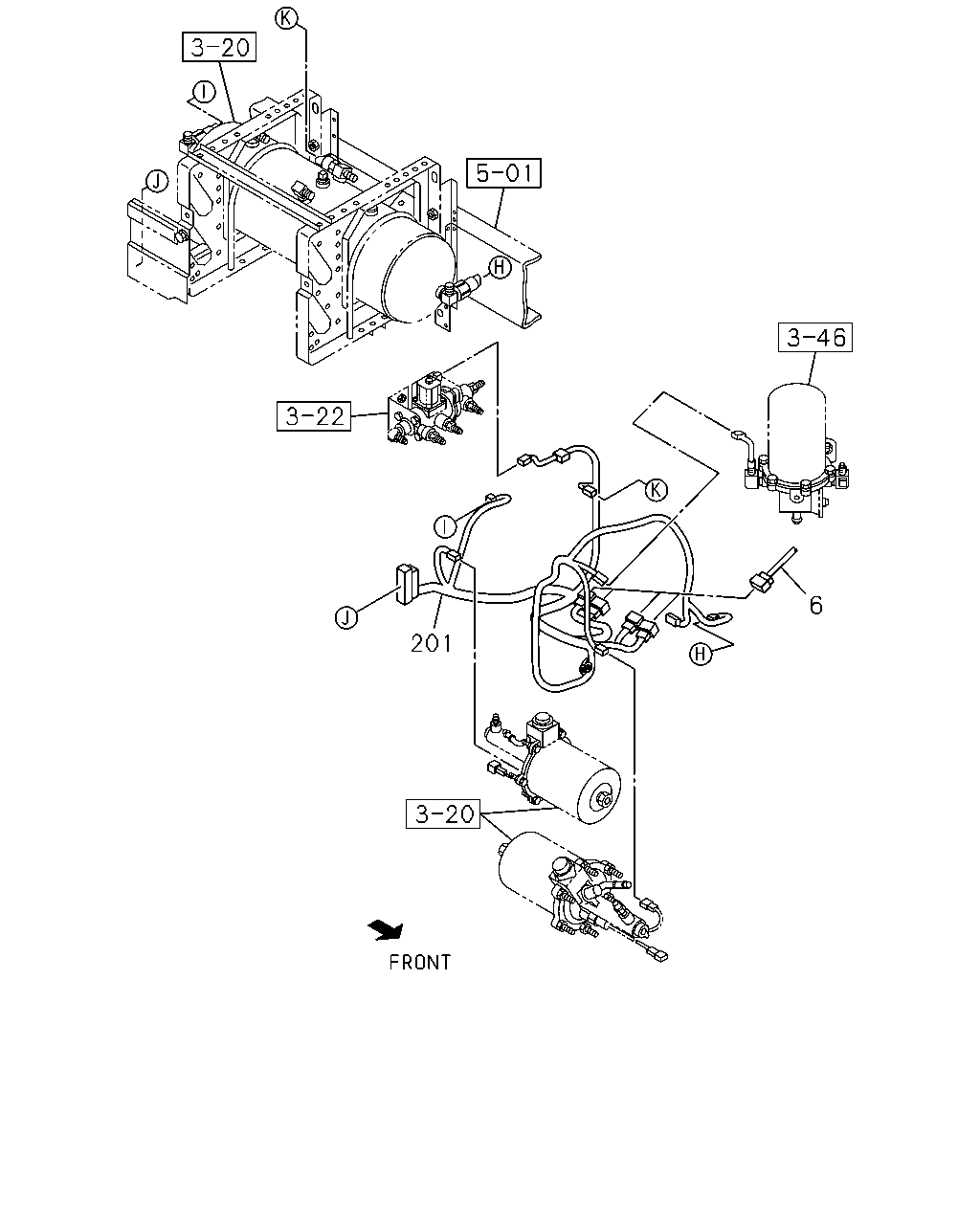

201
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98214-306-2
01
1
1412-
201
HARNESS; AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98156-712-1
01
1
1412-
201
HARNESS; AIR TANK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98212-312-0
01
1
1412-

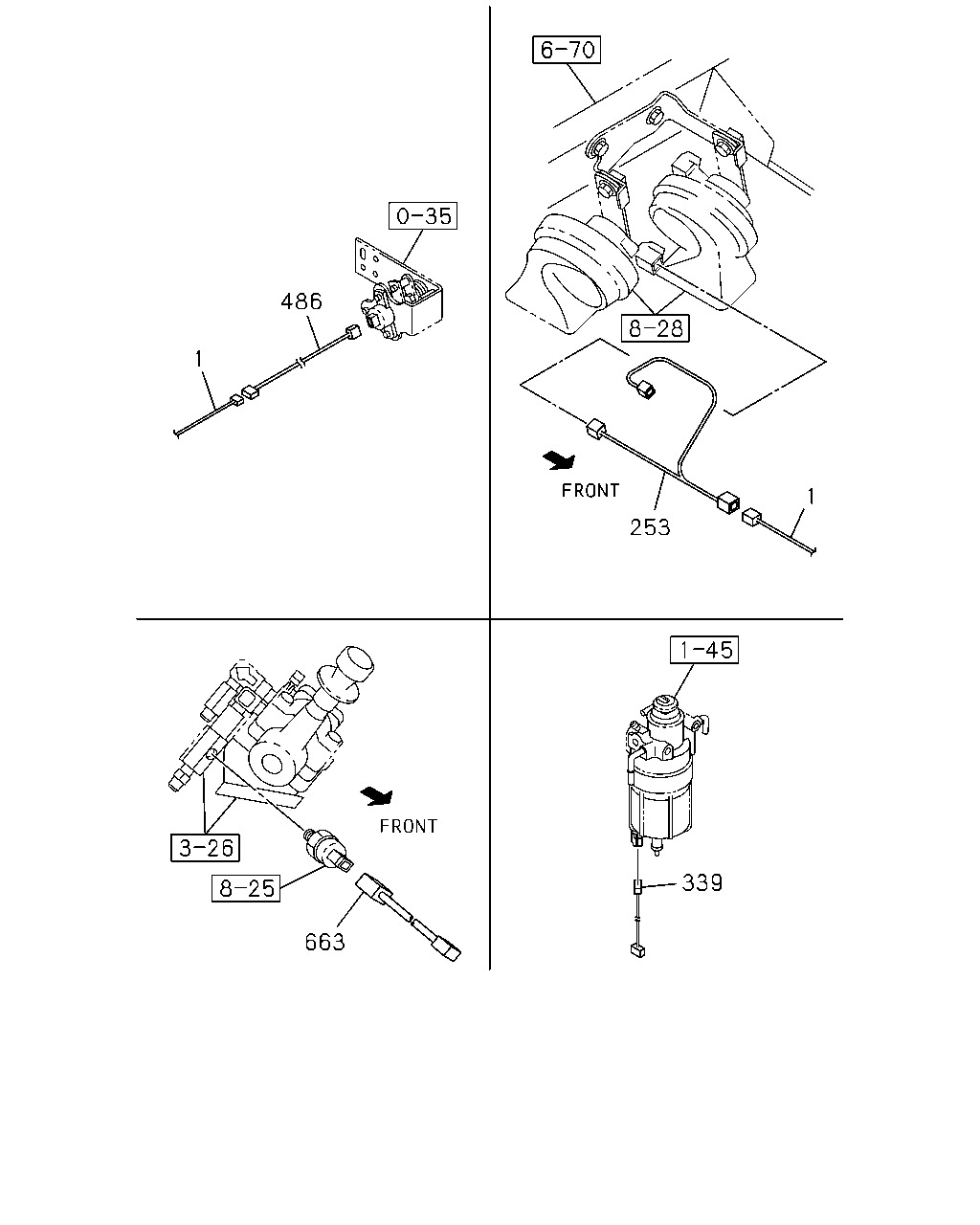

486
253
663
339
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>
8-98212-165-1
01
1
1412-
1
HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
253
HARNESS; EXT,HORN
8-98074-080-3
01
1
1412-
339
HARNESS; EXT,FUEL
8-98214-591-0
01
1
1412-
486
HARNESS; ALL SPEED ACCEL
TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>
1-82675-898-0
01
1
1412-
663
HARNESS; EXTENSION,RR WHEEL PARKING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98126-779-2
01
1
1412-
1
2
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>
8-98212-165-1
01
1
1412-
1
HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
2
DIODE; CABLE HARNESS
(A) BLACK 10P
1-82699-703-0
AR
1
1412-
2
DIODE; CABLE HARNESS
(B) BLACK 2P-1.5A
8-94422-639-1
AR
1
1412-

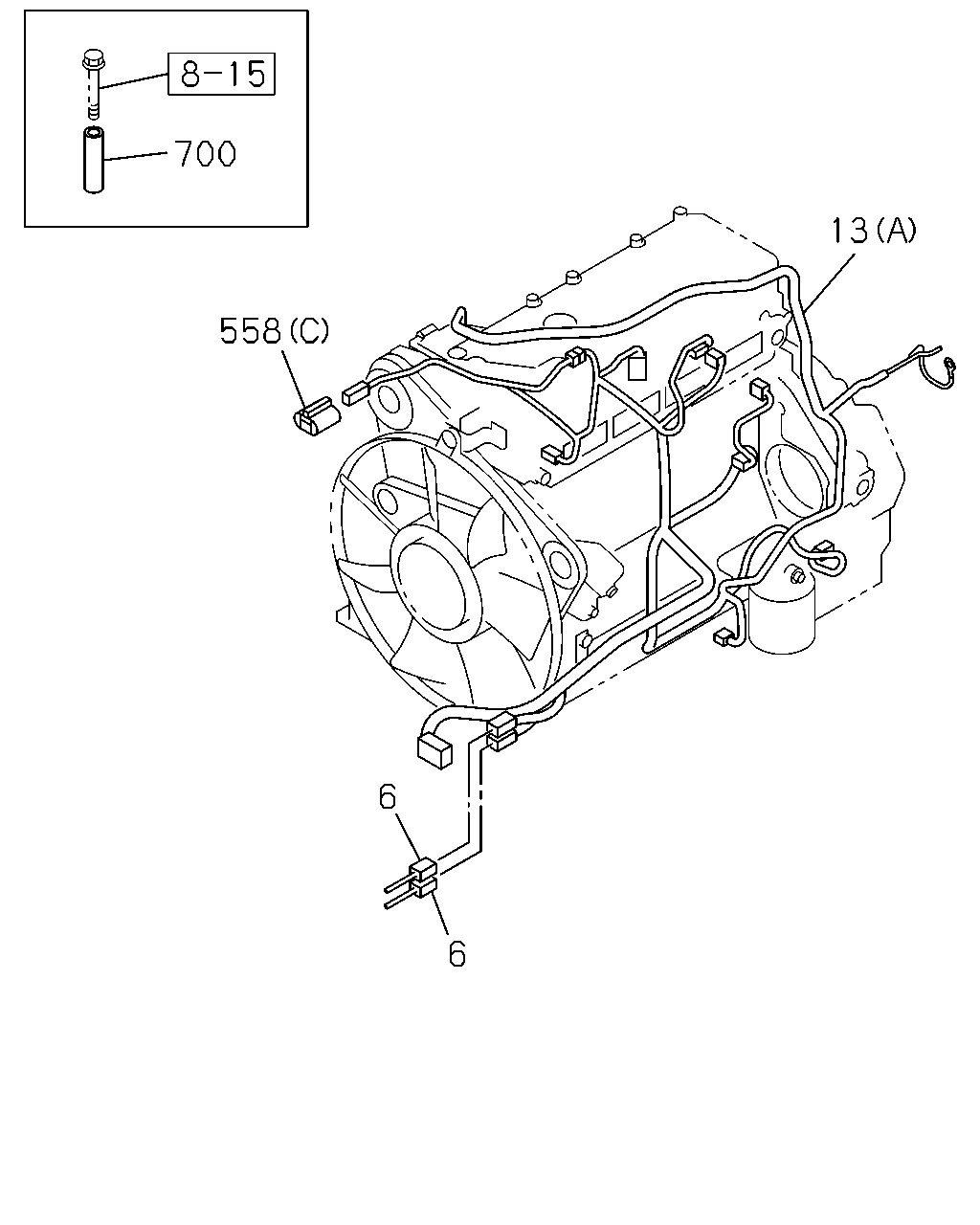

558
13
6
6
700
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98214-306-2
01
1
1412-
13
HARNESS; ENG
(B)
8-98171-638-0
01
1
1412-
13
HARNESS; ENG
(A)
8-98274-036-0
01
1
1412-
558
CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-82690-668-0
01
1
1412-
558
CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
8-98108-678-0
01
1
1412-
558
CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
8-98108-679-0
01
1
1412-
700
TUBE; DISTANCE
EXC. AIR CONDITIONER MANUAL CONTROL(C60) L=51
1-11369-157-0
01
1
1412-

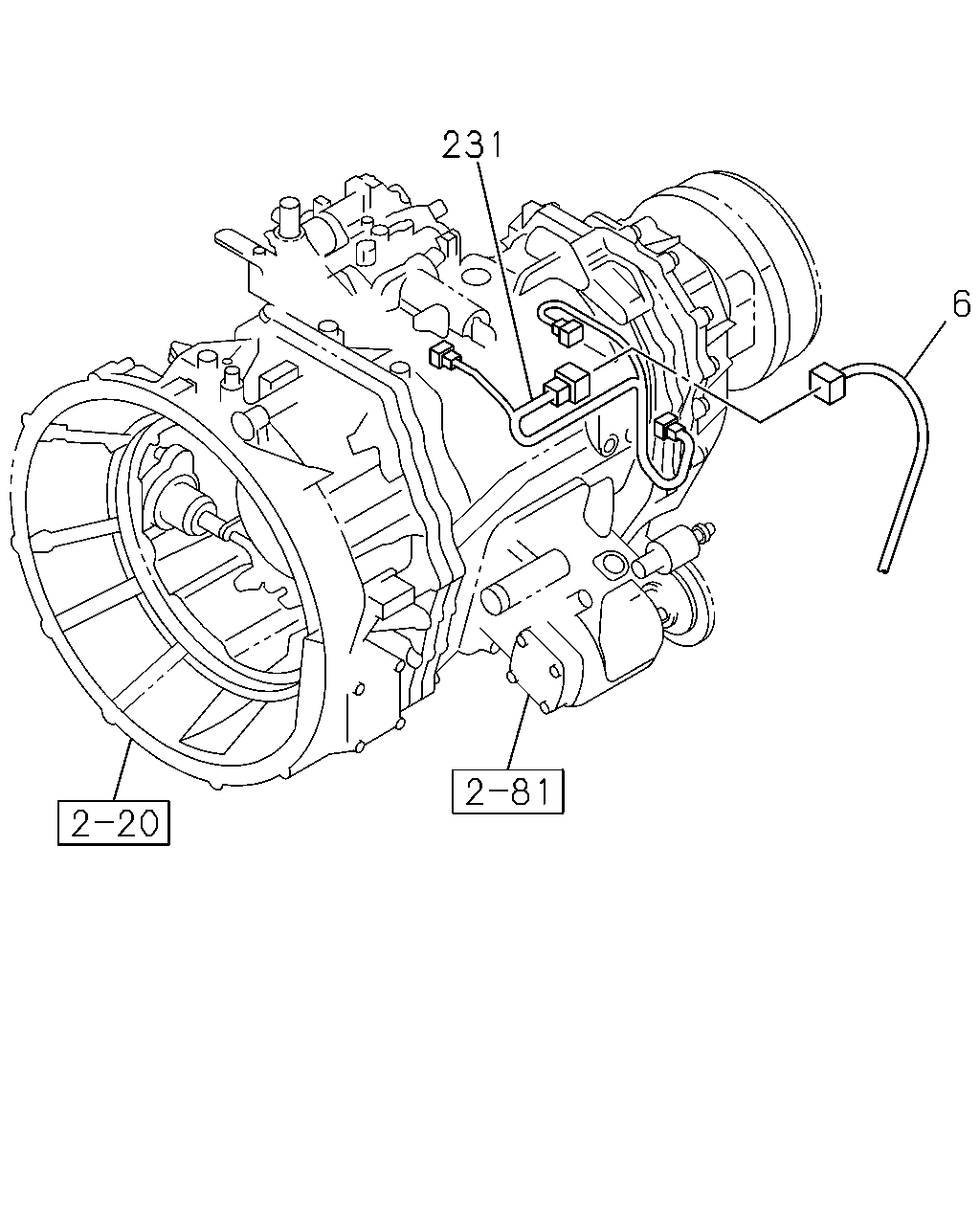

231
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98214-306-2
01
1
1412-
231
HARNESS; TRANS
8-98170-740-0
01
1
1412-

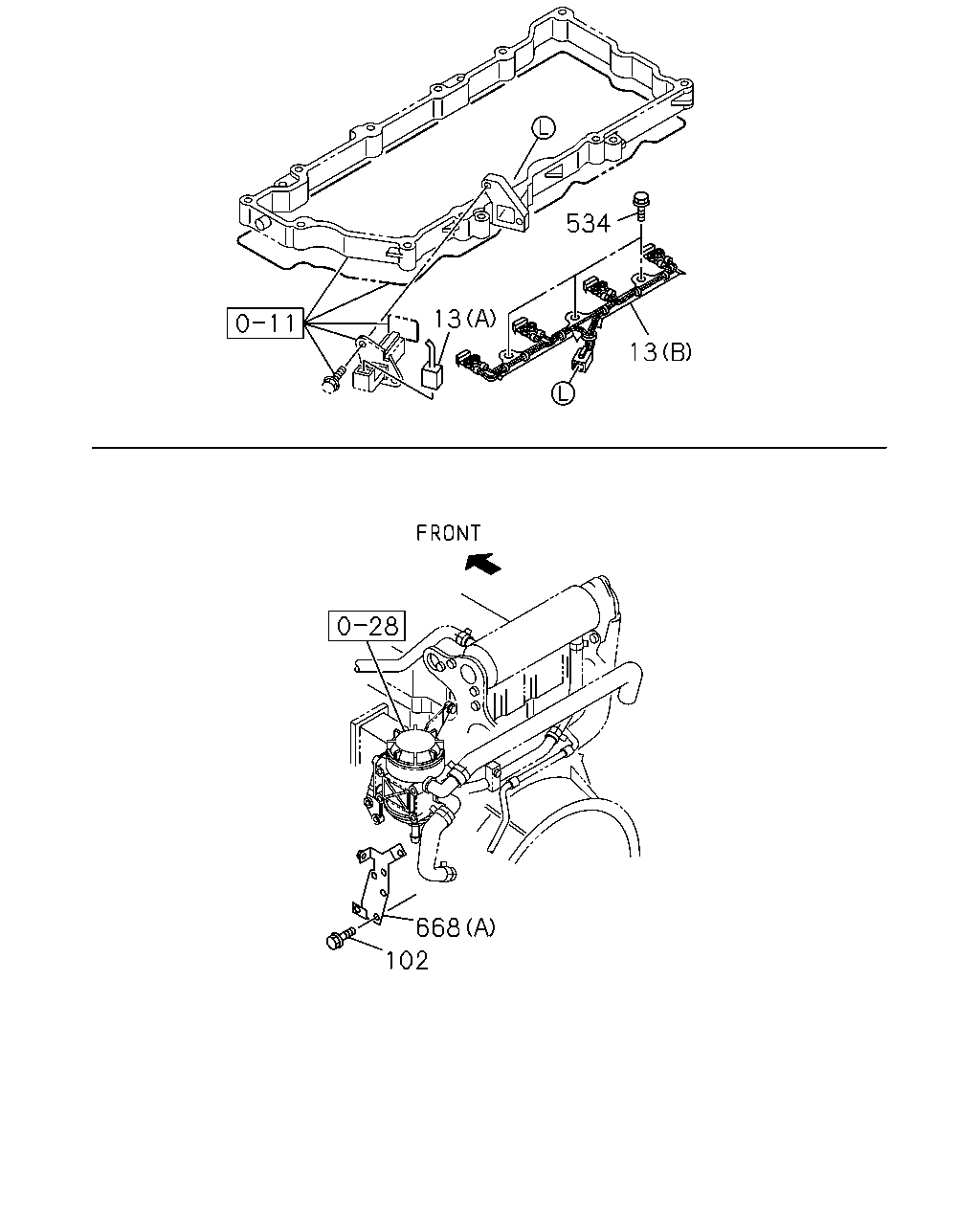

13
534
13
668
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
HARNESS; ENG
(B)
8-98171-638-0
01
1
1412-
13
HARNESS; ENG
(A)
8-98274-036-0
01
1
1412-
102
BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE
0-28050-816-0
03
1
1412-
102
BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE
0-28151-016-0
03
1
1412-
534
BOLT
M10X55 FLANGE
8-97365-449-0
03
1
1412-
668
BRACKET; HARNESS
(D)
8-98011-484-0
01
1
1412-
668
BRACKET; HARNESS
(A)
8-98024-765-0
01
1
1412-
668
BRACKET; HARNESS
(B)
8-98111-712-1
01
1
1412-
668
BRACKET; HARNESS
(C)
8-98205-089-0
01
1
1412-
668
BRACKET; HARNESS
(E)
8-98273-295-0
01
1
1412-

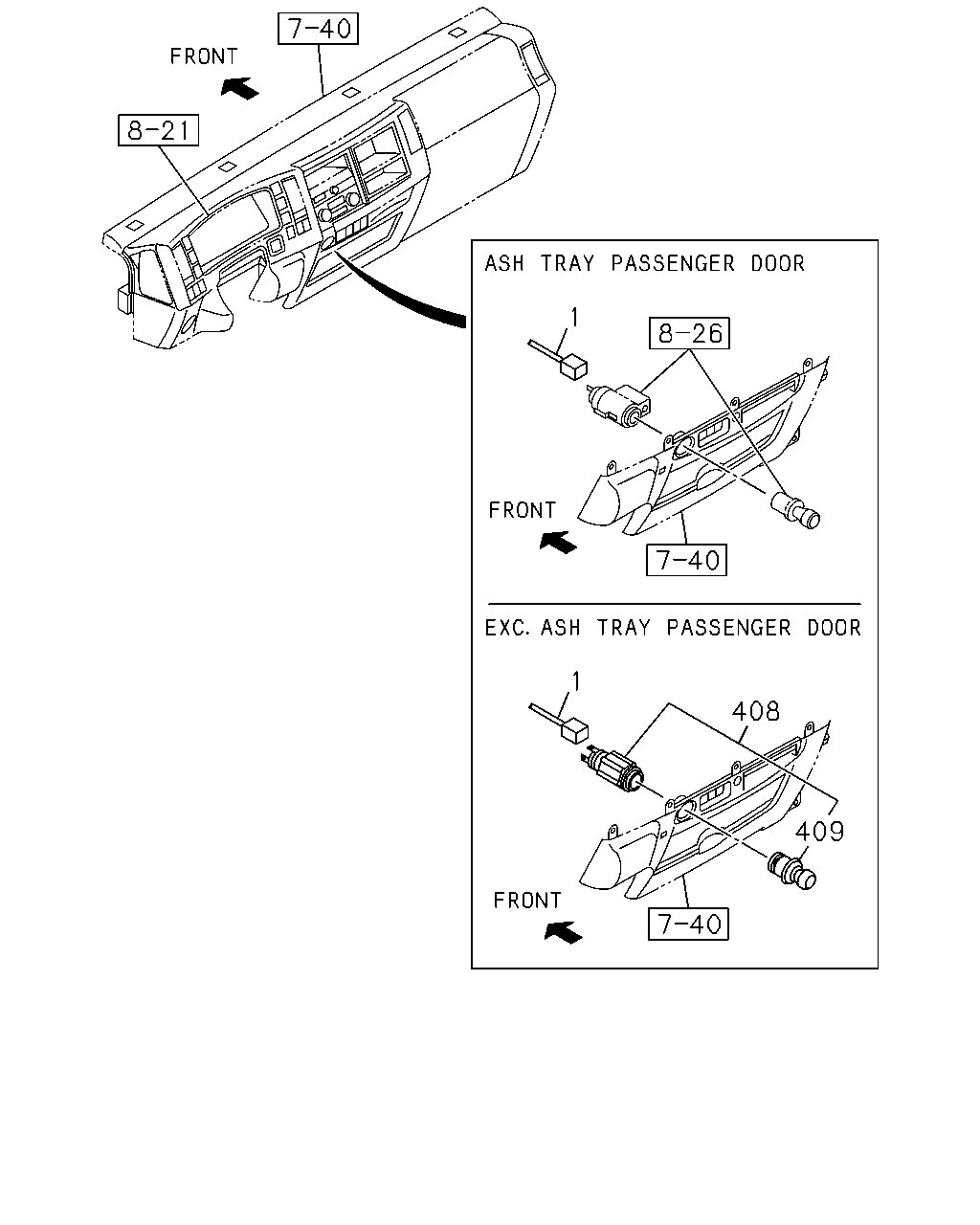

408
409
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>
8-98212-165-1
01
1
1412-
1
HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
408
SOCKET ASM; ACCESSORY
EXC. ASH TRAY PASSENGER DOOR<8LX>
8-98169-757-0
01
1
1412-
409
CAP; ACCESSORY SOCKET
EXC. ASH TRAY PASSENGER DOOR<8LX>
8-98183-771-0
01
1
1412-
6
9
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98214-306-2
01
1
1412-
9
HARNESS; FRAME,RR
8-98168-575-0
01
1
1412-

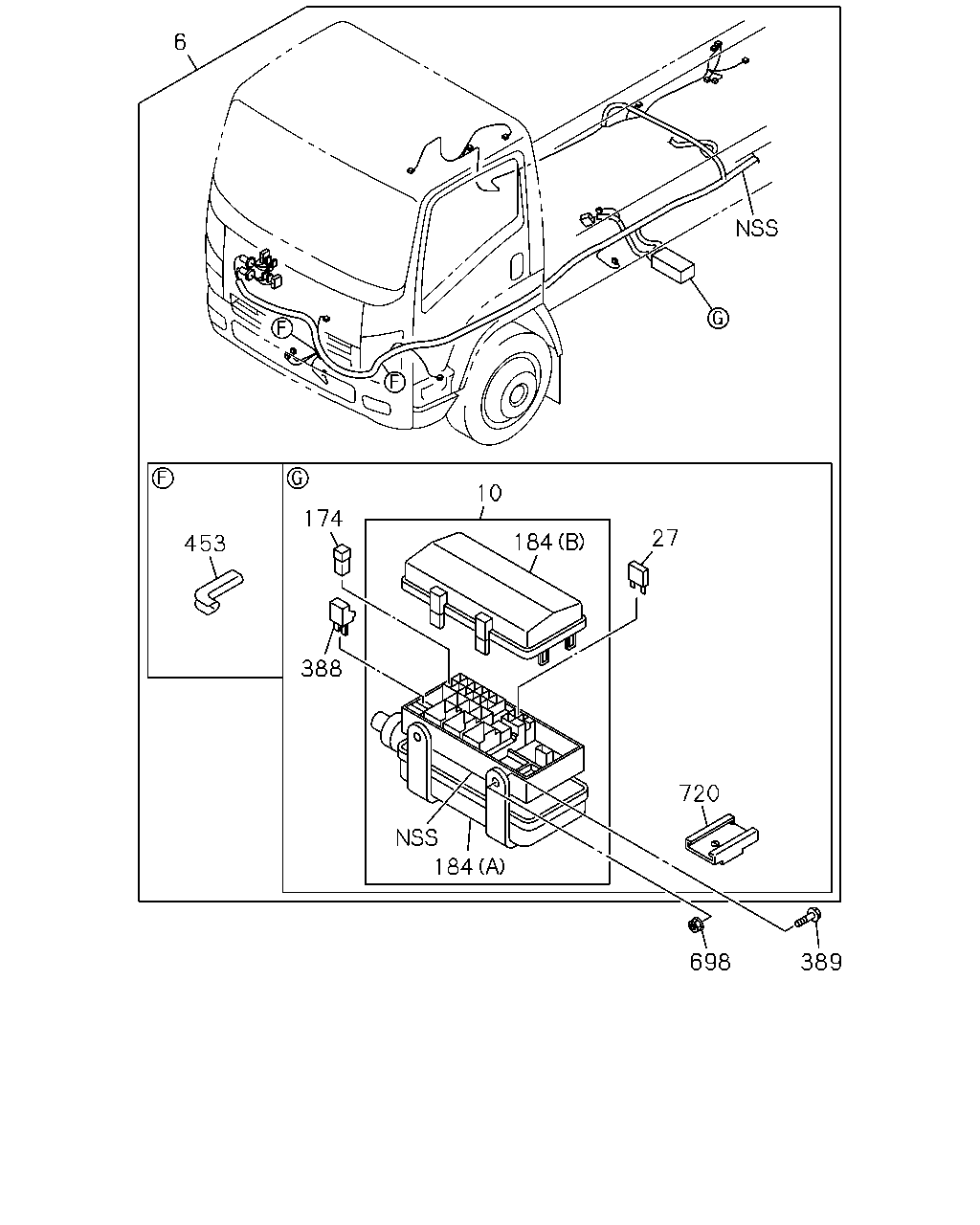

6
453
388
174
10
184
184
720
27
389
698
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
6
HARNESS; FRAME
8-98214-306-2
01
1
1412-
10
BOX; FUSE,HARNESS
8-98030-762-0
01
1
1412-
27
FUSE UNIT
10A RED
8-98054-257-0
01
1
1412-
27
FUSE UNIT
15A BLUE
8-98054-258-0
02
1
1412-
174
FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
AR
1
1412-
174
FUSE; SLOW BLOW
60A YELLOW
8-97219-407-0
AR
1
1412-
174
FUSE; SLOW BLOW
30A PINK
8-98079-191-0
AR
1
1412-
174
FUSE; SLOW BLOW
40A GREEN
8-98079-192-0
AR
1
1412-
174
FUSE; SLOW BLOW
50A RED
8-98079-193-0
AR
1
1412-
184
COVER; RELAY & FUSE BOX
(A)
8-98030-766-0
01
1
1412-
184
COVER; RELAY & FUSE BOX
(B)
8-98030-767-1
01
1
1412-
388
DIODE; RELAY BOX
BLACK 2P-1.5A
8-94422-639-1
01
1
1412-
389
BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER
1-09030-073-0
03
1
1412-
453
PROTECTOR; HARNESS
1-82699-709-0
01
1
1412-
698
NUT; COVER,RELAY BOX
M8 FLANGE
0-91180-108-0
02
1
1412-
720
ATTACHMENT; CONNECTOR
1-82699-688-0
03
1
1412-

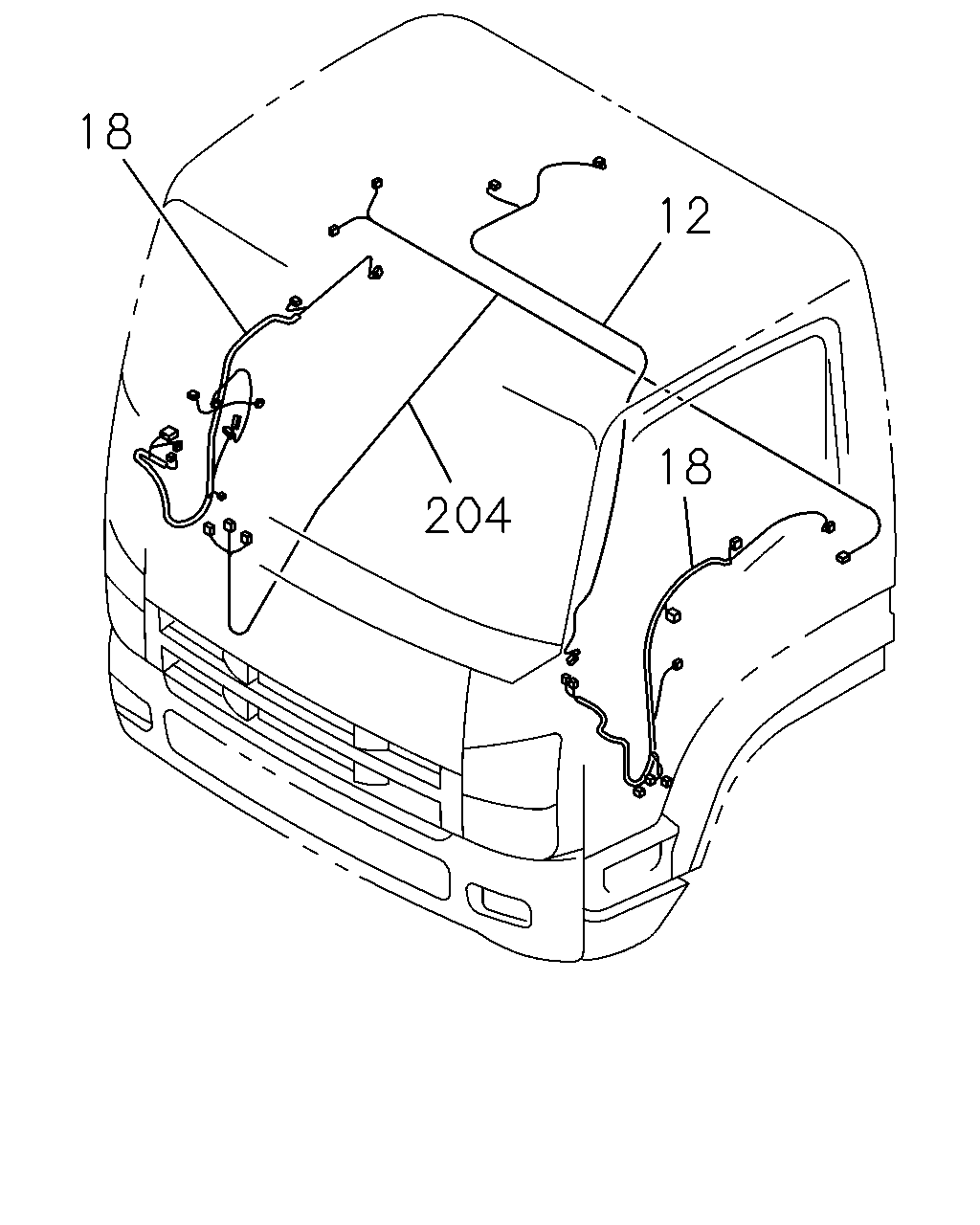

18
204
18
12
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
HARNESS; ROOF
FLUORESCENT LAMP<6UC>
8-98071-441-0
01
1
1412-
12
HARNESS; ROOF
EXC. FLUORESCENT LAMP<6UC>
8-98084-248-1
01
1
1412-
18
HARNESS; DOOR
AUTO DOOR LOCK<AU4>
8-98178-803-0
01
1
1412-
18
HARNESS; DOOR
AUTO DOOR LOCK<AU4>
8-98178-804-0
01
1
1412-
18
HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>
8-98178-801-0
01
1
1412-
18
HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>
8-98178-802-0
01
1
1412-
204
HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>
8-98084-217-1
01
1
1412-

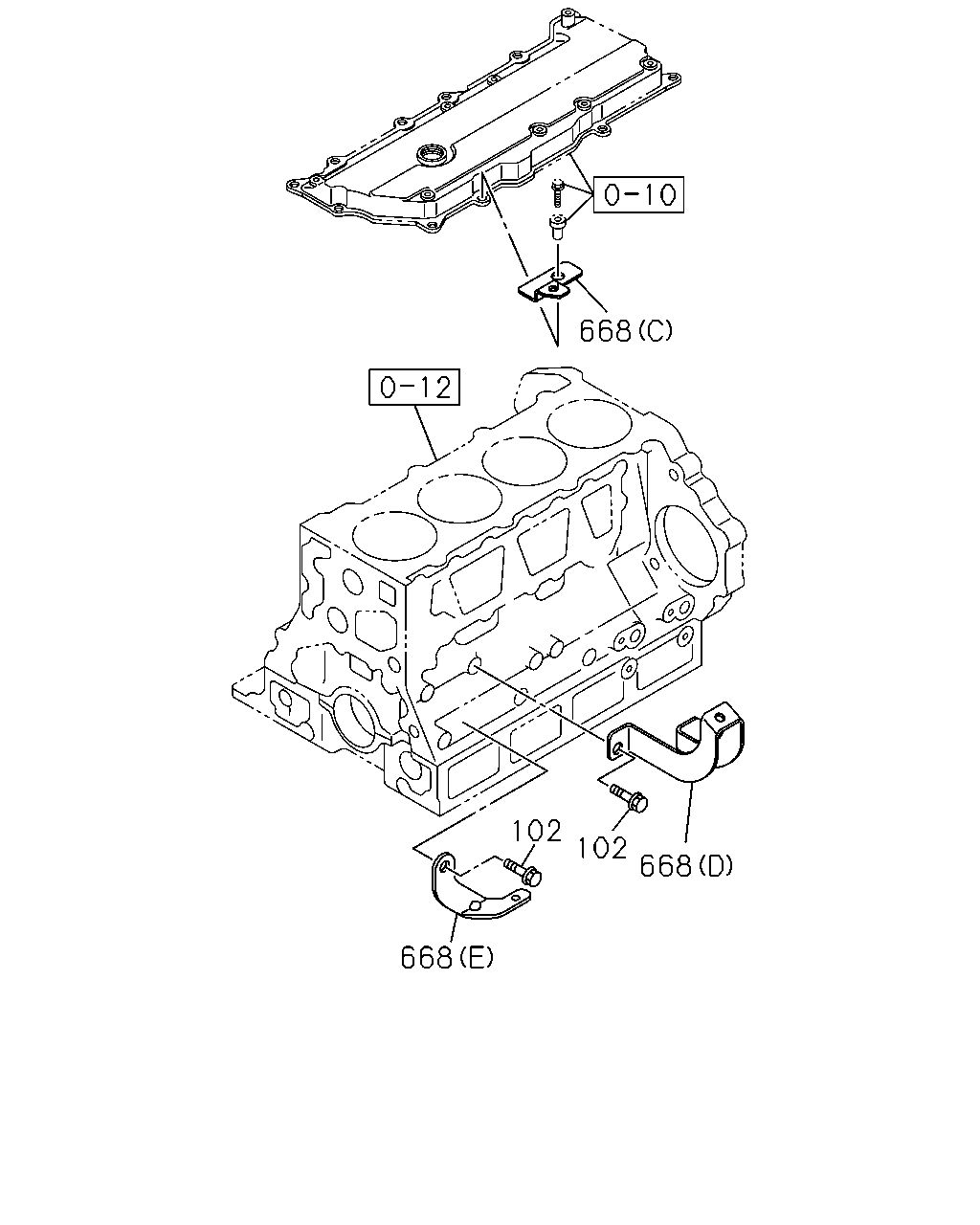

668
102
102
668
668
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
102
BOLT; BRKT,HARNESS CONNECTOR
M8X16 FLANGE
0-28050-816-0
03
1
1412-
102
BOLT; BRKT,HARNESS CONNECTOR
M10X16 FLANGE
0-28151-016-0
03
1
1412-
668
BRACKET; HARNESS
(D)
8-98011-484-0
01
1
1412-
668
BRACKET; HARNESS
(A)
8-98024-765-0
01
1
1412-
668
BRACKET; HARNESS
(B)
8-98111-712-1
01
1
1412-
668
BRACKET; HARNESS
(C)
8-98205-089-0
01
1
1412-
668
BRACKET; HARNESS
(E)
8-98273-295-0
01
1
1412-

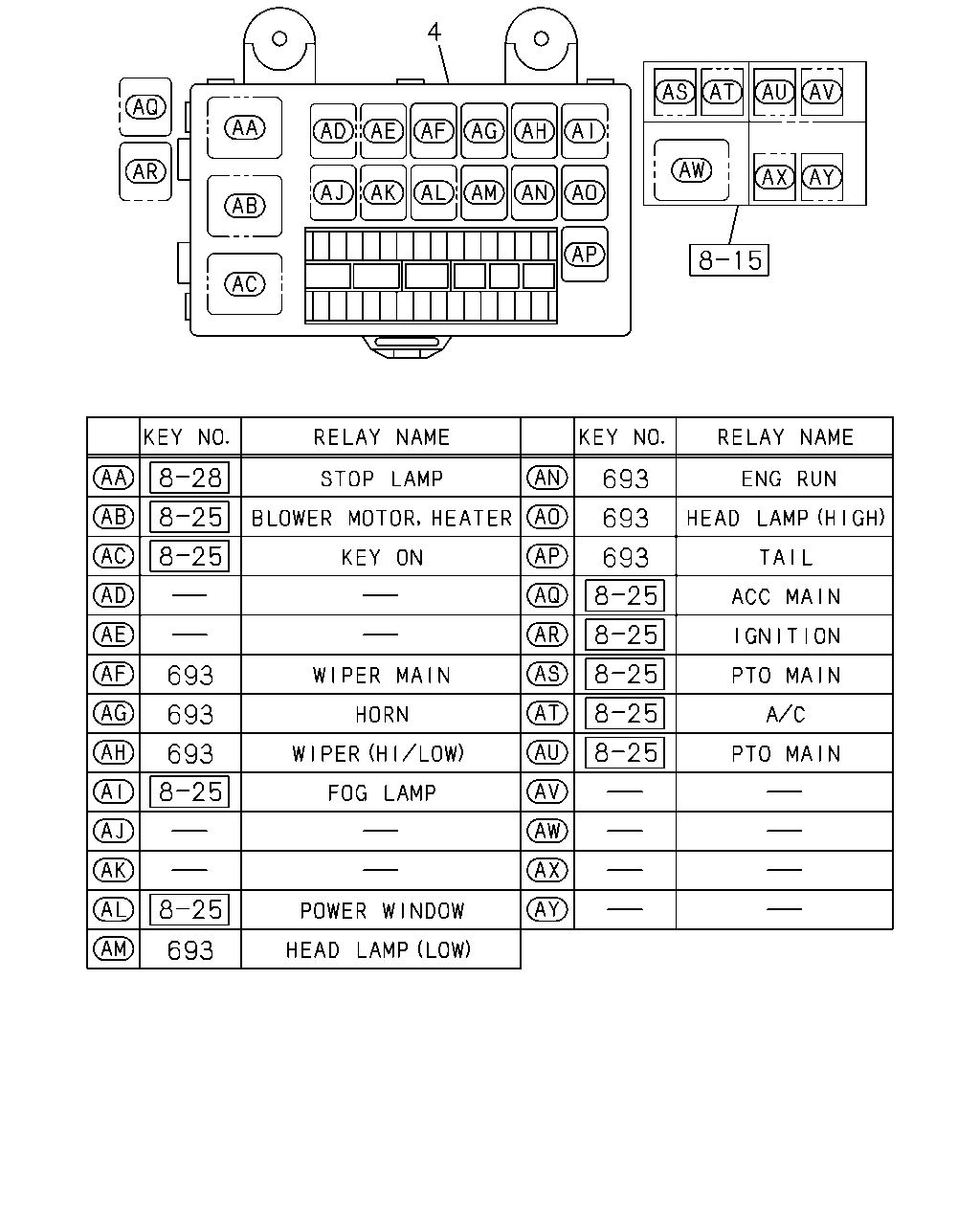

4
693
693
693
693
693
693
693
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BOX ASM; FUSE,HARNESS
8-98065-666-0
01
1
1412-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1412-

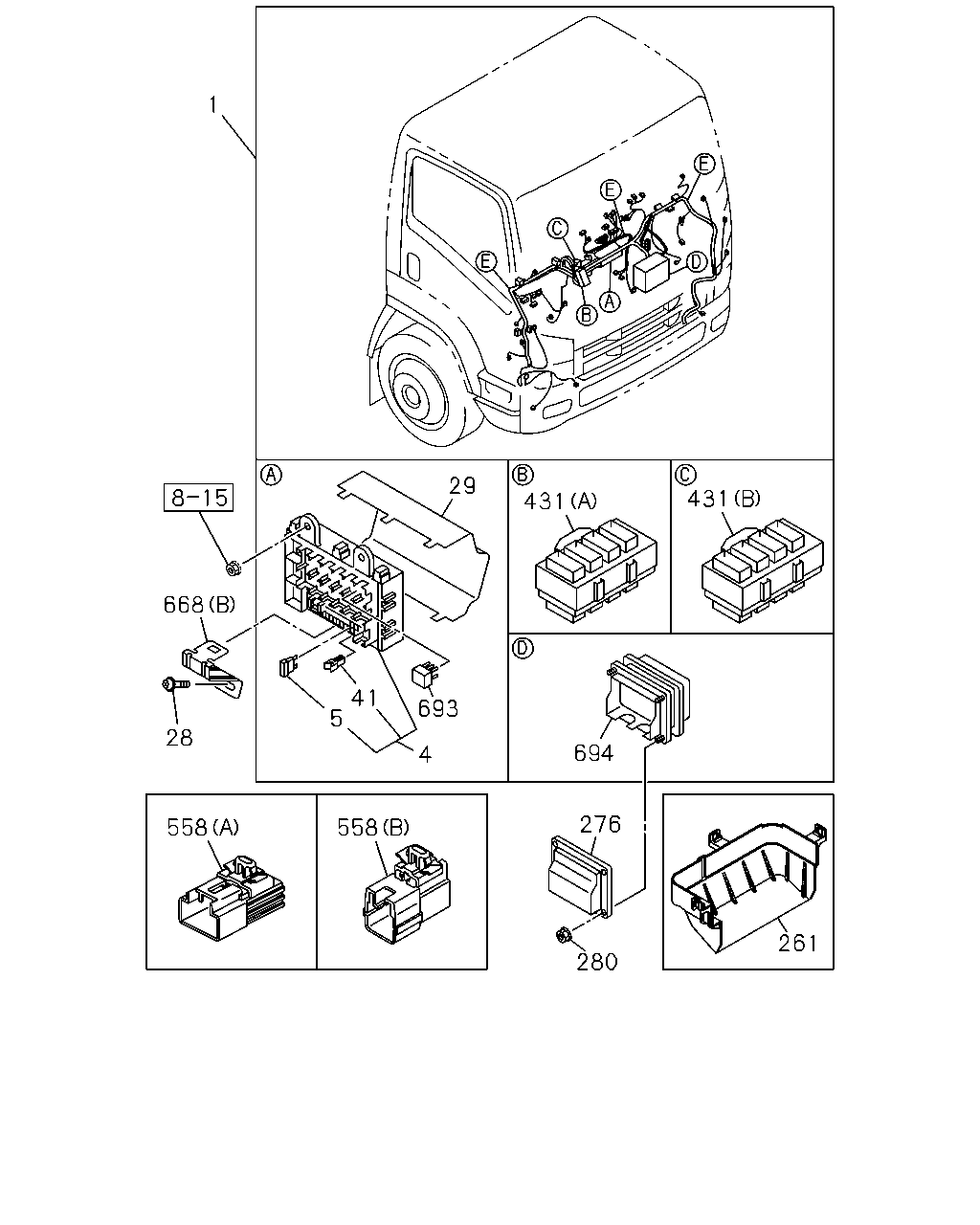

431
431
29
668
28
558
5
41
693
4
558
694
276
280
261
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HARNESS; CAB
EXC. AUTO DOOR LOCK<AU4>,AIR CONDITIONER MANUAL CONTROL(C60),HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>
8-98212-165-1
01
1
1412-
1
HARNESS; CAB
H.S.A SYSTEM<6EP> EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
AUTO DOOR LOCK<AU4> EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
AIR CONDITIONER MANUAL CONTROL(C60) EXC. AUTO DOOR LOCK<AU4>,HEADLAMPS CONTROL LEVELINGSYSTEM MANUAL<TR6>,H.S.A SYSTEM<6EP>
8-98212-166-2
01
1
1412-
1
HARNESS; CAB
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>
8-98212-166-2
01
1
1412-
4
BOX ASM; FUSE,HARNESS
8-98065-666-0
01
1
1412-
5
FUSE; FACIA HARNESS
10A RED
8-98054-257-0
AR
1
1412-
5
FUSE; FACIA HARNESS
15A BLUE
8-98054-258-0
AR
1
1412-
5
FUSE; FACIA HARNESS
20A YELLOW
8-98054-259-0
AR
1
1412-
5
FUSE; FACIA HARNESS
25A WHITE
8-98062-982-0
AR
1
1412-
28
SCREW; FUSE BOX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) T25 M5X12 TAPPING HEXALOBULAR
8-98081-722-0
01
1
1412-
28
SCREW; FUSE BOX
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) M6X16 FLANGE
0-28650-616-0
01
1
1412-
29
COVER; FUSE BOX
8-98056-968-0
01
1
1412-
41
PULLER; FUSE
8-98054-260-0
01
1
1412-
261
COVER; CONNECTOR BOX
8-98065-986-1
01
1
1412-
276
COVER; BOX,FRAME HARNESS
8-98034-039-1
01
1
1412-
280
NUT; BOX ASM FIX
M6 FLANGE
0-91180-106-0
04
1
1412-
431
CONNECTOR; JOINT
(A) WHITE
8-98056-374-0
01
1
1412-
431
CONNECTOR; JOINT
(B) WHITE
8-98056-375-0
01
1
1412-
558
CONNECTOR; HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C)
1-82690-668-0
01
1
1412-
558
CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)
8-98108-678-0
01
1
1412-
558
CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)
8-98108-679-0
01
1
1412-
668
BRACKET; HARNESS
(D)
8-98011-484-0
01
1
1412-
668
BRACKET; HARNESS
(A)
8-98024-765-0
01
1
1412-
668
BRACKET; HARNESS
(B)
8-98111-712-1
01
1
1412-
668
BRACKET; HARNESS
(C)
8-98205-089-0
01
1
1412-
668
BRACKET; HARNESS
(E)
8-98273-295-0
01
1
1412-
693
RELAY; FUSE BOX
24V 10A PANASONIC
8-97173-035-1
AR
1
1412-
694
BOX ASM; CONNECTOR
8-98057-771-0
01
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
