Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#15313) — 424 parça

53 53 53 53 53 53 53 53 53 53 53 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A)	1-42129-495-0	01	1	0710-
53	BRACKET; HARNESS (G)	1-83129-472-1	01	1	0710-
53	BRACKET; HARNESS (B) L=50	1-47475-663-1	01	1	0710-
53	BRACKET; HARNESS (D) L=130	1-47478-959-0	02	1	0710-
53	BRACKET; HARNESS (C) L=59 B=20	1-47479-048-0	02	1	0710-
53	BRACKET; HARNESS (E) L=30	1-47479-481-0	02	1	0710-
53	BRACKET; HARNESS (F)	1-47479-537-0	09	1	0710-
53	BRACKET; HARNESS (H)	1-82698-382-0	01	1	0710-
53	BRACKET; HARNESS (I)	1-82698-440-0	01	1	0710-0803
53	BRACKET; HARNESS (K)	1-82698-495-2	01	1	0710-
53	BRACKET; HARNESS (J)	8-97610-991-0	01	1	0710-
59	BRACKET; FRAME HARNESS	1-82698-531-0	01	1	0710-

137 211 211 312 312 312 312 312 312 312 334 334 334 334 342 375

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

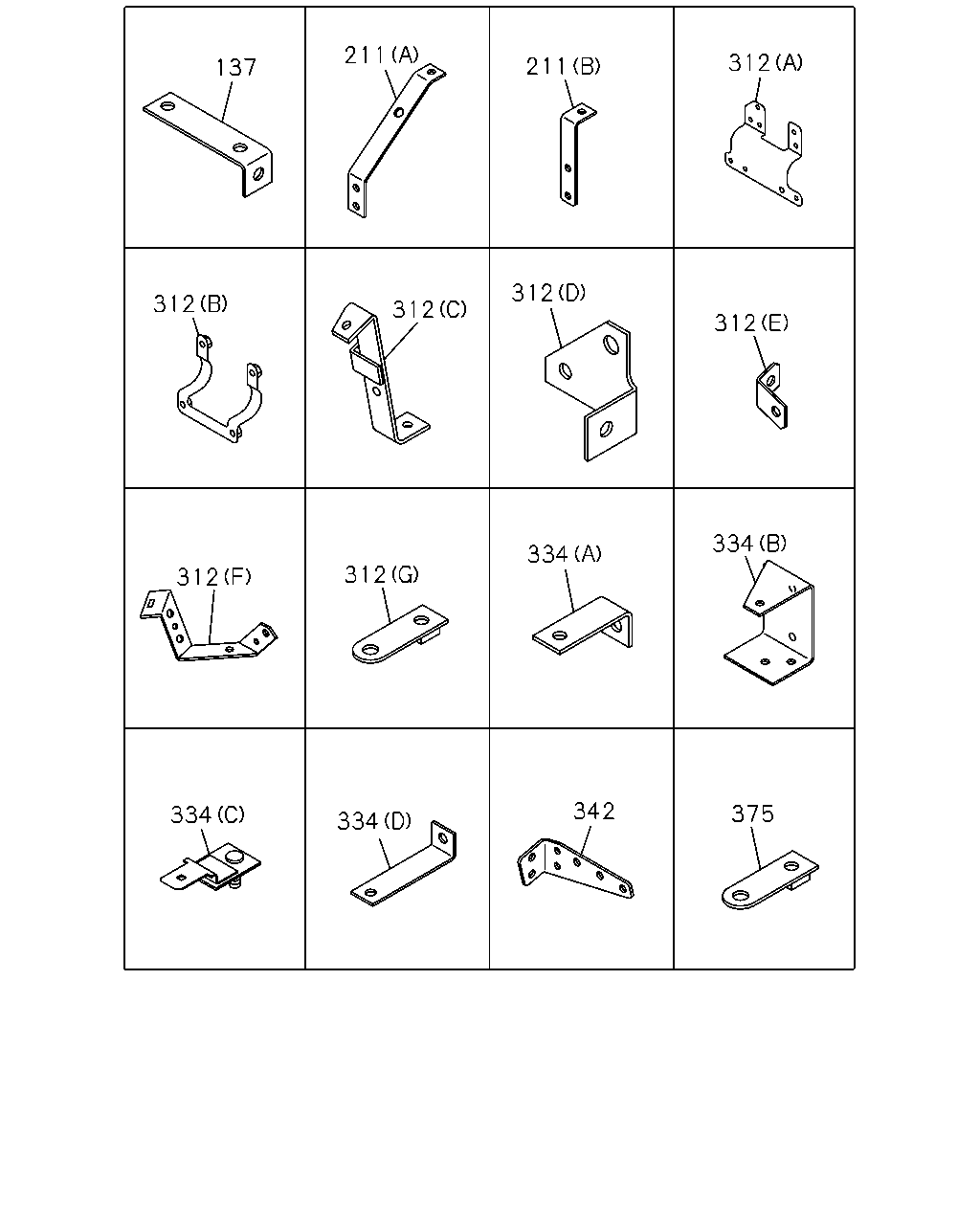

137	BRACKET; HARNESS CLAMP L=175 H=30	1-47479-386-1	01	1	0710-
211	BRACKET; AXLE HARNESS (A)	1-47479-430-0	02	1	0710-
211	BRACKET; AXLE HARNESS (B)	1-82698-588-0	01	1	0710-
312	BRACKET; CLIP HARNESS (A)	1-82698-474-1	01	1	0710-
312	BRACKET; CLIP HARNESS (B)	1-82698-476-0	01	1	0710-
312	BRACKET; CLIP HARNESS (C) L=195.5	1-82698-502-0	01	1	0710-
312	BRACKET; CLIP HARNESS (F)	1-82698-556-0	01	1	0710-
312	BRACKET; CLIP HARNESS (D)	1-82698-570-0	01	1	0710-
312	BRACKET; CLIP HARNESS (G)	1-82699-182-0	01	1	0710-
312	BRACKET; CLIP HARNESS (E)	1-82699-199-0	01	1	0710-
334	BRACKET (A) L=55	1-47476-177-0	02	1	0710-
334	BRACKET (B)	1-53457-153-2	01	1	0710-
334	BRACKET (C)	1-82698-543-0	01	1	0710-
334	BRACKET (D) L=95	1-82699-085-0	01	1	0710-
342	BRACKET; HARNESS CAB MTG	1-82699-625-0	01	1	0710-
375	BRACKET; AC GEN HARNESS CLIP	1-82699-182-0	01	1	0710-

224 1 1 224 1 178 178 178 178 530 530 503 292

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=40	1-09337-015-0	01	1	0710-
1	SLEEVE; RUBBER (B) ID=23 OD=27 L=40	1-09337-015-0	02	1	0710-
1	SLEEVE; RUBBER (A) ID=14 OD=18 L=60	1-09337-030-0	01	1	0710-
1	SLEEVE; RUBBER (C) ID=38.1 L=25	1-09337-052-0	01	1	0710-
178	GROMMET; HARNESS (C) WO/SLIT ID=24 OD=30 T=22	1-09332-126-0	02	1	0710-
178	GROMMET; HARNESS (C) W/SLIT ID=24 OD=30 T=22	1-09332-104-0	02	1	0710-
178	GROMMET; HARNESS (B) ID=32 OD=40 T=23	1-09332-112-0	01	1	0710-
178	GROMMET; HARNESS (A) ID=15 OD=20 T=17.5	1-09332-130-0	01	1	0710-
178	GROMMET; HARNESS (D) ID=28 OD=35 T=17	9-09956-256-2	02	1	0710-
224	SLEEVE; RUBBER,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) ID=32 OD=36 L=50	1-09337-023-0	01	1	0710-
224	SLEEVE; RUBBER,HARNESS (A) ID=6 L=30	5-09360-352-0	01	1	0710-0904
292	CAP; RUBBER	1-82690-667-0	01	1	0710-
503	CONNECTOR	1-82690-666-0	01	1	0710-
530	SEAL; HARNESS LOW ROOF<6XQ> (A) 100X40	1-72498-022-1	01	1	0710-
530	SEAL; HARNESS (A) 180X40	1-72498-019-1	16	1	0710-
530	SEAL; HARNESS (A) 100X40	1-72498-022-1	02	1	0710-
530	SEAL; HARNESS (B) OD=25 BLACK	1-76798-019-0	01	1	0710-

128 16 212 48 16 16 16 223 16 212 16 212 470 16 223 16 263 16 16 16 16 223 16 48 81 16 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

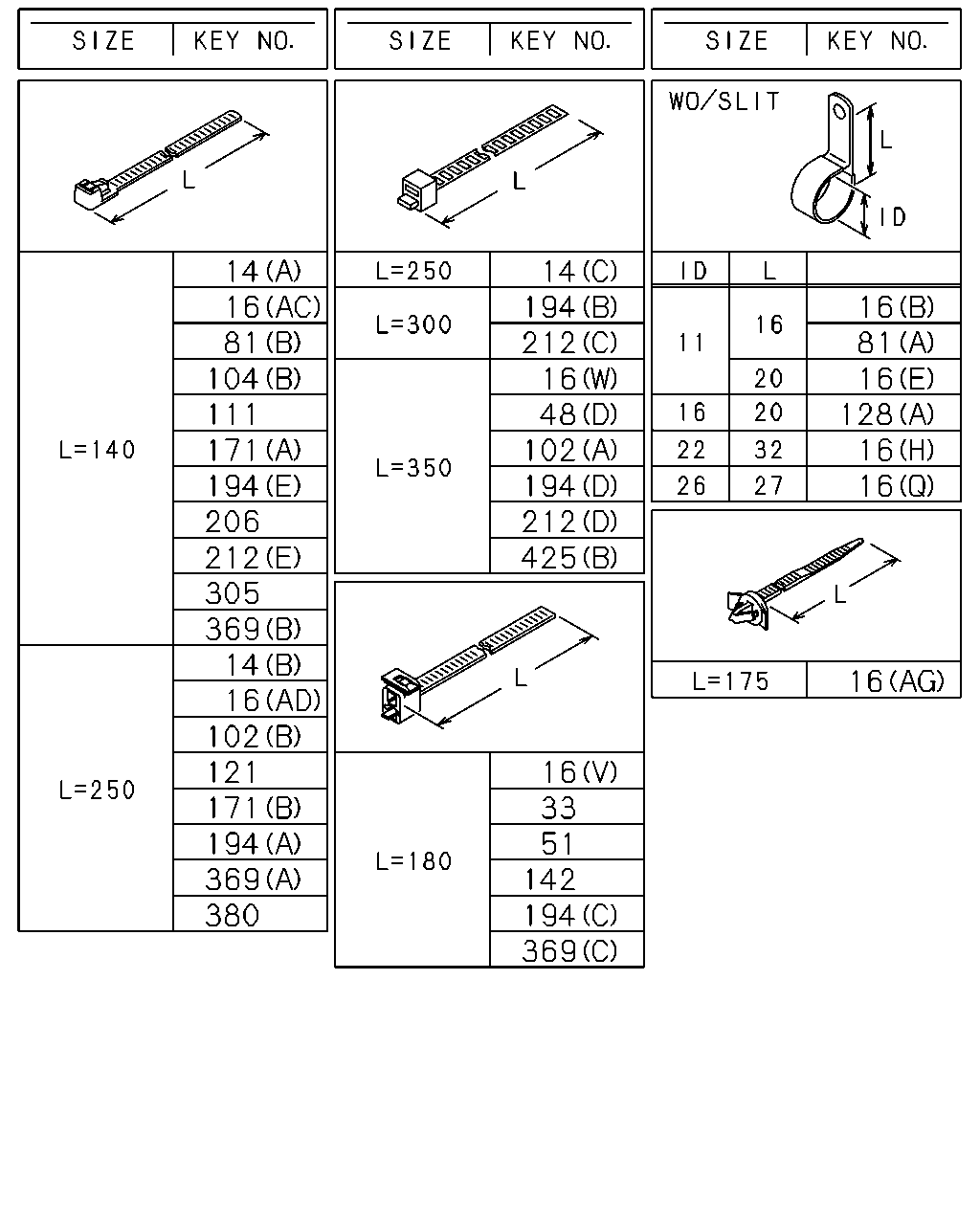

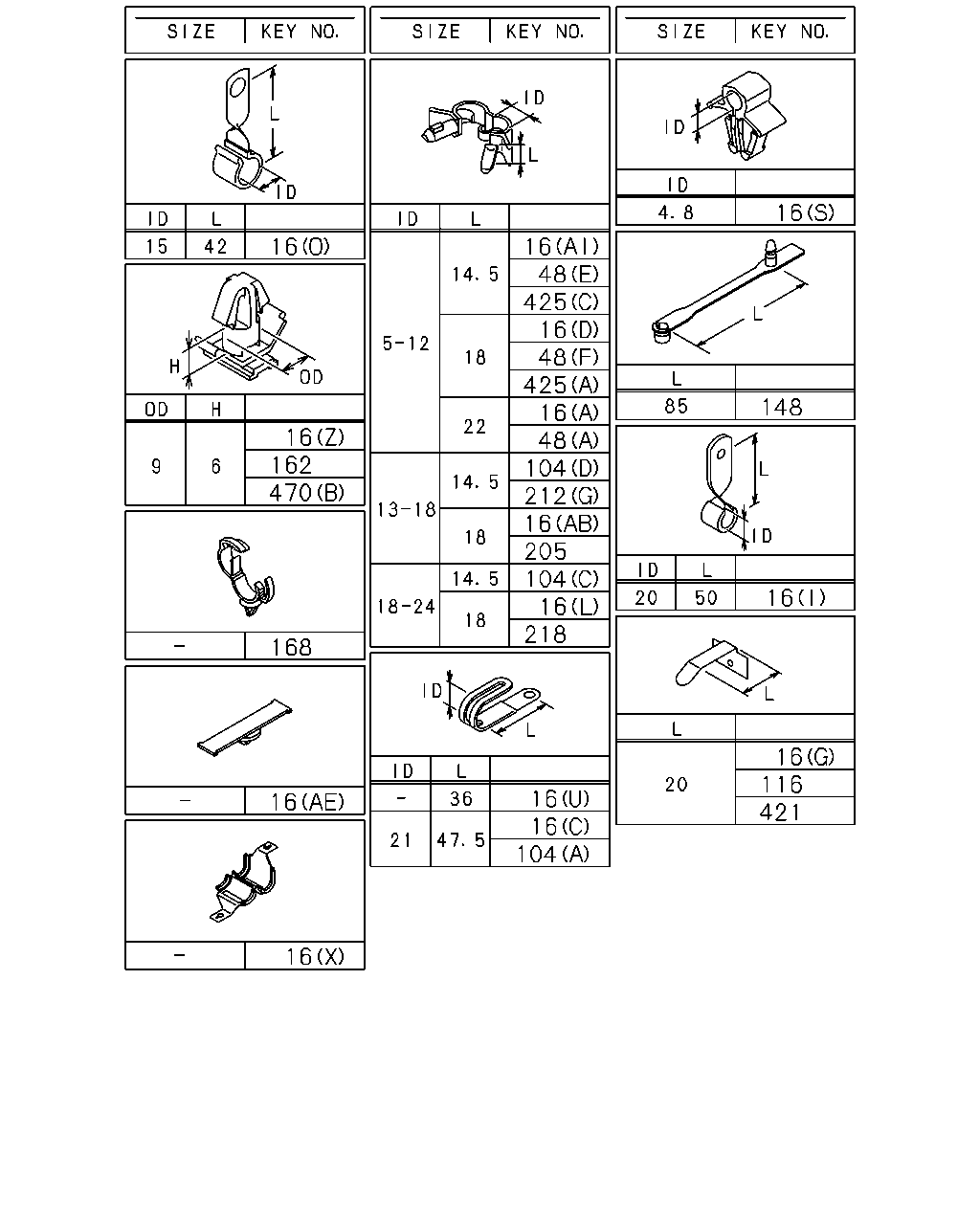

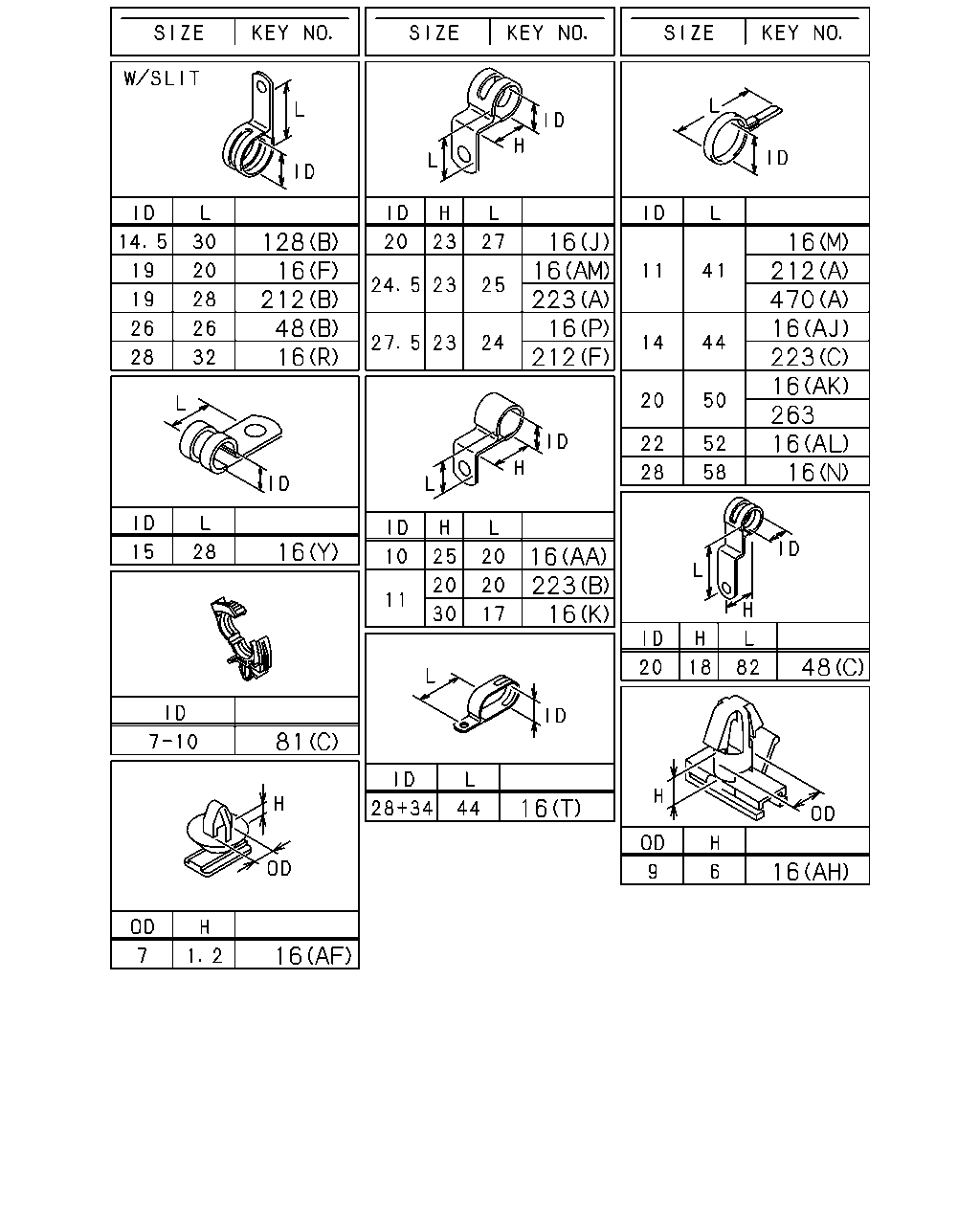

16	CLIP; HARNESS (W) L=350	1-09707-183-0	08	1	0710-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 H=30 L=17	1-09700-113-0	01	1	0710-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	0710-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) B=18 ID=11 L=20	0-95235-035-0	02	1	0710-
16	CLIP; HARNESS (E) B=14 ID=11 L=20	0-95235-032-0	01	1	0710-
16	CLIP; HARNESS (F) ID=19 L=20	0-95235-836-0	01	1	0710-
16	CLIP; HARNESS (C) ID=21 L=47.5	8-94178-108-0	04	1	0710-
16	CLIP; HARNESS (U) L=36	8-94224-891-1	01	1	0710-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	02	1	0710-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (H) ID=22 L=32	1-09700-126-1	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (I) ID=20 L=50	1-09700-679-1	01	1	0710-
16	CLIP; HARNESS (J) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (J) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS HIGH ROOF<S2F> (G) L=20 SET=10 PIECE	1-09987-246-2	04	1	0710-
16	CLIP; HARNESS (B) ID=11 L=16	0-95235-025-0	02	1	0710-
16	CLIP; HARNESS (N) ID=28 L=58	1-09700-400-0	04	1	0710-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	0710-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	04	1	0710-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	10	1	0710-0806
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	12	1	0807-
16	CLIP; HARNESS (O) ID=15 L=42	1-09700-479-0	02	1	0710-0904
16	CLIP; HARNESS (AA) ID=10 H=25 L=20	1-09700-519-0	01	1	0710-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0710-0711
16	CLIP; HARNESS (AM) ID=24.5 H=23 L=25	1-09700-862-0	03	1	0712-
16	CLIP; HARNESS (Q) ID=26 L=27	1-09701-006-0	02	1	0710-
16	CLIP; HARNESS (R) ID=28 L=32	1-09701-107-1	02	1	0710-1002
16	CLIP; HARNESS (S) ID=4.8	1-09701-218-0	01	1	0710-
16	CLIP; HARNESS (T) ID=28+34 L=44	1-09701-311-0	01	1	0710-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	01	1	0710-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	02	1	0710-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	08	1	0710-
16	CLIP; HARNESS (W) L=350	1-09707-183-0	01	1	0710-
16	CLIP; HARNESS (X) WO/SPONGE RUBBER	1-09709-103-1	02	1	0710-0904
16	CLIP; HARNESS (X) W/SPONGE RUBBER	1-09709-150-0	01	1	0710-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	05	1	0710-
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	01	1	0710-
16	CLIP; HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0710-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	0710-1002
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	04	1	1003-
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	01	1	0710-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	05	1	0710-
16	CLIP; HARNESS (AC) L=140	5-09707-031-1	01	1	0710-
16	CLIP; HARNESS (AF) OD=7 H=1.2	8-94364-750-0	02	1	0710-
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	02	1	0710-
16	CLIP; HARNESS (AG) L=175	8-97110-167-0	02	1	0710-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	01	1	0710-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	03	1	0710-
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	03	1	0710-0806
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	02	1	0807-
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	04	1	0710-
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	07	1	0710-
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	01	1	0710-
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	01	1	0710-
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	01	1	0710-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	07	1	0710-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	07	1	0710-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0907-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0907-
48	CLIP; FRAME HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	0710-
48	CLIP; FRAME HARNESS (C) ID=20 H=18 L=82	1-09701-288-0	01	1	0710-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	09	1	0710-0805
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	11	1	0806-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=18	1-09709-287-0	08	1	0710-1002
48	CLIP; FRAME HARNESS (F) ID=5-12 L=18	1-09709-287-0	07	1	1003-
48	CLIP; FRAME HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0710-
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	02	1	0710-
81	CLIP; HARNESS (B) L=140	5-09707-031-1	06	1	0710-
81	CLIP; HARNESS (C) ID=7-10	8-94472-578-0	02	1	0710-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0710-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0710-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0710-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0710-
212	CLIP; HORN HARNESS (F) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0710-
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0710-
212	CLIP; HORN HARNESS (D) L=350	1-09707-183-0	02	1	0710-
212	CLIP; HORN HARNESS (G) ID=13-18 L=14.5	1-09709-290-0	01	1	0710-
212	CLIP; HORN HARNESS (E) L=140	5-09707-031-1	01	1	0710-0904
223	CLIP; AIR TANK HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	02	1	0710-
223	CLIP; AIR TANK HARNESS (B) ID=11 H=20 L=20	8-98033-780-0	03	1	0710-
223	CLIP; AIR TANK HARNESS (C) ID=14 L=44	9-09917-427-0	02	1	0710-
263	CLIP; HARNESS,CLIP TO BATTERY RELAY ID=20 L=50	9-09917-430-0	02	1	0710-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0710-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0710-

119 255 127 82 423 515 515 340 294 219 524

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
82	WASHER; PL BRKT,HARNESS ID=10.5 OD=22	0-91614-610-0	02	1	0710-
119	SCREW; DOOR HARNESS EARTH M5X14 W/PL WASHER	8-94447-551-0	02	1	0710-
127	SCREW; FACIA HARNESS CLIP M3X10	9-93490-310-0	04	1	0710-
219	NUT M8 FLANGE	0-91180-108-0	03	1	0710-
219	NUT M8 FLANGE	0-91180-108-0	15	1	0710-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0710-
219	NUT M8 FLANGE	0-91180-108-0	01	1	0710-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0710-
219	NUT M8 FLANGE	0-91180-108-0	02	1	0710-
255	SCREW; TAP CLIP M6X20 TAPPING W/PL WASHER	0-74365-620-0	02	1	0710-0904
294	NUT M8 FLANGE	0-91180-108-0	08	1	1407-
294	NUT M8 FLANGE	0-91180-108-0	02	1	0710-
294	NUT M8 FLANGE	0-91180-108-0	05	1	0710-
294	NUT M8 FLANGE	0-91180-108-0	11	1	0710-1406
294	NUT M8 FLANGE	0-91180-108-0	03	1	1407-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	01	1	0710-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	02	1	0710-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	01	1	0710-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	04	1	0710-
515	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	03	1	0710-
515	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0710-
524	NUT; HARNESS M6 FLANGE	0-91180-106-0	01	1	0710-

38 150 150 242 528 38 150 242 38 313 38 38 242 480 38 64 139 313 86 139 313 64 516 139 239 38 358 88 133 358 239 38 358 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

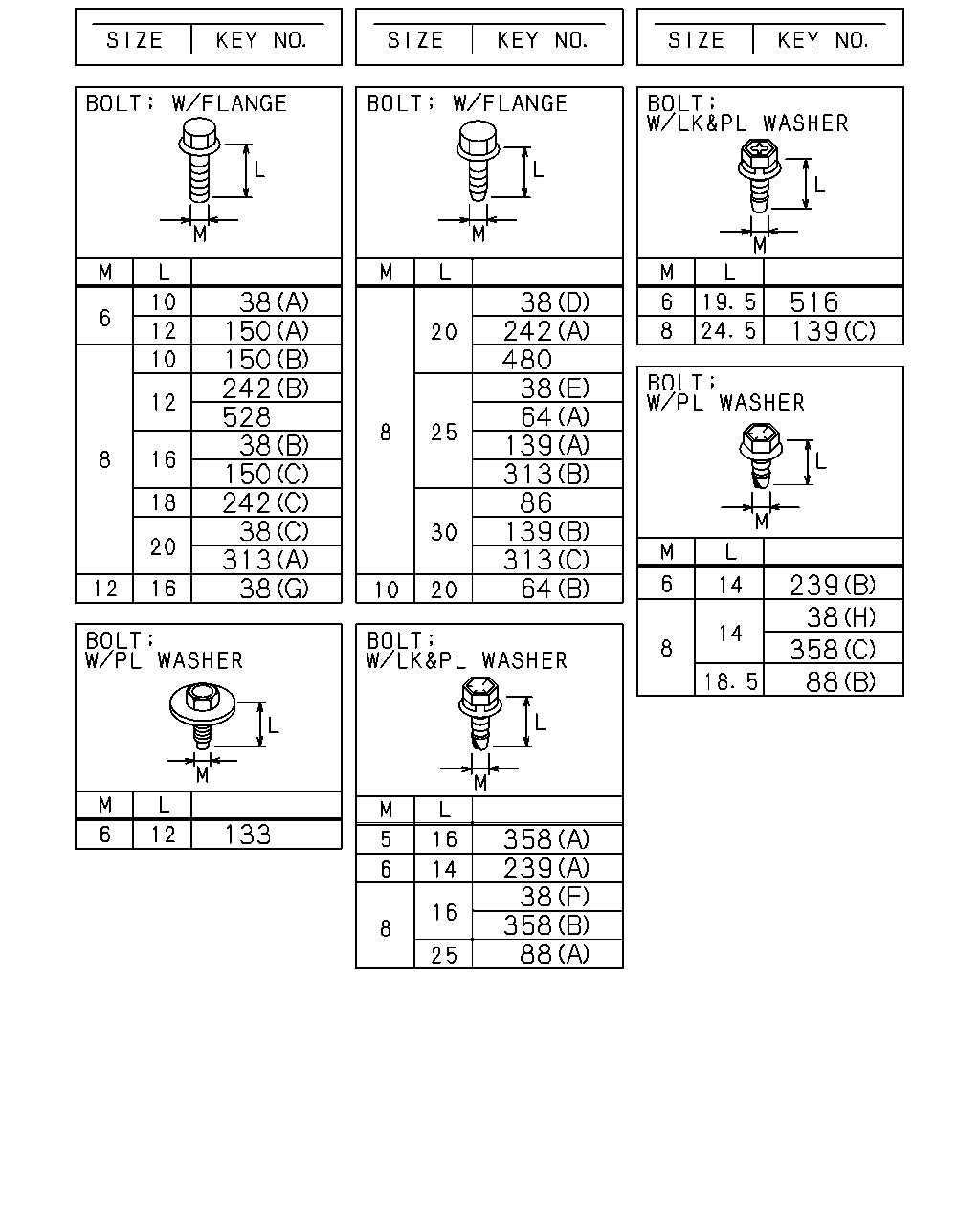

38	BOLT; CLIP,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X16 FLANGE	0-28050-816-0	02	1	0710-
38	BOLT; CLIP,HARNESS (A) M6X10 FLANGE	0-28050-610-0	01	1	0710-
38	BOLT; CLIP,HARNESS (C) M8X20 FLANGE	0-28050-820-0	01	1	0710-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	0710-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	05	1	0710-0906
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	06	1	0907-
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	1-09044-079-0	01	1	0710-1105
38	BOLT; CLIP,HARNESS (G) M12X16 FLANGE	0-28051-216-0	01	1	1106-
38	BOLT; CLIP,HARNESS (F) M8X16 W/LK&PL WASHER	8-97087-055-0	04	1	0710-1201
38	BOLT; CLIP,HARNESS (H) M8X14 W/PL WASHER	8-98164-837-0	04	1	1202-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0710-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0710-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	02	1	0710-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0710-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0710-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	01	1	0710-
64	SCREW; CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	0710-0711
64	SCREW; CLIP (B) M10X20 FLANGE	0-28751-020-0	01	1	0710-
86	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	03	1	0710-
88	BOLT; DOOR HARNESS EARTH (A) M8X25 W/LK&PL WASHER	8-97087-203-0	02	1	0710-1007
88	BOLT; DOOR HARNESS EARTH (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1008-
133	SCREW; HARNESS CLIP,STRG COLUMN M6X12 W/PL WASHER	8-97806-950-0	01	1	0710-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0710-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	0710-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	05	1	0710-
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0710-0904
139	BOLT; BRKT (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
150	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) M8X10 FLANGE	0-28050-810-0	02	1	0710-
150	BOLT; CLIP BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (C) M8X16 FLANGE	0-28050-816-0	01	1	0710-
150	BOLT; CLIP (A) M6X12 FLANGE	0-28050-612-0	02	1	0710-
150	BOLT; CLIP (C) M8X16 FLANGE	0-28050-816-0	03	1	0710-
239	BOLT; GRAND (A) M6X14 W/LK&PL WASHER	8-97086-822-0	02	1	0710-1007
239	BOLT; GRAND (B) M6X14 W/PL WASHER	8-98164-836-0	02	1	1008-
242	BOLT; BRKT,HARNESS (B) M8X12 FLANGE	0-28050-812-0	01	1	0710-
242	BOLT; BRKT,HARNESS (C) M8X18 FLANGE	0-28080-818-0	01	1	0710-
242	BOLT; BRKT,HARNESS (A) M8X20 FLANGE	0-28650-820-0	04	1	0710-
313	BOLT; BRKT (A) M8X20 FLANGE	0-28050-820-0	02	1	0710-
313	BOLT; BRKT (B) M8X25 FLANGE	0-28650-825-0	11	1	0710-
313	BOLT; BRKT (C) M8X30 FLANGE	0-28650-830-0	01	1	0710-
358	BOLT; EARTH (A) M5X16 W/LK&PL WASHER	8-94198-538-0	01	1	0710-
358	BOLT; EARTH (B) M8X16 W/LK&PL WASHER	8-97087-055-0	01	1	0710-1201
358	BOLT; EARTH (C) M8X14 W/PL WASHER	8-98164-837-0	01	1	1202-
480	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	04	1	0710-
516	BOLT; HARNESS M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0710-
528	BOLT; CONNECTOR M8X12 FLANGE	0-28050-812-0	01	1	0710-

16 16 162 470 168 16 16 16 48 425 16 48 425 16 48 104 212 16 205 104 16 218 16 16 104 16 116 421 148 16 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (W) L=350	1-09707-183-0	08	1	0710-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 H=30 L=17	1-09700-113-0	01	1	0710-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	0710-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) B=18 ID=11 L=20	0-95235-035-0	02	1	0710-
16	CLIP; HARNESS (E) B=14 ID=11 L=20	0-95235-032-0	01	1	0710-
16	CLIP; HARNESS (F) ID=19 L=20	0-95235-836-0	01	1	0710-
16	CLIP; HARNESS (C) ID=21 L=47.5	8-94178-108-0	04	1	0710-
16	CLIP; HARNESS (U) L=36	8-94224-891-1	01	1	0710-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	02	1	0710-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (H) ID=22 L=32	1-09700-126-1	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (I) ID=20 L=50	1-09700-679-1	01	1	0710-
16	CLIP; HARNESS (J) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (J) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS HIGH ROOF<S2F> (G) L=20 SET=10 PIECE	1-09987-246-2	04	1	0710-
16	CLIP; HARNESS (B) ID=11 L=16	0-95235-025-0	02	1	0710-
16	CLIP; HARNESS (N) ID=28 L=58	1-09700-400-0	04	1	0710-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	0710-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	04	1	0710-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	10	1	0710-0806
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	12	1	0807-
16	CLIP; HARNESS (O) ID=15 L=42	1-09700-479-0	02	1	0710-0904
16	CLIP; HARNESS (AA) ID=10 H=25 L=20	1-09700-519-0	01	1	0710-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0710-0711
16	CLIP; HARNESS (AM) ID=24.5 H=23 L=25	1-09700-862-0	03	1	0712-
16	CLIP; HARNESS (Q) ID=26 L=27	1-09701-006-0	02	1	0710-
16	CLIP; HARNESS (R) ID=28 L=32	1-09701-107-1	02	1	0710-1002
16	CLIP; HARNESS (S) ID=4.8	1-09701-218-0	01	1	0710-
16	CLIP; HARNESS (T) ID=28+34 L=44	1-09701-311-0	01	1	0710-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	01	1	0710-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	02	1	0710-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	08	1	0710-
16	CLIP; HARNESS (W) L=350	1-09707-183-0	01	1	0710-
16	CLIP; HARNESS (X) WO/SPONGE RUBBER	1-09709-103-1	02	1	0710-0904
16	CLIP; HARNESS (X) W/SPONGE RUBBER	1-09709-150-0	01	1	0710-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	05	1	0710-
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	01	1	0710-
16	CLIP; HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0710-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	0710-1002
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	04	1	1003-
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	01	1	0710-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	05	1	0710-
16	CLIP; HARNESS (AC) L=140	5-09707-031-1	01	1	0710-
16	CLIP; HARNESS (AF) OD=7 H=1.2	8-94364-750-0	02	1	0710-
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	02	1	0710-
16	CLIP; HARNESS (AG) L=175	8-97110-167-0	02	1	0710-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	01	1	0710-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	03	1	0710-
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	03	1	0710-0806
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	02	1	0807-
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	04	1	0710-
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	07	1	0710-
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	01	1	0710-
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	01	1	0710-
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	01	1	0710-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	07	1	0710-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	07	1	0710-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0907-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0907-
48	CLIP; FRAME HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	0710-
48	CLIP; FRAME HARNESS (C) ID=20 H=18 L=82	1-09701-288-0	01	1	0710-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	09	1	0710-0805
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	11	1	0806-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=18	1-09709-287-0	08	1	0710-1002
48	CLIP; FRAME HARNESS (F) ID=5-12 L=18	1-09709-287-0	07	1	1003-
48	CLIP; FRAME HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0710-
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-
104	CLIP; HEADLAMP HARNESS (D) ID=13-18 L=14.5	1-09709-290-0	06	1	0710-
104	CLIP; HEADLAMP HARNESS (C) ID=18-24 L=14.5	1-09709-298-0	02	1	0710-
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	10	1	0710-
104	CLIP; HEADLAMP HARNESS (A) ID=21 L=47.5	8-94178-108-0	02	1	0710-0710
116	CLIP; ROOF HARNESS HIGH ROOF<S2F> L=20 SET=10 PIECE	1-09987-246-2	07	1	0710-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	06	1	0710-
148	CLIP; BAND,HEADLAMP HARNESS L=85	8-94232-611-0	04	1	0710-
162	CLIP; SW HARNESS OD=9 H=6	1-09709-178-0	01	1	0710-
168	CLIP; DASH HARNESS ID=6 & 10-13	8-97069-515-0	05	1	0710-
205	CLIP; BACK LAMP HARNESS ID=13-18 L=18	1-09709-291-0	01	1	0710-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0710-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0710-
212	CLIP; HORN HARNESS (F) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0710-
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0710-
212	CLIP; HORN HARNESS (D) L=350	1-09707-183-0	02	1	0710-
212	CLIP; HORN HARNESS (G) ID=13-18 L=14.5	1-09709-290-0	01	1	0710-
212	CLIP; HORN HARNESS (E) L=140	5-09707-031-1	01	1	0710-0904
218	CLIP; BAND,RR COMB ID=18-24 L=18	1-09709-294-0	04	1	0710-
421	CLIP; FLOOR HARNESS L=30 SET=10 PIECE	1-09987-265-0	05	1	0710-
425	CLIP; MODULATOR (B) L=350	1-09707-183-0	01	1	0710-
425	CLIP; MODULATOR (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	03	1	0710-
470	CLIP; HARNESS,LICENSE LAMP (A) ID=11 L=41	1-09700-403-0	01	1	0710-
470	CLIP; HARNESS,LICENSE LAMP (B) OD=9 H=6	1-09709-178-0	01	1	0710-

14 194 212 16 48 102 194 212 425 14 16 81 104 111 171 194 206 212 305 369 14 16 102 121 171 194 369 380 16 81 16 128 16 16 16 16 33 51 142 194 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (C) L=250	1-09707-126-0	02	1	0710-
14	CLIP; BAND,HARNESS (C) L=250	1-09707-126-0	02	1	0710-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (B) L=250	5-09707-030-1	01	1	0710-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=140	5-09707-031-1	01	1	0710-
14	CLIP; BAND,HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) L=250	1-09707-126-0	01	1	0710-
16	CLIP; HARNESS (W) L=350	1-09707-183-0	08	1	0710-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (K) ID=11 H=30 L=17	1-09700-113-0	01	1	0710-
16	CLIP; HARNESS (E) B=18 ID=11 L=20	0-95235-035-0	02	1	0710-
16	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (E) B=18 ID=11 L=20	0-95235-035-0	02	1	0710-
16	CLIP; HARNESS (E) B=14 ID=11 L=20	0-95235-032-0	01	1	0710-
16	CLIP; HARNESS (F) ID=19 L=20	0-95235-836-0	01	1	0710-
16	CLIP; HARNESS (C) ID=21 L=47.5	8-94178-108-0	04	1	0710-
16	CLIP; HARNESS (U) L=36	8-94224-891-1	01	1	0710-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	02	1	0710-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (H) ID=22 L=32	1-09700-126-1	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (I) ID=20 L=50	1-09700-679-1	01	1	0710-
16	CLIP; HARNESS (J) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS GENERATOR NIKKO 24V-50A 1.2KW(SLX) (J) ID=20 H=23 L=27	1-09700-861-0	01	1	0710-
16	CLIP; HARNESS HIGH ROOF<S2F> (G) L=20 SET=10 PIECE	1-09987-246-2	04	1	0710-
16	CLIP; HARNESS (B) ID=11 L=16	0-95235-025-0	02	1	0710-
16	CLIP; HARNESS (N) ID=28 L=58	1-09700-400-0	04	1	0710-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	02	1	0710-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	04	1	0710-
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	10	1	0710-0806
16	CLIP; HARNESS (M) ID=11 L=41	1-09700-403-0	12	1	0807-
16	CLIP; HARNESS (O) ID=15 L=42	1-09700-479-0	02	1	0710-0904
16	CLIP; HARNESS (AA) ID=10 H=25 L=20	1-09700-519-0	01	1	0710-
16	CLIP; HARNESS (P) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0710-0711
16	CLIP; HARNESS (AM) ID=24.5 H=23 L=25	1-09700-862-0	03	1	0712-
16	CLIP; HARNESS (Q) ID=26 L=27	1-09701-006-0	02	1	0710-
16	CLIP; HARNESS (R) ID=28 L=32	1-09701-107-1	02	1	0710-1002
16	CLIP; HARNESS (S) ID=4.8	1-09701-218-0	01	1	0710-
16	CLIP; HARNESS (T) ID=28+34 L=44	1-09701-311-0	01	1	0710-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	01	1	0710-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	02	1	0710-
16	CLIP; HARNESS (V) L=180	1-09707-162-1	08	1	0710-
16	CLIP; HARNESS (W) L=350	1-09707-183-0	01	1	0710-
16	CLIP; HARNESS (X) WO/SPONGE RUBBER	1-09709-103-1	02	1	0710-0904
16	CLIP; HARNESS (X) W/SPONGE RUBBER	1-09709-150-0	01	1	0710-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	05	1	0710-
16	CLIP; HARNESS (D) ID=5-12 L=18	1-09709-287-0	01	1	0710-
16	CLIP; HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0710-
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	03	1	0710-1002
16	CLIP; HARNESS (AB) ID=13-18 L=18	1-09709-291-0	04	1	1003-
16	CLIP; HARNESS (L) ID=18-24 L=18	1-09709-294-0	01	1	0710-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0710-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0907-
16	CLIP; HARNESS (AD) L=250	5-09707-030-1	05	1	0710-
16	CLIP; HARNESS (AC) L=140	5-09707-031-1	01	1	0710-
16	CLIP; HARNESS (AF) OD=7 H=1.2	8-94364-750-0	02	1	0710-
16	CLIP; HARNESS (AE) L=55	8-94432-655-0	02	1	0710-
16	CLIP; HARNESS (AG) L=175	8-97110-167-0	02	1	0710-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	01	1	0710-
16	CLIP; HARNESS (AH) OD=9 H=6	8-97368-793-0	03	1	0710-
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	03	1	0710-0806
16	CLIP; HARNESS (AJ) ID=14 L=44	9-09917-427-0	02	1	0807-
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	04	1	0710-
16	CLIP; HARNESS (AK) ID=20 L=50	9-09917-430-0	07	1	0710-
16	CLIP; HARNESS (AL) ID=22 L=52	9-09917-431-0	01	1	0710-
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	01	1	0710-
16	CLIP; HARNESS (Y) ID=15 L=28	1-09701-216-0	01	1	0710-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	07	1	0710-
16	CLIP; HARNESS (Z) OD=9 H=6	1-09709-178-0	07	1	0710-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-0906
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0907-
16	CLIP; HARNESS (AI) ID=5-12 L=14.5	1-09987-221-0	02	1	0907-
33	CLIP; HARNESS,VLV L=180	1-09707-162-1	01	1	0710-
48	CLIP; FRAME HARNESS (B) ID=26 L=26	1-09701-236-0	01	1	0710-
48	CLIP; FRAME HARNESS (C) ID=20 H=18 L=82	1-09701-288-0	01	1	0710-
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	09	1	0710-0805
48	CLIP; FRAME HARNESS (D) L=350	1-09707-183-0	11	1	0806-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=18	1-09709-287-0	08	1	0710-1002
48	CLIP; FRAME HARNESS (F) ID=5-12 L=18	1-09709-287-0	07	1	1003-
48	CLIP; FRAME HARNESS (A) ID=5-12 L=22	1-09709-288-0	02	1	0710-
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-
48	CLIP; FRAME HARNESS (E) ID=5-12 L=14.5	1-09987-221-0	01	1	0710-
51	CLIP; COOLER CMPR L=180	1-09707-162-1	01	1	0710-
81	CLIP; HARNESS BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> (A) ID=11 L=16	0-95235-025-0	02	1	0710-
81	CLIP; HARNESS (B) L=140	5-09707-031-1	06	1	0710-
81	CLIP; HARNESS (C) ID=7-10	8-94472-578-0	02	1	0710-
102	CLIP; BAND (A) L=350	1-09707-183-0	02	1	0710-
102	CLIP; BAND (B) L=250	5-09707-030-1	01	1	0710-1002
102	CLIP; BAND (B) L=250	5-09707-030-1	01	1	1003-
102	CLIP; BAND (B) L=250	5-09707-030-1	01	1	1003-
104	CLIP; HEADLAMP HARNESS (D) ID=13-18 L=14.5	1-09709-290-0	06	1	0710-
104	CLIP; HEADLAMP HARNESS (C) ID=18-24 L=14.5	1-09709-298-0	02	1	0710-
104	CLIP; HEADLAMP HARNESS (B) L=140	5-09707-031-1	10	1	0710-
104	CLIP; HEADLAMP HARNESS (A) ID=21 L=47.5	8-94178-108-0	02	1	0710-0710
111	CLIP; STOP LAMP SW HARNESS L=140	5-09707-031-1	01	1	0710-
121	CLIP; FACIA HARNESS L=250	5-09707-030-1	02	1	0710-
128	CLIP; COMB SW HARNESS,STRG COLUMN (A) ID=16 L=20	0-95235-535-0	01	1	0710-
128	CLIP; COMB SW HARNESS,STRG COLUMN (B) ID=14.5 L=30	9-09916-893-1	01	1	0710-
142	CLIP; HARNESS,ENG L=180	1-09707-162-1	01	1	0710-1207
142	CLIP; HARNESS,ENG L=180	8-98216-427-0	01	1	1208-
171	CLIP; STARTER HARNESS (B) L=250	5-09707-030-1	03	1	0710-
171	CLIP; STARTER HARNESS (A) L=140	5-09707-031-1	07	1	0710-
194	CLIP; BAND (B) L=300	1-09707-001-1	01	1	0710-
194	CLIP; BAND (C) L=180	1-09707-162-1	01	1	0710-
194	CLIP; BAND (D) L=350	1-09707-183-0	03	1	0710-1002
194	CLIP; BAND (D) L=350	1-09707-183-0	04	1	1003-1112
194	CLIP; BAND (D) L=350	1-09707-183-0	03	1	1201-1202
194	CLIP; BAND (D) L=350	1-09707-183-0	04	1	1203-
194	CLIP; BAND (A) L=250	5-09707-030-1	06	1	0710-
194	CLIP; BAND (E) L=140	5-09707-031-1	01	1	0710-
206	CLIP; FUEL TANK HARNESS L=140	5-09707-031-1	02	1	0710-
212	CLIP; HORN HARNESS (B) ID=19 L=28	0-95235-856-0	01	1	0710-
212	CLIP; HORN HARNESS (A) ID=11 L=41	1-09700-403-0	01	1	0710-
212	CLIP; HORN HARNESS (F) ID=27.5 H=23 L=24	1-09700-863-0	03	1	0710-
212	CLIP; HORN HARNESS (C) L=300	1-09707-001-1	01	1	0710-
212	CLIP; HORN HARNESS (D) L=350	1-09707-183-0	02	1	0710-
212	CLIP; HORN HARNESS (G) ID=13-18 L=14.5	1-09709-290-0	01	1	0710-
212	CLIP; HORN HARNESS (E) L=140	5-09707-031-1	01	1	0710-0904
305	CLIP; ENG HARNESS L=140	5-09707-031-1	03	1	0710-
369	CLIP; BAND EDS HARNESS (C) L=180	1-09707-162-1	01	1	0907-
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	04	1	0710-1002
369	CLIP; BAND EDS HARNESS (A) L=250	5-09707-030-1	03	1	1003-
369	CLIP; BAND EDS HARNESS (B) L=140	5-09707-031-1	01	1	0710-
380	CLIP; EARTH HARNESS L=250	5-09707-030-1	01	1	0710-
425	CLIP; MODULATOR (B) L=350	1-09707-183-0	01	1	0710-
425	CLIP; MODULATOR (A) ID=5-12 L=18	1-09709-287-0	01	1	0710-
425	CLIP; MODULATOR (C) ID=5-12 L=14.5	1-09987-221-0	03	1	0710-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
