◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11584 - FRR MIDDLE EAST SPACE CAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-84 - BACK TRIM ▶
6-84 — BACK TRIM (#153123) — 8 parça

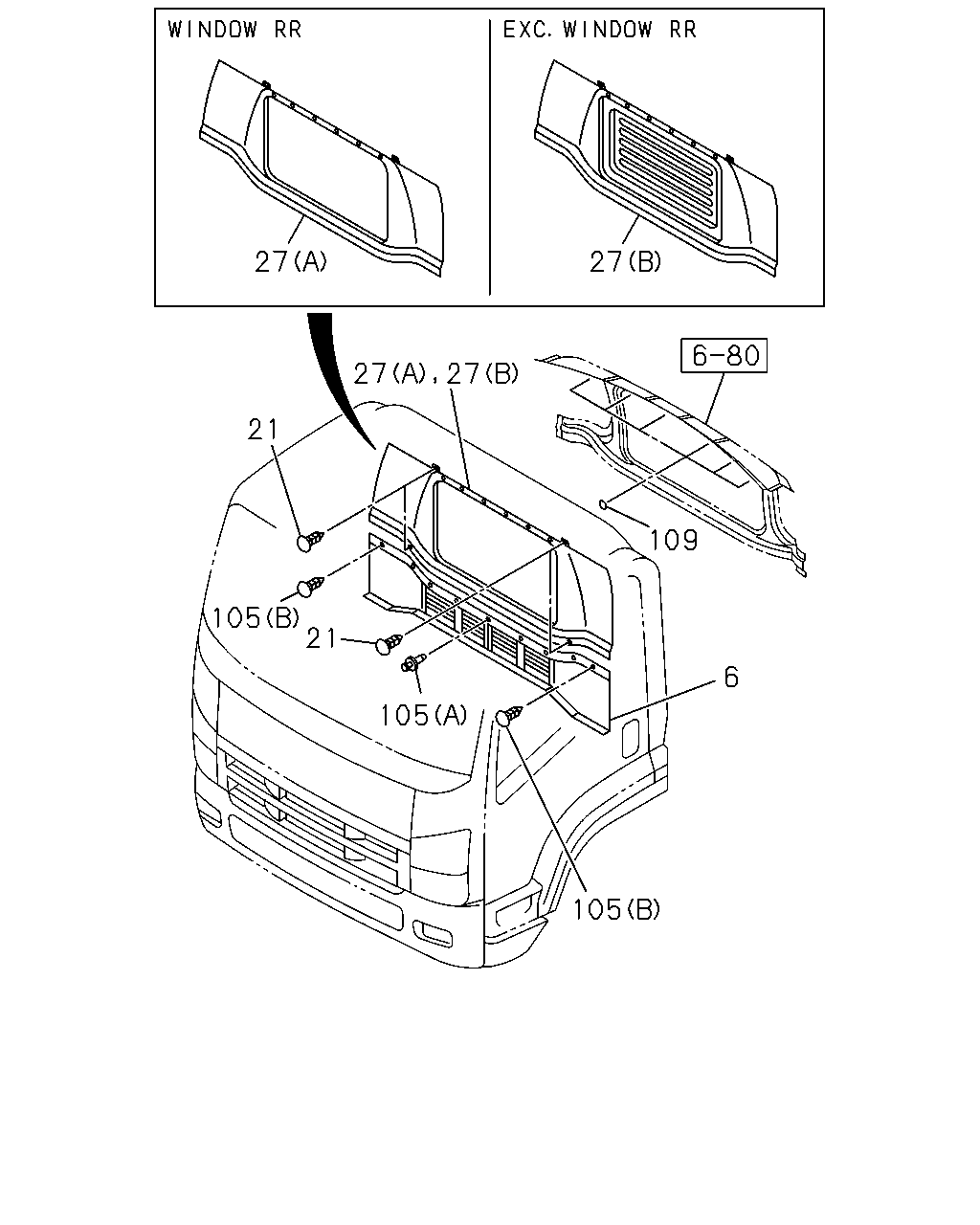

çizim 459030
105 105 21 105 21 27 27 109 6 27 27
BalonParca AdiParca NoAdetTipApplied Date
6 MAT; SILENCER,CAB BACK
GRAY 		8-97407-457-1 01 1 1412-
21 RETAINER; TRIM,BED ROOM
INTERIOR FULL TRIM<WM3> GRAY 		8-97407-467-0 04 1 1412-
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> WINDOW RR<8LF> (A) DARK GRAY 		8-97407-463-2 01 1 1412-
27 COVER; TRIM,BACK
INTERIOR FULL TRIM<WM3> EXC. WINDOW RR<8LF> (B) DARK GRAY 		8-97407-541-3 01 1 1412-
105 CLIP; BACK TRIM
(B) GRAY 		8-97407-467-0 02 1 1412-
105 CLIP; BACK TRIM
(A) GRAY 		8-97408-022-0 07 1 1412-
109 SEAL; HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 1412-
109 SEAL; HOLE
OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 1412-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
