8-10 — WIRING HARNESS AND FUSE (#15312) — 124 parça

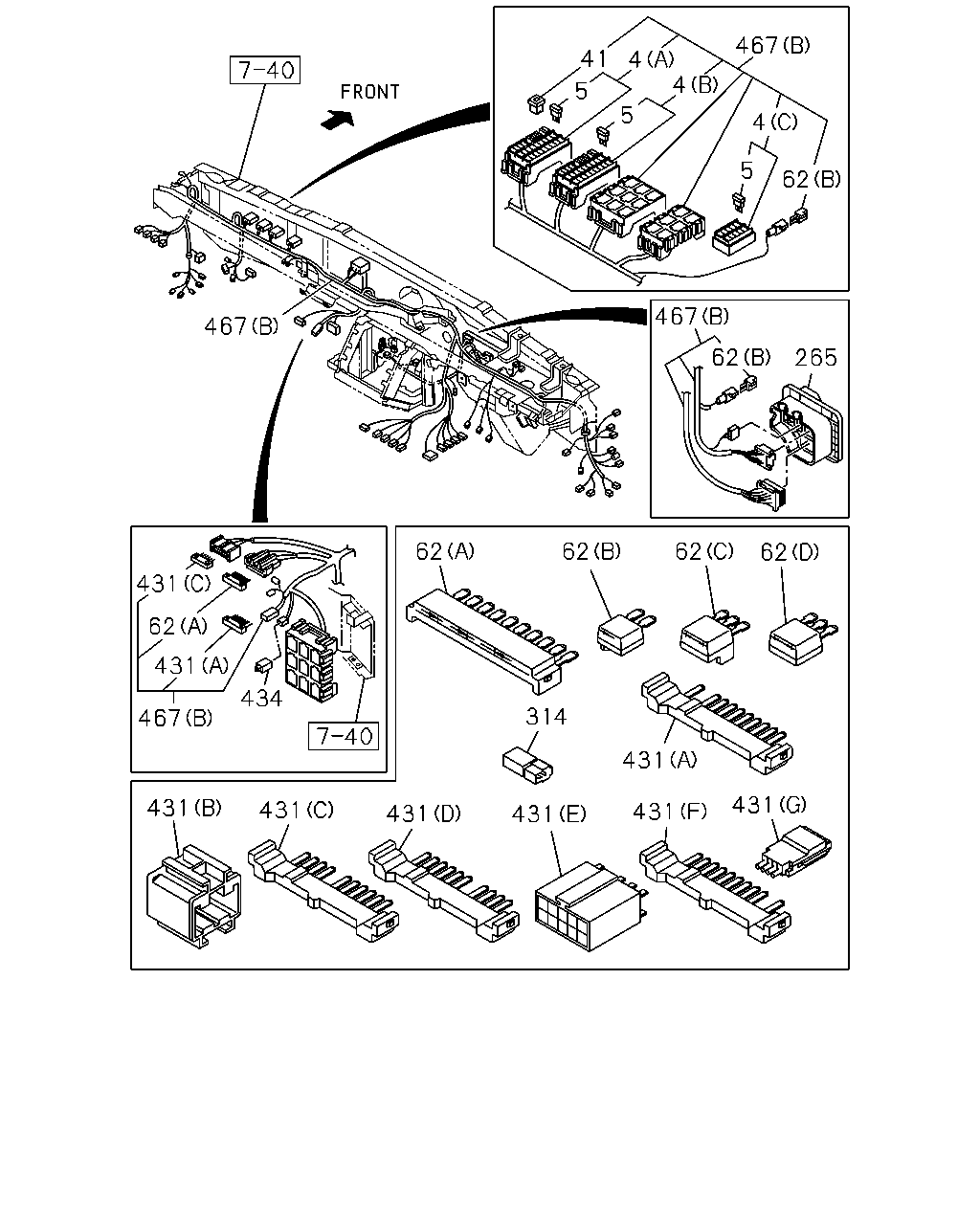

çizim 92914
467 41 4 4 4 62 5 5 5 467 467 62 255 62 62 62 62 431 62 431 434 467 314 431 431 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS
(A) 7.5AX22 10AX4 		1-82510-455-0 01 1 0710-
4 BOX ASM; FUSE,HARNESS
(B) 15AX25 25AX2 		1-82510-602-0 01 1 0710-
4 BOX ASM; FUSE,HARNESS
(C) 15AX3 		1-82510-638-0 01 1 0710-
5 FUSE; FACIA HARNESS
10A RED 		5-82516-002-0 AR 1 0710-
5 FUSE; FACIA HARNESS
15A BLUE 		5-82516-003-0 AR 1 0710-
5 FUSE; FACIA HARNESS
25A CLEAR 		5-82516-005-0 AR 1 0710-
5 FUSE; FACIA HARNESS
7.5A BROWN 		8-94159-007-0 AR 1 0710-
41 PULLER; FUSE
L=25.3 B=11.5 		8-94121-482-0 01 1 0710-
62 DIODE; HARNESS
(A) BLACK 10P 		1-82699-703-0 AR 1 0710-
62 DIODE; HARNESS
(C) BLACK 3P-1.5A 		8-94416-438-1 AR 1 0710-
62 DIODE; HARNESS
(B) BLACK 2P-1.5A 		8-94422-639-1 AR 1 0710-
62 DIODE; HARNESS
(D) BLACK 3P-1.5A 		8-94422-640-1 AR 1 0710-
255 HARNESS; ELEC GOV 1-82662-307-3 01 1 0710-1210
255 HARNESS; ELEC GOV 8-98229-084-0 01 1 1211-
314 RESISTOR; HARNESS
RESISTANCE NO.5 2K OHM 		1-81515-025-0 01 1 0710-
431 CONNECTOR; JOINT
(B) 6P 		1-82691-206-0 01 1 0710-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 03 1 0710-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 13 1 0710-
431 CONNECTOR; JOINT
(D) 10P GREEN 		1-82699-599-0 03 1 0710-
431 CONNECTOR; JOINT
(A) 10P BROWN 		1-82699-601-0 08 1 0710-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 01 1 0710-
431 CONNECTOR; JOINT
(G) 4P 		8-97376-776-0 13 1 0710-
434 CONNECTOR; SHORT CIRCUIT 1-82691-051-0 01 1 0710-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0710-
467 HARNESS; FACIA
(B) 		8-97622-966-3 01 1 0710-0907
467 HARNESS; FACIA
(B) 		8-97634-130-0 01 1 0908-

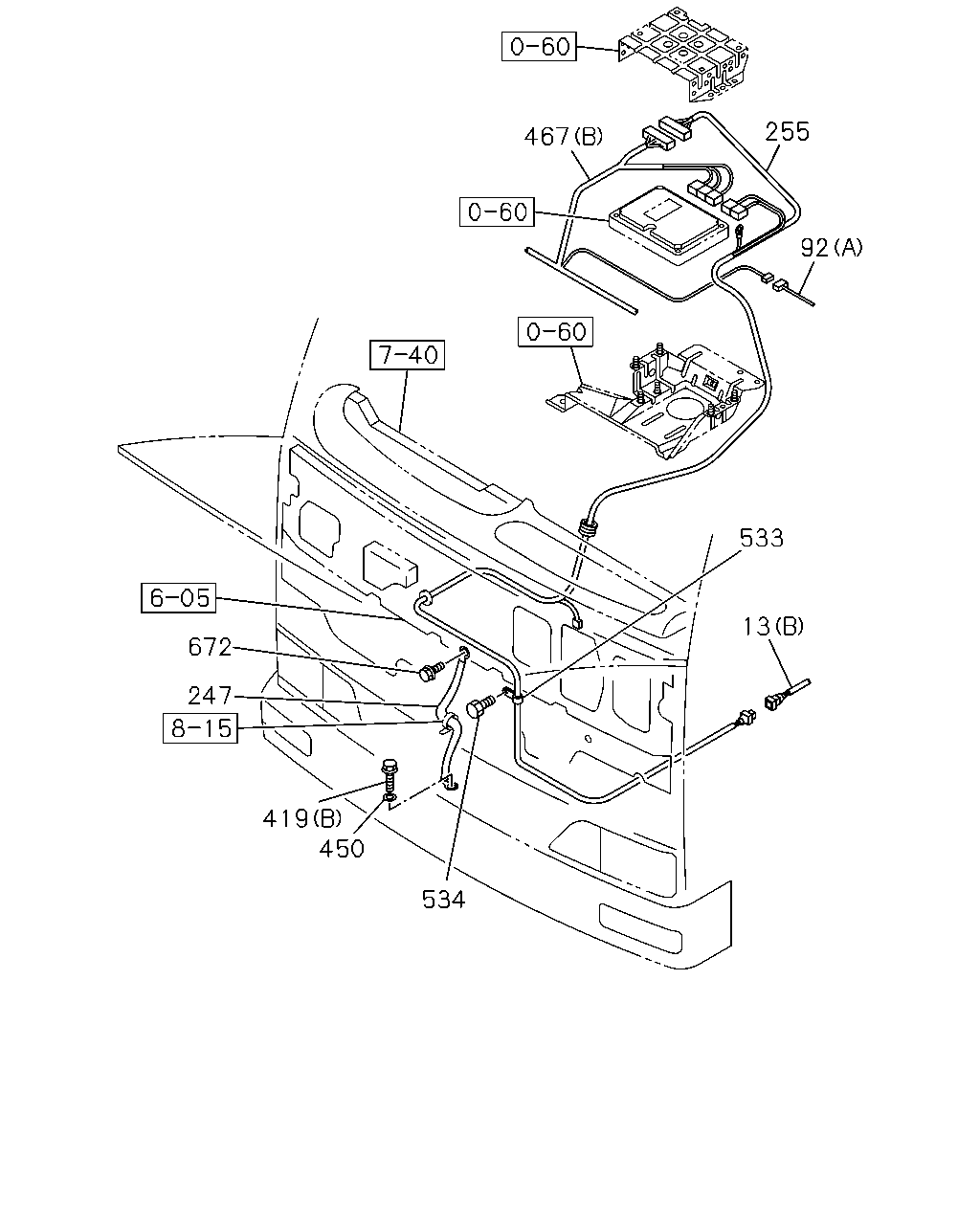

çizim 92930
467 255 92 533 13 534 450 419 247 672
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97617-391-0 01 1 0710-
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0710-
92 HARNESS; FLOOR
(B) 		8-97619-666-2 01 1 0710-
92 HARNESS; FLOOR
(A) 		8-97622-974-0 01 1 0710-1212
92 HARNESS; FLOOR
(A) 		8-98229-076-0 01 1 1301-
247 CABLE; BONDING,CAB
L=570 		1-82662-390-1 01 1 0710-
255 HARNESS; ELEC GOV 1-82662-307-3 01 1 0710-1210
255 HARNESS; ELEC GOV 8-98229-084-0 01 1 1211-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0809
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-0809
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0710-1201
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0710-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0710-
467 HARNESS; FACIA
(B) 		8-97622-966-3 01 1 0710-0907
467 HARNESS; FACIA
(B) 		8-97634-130-0 01 1 0908-
533 CLIP
ID=28 & 34 L=63 		1-09701-310-0 01 1 0710-
534 BOLT
M8X16 FLANGE 		0-28050-816-0 01 1 0710-
672 BOLT; BONDING
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0710-1309
672 BOLT; BONDING
M8X14 W/PL WASHER 		8-98164-837-0 01 1 1310-

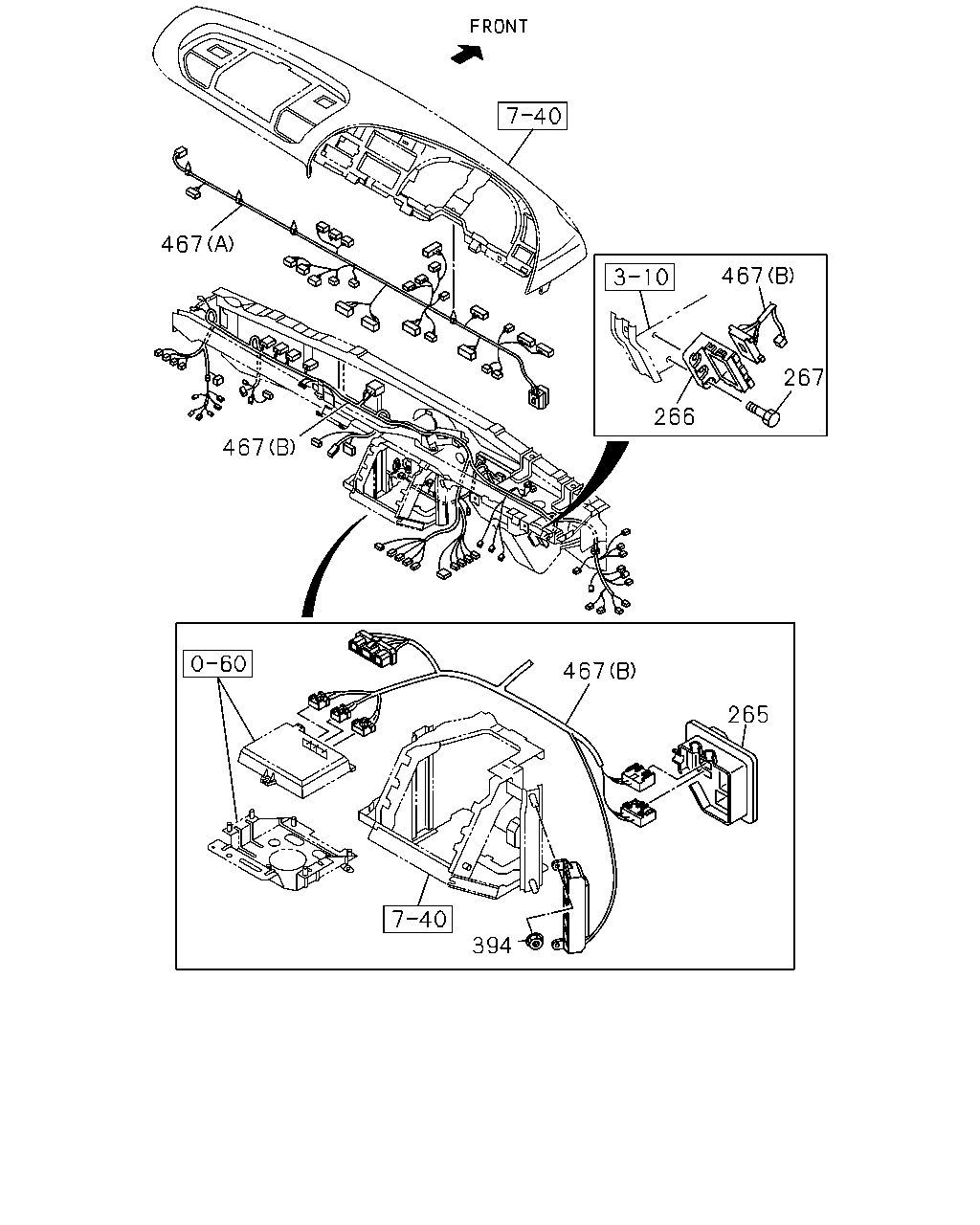

çizim 92947
467 467 266 467 267 467 265 394
BalonParca AdiParca NoAdetTipApplied Date
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0710-
266 BRACKET; CONN BOX 1-82699-580-0 01 1 0710-
267 BOLT; BRKT
M6X16 W/PL WASHER 		1-09981-438-0 02 1 0710-
394 NUT; RELAY BOX TO BODY
M6 FLANGE 		0-91180-106-0 01 1 0710-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0710-
467 HARNESS; FACIA
(B) 		8-97622-966-3 01 1 0710-0907
467 HARNESS; FACIA
(B) 		8-97634-130-0 01 1 0908-

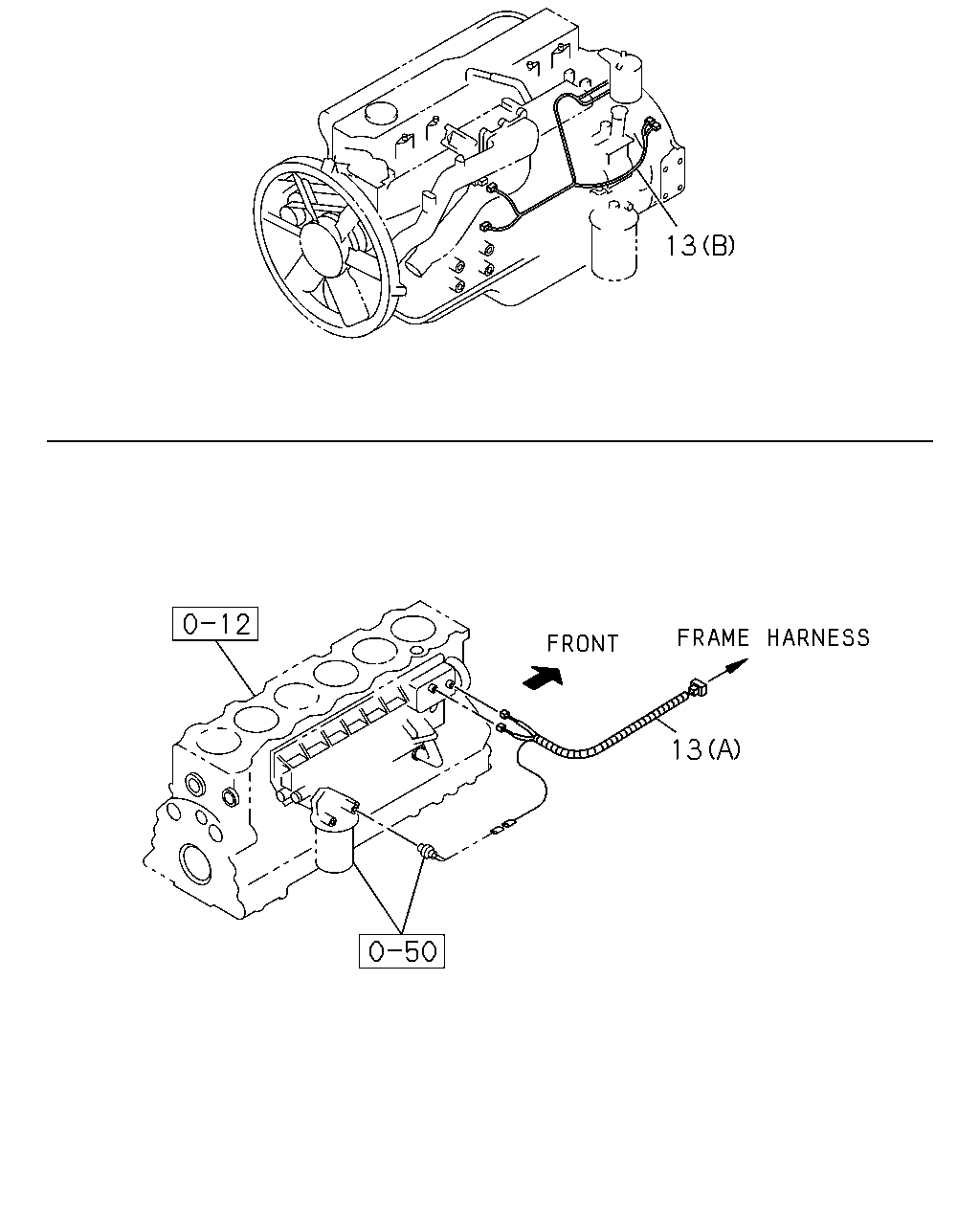

çizim 92948
13 13
BalonParca AdiParca NoAdetTipApplied Date
13 HARNESS; ENG
(B) 		8-97617-391-0 01 1 0710-
13 HARNESS; ENG
(A) 		1-82640-553-4 01 1 0710-

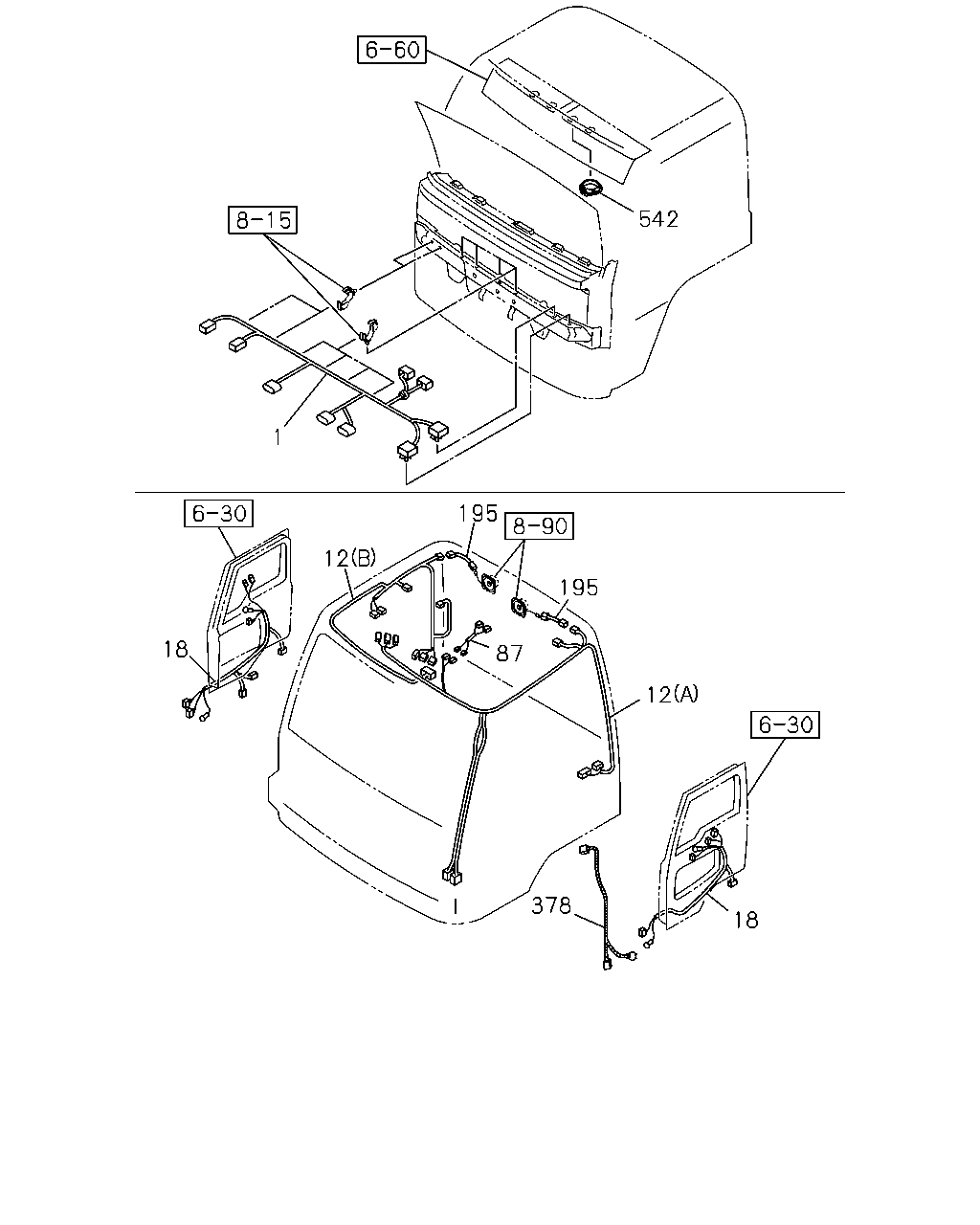

çizim 93156
542 195 12 18 195 87 12 18 378 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB 1-82629-234-1 01 1 0710-
12 HARNESS; ROOF
HIGH ROOF<S2F> (A) 		8-97622-963-1 01 1 0710-
12 HARNESS; ROOF
(B) 		8-97611-862-0 01 1 0710-
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F> (A) 		8-97611-861-1 01 1 0710-0802
12 HARNESS; ROOF
EXC. HIGH ROOF<S2F> (A) 		8-97625-970-0 01 1 0803-
18 HARNESS; DOOR 8-97618-824-1 01 1 0710-
18 HARNESS; DOOR 8-97618-825-1 01 1 0710-
87 HARNESS; EXT,ROOM LAMP
HIGH ROOF<S2F> 		1-82661-333-0 01 1 0710-
195 HARNESS; EXT
HIGH ROOF<S2F> 		1-82625-300-1 02 1 0710-
378 HARNESS; EXT,MIRROR 8-97621-787-0 02 1 0710-
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 01 1 0710-0712
542 GROMMET; HARNESS
HIGH ROOF<S2F> ID=36 		8-94178-685-0 03 1 0801-

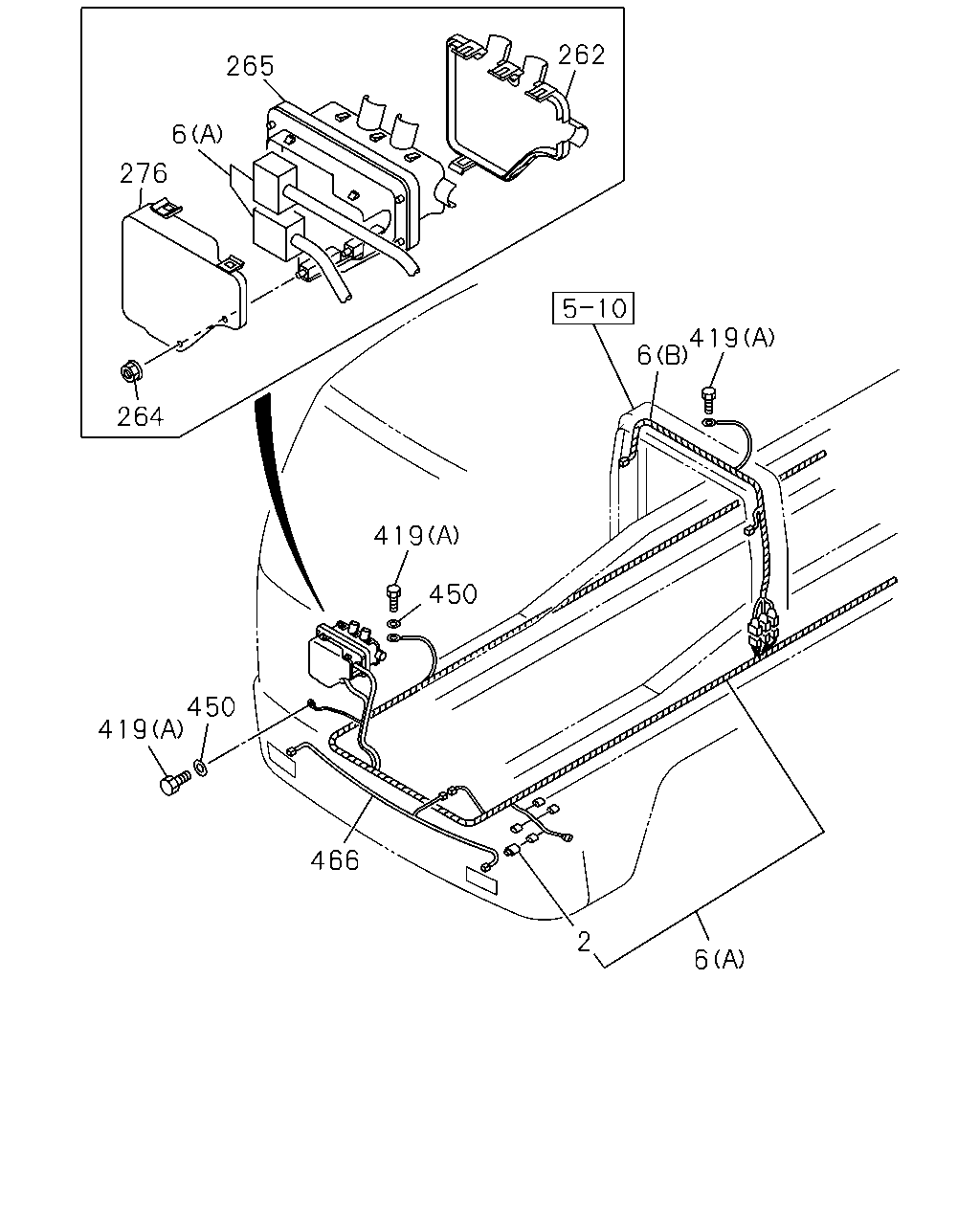

çizim 93173
262 265 6 276 419 6 264 419 450 450 419 466 2 6
BalonParca AdiParca NoAdetTipApplied Date
2 DIODE; CABLE HARNESS
GRAY 2P-1.3A 		1-81514-015-0 AR 1 0710-
6 HARNESS; FRAME
(A) 		8-97624-214-0 01 1 0710-1002
6 HARNESS; FRAME
(A) 		8-97636-533-0 01 1 1003-
6 HARNESS; FRAME
(B) 		8-97607-307-1 01 1 0710-0806
6 HARNESS; FRAME
(B) 		8-98122-928-0 01 1 0807-
262 COVER; CONNECTOR BOX,FRT PNL 1-82699-582-1 01 1 0710-
264 NUT; CONNECTOR BOX
M6 FLANGE W/RUBBER 		1-09984-180-0 04 1 0710-
265 BOX; CONN,FRT PNL 1-82699-581-3 01 1 0710-
276 COVER; BOX,FRAME HARNESS 1-82699-585-2 01 1 0710-
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-0809
419 BOLT; CAB EARTH
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1202-
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0710-0809
419 BOLT; CAB EARTH
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 0810-1201
419 BOLT; CAB EARTH
(A) M8X14 W/PL WASHER 		8-98164-837-0 04 1 1202-
419 BOLT; CAB EARTH
(B) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0710-1201
419 BOLT; CAB EARTH
(B) M8X24 W/PL WASHER 		8-98141-256-1 01 1 1202-
450 WASHER; PL,CAB EARTH
ID=8.4 		1-09503-264-0 04 1 0710-
466 HARNESS; BUMPER 8-97610-100-0 01 1 0710-

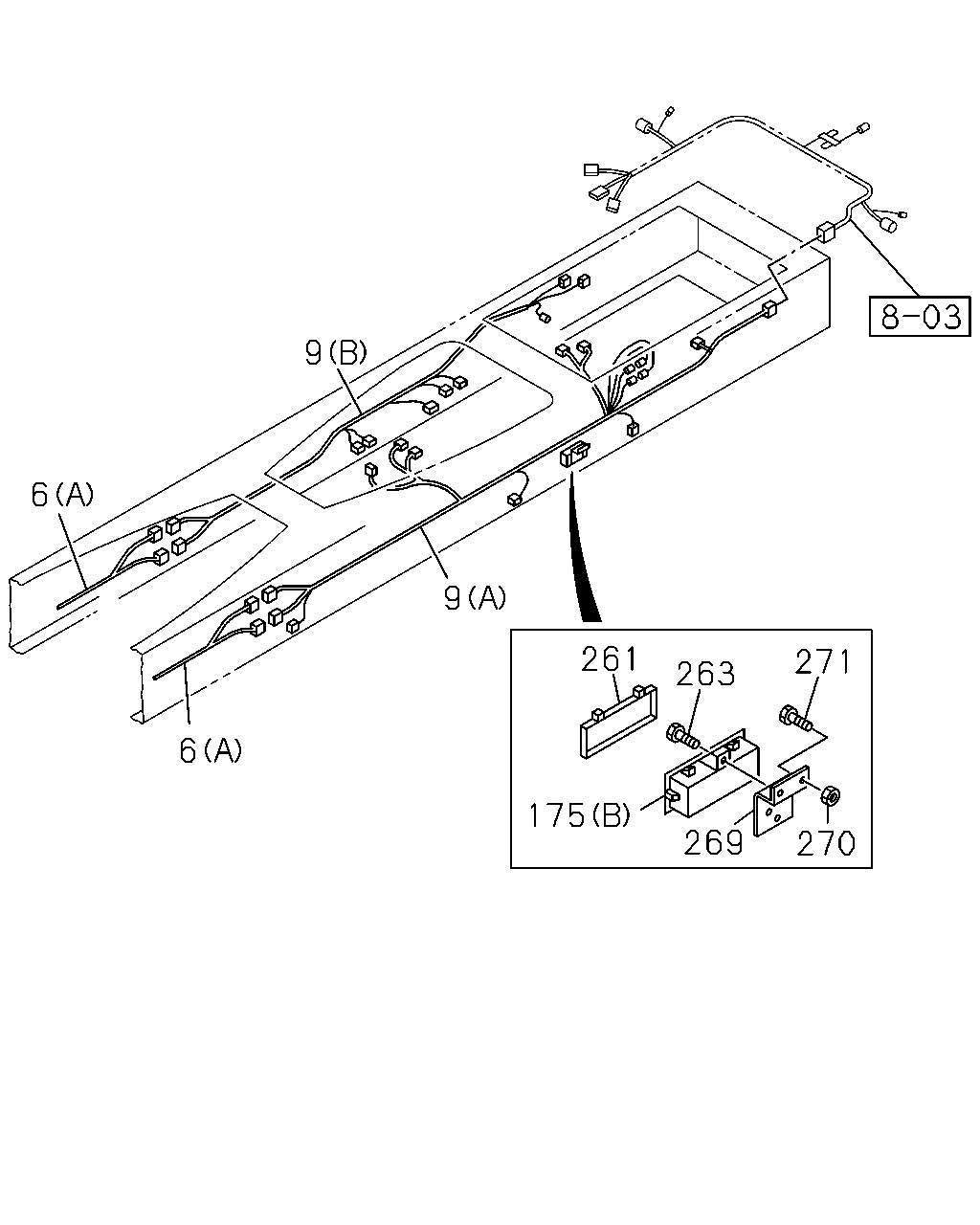

çizim 93184
9 6 9 261 271 263 6 270 175 269
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
(A) 		8-97624-214-0 01 1 0710-1002
6 HARNESS; FRAME
(A) 		8-97636-533-0 01 1 1003-
6 HARNESS; FRAME
(B) 		8-97607-307-1 01 1 0710-0806
6 HARNESS; FRAME
(B) 		8-98122-928-0 01 1 0807-
9 HARNESS; FRAME,RR
(A) 		1-82677-183-2 01 1 0710-1002
9 HARNESS; FRAME,RR
(A) 		8-97636-538-0 01 1 1003-
9 HARNESS; FRAME,RR
(B) 		1-82677-184-0 01 1 0710-
175 BOX; CONNECTOR
(A) 		1-82569-435-1 01 1 0710-
175 BOX; CONNECTOR
(B) 		1-82699-467-0 01 1 0710-
261 COVER; CONNECTOR BOX 1-82699-320-0 01 1 0710-
263 BOLT; CONNECTOR BOX
M8X30 W/LK&PL WASHER 		8-94279-144-0 01 1 0710-
269 BRACKET; CONNECTOR BOX 1-82698-424-0 01 1 0710-
270 NUT; BRKT,CONNECTOR BOX
M8 FLANGE 		0-91180-108-0 02 1 0710-
271 BOLT; BRKT CONNECTOR BOX
M8X25 FLANGE 		0-28650-825-0 02 1 0710-

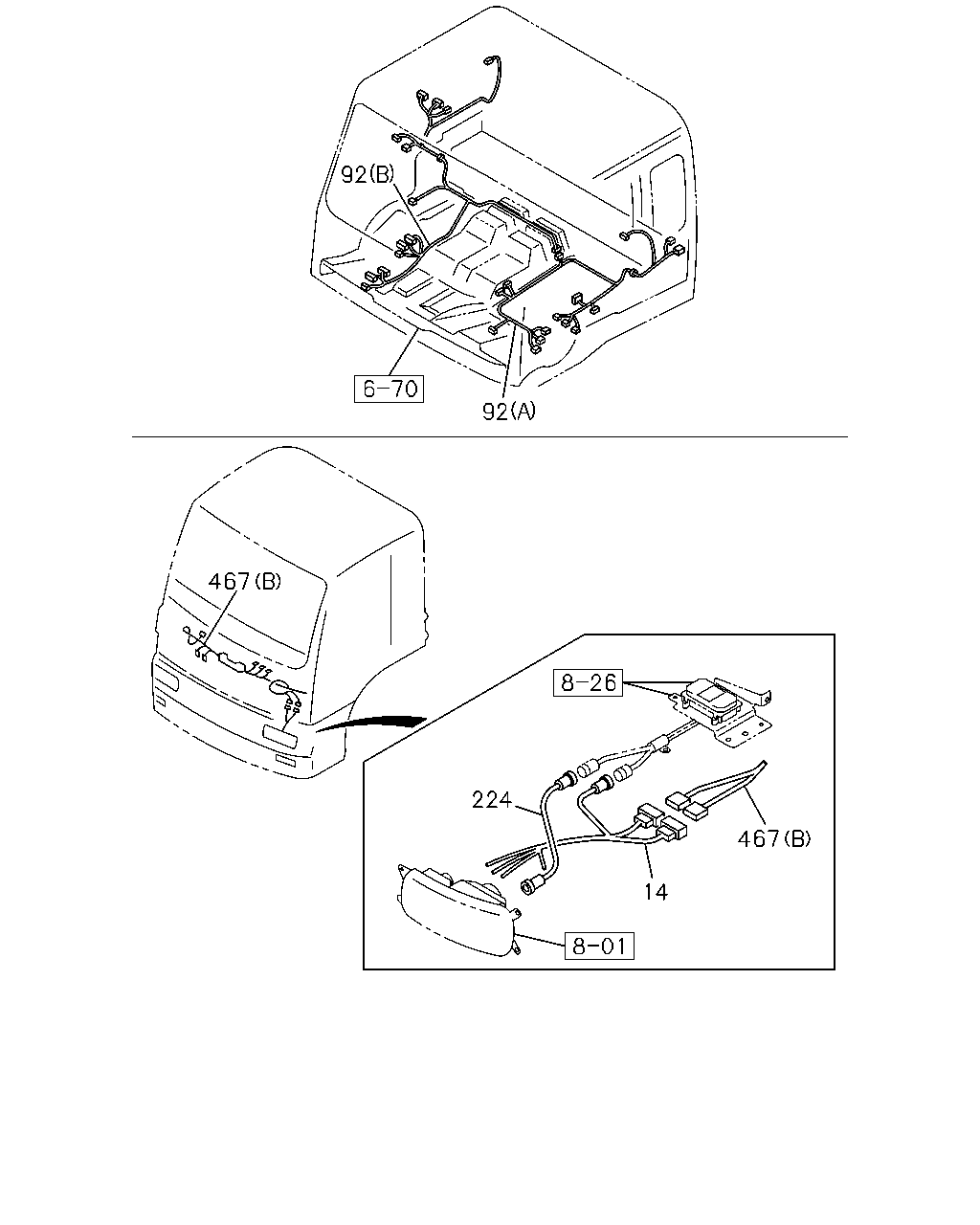

çizim 93531
92 92 467 224 467 14
BalonParca AdiParca NoAdetTipApplied Date
14 HARNESS; HEADLAMP 1-82677-647-3 02 1 0710-
92 HARNESS; FLOOR
(B) 		8-97619-666-2 01 1 0710-
92 HARNESS; FLOOR
(A) 		8-97622-974-0 01 1 0710-1212
92 HARNESS; FLOOR
(A) 		8-98229-076-0 01 1 1301-
224 HARNESS; EXT,HEADLAMP 1-82662-686-1 02 1 0710-
467 HARNESS; FACIA
(A) 		8-97618-829-2 01 1 0710-
467 HARNESS; FACIA
(B) 		8-97622-966-3 01 1 0710-0907
467 HARNESS; FACIA
(B) 		8-97634-130-0 01 1 0908-

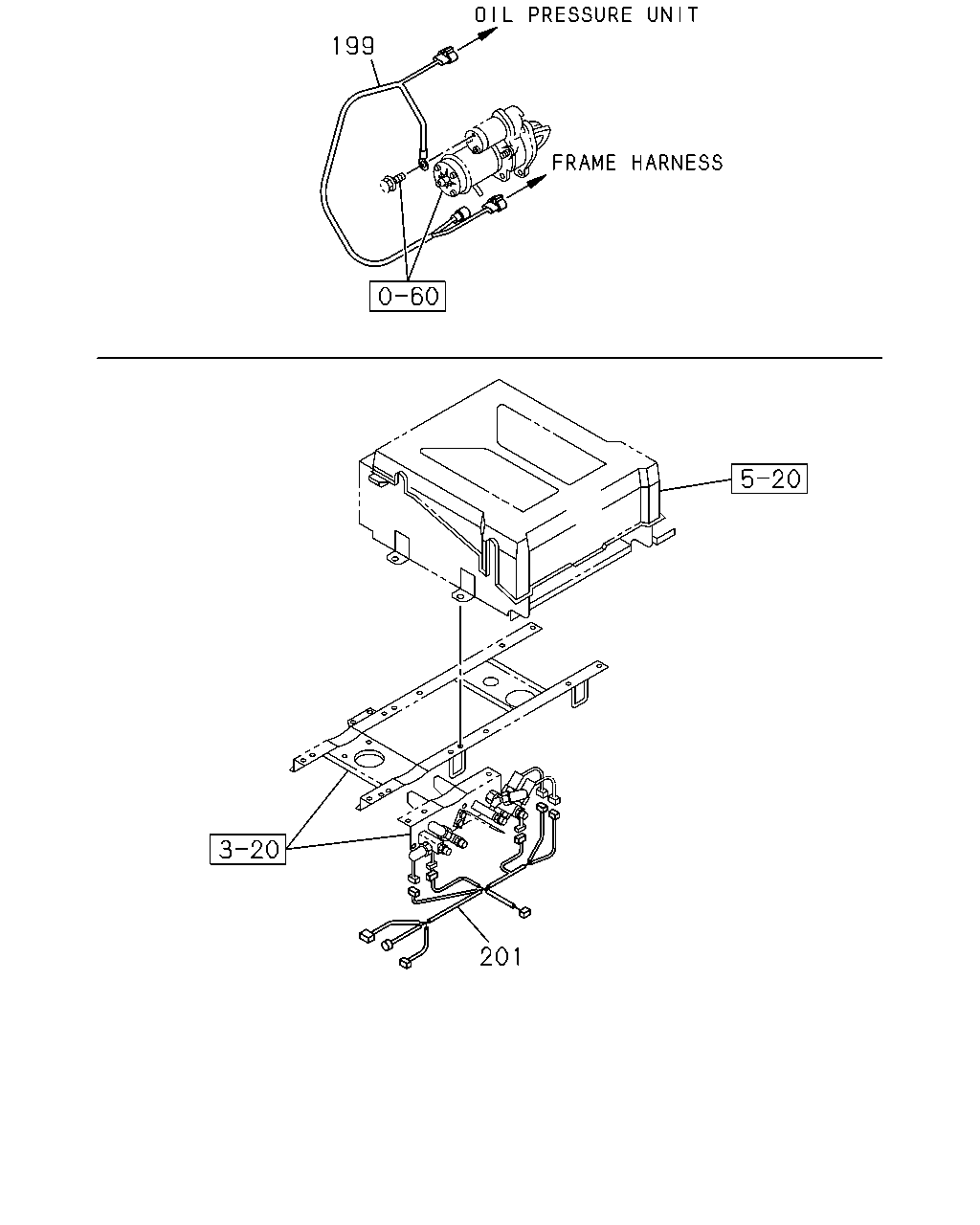

çizim 106804
201 199
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER 1-82641-368-2 01 1 0710-
201 HARNESS; AIR TANK 1-82678-176-1 01 1 0710-1112
201 HARNESS; AIR TANK 8-98191-795-0 01 1 1201-

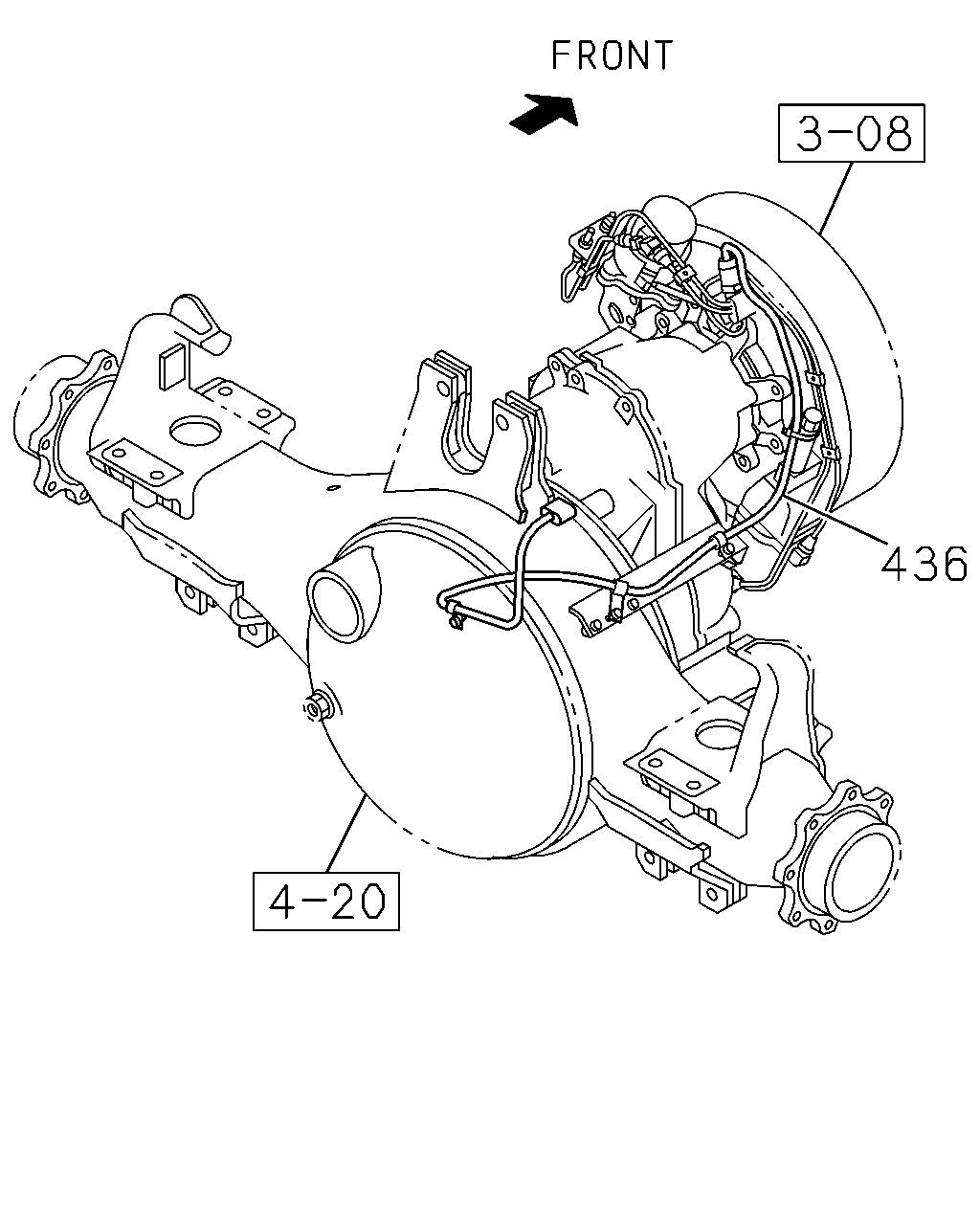

çizim 106805
436
BalonParca AdiParca NoAdetTipApplied Date
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82677-224-2 01 1 0710-

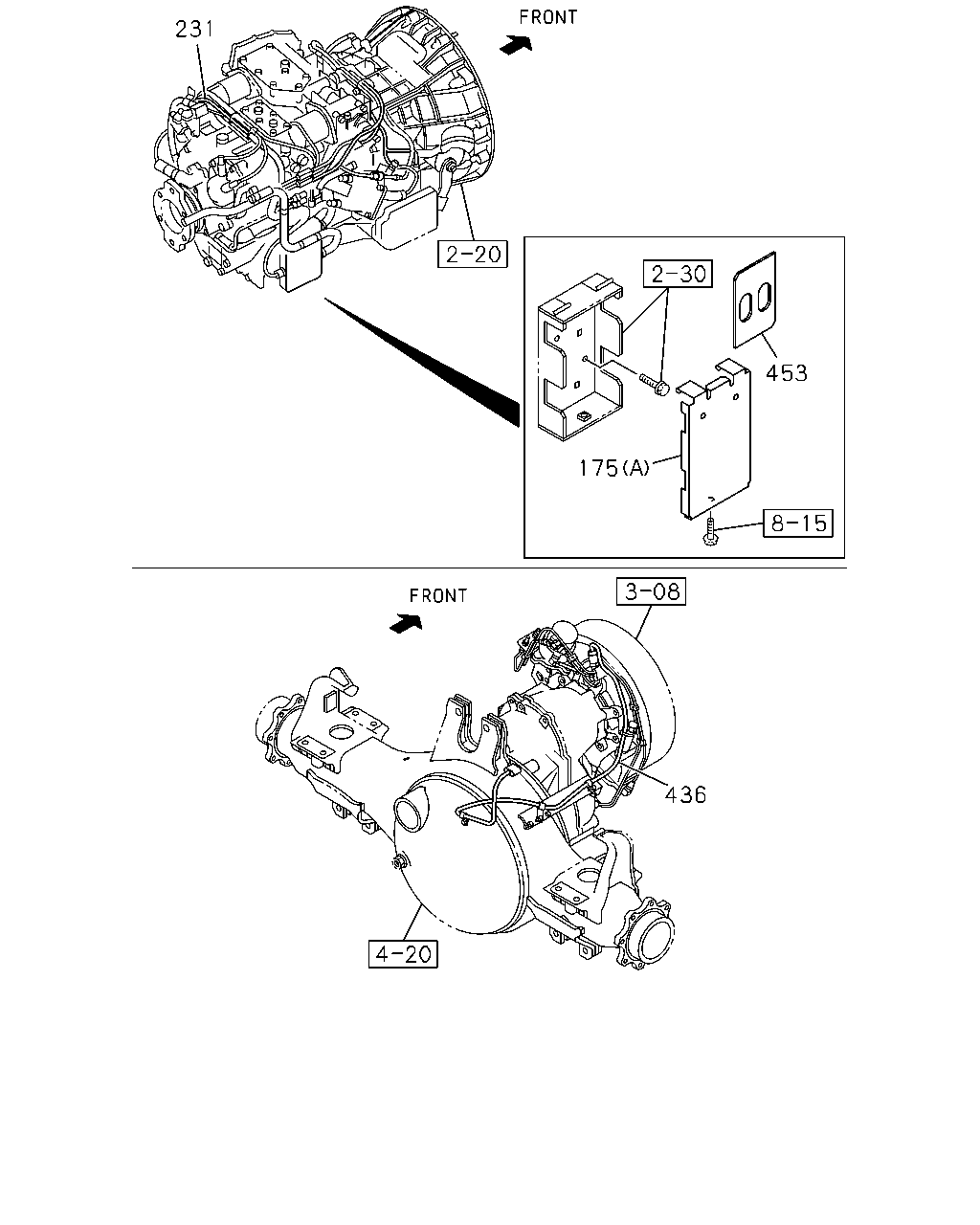

çizim 106819
231 453 175 436
BalonParca AdiParca NoAdetTipApplied Date
175 BOX; CONNECTOR
(A) 		1-82569-435-1 01 1 0710-
175 BOX; CONNECTOR
(B) 		1-82699-467-0 01 1 0710-
231 HARNESS; TRANS 8-97624-216-0 01 1 0710-
436 HARNESS; RETARDER
BRAKE SYSTEM RETARDER HEAVY DUTY<TCC> 		1-82677-224-2 01 1 0710-
453 PROTECTOR; HARNESS 8-98213-847-1 01 1 1207-
çizim 106839
199 201
BalonParca AdiParca NoAdetTipApplied Date
199 HARNESS; STARTER 1-82641-368-2 01 1 0710-
201 HARNESS; AIR TANK 1-82678-176-1 01 1 0710-1112
201 HARNESS; AIR TANK 8-98191-795-0 01 1 1201-
