6-60 — ROOF PANEL (#153115) — 11 parça

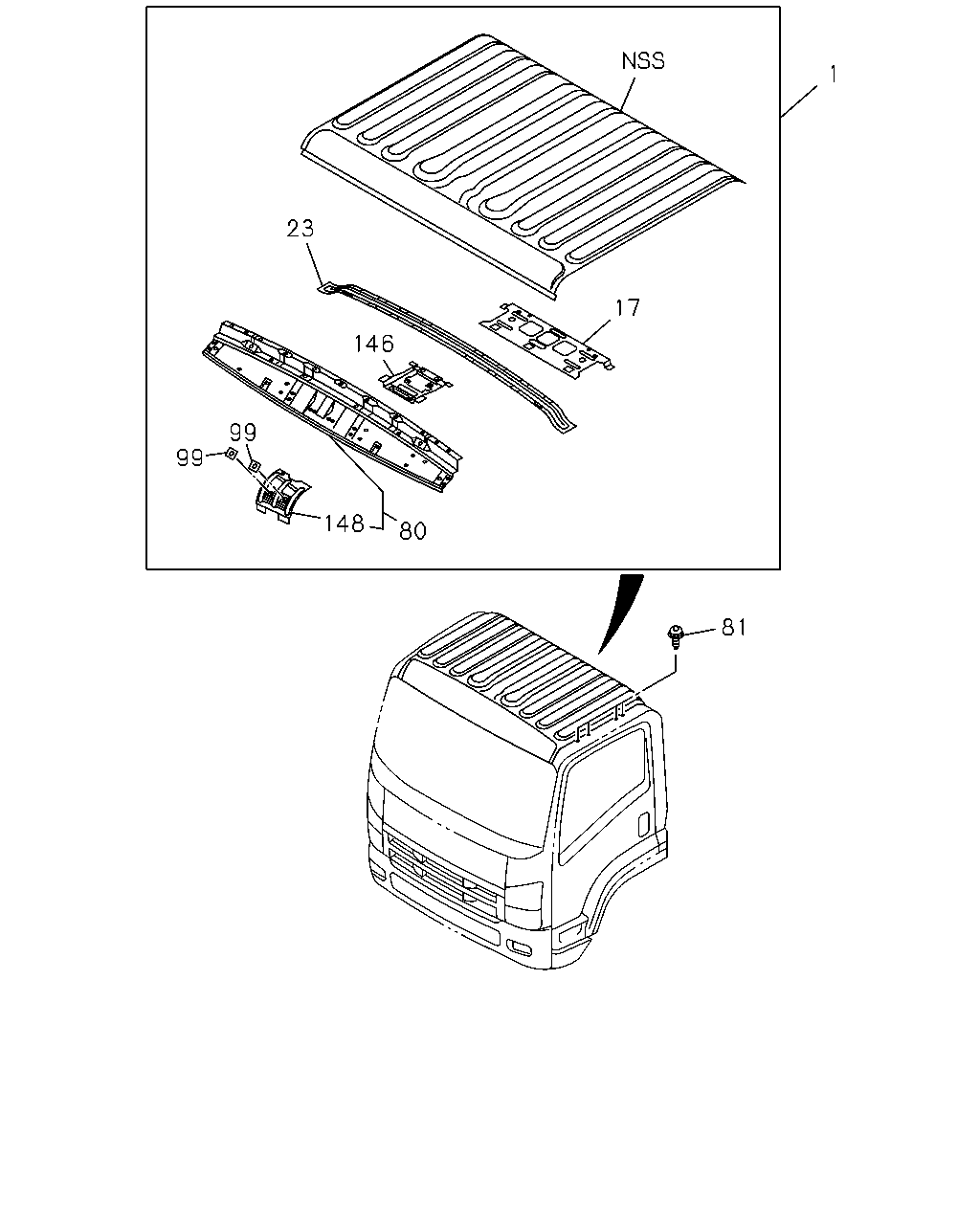

çizim 459971
81 17 1 23 146 80 148 99 99
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL; ROOF
FLUORESCENT LAMP<6UC> EXC. MIRROR O/S UNDER VIEW<RR9> 		8-98038-606-5 01 1 1412-
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> FLUORESCENT LAMP<6UC> 		8-98056-962-3 01 1 1412-
1 PANEL; ROOF
MIRROR O/S UNDER VIEW<RR9> EXC. FLUORESCENT LAMP<6UC> 		8-98158-312-1 01 1 1412-
1 PANEL; ROOF
EXC. MIRROR O/S UNDER VIEW<RR9>,FLUORESCENT LAMP<6UC> 		8-98158-313-1 01 1 1412-
17 REINFORCEMENT; ROOF PNL CENTER
FLUORESCENT LAMP<6UC> 		8-97584-203-5 01 1 1412-
23 REINFORCEMENT; ROOF PANEL,FRT 8-98019-310-0 01 1 1412-
80 PANEL; HEADER,ROOF
MIRROR O/S UNDER VIEW<RR9> 		8-98047-270-2 01 1 1412-
81 BOLT; ROOF
M8X15.5 HEXALOBULAR 		8-98141-874-0 08 1 1412-
99 SEAL; BODY,METAL
MIRROR O/S UNDER VIEW<RR9> 30X30 ID=20 T=0.7 		1-61281-380-2 02 1 1412-
146 REINFORCEMENT; ROOM LAMP 8-98075-827-0 01 1 1412-
148 REINFORCEMENT; MIRROR
MIRROR O/S UNDER VIEW<RR9> 		8-97411-013-0 01 1 1412-
