6-47 — MUD GUARD AND INSULATOR
(#153114) — 48 parça
◀

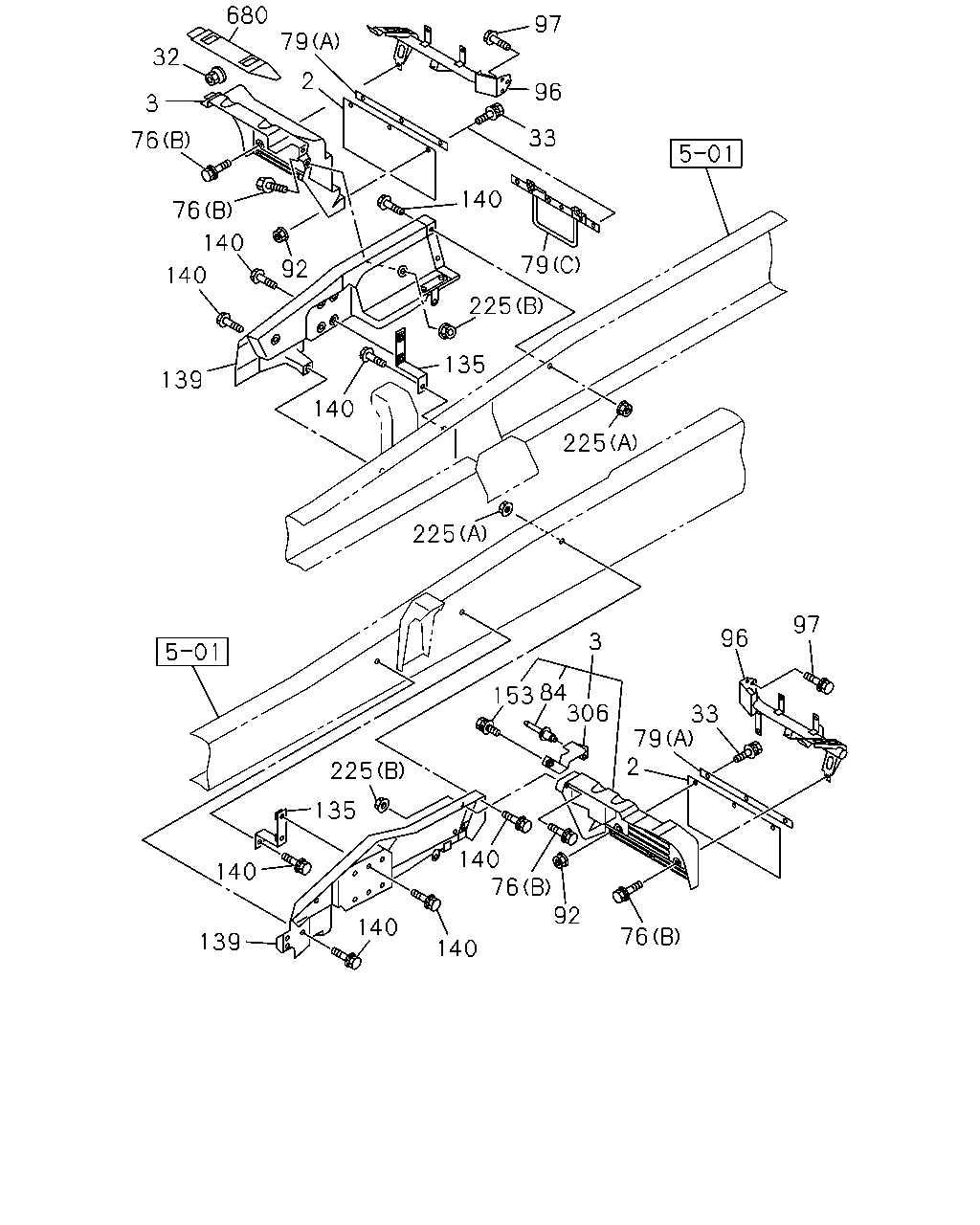

[647A] MUD GUARD;REAR AND SIDE PANEL (24 parça)

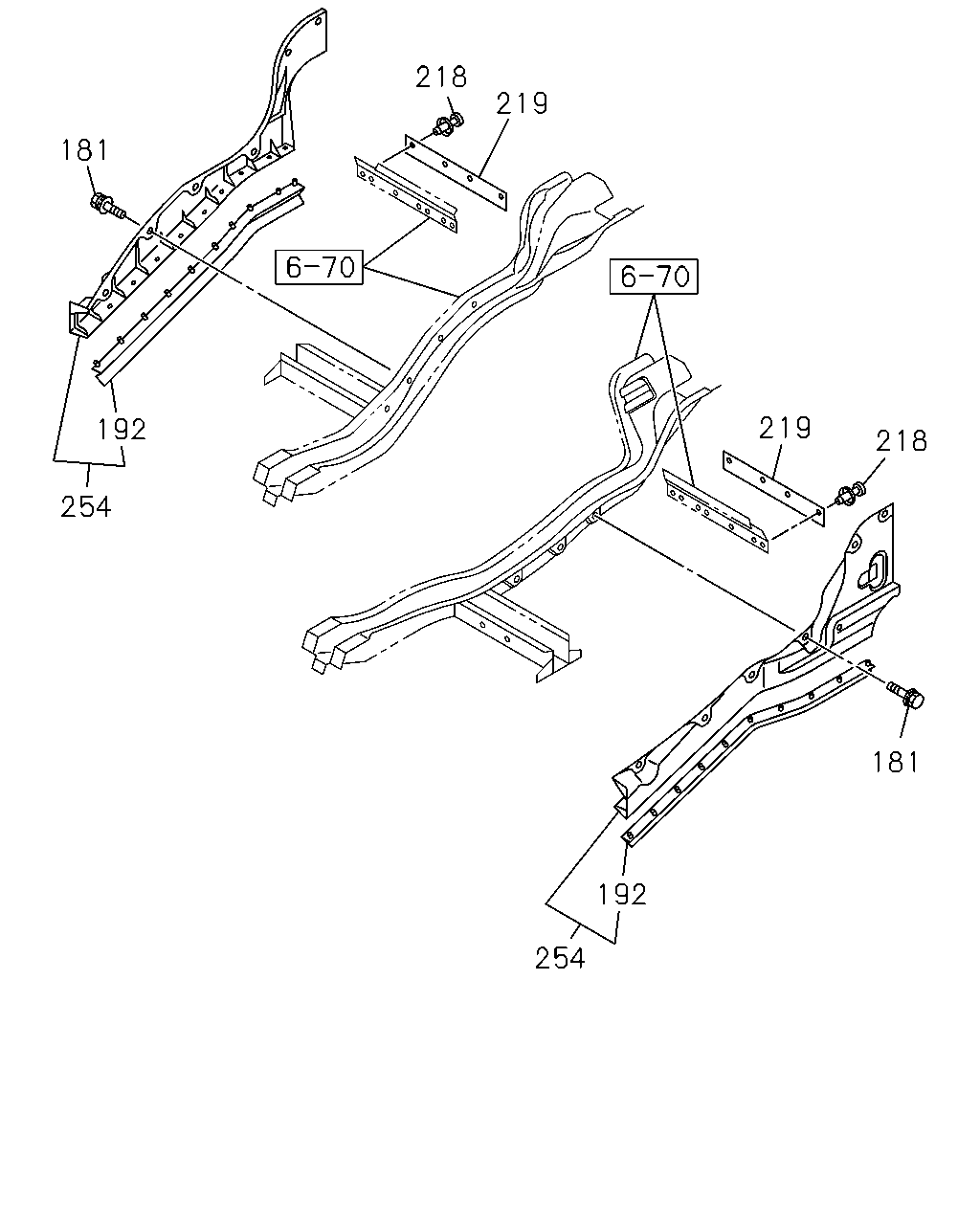

[647A] MUD COVER AND SEAL (7 parça)

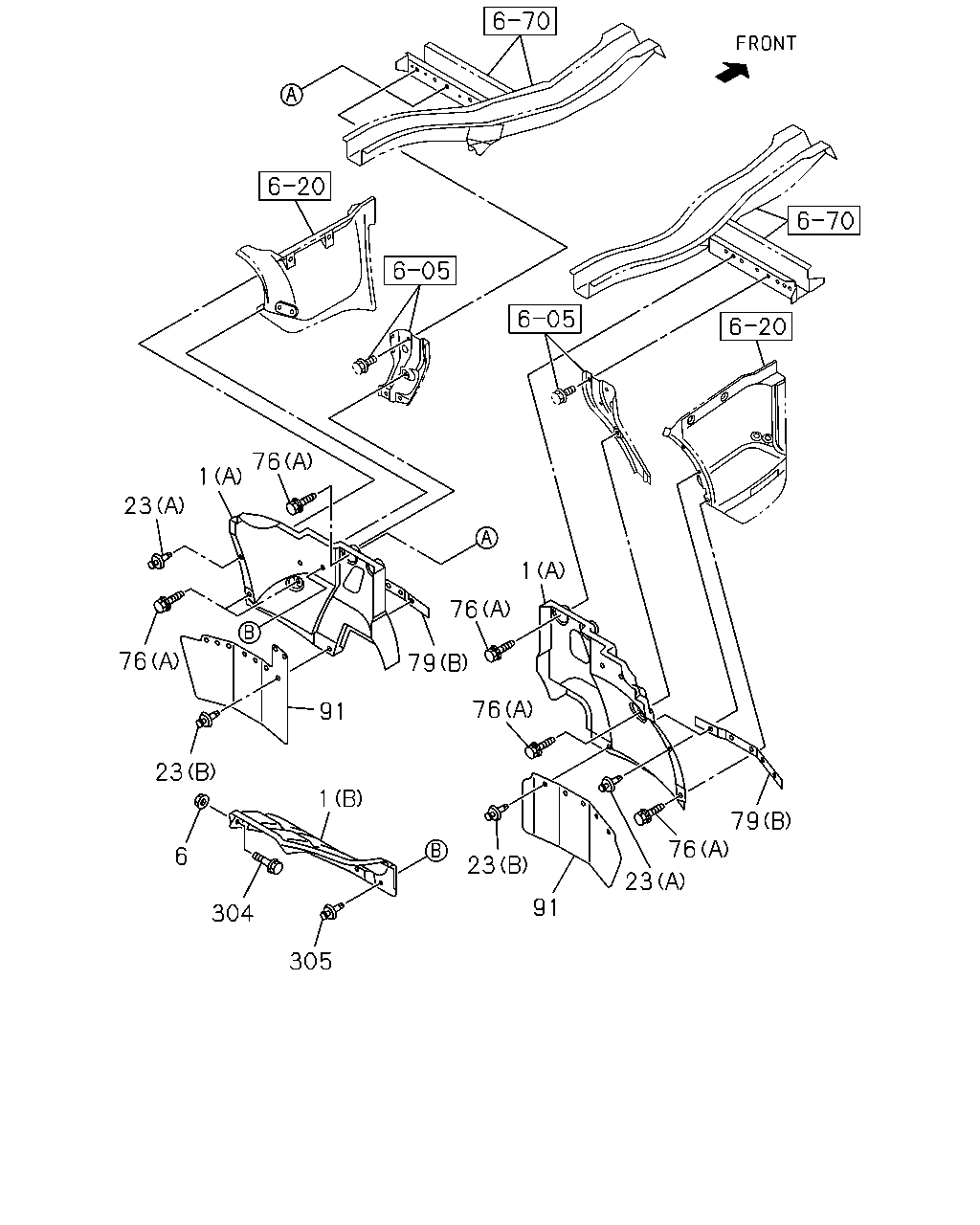

[647A] MUD GUARD;FRONT AND SPLASH GUARD (17 parça)
▶
680
32
3
76
2
79
97
96
33
140
79
225
135
225
225
140
139
140
140
76
92
97
96
3
33
79
2
76
92
76
140
306
84
153
225
135
140
139
140
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
COVER; MUD,TIRE RR
1-79931-482-0
02
1
1412-
3
GUARD; MUD,RR
8-98196-103-0
01
1
1412-
3
GUARD; MUD,RR
8-98219-764-0
01
1
1412-
32
NUT; MUD GUARD
M8 W/DISHED WASHER
8-97329-625-0
02
1
1412-
33
BOLT; MUD COVER
M6X20 W/LK&PL WASHER
1-09980-495-0
06
1
1412-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1412-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1412-
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1412-
79
RETAINER; MUD COVER
(A)
1-79931-484-0
01
1
1412-
79
RETAINER; MUD COVER
(C)
8-98105-000-0
01
1
1412-
84
RIVET; MUD GUARD
5-09734-006-1
02
1
1412-
92
NUT; MUD COVER
M6 FLANGE
0-91180-106-0
06
1
1412-
96
STAY; MUD GUARD
8-98066-745-2
01
1
1412-
96
STAY; MUD GUARD
1-79931-479-3
01
1
1412-
97
BOLT; STAY TO FRAME
M10X30 FLANGE
0-28651-030-0
07
1
1412-
135
BRACKET; SIDE PANEL
1-53457-191-0
02
1
1412-
139
PANEL; SIDE
8-98090-078-0
01
1
1412-
139
PANEL; SIDE
8-98090-077-0
01
1
1412-
140
BOLT; SIDE PANEL
M8X30 W/LK&PL WASHER
1-09030-095-0
10
1
1412-
153
BOLT; BRKT
M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1412-
225
NUT; MUD GUARD
(A) M8 FLANGE
0-91180-108-0
02
1
1412-
225
NUT; MUD GUARD
(B) M8 W/DISHED WASHER
8-97329-625-0
02
1
1412-
306
BRACKET; MUD GUARD
8-98196-125-0
01
1
1412-
680
GUARD; MUD,UPPER
1-79931-477-1
01
1
1412-
219
218
181
254
192
219
218
181
192
254
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
181
BOLT; COVER,SIDE
M8X24.5 W/LK&PL WASHER
8-98059-720-0
12
1
1412-
192
SEAL; MUD COVER
8-98041-157-2
01
1
1412-
192
SEAL; MUD COVER
8-98041-156-2
01
1
1412-
218
FASTENER; RUBBER
D8X13.5
1-09987-248-1
08
1
1412-
219
FLAP; MUD GUARD
8-98041-148-1
02
1
1412-
254
COVER; MUD,VALANCE
8-98039-918-1
01
1
1412-
254
COVER; MUD,VALANCE
8-98039-917-2
01
1
1412-
76
1
23
76
23
6
304
305
1
91
79
76
76
1
76
23
23
91
79
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GUARD; MUD,FRT
(A)
8-98152-647-0
01
1
1412-
1
GUARD; MUD,FRT
(A)
8-98152-646-0
01
1
1412-
1
GUARD; MUD,FRT
DUMP CONTROL LEVER<RC4> (B)
8-98075-191-0
01
1
1412-
6
NUT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6 FLANGE
8-94197-199-0
02
1
1412-
23
FASTENER; MUD COVER
(B)
1-09470-001-0
08
1
1412-
23
FASTENER; MUD COVER
(A) D8X13.5
1-09987-248-1
04
1
1412-
76
BOLT; MUD GUARD
(B) M8X30 W/LK&PL WASHER
1-09030-095-0
08
1
1412-
76
BOLT; MUD GUARD
(A) M8X25 W/LK&PL WASHER
8-94331-747-1
08
1
1412-
79
RETAINER; MUD COVER
(B)
8-98041-217-1
02
1
1412-
79
RETAINER; MUD COVER
(A)
1-79931-484-0
01
1
1412-
79
RETAINER; MUD COVER
(C)
8-98105-000-0
01
1
1412-
91
COVER; MUD,FRT
FRONT SPOILER<VP1>
8-98041-214-3
01
1
1412-
91
COVER; MUD,FRT
FRONT SPOILER<VP1>
8-98057-428-2
01
1
1412-
91
COVER; MUD,FRT
FRONT UNDER SPOILER DELETE<SGA>
8-98093-463-0
01
1
1412-
91
COVER; MUD,FRT
FRONT UNDER SPOILER DELETE<SGA>
8-98093-464-0
01
1
1412-
304
BOLT; SPLASH GUARD
DUMP CONTROL LEVER<RC4> M6X20 W/LK&PL WASHER
1-09980-495-0
02
1
1412-
305
FASTENER; SPLASH GUARD
DUMP CONTROL LEVER<RC4> D8X13.5
1-09987-248-1
02
1
1412-
