◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11584 - FRR MIDDLE EAST SPACE CAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP ▶

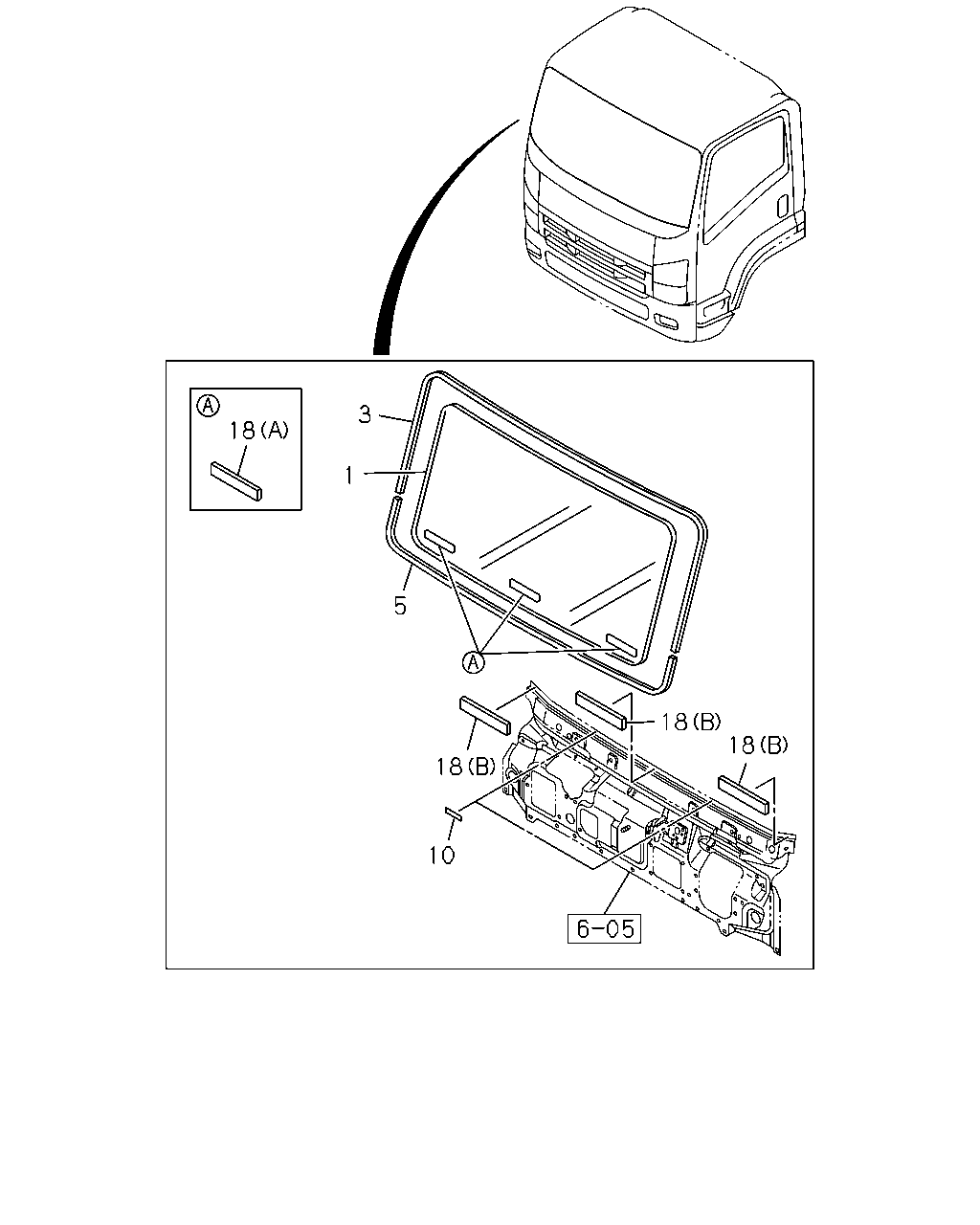

6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP (#153107) — 8 parça
çizim 459875
18 18 18 10 5 1 3 18
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; WINDSHIELD 8-98041-646-3 01 1 1412-
3 MOLDING; WINDSHIELD 8-98041-650-3 01 1 1412-
5 MOLDING; WINDSHIELD,LWR 8-98222-158-0 01 1 1412-
10 SPACER; WINDSHIELD GLASS
KD PREPARATORY PACK VAR.4<7TV> L=100 B=1.5 		8-98095-044-0 02 1 1412-
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 10 1 1412-
18 SEAL; WINDSHIELD
KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 10 1 1412-
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (A) L=100 B=8 		8-98029-086-1 06 1 1412-
18 SEAL; WINDSHIELD
EXC. KD PREPARATORY PACK VAR.4<7TV> (B) L=100 B=10 		8-98083-198-1 06 1 1412-
