6-01 — FRONT BUMPER (#153104) — 75 parça

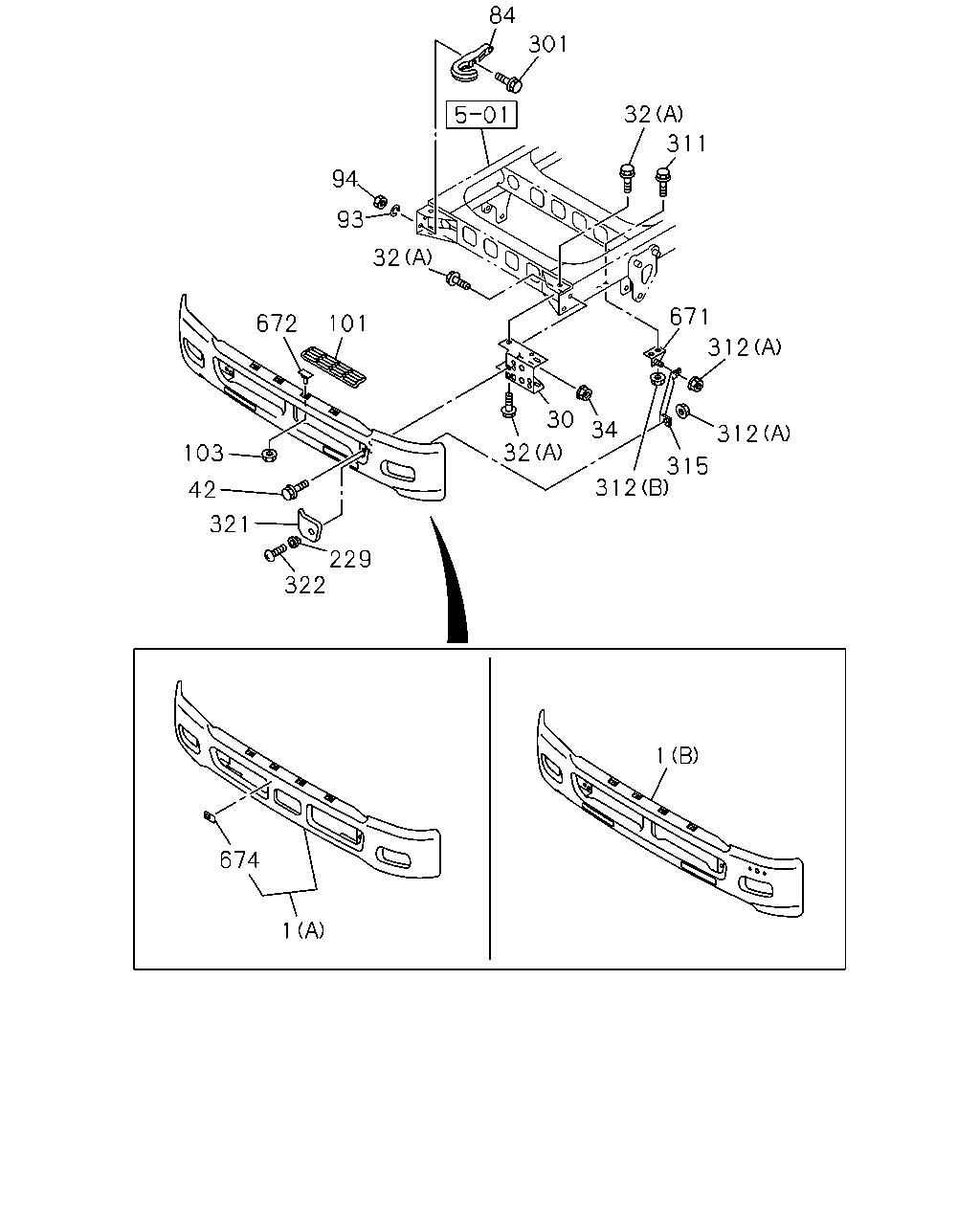

1 1 674 322 321 42 103 229 101 672 93 94 32 30 32 34 312 315 312 312 671 311 32 301 84

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT UNDER SPOILER DELETE<SGA> (A) WHITE	8-97407-725-3	01	1	1412-
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (B) WHITE	8-97425-839-0	01	1	1412-
30	BRACKET; FRT BUMPER	8-97611-516-4	01	1	1412-
30	BRACKET; FRT BUMPER	8-97611-515-4	01	1	1412-
32	BOLT; BRKT,BUMPER (A) M10X35 FLANGE	0-28651-035-0	06	1	1412-
32	BOLT; BRKT,BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B) M6X12 FLANGE	0-28050-612-0	06	1	1412-
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1412-
42	BOLT; BUMPER FRONT SPOILER<VP1> M10X30	8-94324-205-0	06	1	1412-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> M10X30	8-94324-205-0	04	1	1412-
84	HOOK FRONT SPOILER<VP1>	1-57181-003-5	01	1	1412-
84	HOOK FRONT UNDER SPOILER DELETE<SGA>	8-98035-645-0	01	1	1412-
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1412-
94	NUT; HOOK M14	0-91110-514-0	02	1	1412-
101	STEP; BUMPER	8-97611-541-0	01	1	1412-
101	STEP; BUMPER	8-97611-540-0	01	1	1412-
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1412-
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1412-
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1412-
311	BOLT; BRKT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	04	1	1412-
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> M10X25 FLANGE	0-28651-025-0	08	1	1412-
311	BOLT; BRKT FRONT UNDER SPOILER DELETE<SGA> M14X45 FLANGE	0-28851-445-0	02	1	1412-
312	NUT; BRKT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M10 FLANGE	0-91180-210-0	04	1	1412-
312	NUT; BRKT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14 FLANGE	0-91180-214-0	04	1	1412-
312	NUT; BRKT FRONT UNDER SPOILER DELETE<SGA> (B) M14 FLANGE	0-91180-214-0	02	1	1412-
315	STAY; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97611-498-1	01	1	1412-
315	STAY; BUMPER FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97611-497-1	01	1	1412-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1>	8-97616-291-1	01	1	1412-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1>	8-97616-290-1	01	1	1412-
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA>	8-97616-294-0	01	1	1412-
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA>	8-97616-293-0	01	1	1412-
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1412-
671	BRACKET; STAY FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97614-063-0	01	1	1412-
671	BRACKET; STAY FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-97614-062-0	01	1	1412-
672	STUD; STEP M6X20	8-97611-666-0	04	1	1412-
674	BRACKET; BUMPER,PLATE FRONT UNDER SPOILER DELETE<SGA>	8-97611-491-1	01	1	1412-

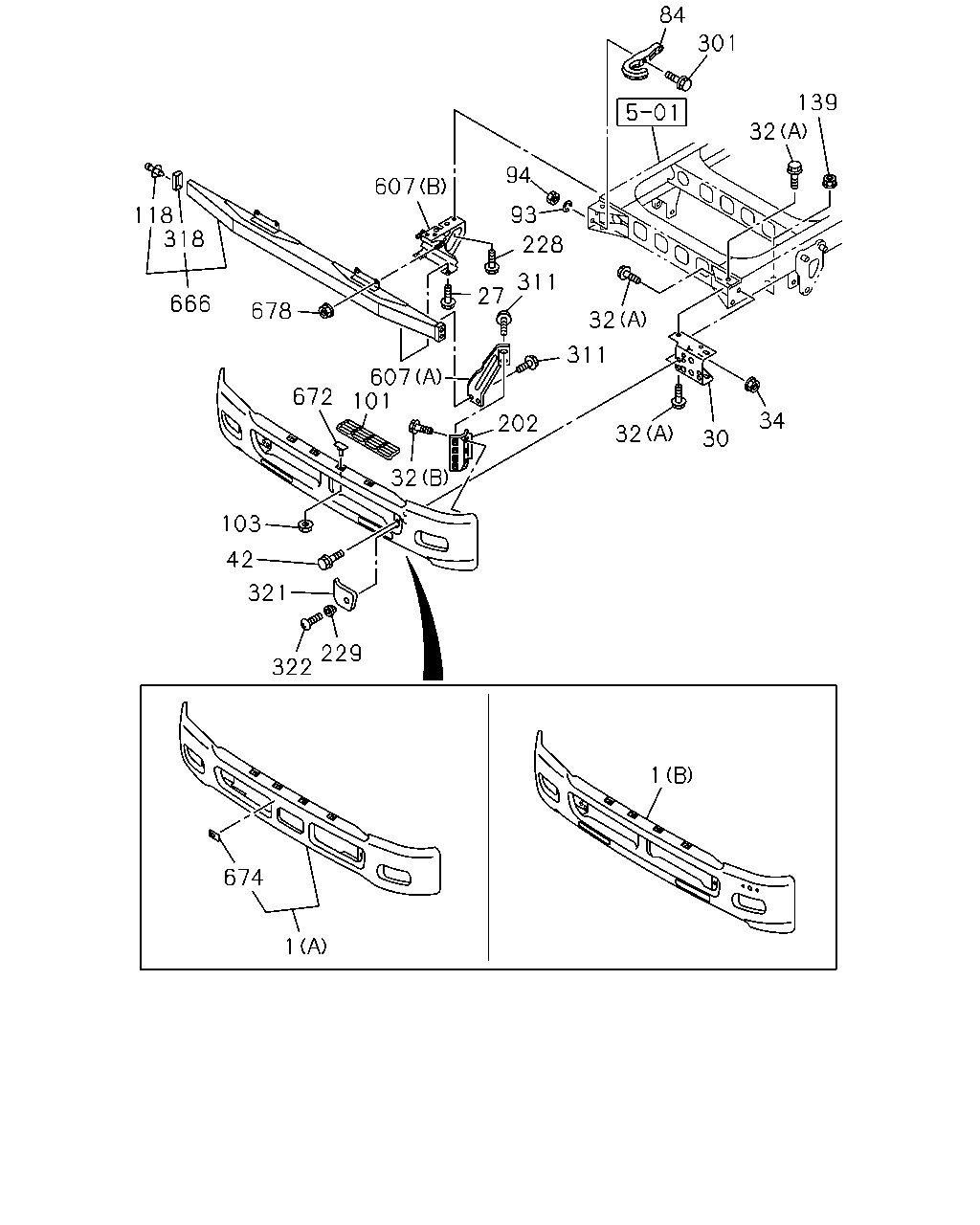

1 674 1 229 321 322 42 672 607 101 678 666 318 118 607 94 228 93 311 27 32 202 311 32 30 34 32 139 301 84 32 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BUMPER ASM; FRT FRONT UNDER SPOILER DELETE<SGA> (A) WHITE	8-97407-725-3	01	1	1412-
1	BUMPER ASM; FRT FRONT SPOILER<VP1> (B) WHITE	8-97425-839-0	01	1	1412-
27	BOLT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12X35 FLANGE	0-28651-235-0	04	1	1412-
30	BRACKET; FRT BUMPER	8-97611-516-4	01	1	1412-
30	BRACKET; FRT BUMPER	8-97611-515-4	01	1	1412-
32	BOLT; BRKT,BUMPER (A) M10X35 FLANGE	0-28651-035-0	06	1	1412-
32	BOLT; BRKT,BUMPER FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (B) M6X12 FLANGE	0-28050-612-0	06	1	1412-
34	NUT; BRKT,BUMPER M10 FLANGE	0-91180-210-0	02	1	1412-
42	BOLT; BUMPER FRONT SPOILER<VP1> M10X30	8-94324-205-0	06	1	1412-
42	BOLT; BUMPER FRONT UNDER SPOILER DELETE<SGA> M10X30	8-94324-205-0	04	1	1412-
84	HOOK FRONT SPOILER<VP1>	1-57181-003-5	01	1	1412-
84	HOOK FRONT UNDER SPOILER DELETE<SGA>	8-98035-645-0	01	1	1412-
93	WASHER; LK,HOOK ID=14.2	0-91510-814-0	02	1	1412-
94	NUT; HOOK M14	0-91110-514-0	02	1	1412-
101	STEP; BUMPER	8-97611-541-0	01	1	1412-
101	STEP; BUMPER	8-97611-540-0	01	1	1412-
103	NUT; BUMPER STEP M6 FLANGE	0-91180-106-0	04	1	1412-
118	RETAINER; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-98232-279-0	04	1	1412-
139	NUT; BRKT FIX FRONT UNDER RUN PROTECTOR<EBE> M14 FLANGE	0-91180-214-0	04	1	1412-
202	BRACKET; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1>	8-97620-619-0	02	1	1412-
228	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	06	1	1412-
229	GROMMET D=7X7 L=7.5	5-09983-007-0	02	1	1412-
301	BOLT; HOOK TO FRAME M14X60	0-10861-460-0	02	1	1412-
311	BOLT; BRKT FRONT SPOILER<VP1> EXC. FRONT UNDER RUN PROTECTOR<EBE> M14X45 FLANGE	0-28851-445-0	04	1	1412-
311	BOLT; BRKT FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> M10X25 FLANGE	0-28651-025-0	08	1	1412-
311	BOLT; BRKT FRONT UNDER SPOILER DELETE<SGA> M14X45 FLANGE	0-28851-445-0	02	1	1412-
318	CAP; BUMPER SIDE FRONT UNDER RUN PROTECTOR<EBE>	8-98232-190-0	02	1	1412-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1>	8-97616-291-1	01	1	1412-
321	COVER; BUMPER FRT SIDE FRONT SPOILER<VP1>	8-97616-290-1	01	1	1412-
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA>	8-97616-294-0	01	1	1412-
321	COVER; BUMPER FRT SIDE FRONT UNDER SPOILER DELETE<SGA>	8-97616-293-0	01	1	1412-
322	SCREW; COVER FIX M5X16 TAPPING HEXALOBULAR	0-72180-516-0	02	1	1412-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-830-3	01	1	1412-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> (B)	8-98045-829-4	01	1	1412-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (A)	8-97620-616-0	01	1	1412-
607	BRACKET FRONT UNDER RUN PROTECTOR<EBE> FRONT SPOILER<VP1> (A)	8-97620-615-0	01	1	1412-
666	PROTECTOR; UNDER FRONT UNDER RUN PROTECTOR<EBE>	8-98045-813-2	01	1	1412-
672	STUD; STEP M6X20	8-97611-666-0	04	1	1412-
674	BRACKET; BUMPER,PLATE FRONT UNDER SPOILER DELETE<SGA>	8-97611-491-1	01	1	1412-
678	NUT; BUMPER TO BACK BAR FRONT UNDER RUN PROTECTOR<EBE> M12 FLANGE	0-91180-212-0	04	1	1412-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
