◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11584 - FRR MIDDLE EAST SPACE CAB ▶ 5 - Frame, Cab Mounting ▶ 5-20 - BATTERY CARRIER ▶
5-20 — BATTERY CARRIER (#153102) — 25 parça

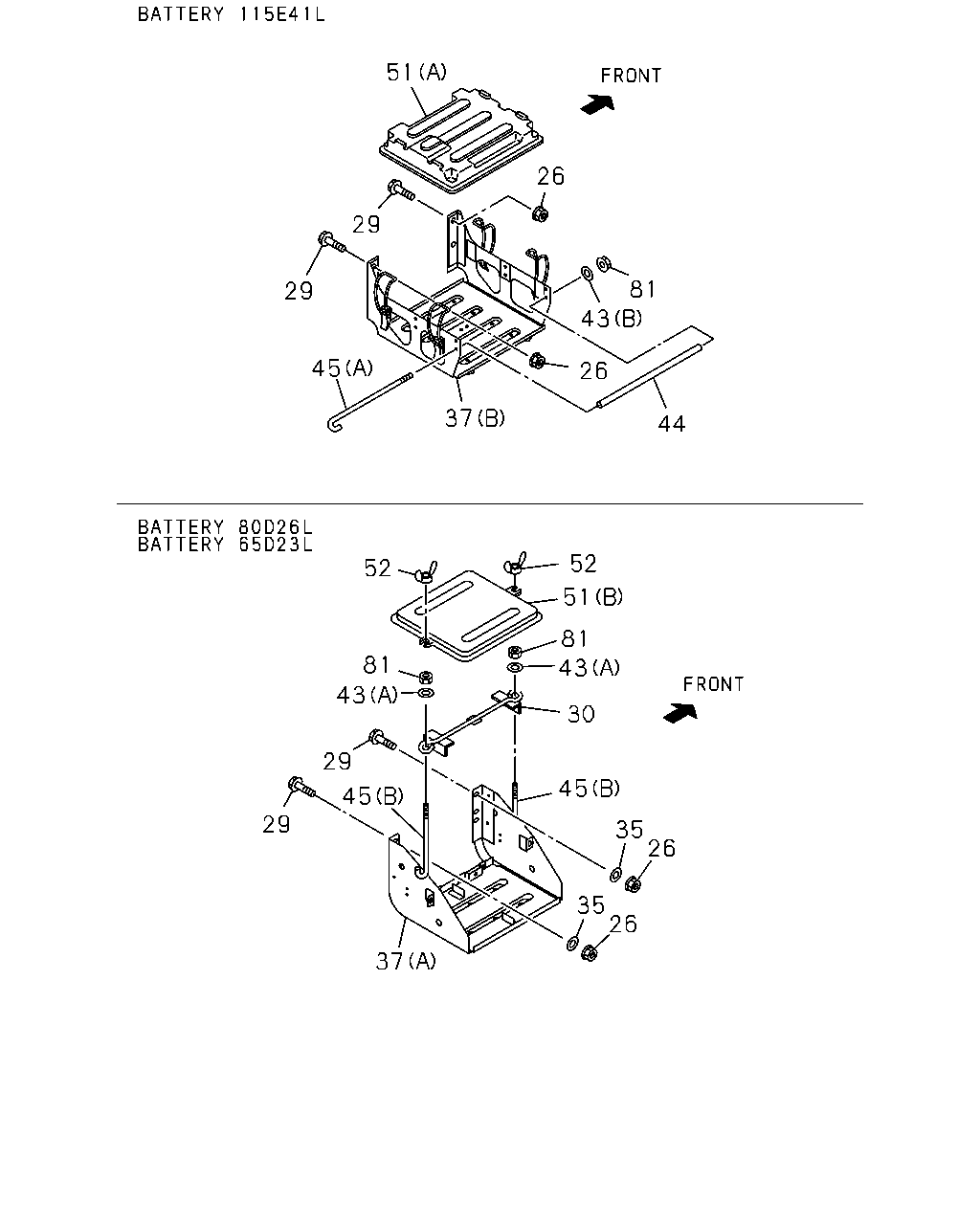

çizim 459775
26 35 26 45 35 30 43 51 81 52 52 81 43 29 45 29 37 37 44 26 43 81 26 51 29 29 45
BalonParca AdiParca NoAdetTipApplied Date
26 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1412-1512
26 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 1601-
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 04 1 1412-1512
29 BOLT; BRKT TO FRAME
M10X35 FLANGE 		0-28651-035-0 04 1 1601-
30 PLATE; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> 		5-53615-004-1 01 1 1412-1512
30 PLATE; BATTERY
EXC. BATTERY 115E41L<8MA> 		5-53615-004-1 01 1 1601-
35 WASHER; PL,BATTERY CARRIER
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> ID=10.5 OD=22 		0-91614-610-0 04 1 1412-1512
35 WASHER; PL,BATTERY CARRIER
EXC. BATTERY 115E41L<8MA> ID=10.5 OD=22 		0-91614-610-0 04 1 1601-
37 BRACKET; BATTERY
BATTERY 115E41L<8MA> (B) 		8-98261-636-0 01 1 1412-
37 BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A) 		8-97384-068-2 01 1 1412-
37 BRACKET; BATTERY
BATTERY 80D26L<TM1> (A) 		8-97384-067-2 01 1 1412-
43 WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16 		0-91610-508-0 02 1 1412-
43 WASHER; PL,CLAMP
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (A) ID=8.4 OD=22 		0-91614-708-0 02 1 1412-1512
43 WASHER; PL,CLAMP
EXC. BATTERY 115E41L<8MA> (A) ID=8.4 OD=22 		0-91614-708-0 02 1 1601-
44 SPACER; BATTERY
BATTERY 115E41L<8MA> 		8-98261-682-0 02 1 1412-
45 ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430 		8-97134-740-0 02 1 1412-
45 ROD; TENSION,BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) L=120 		9-53616-615-0 02 1 1412-1512
45 ROD; TENSION,BATTERY
EXC. BATTERY 115E41L<8MA> (B) L=120 		9-53616-615-0 02 1 1601-
51 COVER; BATTERY
BATTERY 115E41L<8MA> (A) 		1-53612-037-2 01 1 1412-
51 COVER; BATTERY
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> (B) 		8-97120-747-0 01 1 1412-1512
51 COVER; BATTERY
EXC. BATTERY 115E41L<8MA> (B) 		8-97120-747-0 01 1 1601-
52 NUT; WING,COVER FIX
BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> M8 WING NUT 		0-91118-408-0 02 1 1412-1512
52 NUT; WING,COVER FIX
EXC. BATTERY 115E41L<8MA> M8 WING NUT 		0-91118-408-0 02 1 1601-
81 NUT; BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1412-1512
81 NUT; BATTERY
M8 FLANGE 		0-91180-108-0 02 1 1601-
