Isuzu WW
▶
TRUCKS
▶
FRR
▶
11584 - FRR MIDDLE EAST SPACE CAB
▶
5 - Frame, Cab Mounting
▶
5-15 - CAB MOUNTING; CAB SIDE
▶
5-15 — CAB MOUNTING; CAB SIDE
(#153101) — 53 parça
◀

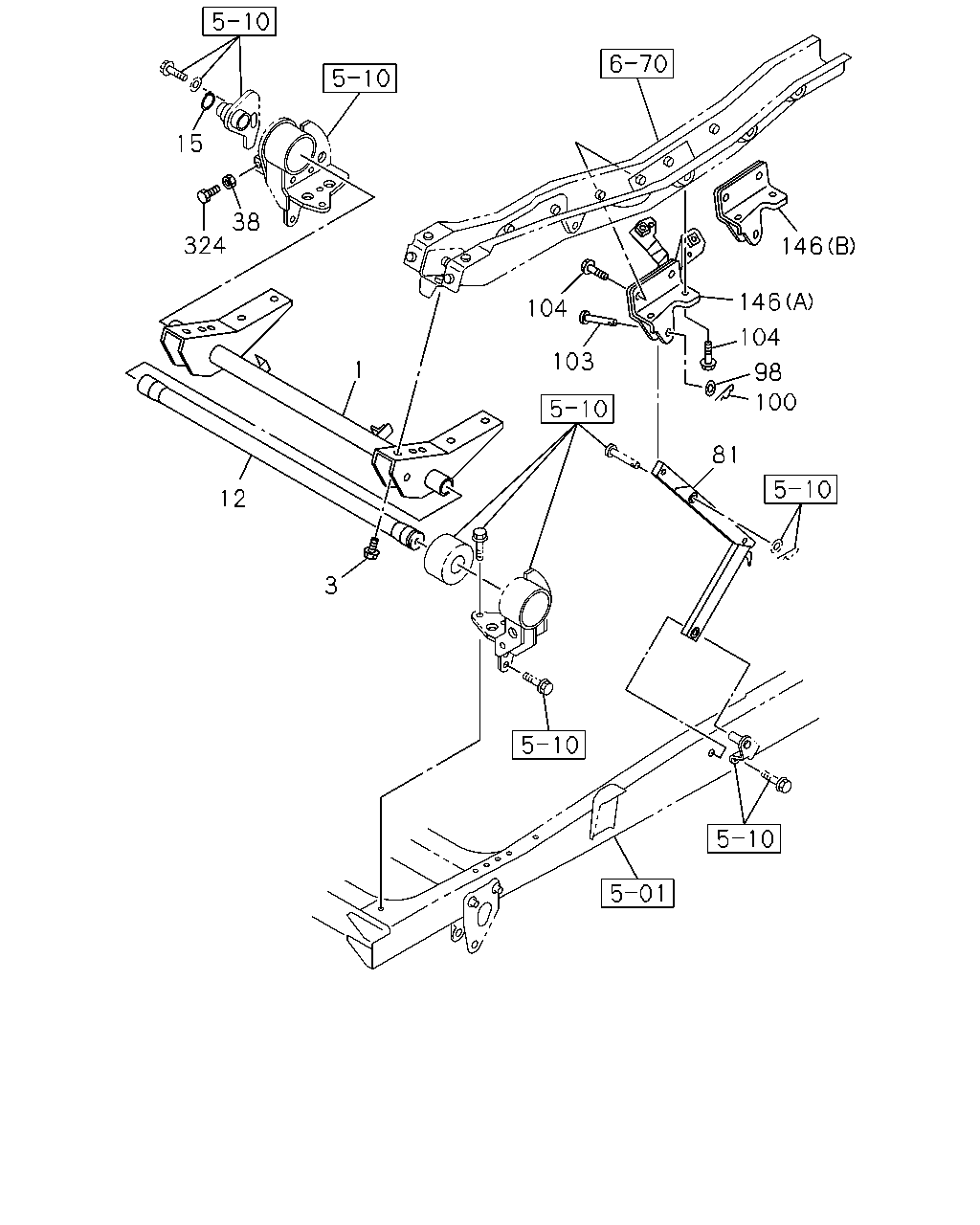

[515A] TORSION LEVER AND CAB TILT STAY (15 parça)

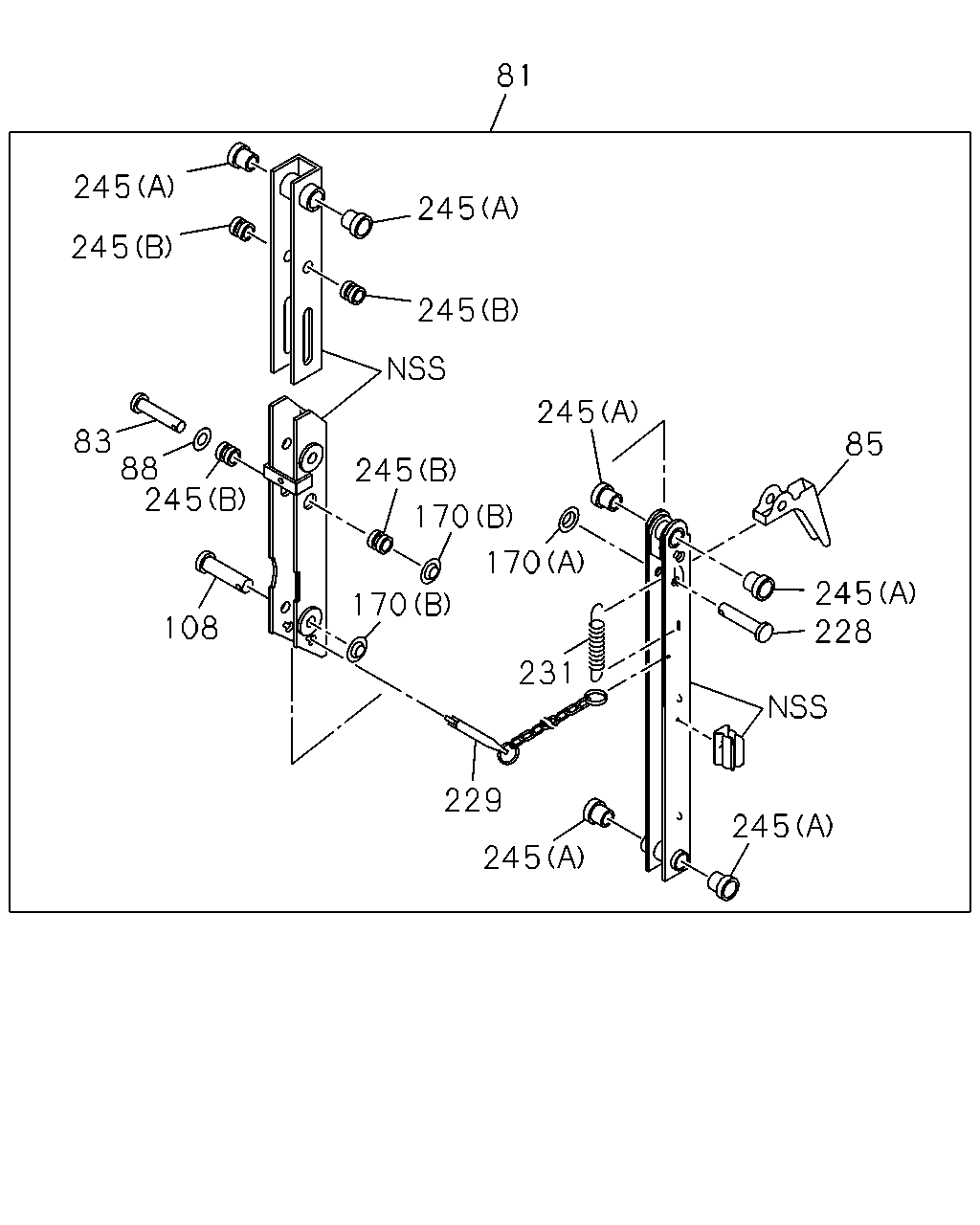

[515A] COMPONENT;CAB TILT STAY (12 parça)

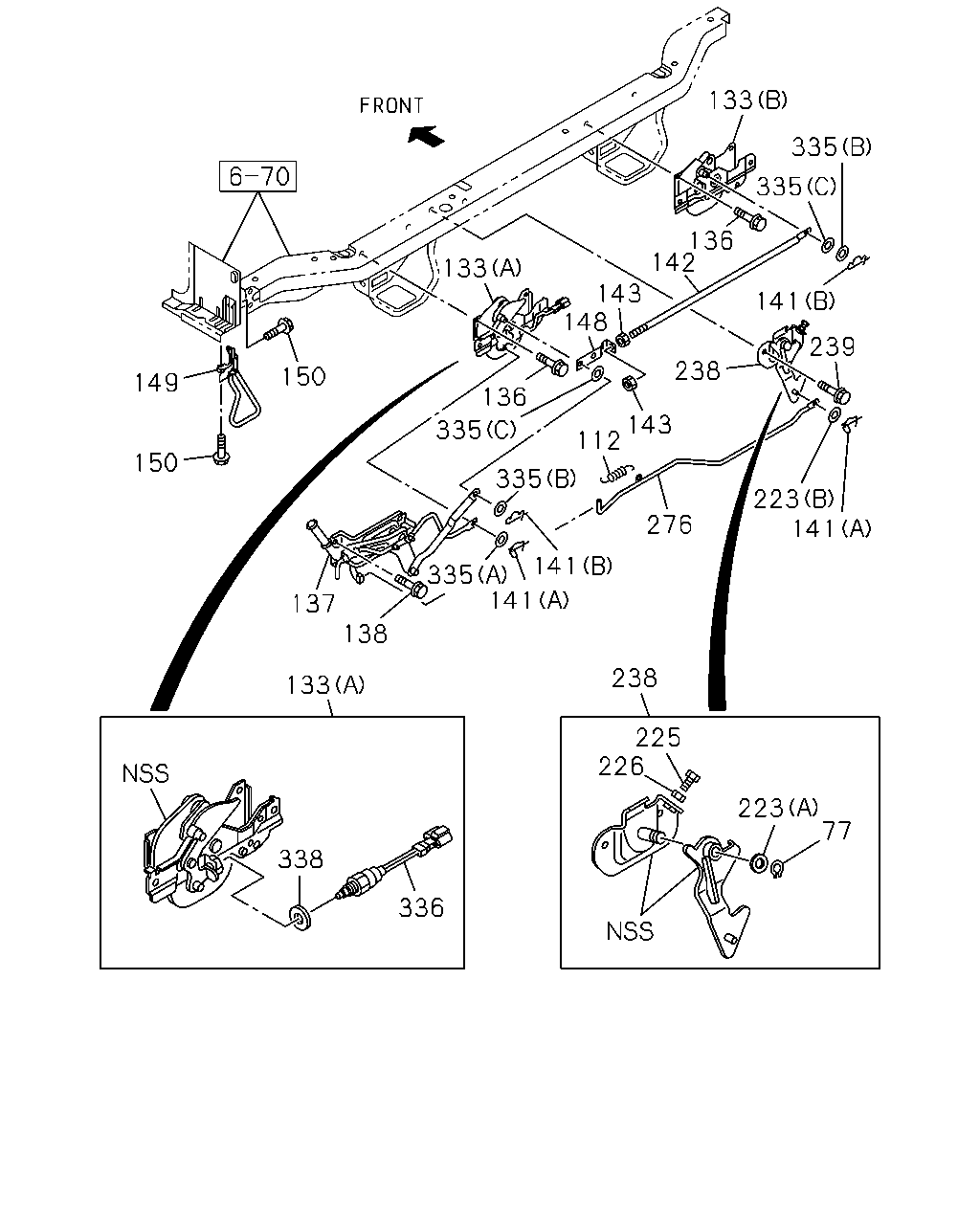

[515A] CAB LOCK AND TILT HANDLE (26 parça)
▶
1
3
12
38
324
15
104
103
146
146
104
100
81
98
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; TORSION BAR
8-98017-608-5
01
1
1412-
3
BOLT; LEVER
M12X42 FLANGE
8-98090-287-1
08
1
1412-
12
BAR; TORSION,UPR
8-98056-988-0
01
1
1412-
15
RING; SNAP,TORSION BAR
T=1.90 BLUE
8-97129-615-0
01
1
1412-
38
NUT; LK
M14
0-91110-514-0
01
1
1412-
81
STAY ASM; CAB TILT
8-98278-114-0
01
1
1412-
98
WASHER; CAB STAY
ID=10.5 T=2.0
1-09985-183-0
01
1
1412-
100
PIN; SNAP,CAB STAY TO CAB
L=34
8-98039-426-1
01
1
1412-
103
PIN; JOINT,CAB STAY
1-09744-108-1
01
1
1412-
104
BOLT; CAB STAY BRKT
M10X30 FLANGE
0-28661-030-0
04
1
1412-
146
BRACKET ASM; CAB STAY UPR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
8-98019-506-0
01
1
1412-
146
BRACKET ASM; CAB STAY UPR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98089-081-0
01
1
1412-
324
BOLT; ADJUST
EXC. KD PREPARATORY PACK<6HF> M14X59
8-98330-402-0
01
1
1512-
324
BOLT; ADJUST
M14X55
8-98004-319-1
01
1
1412-1511
324
BOLT; ADJUST
KD PREPARATORY PACK<6HF> M14X55
8-98004-319-1
01
1
1512-
81
245
245
245
245
170
170
170
231
228
85
245
245
245
229
108
245
88
83
245
245
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
81
STAY ASM; CAB TILT
8-98278-114-0
01
1
1412-
83
PIN; JOINT,CAB STAY
OD=10 L=42
1-09744-106-0
01
1
1412-
85
LEVER; LOCK,CAB STAY
1-62500-503-0
01
1
1412-
88
WASHER; PL,CAB STAY PIN
ID=10.5 T=2.0
1-09985-183-0
01
1
1412-
108
PIN; ADJ,CAB STAY
OD=10 L=42
1-09744-106-0
01
1
1412-
170
NUT
(A) ID=7.9 PUSH NUT
8-97022-565-0
01
1
1412-
170
NUT
(B) ID=9.9 PUSH NUT
8-97022-566-0
02
1
1412-
228
PIN; SAFETY LOCK SPRING,CAB STAY
OD=8 L=27
1-09744-086-2
01
1
1412-
229
PIN ASM; SAFETY
1-62500-517-1
01
1
1412-
231
SPRING; RETURN,LOCK LEVER,CAB STAY
1-09583-244-0
01
1
1412-
245
BUSHING; CAB STAY
(A)
1-62500-587-0
06
1
1412-
245
BUSHING; CAB STAY
(B)
1-62500-588-0
04
1
1412-
133
335
335
136
142
143
148
238
141
239
143
112
335
335
136
133
223
276
141
141
141
335
138
137
133
238
225
226
223
77
336
338
150
149
150
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
77
RING; SNAP
ID=14.7
0-91800-616-0
01
1
1412-
112
SPRING; RETURN,SAFETY ROD
1-79718-655-0
01
1
1412-
133
LOCK ASM; CAB
(A)
8-98094-285-2
01
1
1412-
133
LOCK ASM; CAB
(B)
8-98061-489-1
01
1
1412-
136
BOLT; CAB LK
M8X20 FLANGE
0-28650-820-0
08
1
1412-
137
CONTROL UNIT; CAB LOCK
8-97584-470-5
01
1
1412-
138
BOLT; CAB LOCK CONT UNIT
M8X20 FLANGE
0-28650-820-0
04
1
1412-
141
PIN; SNAP,CAB LOCK ROD
(A) L=25.3
8-98039-045-1
02
1
1412-
141
PIN; SNAP,CAB LOCK ROD
(B) L=32.6
8-98062-280-0
02
1
1412-
142
ROD; HOOK TO HOOK
8-97587-990-0
01
1
1412-
143
NUT; JAW JOINT,HOOK TO HOOK
M10
0-91110-510-0
02
1
1412-
148
JOINT; JAW,HOOK TO HOOK
8-97410-736-0
01
1
1412-
149
HANDLE; TILT
8-98025-705-0
01
1
1412-
150
BOLT; TILT HANDLE
M8X20 FLANGE
0-28650-820-0
03
1
1412-
223
WASHER; PL,SAFETY LK
(B) ID=8.4 OD=16
0-91610-508-0
01
1
1412-
223
WASHER; PL,SAFETY LK
(A) ID=17 OD=30
0-91610-516-0
01
1
1412-
225
BOLT; SAFETY LK
M8X30 FLANGE
0-28050-830-0
01
1
1412-
226
NUT; SAFETY LK
M8
0-91110-508-0
01
1
1412-
238
LOCK ASM; SAFETY,CAB TILT
8-98048-899-1
01
1
1412-
239
BOLT; SAFETY LK
M8X20 FLANGE
0-28650-820-0
02
1
1412-
276
ROD ASM; CAB LOCK,HOOK TO HOOK
8-98048-830-1
01
1
1412-
335
WASHER; CAB LOCK ROD
(A) ID=8.4 OD=16
0-91610-508-0
01
1
1412-
335
WASHER; CAB LOCK ROD
(B) ID=12.5 OD=26
0-91610-612-0
02
1
1412-
335
WASHER; CAB LOCK ROD
(C) ID=13 OD=22
8-98060-839-0
02
1
1412-
336
SWITCH; CAB LOCK
8-98091-155-1
01
1
1412-
338
WASHER; CAB LOCK
ID=17 OD=30
0-91610-516-0
01
1
1412-
