11584 - FRR MIDDLE EAST SPACE CAB
▶
5 - Frame, Cab Mounting
▶
5-01 - FRAME AND OTHER PARTS
▶
5-01 — FRAME AND OTHER PARTS
(#153099) — 49 parça
◀

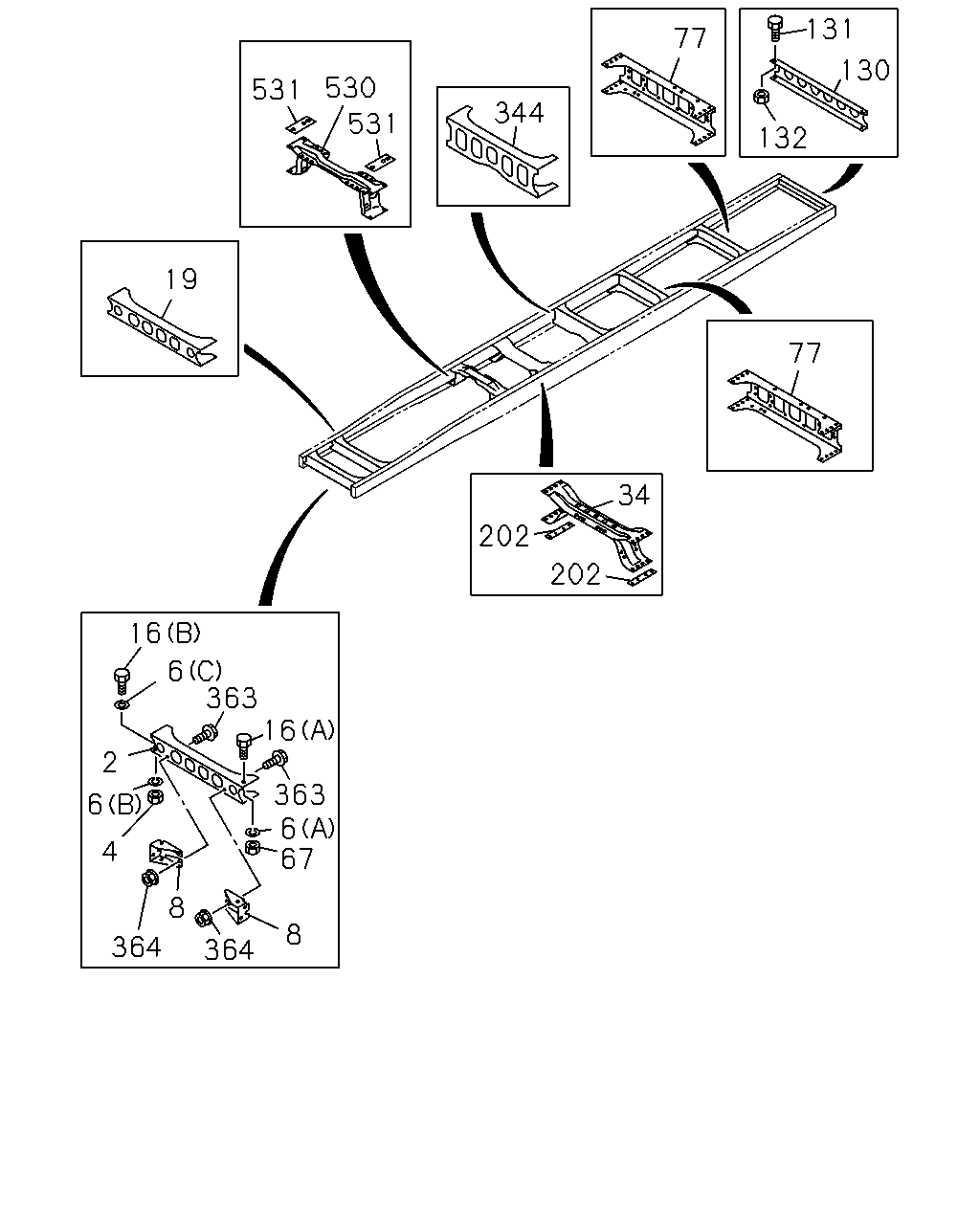

[501A] CROSS MEMBER (28 parça)

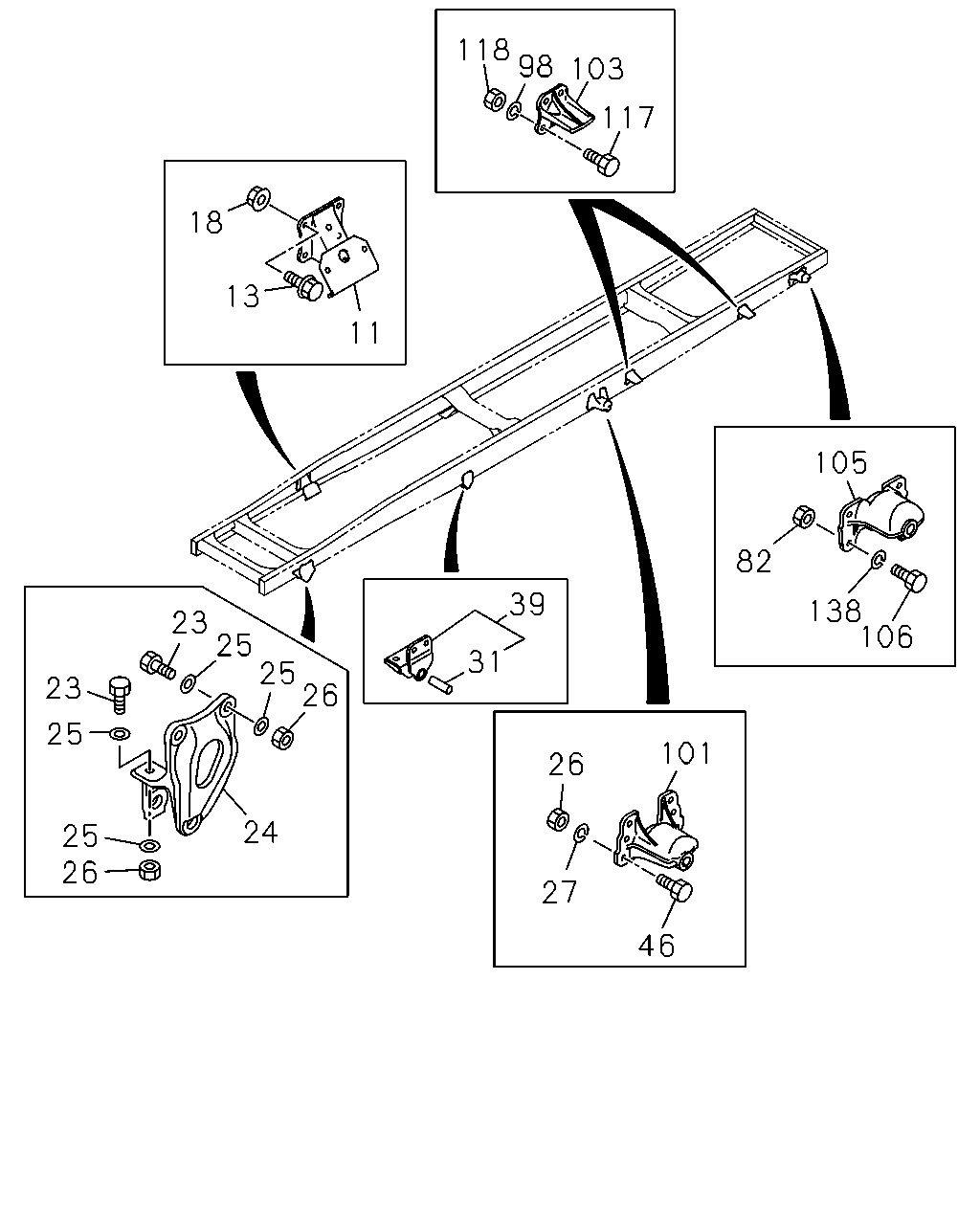

[501A] BRACKET AND OTHER PARTS (21 parça)
▶
364
364
8
4
6
2
16
8
67
6
363
16
363
6
202
202
34
77
19
531
530
531
344
77
132
130
131
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
MEMBER; CROSS,1ST
FRONT UNDER RUN PROTECTOR<EBE>
8-97609-462-9
01
1
1412-
2
MEMBER; CROSS,1ST
EXC. FRONT UNDER RUN PROTECTOR<EBE>
8-97615-669-3
01
1
1412-
4
NUT; 1ST C/MBR TO S/MBR
M14
0-91110-514-0
02
1
1412-1510
4
NUT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> M14
0-91110-514-0
02
1
1511-
6
WASHER; LK,1ST C/MBR
(A) ID=12.2
0-91510-512-0
02
1
1412-
6
WASHER; LK,1ST C/MBR
(B) ID=14.2
0-91510-814-0
02
1
1412-1510
6
WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) ID=14.2
0-91510-814-0
02
1
1511-
6
WASHER; LK,1ST C/MBR
(C) ID=15
8-98010-627-1
02
1
1412-1510
6
WASHER; LK,1ST C/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) ID=15
8-98010-627-1
02
1
1511-
8
GUSSET; 1ST C/MBR
8-97617-910-2
01
1
1412-
8
GUSSET; 1ST C/MBR
8-97617-911-3
01
1
1412-
16
BOLT; 1ST C/MBR TO S/MBR
(A) M12X30
0-20851-230-0
02
1
1412-
16
BOLT; 1ST C/MBR TO S/MBR
(B) M14X40
0-20851-440-0
02
1
1412-1510
16
BOLT; 1ST C/MBR TO S/MBR
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X40
0-20851-440-0
02
1
1511-
19
MEMBER; CROSS,2ND
FRONT UNDER RUN PROTECTOR<EBE>
8-97629-428-5
01
1
1412-
19
MEMBER; CROSS,2ND
EXC. FRONT UNDER RUN PROTECTOR<EBE>
8-97620-866-6
01
1
1412-
34
MEMBER; CROSS,3RD
8-97609-501-2
01
1
1412-
67
NUT; C/MBR
M12
0-91110-512-0
02
1
1412-
77
MEMBER; CROSS,TRUNNION RR
8-97610-935-1
02
1
1412-
130
MEMBER; CROSS,END
8-97609-470-0
01
1
1412-
131
BOLT; END C/MBR
M10X25 W/LK WASHER
0-50541-025-0
04
1
1412-
132
NUT; END C/MBR
M10
0-91110-510-0
04
1
1412-
202
SPACER; 3RD C/MBR
8-97609-756-1
02
1
1412-
344
MEMBER; CROSS,4TH
8-97609-472-2
01
1
1412-
363
BOLT; GUSSET
M12X25 FLANGE
0-28661-225-0
04
1
1412-
364
NUT; GUSSET
M12 FLANGE
0-91180-212-0
04
1
1412-
530
MEMBER; CROSS,T/M
8-97609-814-1
01
1
1412-
531
SPACER; C/MBR,T/M
8-97637-078-0
02
1
1412-
46
27
101
26
39
31
24
26
25
25
23
23
25
25
26
106
138
82
105
117
103
98
118
11
13
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
BRACKET; ENG MTG
8-97604-129-0
02
1
1412-
13
BOLT; BRKT,ENG MTG
M12X35 FLANGE
0-28661-235-0
08
1
1412-
18
NUT; BRKT,ENG MTG
M12 FLANGE
0-91180-212-0
08
1
1412-
23
BOLT; BRKT,SPR
M14X50
0-20951-450-0
08
1
1412-
24
BRACKET; FRT SPR,FRT
8-98059-201-0
01
1
1412-
24
BRACKET; FRT SPR,FRT
8-98059-203-0
01
1
1412-
25
WASHER; PL,BRKT
ID=15
8-98010-627-1
16
1
1412-
26
NUT; BRKT,SPR
M14
0-91110-514-0
20
1
1412-
27
WASHER; LK,BRKT,FRT SPR
ID=14.2
0-91510-614-0
12
1
1412-
31
BUSHING; FRT SPR,RR
ID=25
8-98082-176-0
02
1
1412-
39
BRACKET; FRT SPR,RR
1-53352-154-2
02
1
1412-
46
BOLT; BRKT FIX
M14X50
0-20951-450-0
12
1
1412-
82
NUT; BRKT
M14
0-91110-514-0
10
1
1412-
98
WASHER; LK,STOPPER
ID=14.2
0-91510-614-0
16
1
1412-
101
BRACKET; RR SPR,FRT
1-53353-090-4
02
1
1412-
103
STOPPER; SUB SPR
1-53356-059-1
04
1
1412-
105
BRACKET; RR SPR,RR
1-53354-074-0
02
1
1412-
106
BOLT; BRKT
M14X50
0-20951-450-0
10
1
1412-
117
BOLT; STOPPER
M14X50
0-20951-450-0
16
1
1412-
118
NUT; STOPPER
M14
0-91110-514-0
16
1
1412-
138
WASHER; LK,BRKT
ID=14.2
0-91510-614-0
10
1
1412-
