Isuzu WW
▶
TRUCKS
▶
FRR
▶
11584 - FRR MIDDLE EAST SPACE CAB
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-80 - ROAD WHEEL
▶

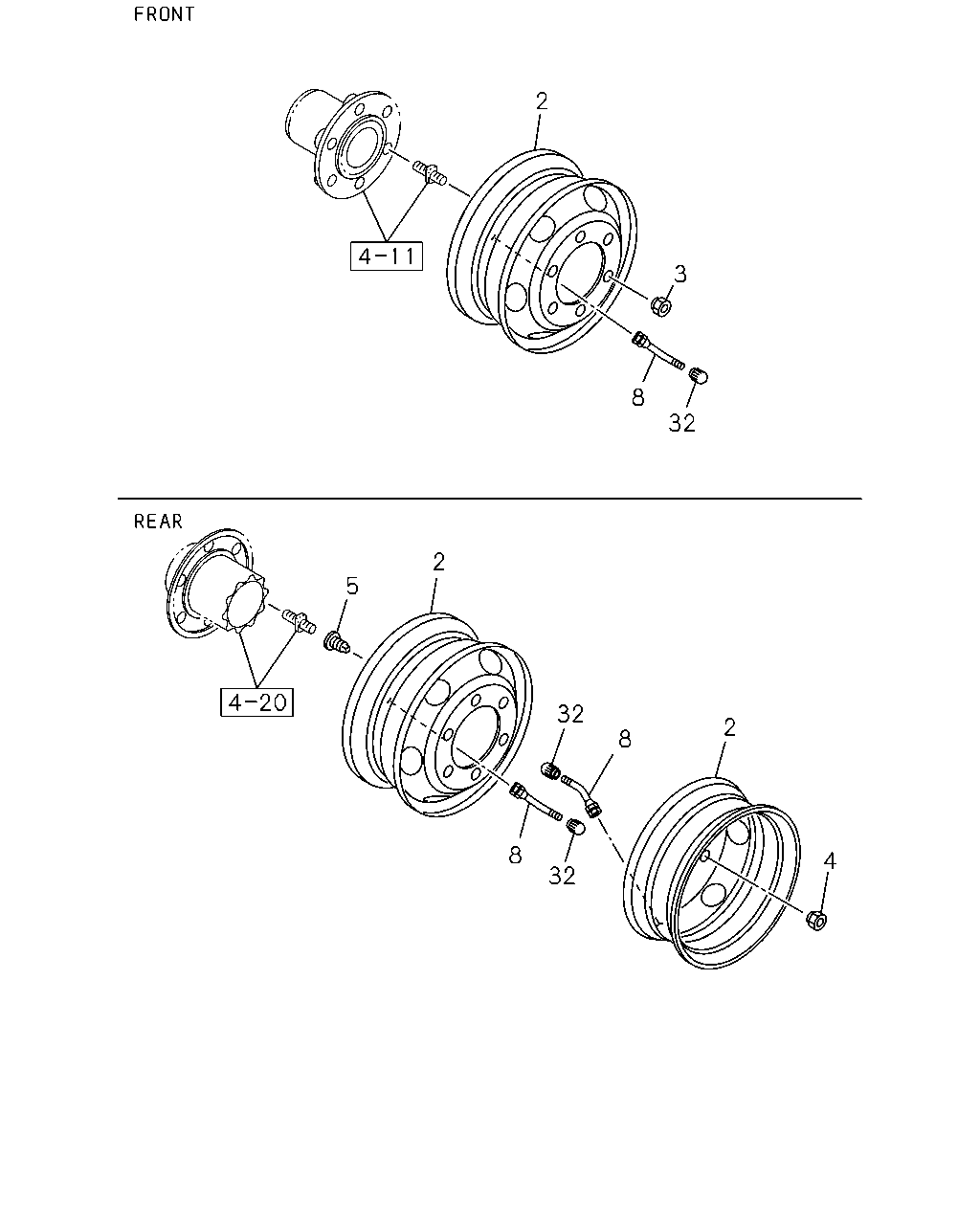

4-80 — ROAD WHEEL
(#153098) — 12 parça
4
2
8
32
32
8
2
5
32
8
3
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
WHEEL; DISC
FRONT,REAR
1-42350-767-0
06
1
1412-
2
WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42350-767-0
01
1
1412-
3
NUT; WHEEL,FRT AXLE
M24 LH THREAD
1-42334-022-3
06
1
1412-
3
NUT; WHEEL,FRT AXLE
M24
1-42333-022-3
06
1
1412-
4
NUT; WHEEL,RR AXLE
M30 LH THREAD
8-97359-810-0
06
1
1412-
4
NUT; WHEEL,RR AXLE
M30 RH THREAD
8-97359-809-0
06
1
1412-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD
8-97359-806-0
06
1
1412-
5
NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD
8-97359-805-0
06
1
1412-
8
VALVE; TIRE
FRONT,REAR
1-42370-007-1
06
1
1412-
8
VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46> SPARE
1-42370-007-1
01
1
1412-
32
CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>
1-42374-001-0
07
1
1412-
32
CAP; VALVE
EXC. SPARE TIRE & DISC WHEEL RR<R46>
1-42374-001-0
06
1
1412-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
