8-01 — LAMP; FRONT AND FRONT SIDE (#15309) — 122 parça

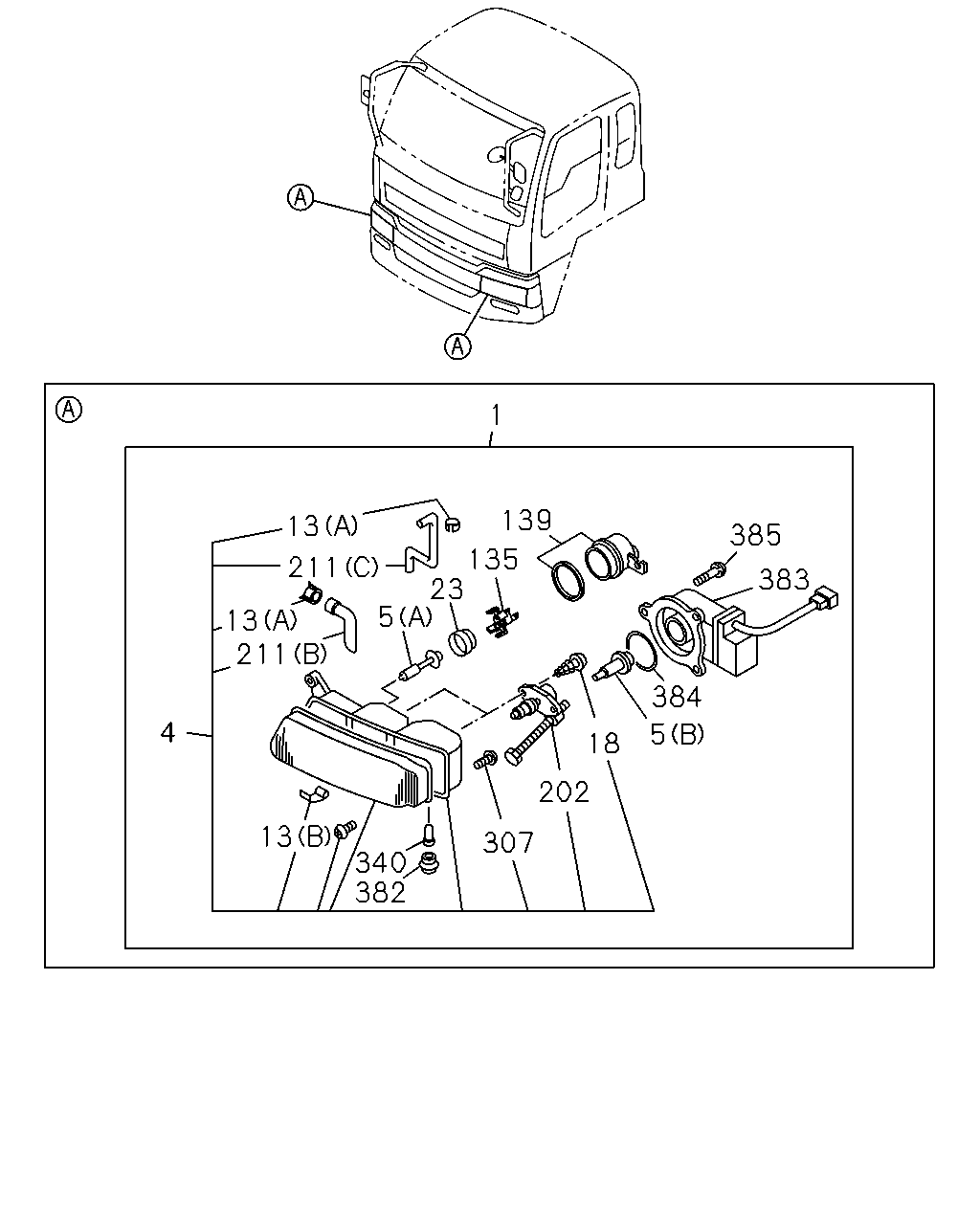

çizim 93080
1 139 13 385 135 23 211 383 5 13 211 384 4 5 18 202 13 307 340 382
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-473-1 01 1 0710-1003
1 LAMP ASM; HEAD 8-98144-076-0 01 1 1004-
1 LAMP ASM; HEAD 1-82110-474-1 01 1 0710-1003
1 LAMP ASM; HEAD 8-98144-077-0 01 1 1004-
4 HEADLAMP UNIT 1-82119-218-0 01 1 0710-
4 HEADLAMP UNIT 1-82119-219-0 01 1 0710-
5 BULB; HEADLAMP
(B) 85V 35W 		1-82194-092-0 02 1 0710-
5 BULB; HEADLAMP
(A) 24V 70W 		8-94405-658-0 02 1 0710-
13 CLIP; HEADLAMP
(A) 		1-82119-084-0 02 1 0710-
13 CLIP; HEADLAMP
(B) 		8-94381-588-0 14 1 0710-
18 SCREW; GEAR CASE
M4X16 TAPPING 		1-82119-067-0 08 1 0710-
23 COVER; BULB,HEADLAMP 1-82119-150-0 02 1 0710-
135 ADAPTER; HEADLAMP 1-82119-149-0 02 1 0710-
139 COVER; HEADLAMP 1-82119-224-0 02 1 0710-
202 GEAR UNIT; HEADLAMP 1-86830-139-0 04 1 0710-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0710-0906
211 TUBE; HEADLAMP
(C) 		1-86830-328-0 01 1 0710-
211 TUBE; HEADLAMP
(C) 		1-86830-329-0 01 1 0710-
211 TUBE; HEADLAMP
(B) 		1-86830-413-0 01 1 0710-1003
211 TUBE; HEADLAMP
(B) 		8-98175-922-0 01 1 1004-
211 TUBE; HEADLAMP
(B) 		1-86830-414-0 01 1 0710-1003
211 TUBE; HEADLAMP
(B) 		8-98175-923-0 01 1 1004-
307 SCREW; TAPPING,HEAD LAMP
M4X16 TAPPING 		1-82119-067-0 02 1 0710-
340 BULB; POSITION
24V 5W 		1-82194-042-0 02 1 0710-
382 PLUG; SOCKET,HEADLAMP 1-82119-193-1 02 1 0710-
383 STARTER ASM; DISCHARGE,HEADLAMP 1-82119-183-1 01 1 0710-
383 STARTER ASM; DISCHARGE,HEADLAMP 1-82119-184-1 01 1 0710-
384 GASKET; DISCHARGE,HEADLAMP 1-82119-152-0 02 1 0710-
385 SCREW; DISCHARGE,HEADLAMP 1-82119-203-0 06 1 0710-
çizim 93212
174 256 82 81 83 80 84 328 185 325
BalonParca AdiParca NoAdetTipApplied Date
80 BULB; MARKER LAMP
24V 5W 		8-94135-397-0 02 1 0710-
81 SEAT; SCREW 1-82219-012-0 04 1 0710-
82 SCREW; MARKER LAMP 1-82219-011-0 04 1 0710-
83 LENS; MARKER LAMP 1-82215-046-0 02 1 0710-
84 GASKET; MARKER LAMP 1-86830-288-0 02 1 0710-
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0710-
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0710-
185 GROMMET; SCREW
LOW ROOF<6XQ> M5 SCREW GROMMET 		1-09983-131-0 12 1 0710-
256 LAMP; MARKER 1-86830-242-3 02 1 0710-
325 SCREW; SPD INDICATOR LAMP
LOW ROOF<6XQ> M5X14 TAPPING 		0-71040-514-0 12 1 0710-
328 COVER; LAMP
LOW ROOF<6XQ> 		1-76217-122-1 03 1 0710-

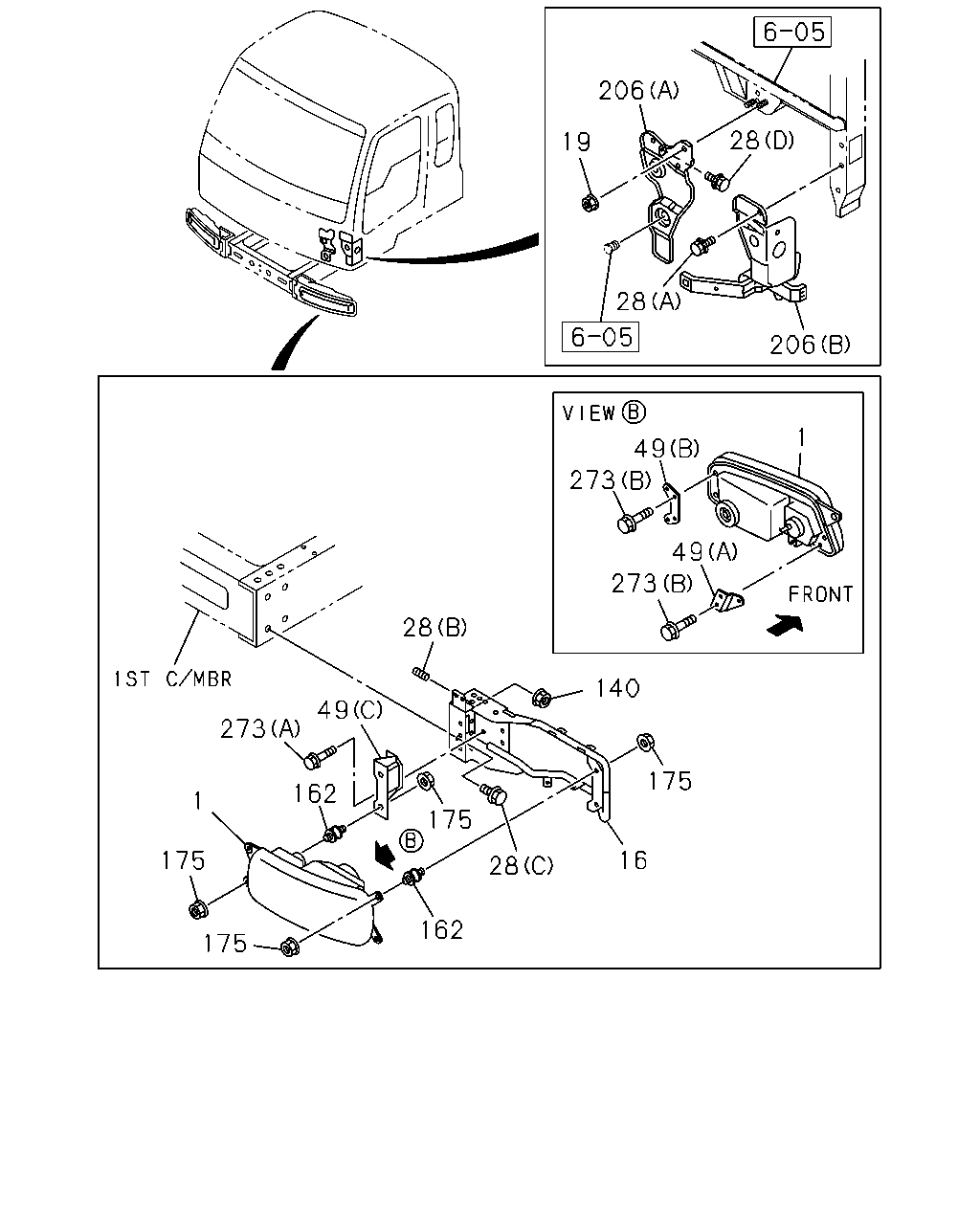

çizim 93489
206 19 28 28 206 49 1 273 49 273 28 273 49 162 1 175 175 162 175 28 16 175 140
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD 1-82110-473-1 01 1 0710-1003
1 LAMP ASM; HEAD 8-98144-076-0 01 1 1004-
1 LAMP ASM; HEAD 1-82110-474-1 01 1 0710-1003
1 LAMP ASM; HEAD 8-98144-077-0 01 1 1004-
16 BRACKET; HEADLAMP 8-97608-505-1 01 1 0710-
16 BRACKET; HEADLAMP 8-97608-506-2 01 1 0710-
19 NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 04 1 0710-
28 BOLT; HEADLAMP
(C) M10X30 FLANGE 		0-28651-030-0 06 1 0710-
28 BOLT; HEADLAMP
(B) M10X28,M10X15 L=50 		5-09300-050-0 02 1 0710-
28 BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0710-
28 BOLT; HEADLAMP
(D) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0710-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0710-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0710-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0710-
140 NUT
M10 FLANGE 		0-91180-210-0 02 1 0710-
162 RUBBER; CUSHION UPR 1-82117-086-0 08 1 0710-
175 NUT; BRKT CUSHION RUBBER
M8 FLANGE 		0-91180-108-0 16 1 0710-
206 HOLDER; HEADLAMP
(A) 		1-65671-569-5 01 1 0710-
206 HOLDER; HEADLAMP
(A) 		1-65671-570-6 01 1 0710-
206 HOLDER; HEADLAMP
(B) 		1-65671-761-3 01 1 0710-
206 HOLDER; HEADLAMP
(B) 		1-65671-762-3 01 1 0710-
273 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 04 1 0710-
273 BOLT; BRKT
(B) M6X16 FLANGE 		0-28650-616-0 08 1 0710-

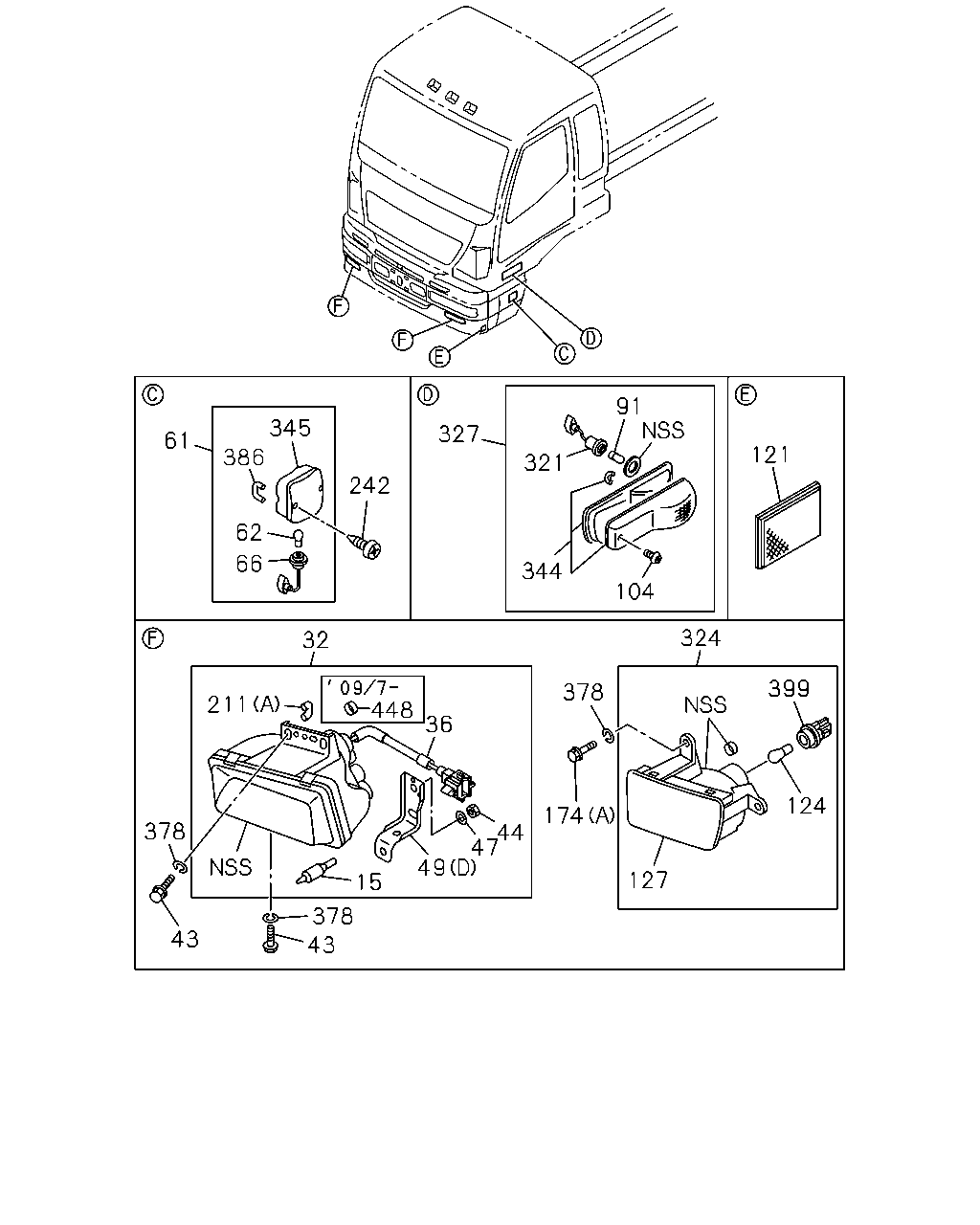

çizim 93561
345 386 242 62 66 61 327 91 321 344 104 121 32 211 448 36 44 47 49 15 378 378 378 174 324 399 124 127 43 43
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
24V 70W 		1-82194-106-0 02 1 0710-
32 LAMP ASM; FOG 1-82110-453-0 01 1 0710-0712
32 LAMP ASM; FOG 1-82110-475-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-149-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-064-0 01 1 1302-
32 LAMP ASM; FOG 1-82110-454-0 01 1 0710-0712
32 LAMP ASM; FOG 1-82110-476-0 01 1 0801-0906
32 LAMP ASM; FOG 8-98149-150-1 01 1 0907-1301
32 LAMP ASM; FOG 8-98232-065-0 01 1 1302-
36 CORD; FOG LAMP 1-82118-015-0 01 1 0710-
36 CORD; FOG LAMP 1-82118-016-0 01 1 0710-
43 BOLT; FOG LAMP
M6X20 FLANGE 		0-28650-620-0 04 1 0710-
43 BOLT; FOG LAMP
M8X20 FLANGE 		0-28650-820-0 02 1 0710-
44 NUT; FOG LAMP
M6 		8-98217-430-0 02 1 1205-
47 WASHER; PL,FOG LAMP 8-98217-429-0 02 1 1205-
49 BRACKET; LAMP
(D) 		8-98051-437-0 01 1 0710-
49 BRACKET; LAMP
(D) 		8-98051-438-0 01 1 0710-
49 BRACKET; LAMP
(A) 		1-82117-100-0 02 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-101-1 01 1 0710-
49 BRACKET; LAMP
(B) 		1-82117-102-1 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-176-0 01 1 0710-
49 BRACKET; LAMP
(C) 		1-82117-177-0 01 1 0710-
61 LAMP ASM; CORNERING 8-98024-494-1 01 1 0710-
61 LAMP ASM; CORNERING 8-98024-495-1 01 1 0710-
62 BULB; CORNERING LAMP
24V 21W 		1-82194-036-0 02 1 0710-
66 HARNESS; CORNERING LAMP 1-86830-146-0 02 1 0710-
91 BULB; SIDE TURN SIGNAL
24V 10W 		1-82194-037-0 02 1 0710-
104 SCREW; SIDE TURN SIGNAL 1-86830-149-0 02 1 0710-
121 REFLECTOR; REFLEX 8-98013-990-1 02 1 0710-
124 BULB; FRT TURN SIGNAL
24V 21W 		1-82194-105-0 02 1 0710-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-073-0 01 1 0710-
127 LENS; FRT TURN SIGNAL
ORANGE 		1-82215-074-0 01 1 0710-
174 BOLT
(A) M6X20 FLANGE 		0-28650-620-0 04 1 0710-
174 BOLT
(B) M6X28 W/LK&PL WASHER 		1-09980-543-0 04 1 0710-
211 TUBE; HEADLAMP
(A) 		8-97025-128-0 02 1 0710-0906
211 TUBE; HEADLAMP
(C) 		1-86830-328-0 01 1 0710-
211 TUBE; HEADLAMP
(C) 		1-86830-329-0 01 1 0710-
211 TUBE; HEADLAMP
(B) 		1-86830-413-0 01 1 0710-1003
211 TUBE; HEADLAMP
(B) 		8-98175-922-0 01 1 1004-
211 TUBE; HEADLAMP
(B) 		1-86830-414-0 01 1 0710-1003
211 TUBE; HEADLAMP
(B) 		8-98175-923-0 01 1 1004-
242 SCREW; CORNERING LAMP
M4X20 TAPPING STAINLESS 		0-71090-420-0 04 1 0710-
321 HARNESS; SIDE FLASHER LAMP 1-86830-253-0 02 1 0710-
324 LAMP; FRT FLASHER 1-82210-259-1 01 1 0710-
324 LAMP; FRT FLASHER 1-82210-260-1 01 1 0710-
327 LAMP ASM; SIDE TURN SIGNAL 8-98027-363-0 01 1 0710-
327 LAMP ASM; SIDE TURN SIGNAL 8-98027-364-0 01 1 0710-
344 LAMP UNIT; SIDE TURN SIGNAL 8-98027-367-0 01 1 0710-
344 LAMP UNIT; SIDE TURN SIGNAL 8-98027-368-0 01 1 0710-
345 LAMP UNIT; CORNERING 8-98004-041-0 01 1 0710-
345 LAMP UNIT; CORNERING 8-98004-042-0 01 1 0710-
378 WASHER; PL
ID=6.4 		0-91610-606-0 08 1 0710-
386 TUBE; CORNERING LAMP 8-94451-175-0 02 1 0710-
399 SOCKET; TURN SIGNAL 1-82219-038-0 02 1 0710-
448 CAP ASM; LAMP 8-97378-874-0 02 1 0907-
