Isuzu WW
▶
TRUCKS
▶
FRR
▶
11584 - FRR MIDDLE EAST SPACE CAB
▶
3 - Brakes, Brake System
▶
3-78 - FIXING PARTS; AIR PIPING
▶
3-78 — FIXING PARTS; AIR PIPING
(#153081) — 36 parça
◀

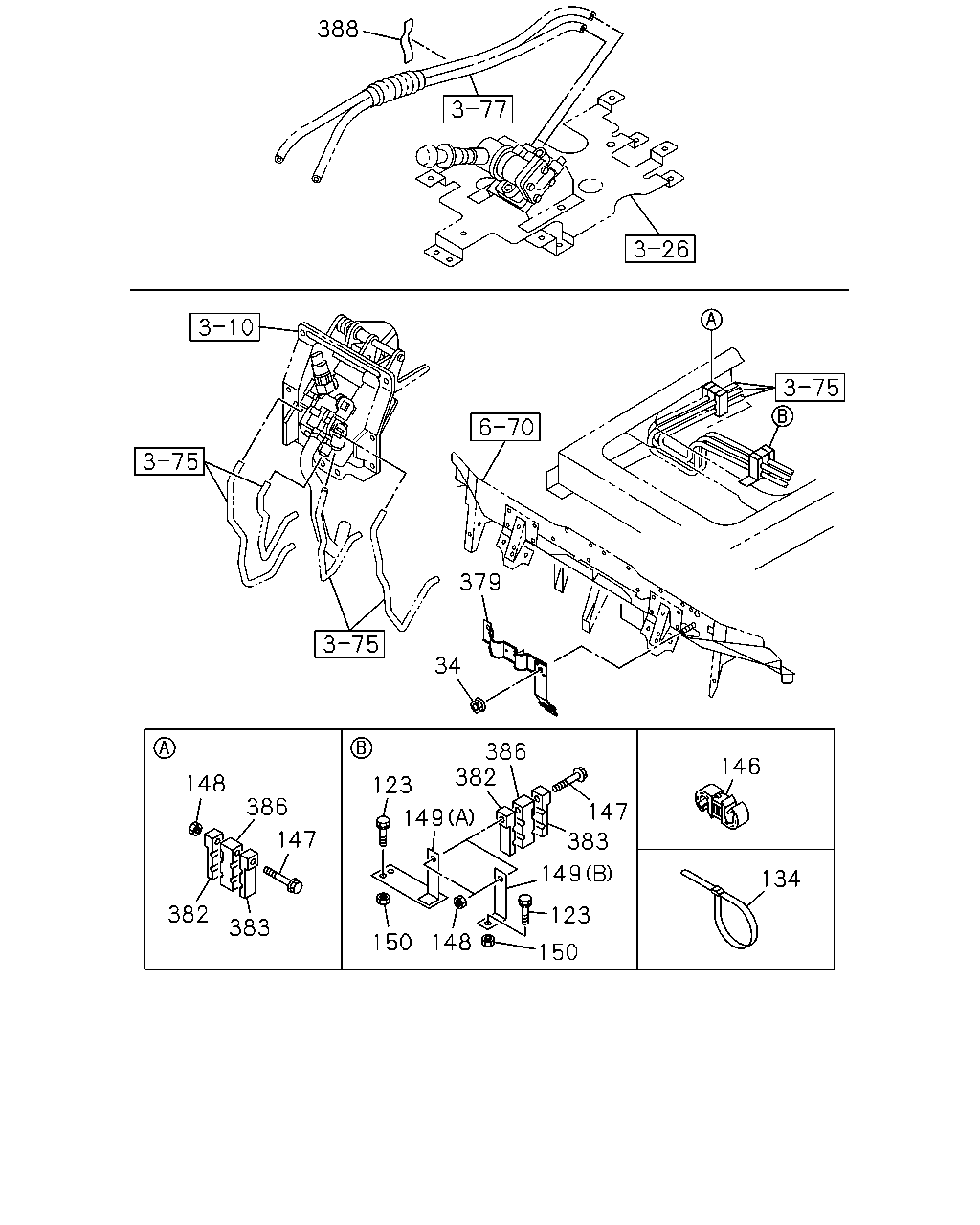

[378A] NO.1 (15 parça)
[378A] NO.2 (21 parça)
▶
388
379
34
148
386
147
383
382
123
149
150
148
150
149
123
383
147
382
386
146
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
1412-
123
BOLT; PIPE CLIP
M8X25 FLANGE
0-28650-825-0
03
1
1412-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
1412-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
1412-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
03
1
1412-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
1412-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
1412-
149
BRACKET; PIPE CLIP
(A)
8-98090-114-0
01
1
1412-
149
BRACKET; PIPE CLIP
(B)
8-98116-193-0
01
1
1412-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
03
1
1412-
379
BRACKET; NYLON TUBE
8-98112-515-1
01
1
1412-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
1412-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
04
1
1412-
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
1412-
388
SEAL
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) 100X40
1-72498-022-1
03
1
1412-

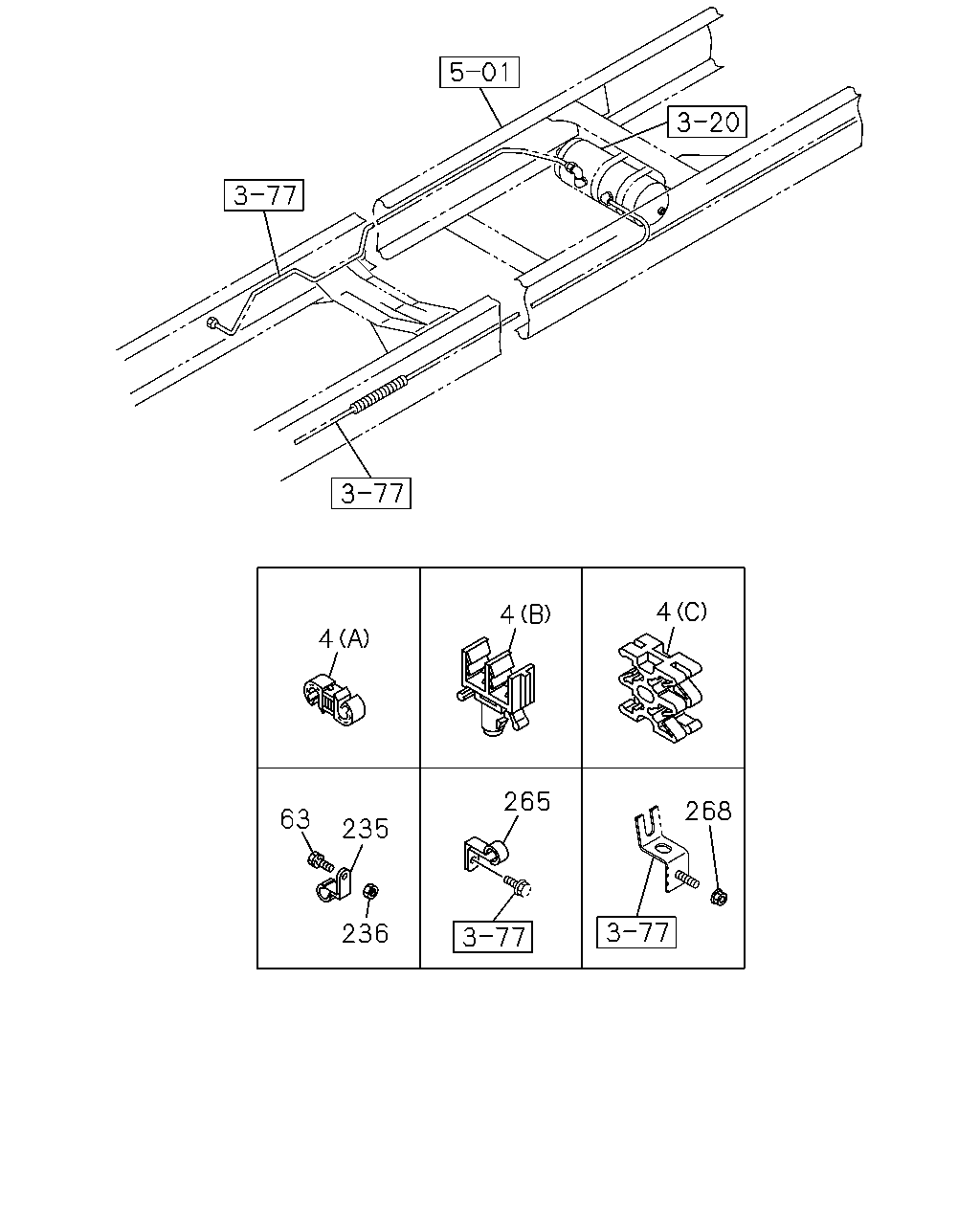

4
4
4
268
265
235
236
63
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
CLIP; AIR PIPE
EXC. KD PREPARATORY PACK<6HF> (C) ID=4.7X4
1-09701-304-0
03
1
1508-
4
CLIP; AIR PIPE
(C) ID=4.7X4
1-09701-304-0
03
1
1412-1506
4
CLIP; AIR PIPE
(A) ID=4.76 & 4.76
1-09709-303-0
03
1
1507-1507
4
CLIP; AIR PIPE
KD PREPARATORY PACK<6HF> (A) ID=4.76 & 4.76
1-09709-303-0
03
1
1508-
4
CLIP; AIR PIPE
(B) ID=4.8X2
8-94316-410-0
01
1
1412-
4
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=10 & 10
1-09709-277-1
01
1
1412-
4
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=10 & 10
1-09709-277-1
01
1
1412-
4
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0
1-09709-274-1
02
1
1412-
4
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=6.35 & 10.0
1-09709-274-1
01
1
1412-
4
CLIP; AIR PIPE
H.S.A SYSTEM<6EP> (A) ID=6.35 & 10.0
1-09709-274-1
01
1
1412-
4
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=10 & 10
1-09709-277-1
03
1
1412-
4
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 6.35
1-09709-304-0
01
1
1412-
4
CLIP; AIR PIPE
(A) ID=4.76 & 6.35
1-09709-304-0
01
1
1412-
4
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 10.0
1-09709-305-0
01
1
1412-
4
CLIP; AIR PIPE
(A) ID=4.76 & 10.0
1-09709-305-0
01
1
1412-
4
CLIP; AIR PIPE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=4.76 & 12
1-09709-306-0
01
1
1412-
63
BOLT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
05
1
1412-
235
CLIP; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=11 H=20 L=20
8-98033-780-0
05
1
1412-
236
NUT; CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
05
1
1412-
265
CLIP; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=21 H=25.5 L=26
8-94176-806-0
01
1
1412-
268
NUT; CLIP BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE
0-91180-210-0
01
1
1412-
