Isuzu WW
▶
TRUCKS
▶
FRR
▶
11584 - FRR MIDDLE EAST SPACE CAB
▶
3 - Brakes, Brake System
▶
3-77 - BRAKE PIPING; AIR,REAR
▶
3-77 — BRAKE PIPING; AIR,REAR
(#153080) — 61 parça
◀

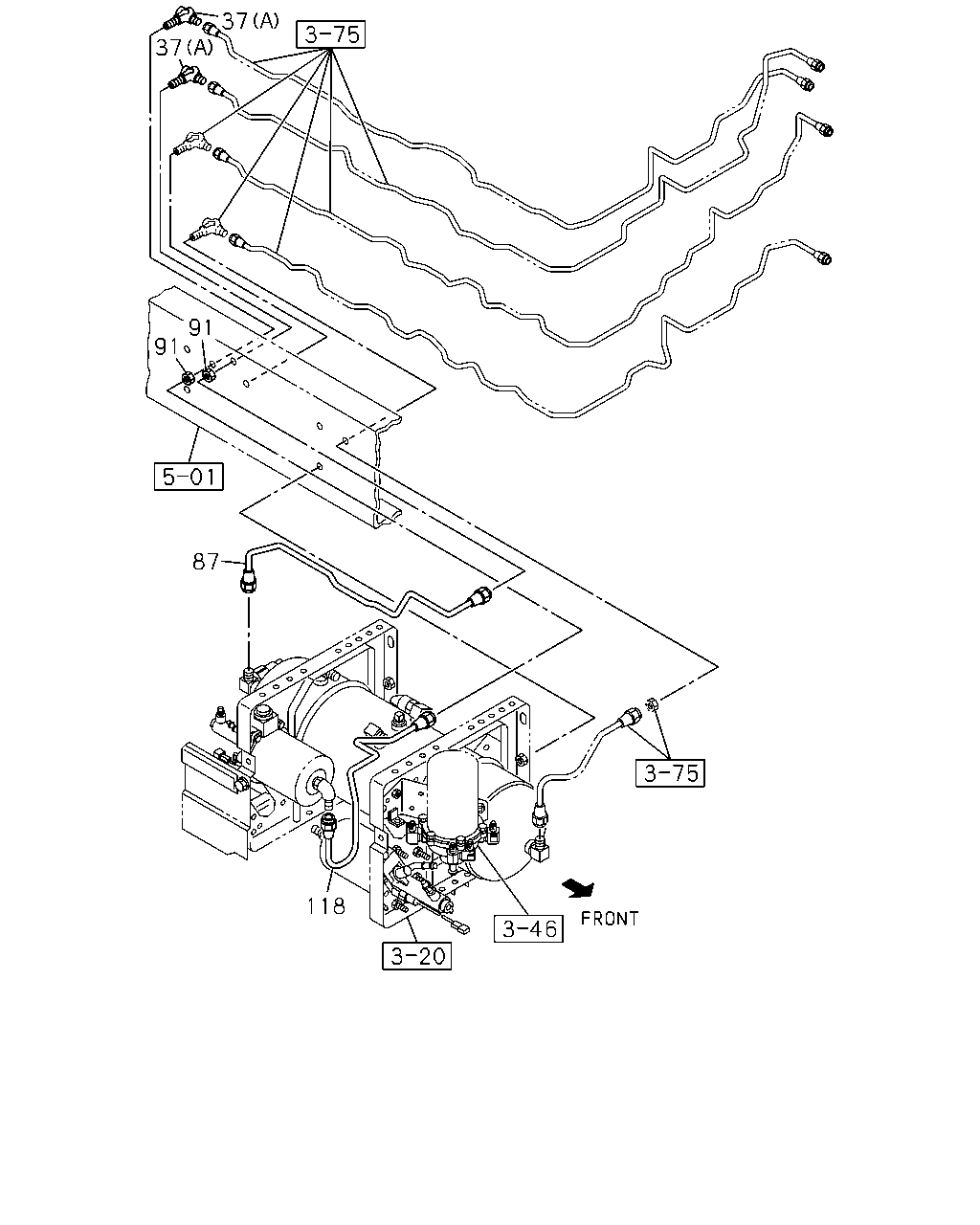

[377A] FRAME SIDE;EXC.H.S.A SYSTEM (7 parça)

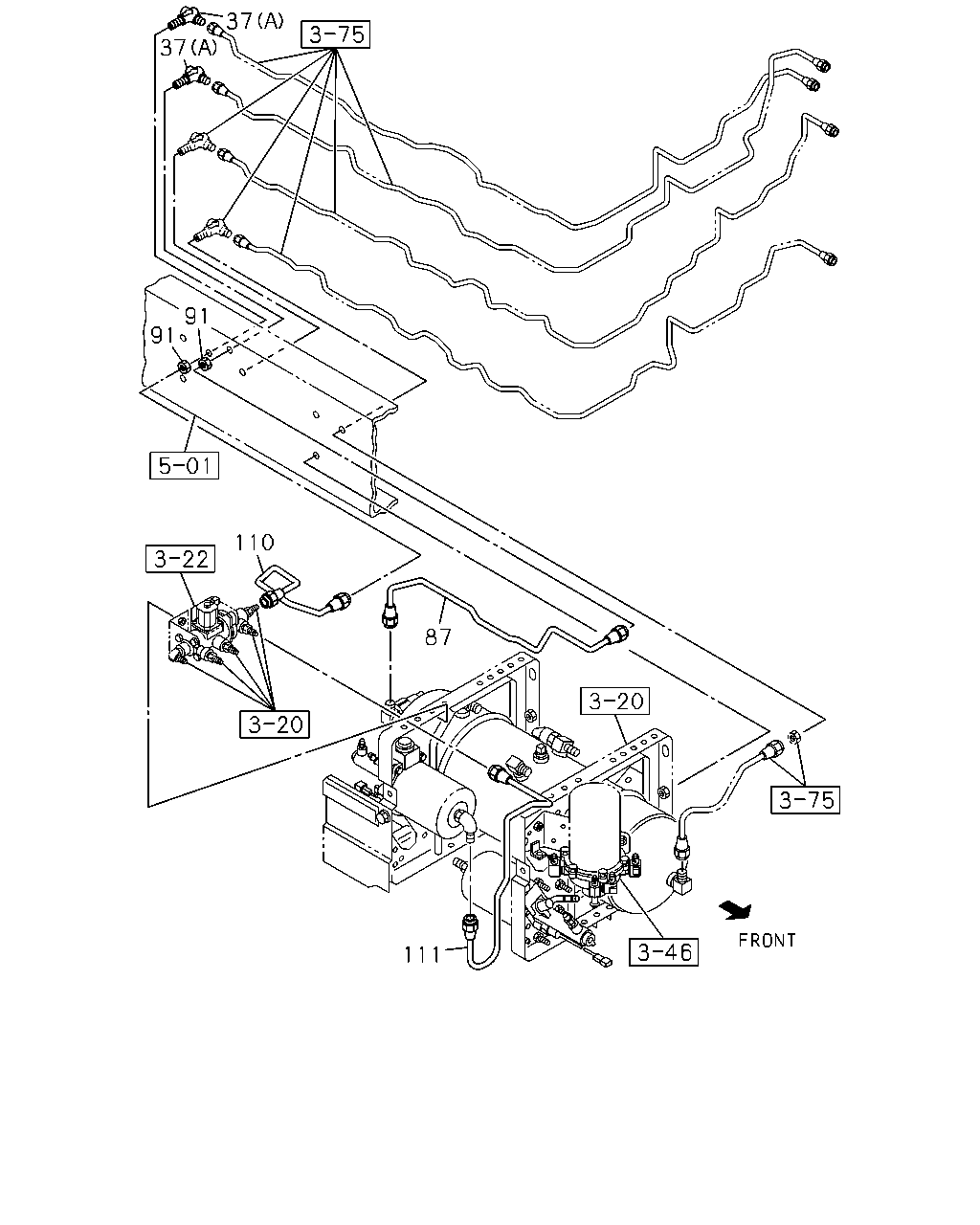

[377A] FRAME SIDE;H.S.A SYSTEM (8 parça)

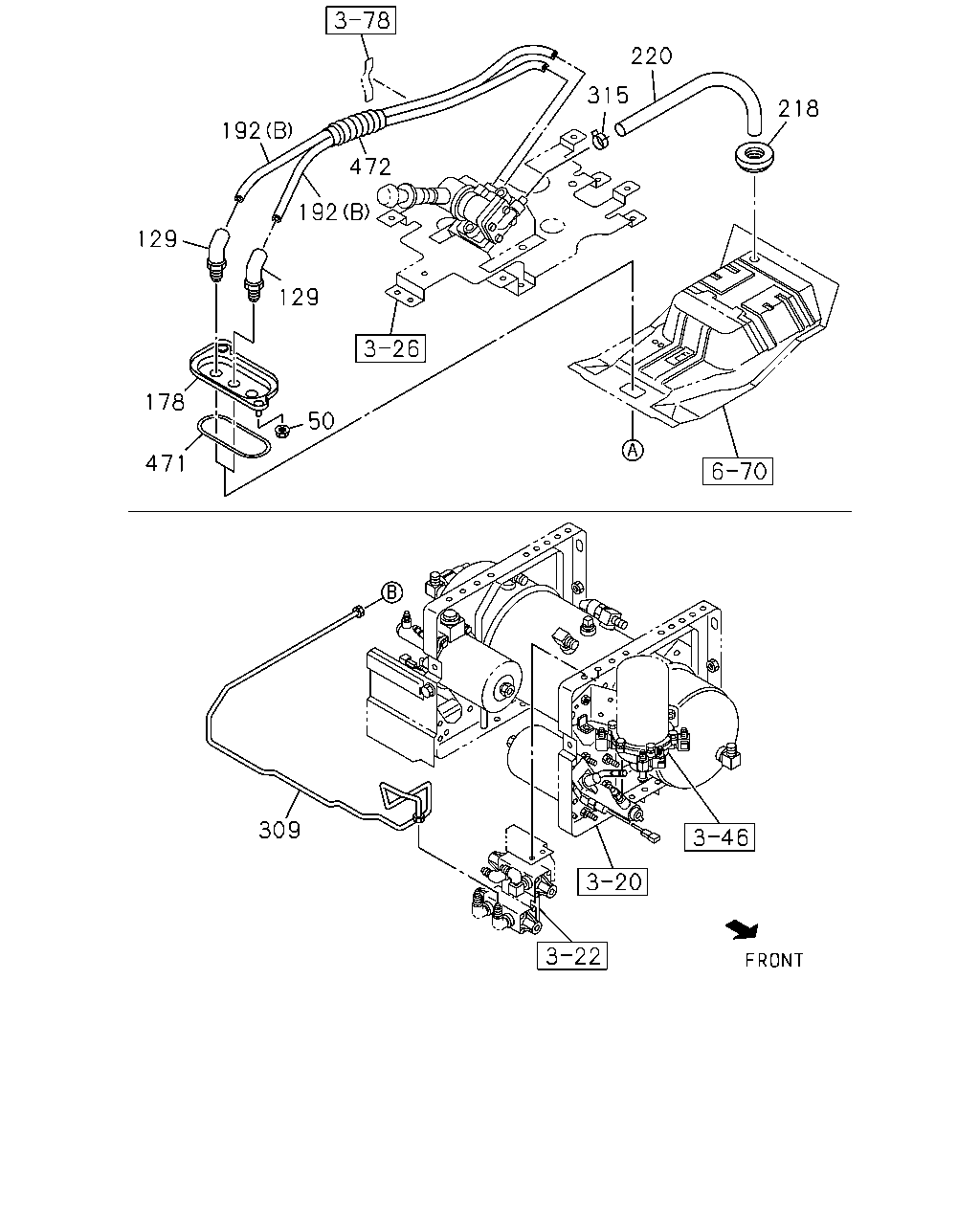

[377A] REAR WHEEL PARKING BRAKE AIR CONT NO.1 (14 parça)
[377A] REAR WHEEL PARKING BRAKE AIR CONT NO.2 (13 parça)

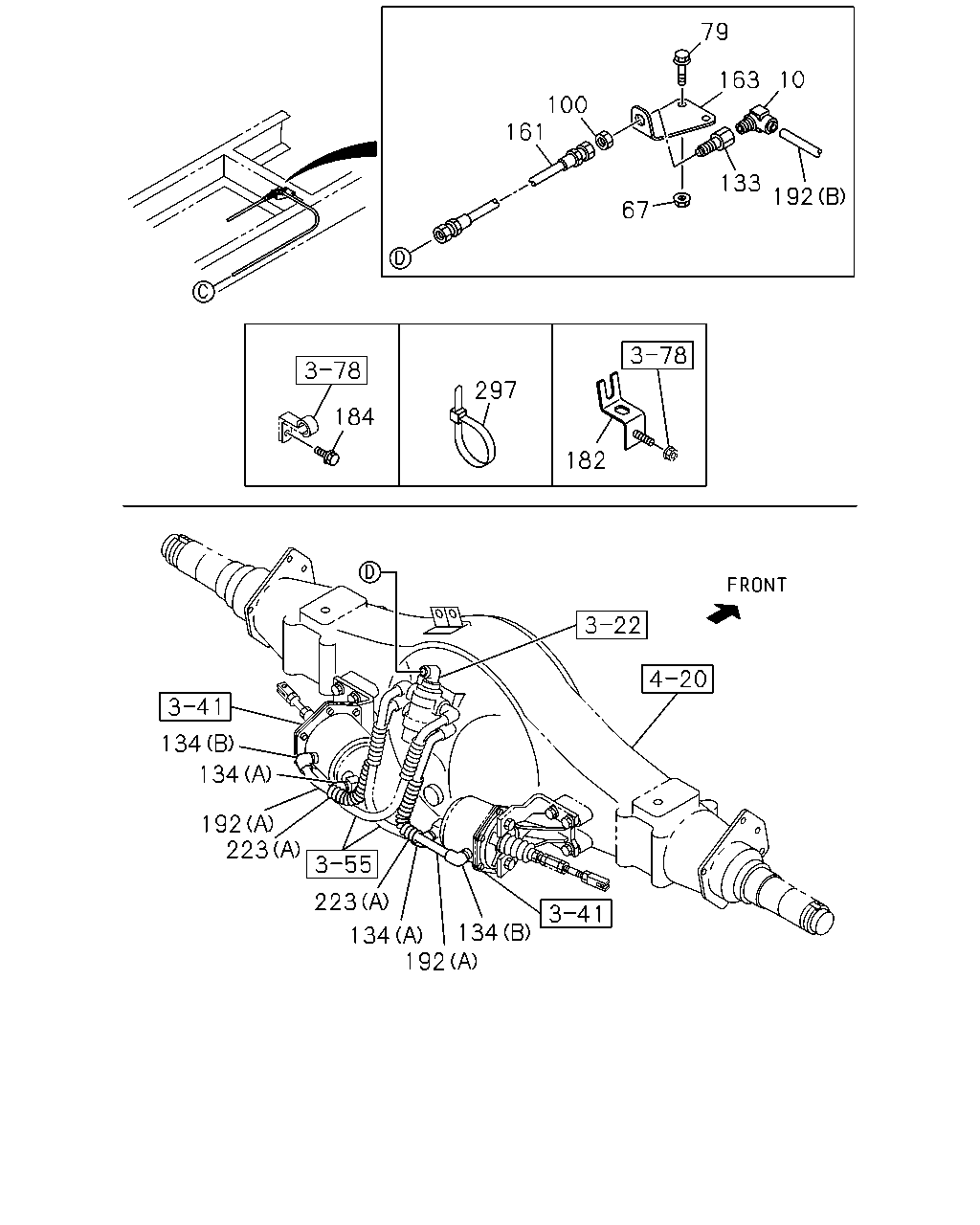

[377A] REAR WHEEL PARKING BRAKE AIR CONT NO.3 (19 parça)
▶
37
37
91
91
87
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
(A) M16 ELBOW
0-92135-210-0
02
1
1412-
37
UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74
0-92123-310-0
01
1
1412-
87
PIPE; AIR,AIR TANK TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=670 SERVICED BY L=700
1-47428-870-0
01
1
1412-
87
PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=586 SERVICED BY L=600
1-47428-868-0
01
1
1412-
91
NUT; PIPE UNION
M16
0-91111-516-0
02
1
1412-
118
PIPE; AIR,UNION TO AIR MASTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) EXC. H.S.A SYSTEM<6EP> L=745 SERVICED BY L=800
1-47428-872-0
01
1
1412-
118
PIPE; AIR,UNION TO AIR MASTER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A), H.S.A SYSTEM<6EP> L=729 SERVICED BY L=730
1-47428-871-0
01
1
1412-
37
37
110
91
91
87
111
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
(A) M16 ELBOW
0-92135-210-0
02
1
1412-
37
UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74
0-92123-310-0
01
1
1412-
87
PIPE; AIR,AIR TANK TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=670 SERVICED BY L=700
1-47428-870-0
01
1
1412-
87
PIPE; AIR,AIR TANK TO UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=586 SERVICED BY L=600
1-47428-868-0
01
1
1412-
91
NUT; PIPE UNION
M16
0-91111-516-0
02
1
1412-
110
PIPE; AIR,UNION TO VLV
H.S.A SYSTEM<6EP> L=473
8-98067-756-0
01
1
1412-
111
PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=586 SERVICED BY L=600
1-47428-868-0
01
1
1412-
111
PIPE; AIR,VLV TO AIR MASTER
H.S.A SYSTEM<6EP> EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=528 SERVICED BY L=550
1-47428-867-0
01
1
1412-
192
129
129
192
472
178
471
50
315
220
218
309
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
50
NUT; UNION BRKT
M8 FLANGE
0-91180-108-0
02
1
1412-
129
CONNECTOR; NYLON TUBE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN13 & M18 ELBOW
8-97611-963-1
02
1
1412-
178
BRACKET; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98017-054-1
01
1
1412-
178
BRACKET; UNION
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98017-052-1
01
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6
1-87411-001-0
02
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=8
1-87411-006-0
02
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=8
1-87411-008-0
01
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=8
1-87411-009-0
01
1
1412-
218
GROMMET; VINYL HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=24
9-61166-007-0
01
1
1412-
220
HOSE; VINYL,EXH,PARKING BRK VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=260 ID=9.5 SERVICED BY L=10000
9-09914-701-0
01
1
1412-
309
PIPE; AIR,MPV TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1336 SERVICED BY L=1400
1-47428-878-0
01
1
1412-
315
CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=14
8-94238-572-0
01
1
1412-
471
SEAL; BRKT
1-79738-832-0
01
1
1412-
472
TUBE; SPUTTER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98067-708-0
01
1
1412-
318
97
144
98
37
192
223
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
UNION; AIR PIPE
(A) M16 ELBOW
0-92135-210-0
02
1
1412-
37
UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M16 L=74
0-92123-310-0
01
1
1412-
97
UNION; AIR PIPE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16 STRAIGHT L=42
0-92123-010-0
01
1
1412-
98
NUT; PIPE UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16
0-91111-516-0
01
1
1412-
144
PIPE; AIR,UNION TO UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1204 SERVICED BY L=1250
1-47428-876-0
01
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6
1-87411-001-0
02
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=8
1-87411-006-0
02
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=8
1-87411-008-0
01
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=8
1-87411-009-0
01
1
1412-
223
TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=7
1-87411-016-0
02
1
1412-
223
TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=10
1-87411-019-0
01
1
1412-
223
TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 ID=15
1-87411-037-0
01
1
1412-
318
PIPE; AIR,UNION TO AIR TANK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1376 SERVICED BY L=1400
1-47428-878-0
01
1
1412-
79
163
10
133
192
67
100
161
184
297
182
134
134
192
223
223
134
192
134
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
CONNECTOR; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) DIN8 & R3/8 ELBOW
1-09660-957-0
01
1
1412-
67
NUT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
1412-
79
BOLT; HOSE BRKT
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
02
1
1412-
100
NUT; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M16
0-91111-516-0
01
1
1412-
133
UNION; NIPPLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) PT3/8 & M16 STRAIGHT
8-98202-001-0
01
1
1412-
134
CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
1412-
134
CONNECTOR
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) DIN6 & R3/8 ELBOW
1-09661-234-0
02
1
1412-
161
HOSE; FLEX,QUICK RELEASE VLV
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=460
1-09363-963-0
01
1
1412-
163
BRACKET; FLEX HOSE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98044-842-0
01
1
1412-
182
BRACKET; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98096-272-0
01
1
1412-
184
BOLT; TUBE CLIP
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X20 FLANGE
0-28650-820-0
01
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 OD=6
1-87411-001-0
02
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 OD=8
1-87411-006-0
02
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 OD=8
1-87411-008-0
01
1
1412-
192
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=8000 OD=8
1-87411-009-0
01
1
1412-
223
TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) SERVICED BY L=2000 ID=7
1-87411-016-0
02
1
1412-
223
TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=2000 ID=10
1-87411-019-0
01
1
1412-
223
TUBE; CORRUGATE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) SERVICED BY L=6000 ID=15
1-87411-037-0
01
1
1412-
297
CLIP; BAND
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=350
1-09707-183-0
12
1
1412-
