Isuzu WW
▶
TRUCKS
▶
FRR
▶
11584 - FRR MIDDLE EAST SPACE CAB
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#153077) — 12 parça
◀

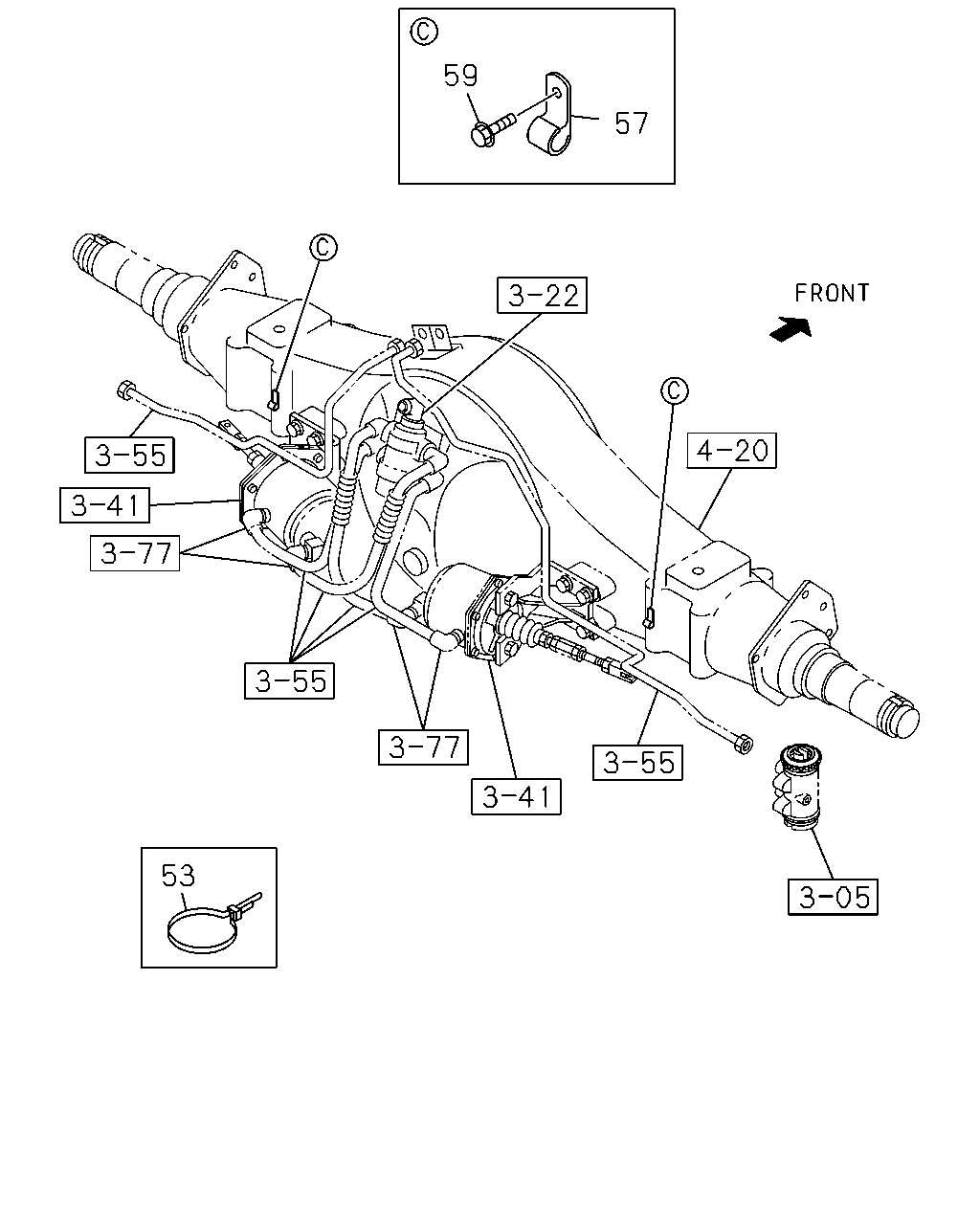

[358A] REAR AXLE SIDE (3 parça)
[358A] FRAME SIDE (9 parça)
▶
59
57
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
CLIP; UNION
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=250
1-09707-126-0
05
1
1412-
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
0-95234-635-0
02
1
1412-
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28050-810-0
02
1
1412-
86
69
1
107
106
58
1
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
03
1
1412-
1
CLIP; OIL PIPE TO BODY
(B) ID=6 H=20 L=20
8-98040-714-0
04
1
1412-
1
CLIP; OIL PIPE TO BODY
(A)
8-98012-254-1
04
1
1412-
58
CLIP; OIL PIPE
8-98012-254-1
05
1
1412-
69
BOLT; CLIP
M8X16 FLANGE
0-28050-816-0
02
1
1412-
86
CLIP; OIL PIPE
8-98085-372-0
02
1
1412-
106
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28650-825-0
04
1
1412-
107
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91180-108-0
04
1
1412-
112
CLIP; OIL PIPE
8-98012-254-1
06
1
1412-
