3-55 — BRAKE PIPING; OIL,REAR
(#153076) — 18 parça
◀

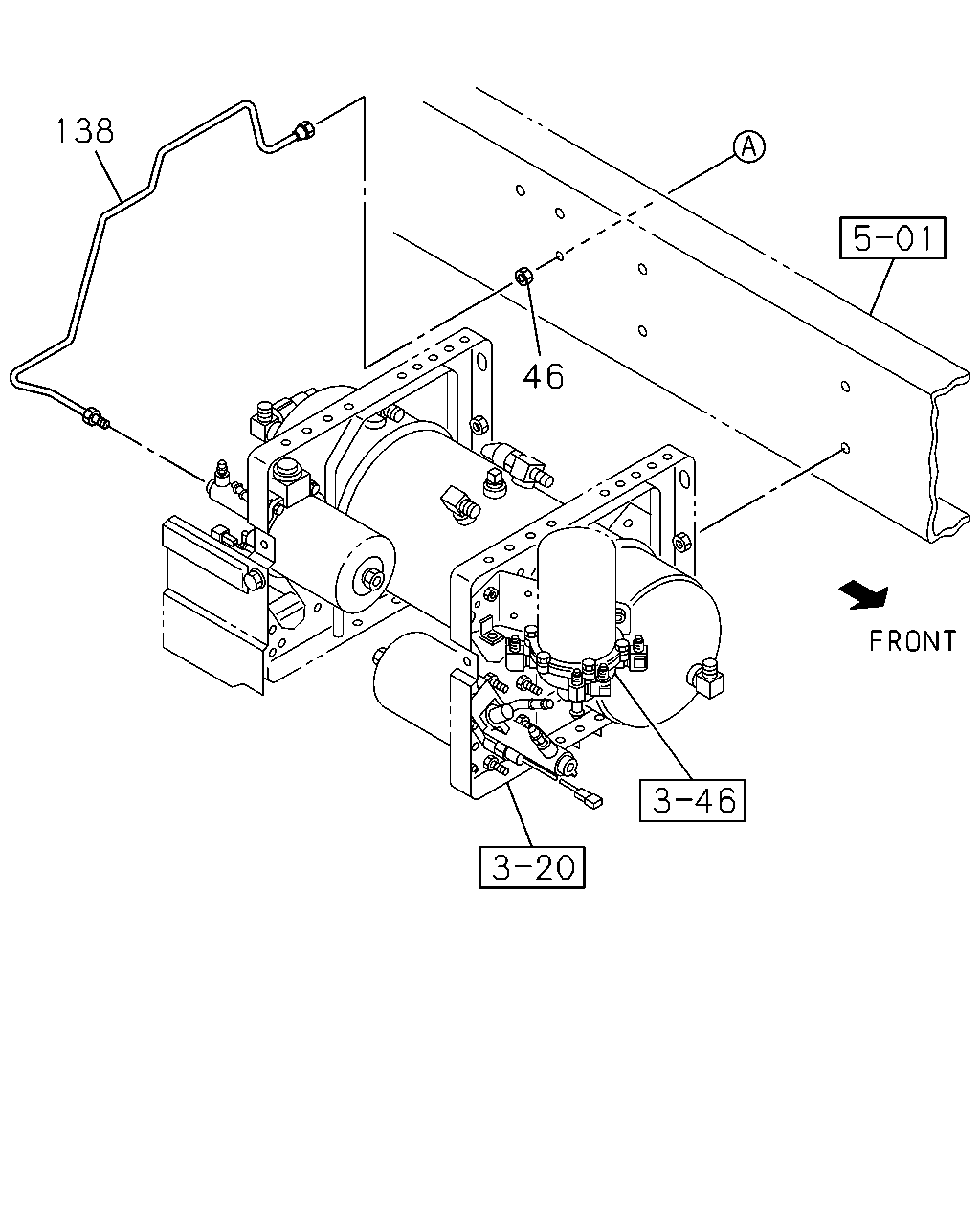

[355A] AIR TANK SIDE (2 parça)
[355A] FRAME SIDE (9 parça)

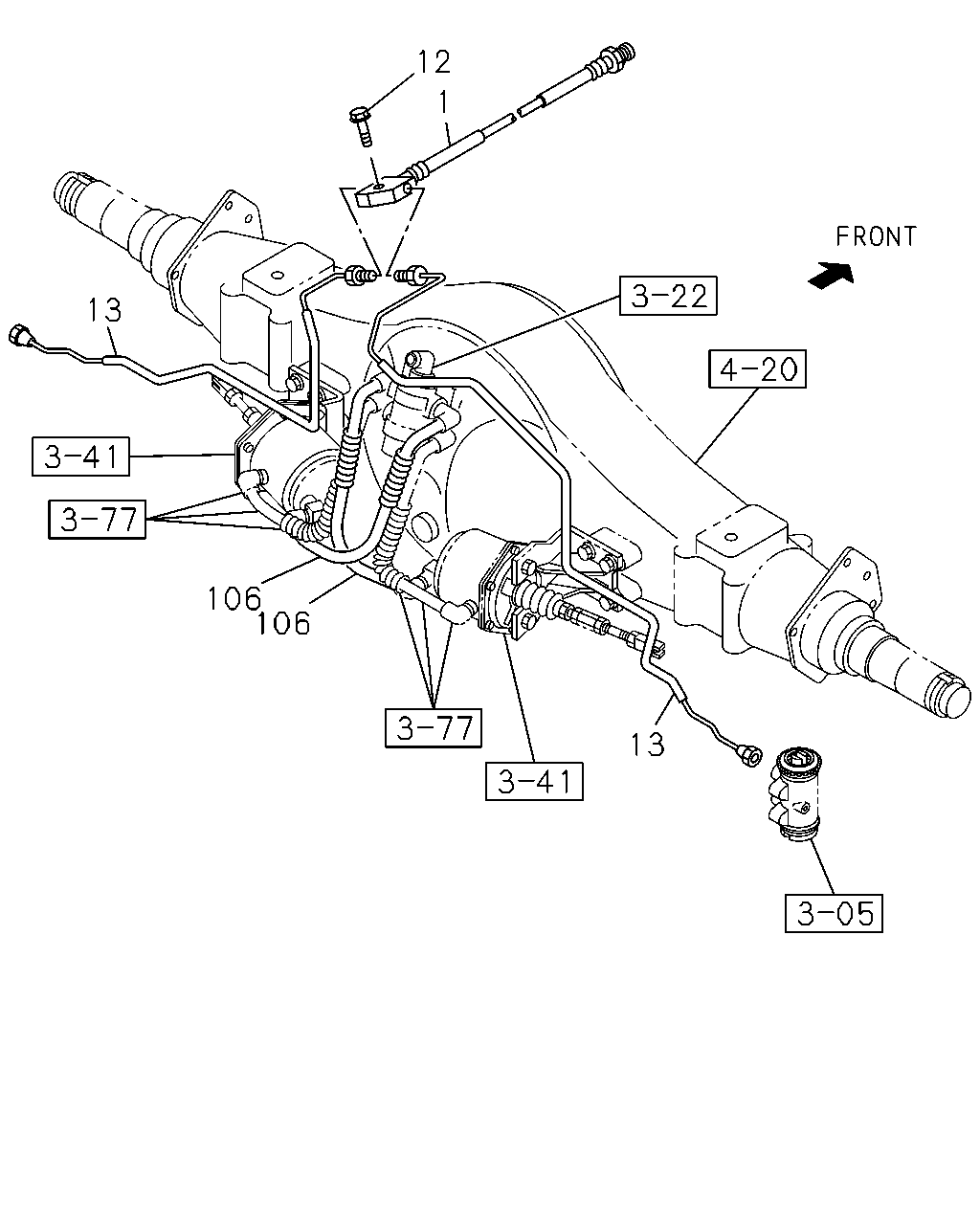

[355A] REAR AXLE SIDE (7 parça)
▶
46
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
01
1
1412-
138
PIPE; HYDRAULIC UNIT
L=697
8-98213-366-0
01
1
1412-
1
126
39
4
3
5
39
32
33
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=485
8-98057-386-1
01
1
1412-
3
BRACKET; FLEX HOSE,RR BRK
8-98065-999-2
01
1
1412-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
1412-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1412-
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
01
1
1412-
33
PIPE; OIL,UNION TO UNION
L=2263
8-98183-300-0
01
1
1412-
39
PIPE; OIL,UNION TO RR FLEX HOSE
L=1710
8-98106-485-0
01
1
1412-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
01
1
1412-
126
CLIP; FLEX HOSE
8-97360-054-0
01
1
1412-
13
106
106
13
12
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=485
8-98057-386-1
01
1
1412-
12
BOLT; FLEX HOSE TO RR AXLE
M8X35 FLANGE
0-28650-835-0
01
1
1412-
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1030
8-98281-559-0
01
1
1412-
13
PIPE; BRK,RR AXLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=645
8-98281-560-0
01
1
1412-
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=1115
8-98071-761-0
01
1
1412-
13
PIPE; BRK,RR AXLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=738
8-98071-762-0
01
1
1412-
106
TUBE; NYLON
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
8-98061-971-0
02
1
1412-
