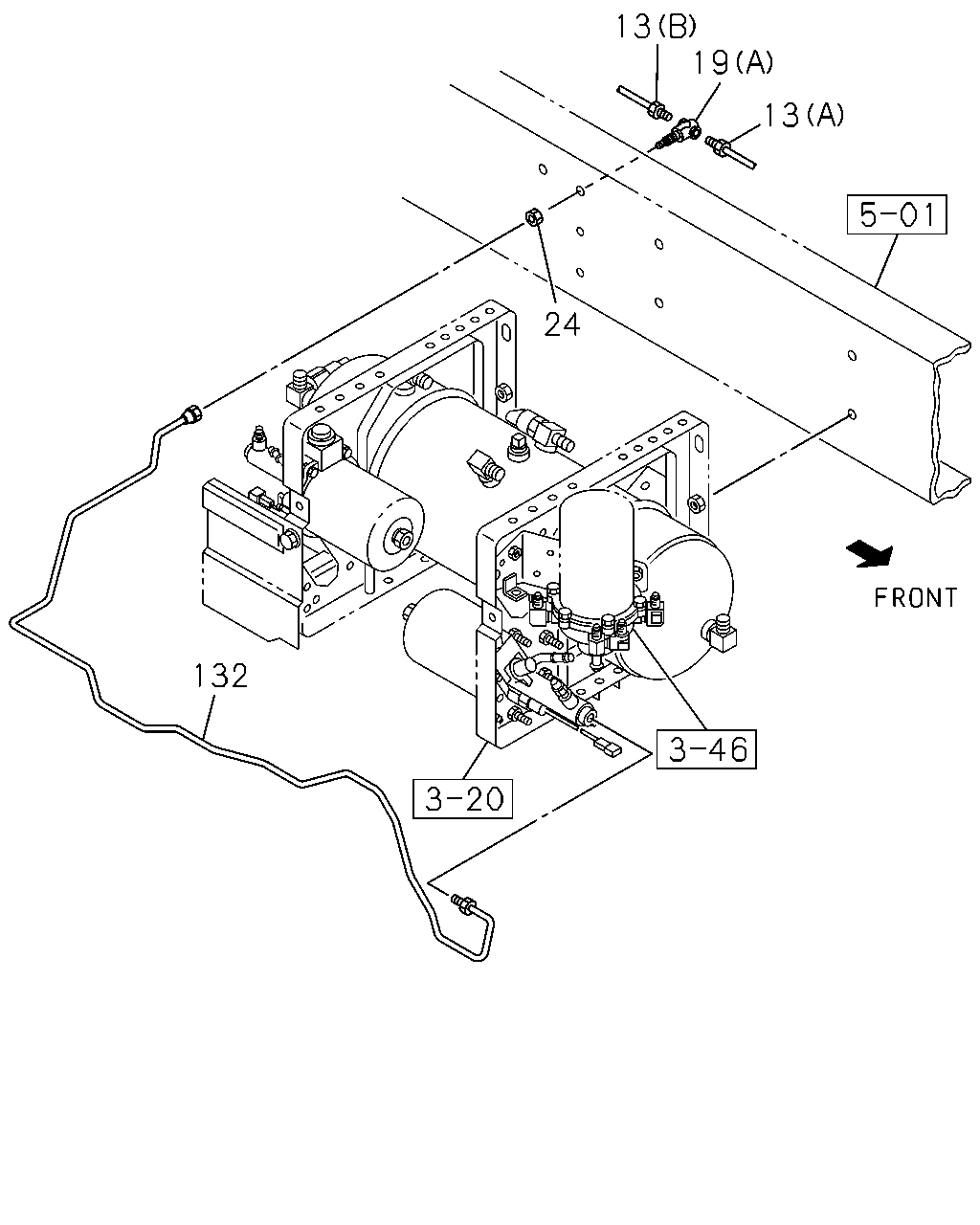

3-52 — BRAKE PIPING; OIL,FRONT (#153075) — 17 parça

132 24 13 19 13

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	PIPE; OIL,UNION TO UNION (B) LH LINE L=1891	8-98113-684-0	01	1	1412-
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=967	8-98067-417-0	01	1	1412-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1412-
19	UNION; OIL PIPE (A)	8-98113-738-0	01	1	1412-
24	NUT; UNION,OIL PIPE M10 H=8	1-09400-029-0	01	1	1412-
132	PIPE; OIL,BRK,HYD UNIT L=1505	8-98213-211-0	01	1	1412-

18 1 2 82 3 71 1 13 19 18 13 13 18 18 19 13 19 18 71 18 82 2 1 3

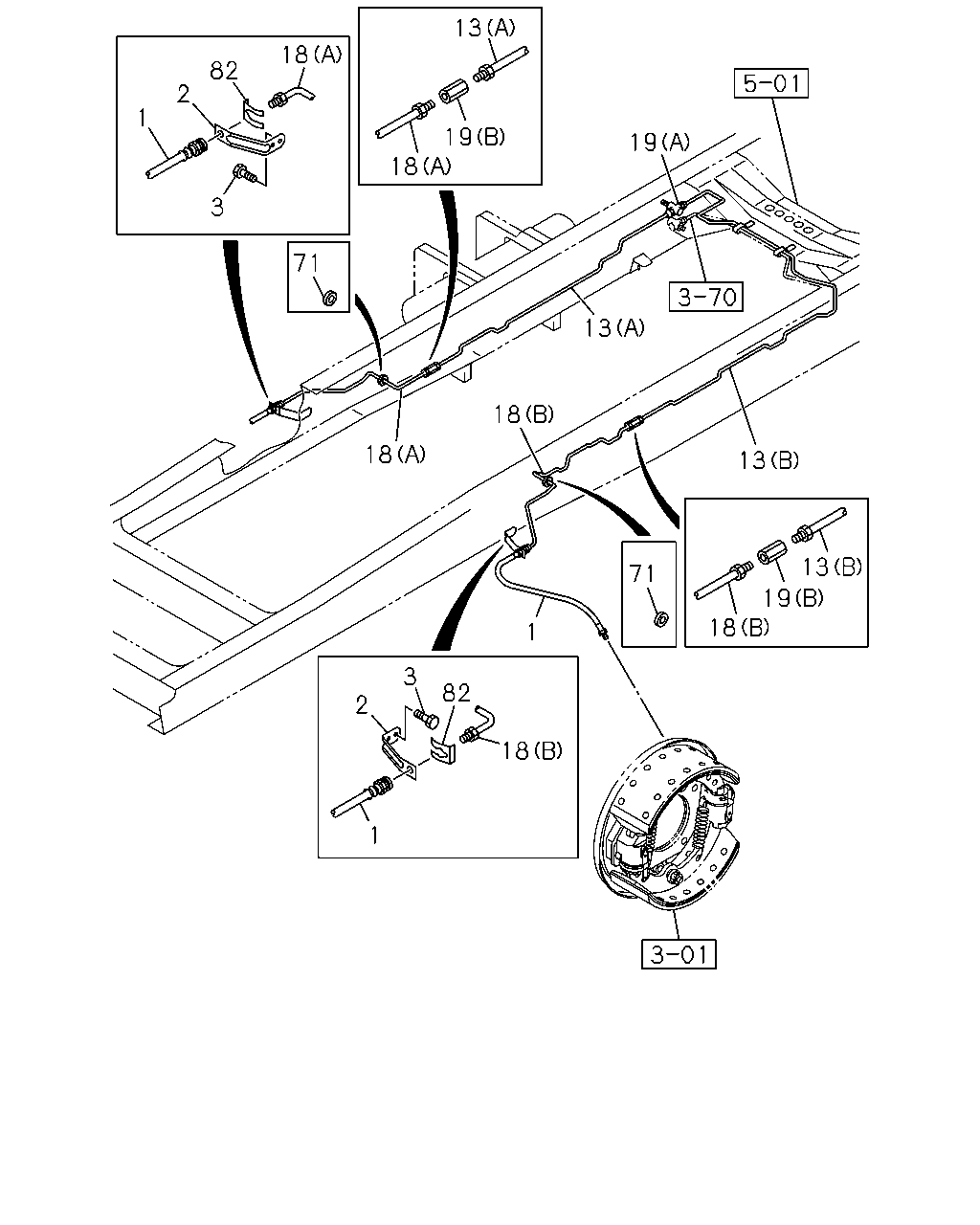

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HOSE; FLEX,FRT BRK L=660	8-98232-626-0	02	1	1412-
2	BRACKET; FLEX HOSE,FRT BRK	8-98011-946-1	02	1	1412-
3	BOLT; BRKT,FLEX HOSE,FRT BRK M8X25 FLANGE	0-28650-825-0	04	1	1412-
13	PIPE; OIL,UNION TO UNION (B) LH LINE L=1891	8-98113-684-0	01	1	1412-
13	PIPE; OIL,UNION TO UNION (A) RH LINE L=967	8-98067-417-0	01	1	1412-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (B) LH LINE L=1016	8-98065-376-0	01	1	1412-
18	PIPE; OIL,UNION TO FRT FLEX HOSE (A) RH LINE L=567	8-98067-426-0	01	1	1412-
19	UNION; OIL PIPE (B) M10 STRAIGHT	0-92107-005-0	02	1	1412-
19	UNION; OIL PIPE (A)	8-98113-738-0	01	1	1412-
71	GROMMET; OIL PIPE ID=24 OD=30 T=17	9-09956-092-1	02	1	1412-
82	PLATE; FLEX HOSE	8-97360-054-0	02	1	1412-
