3-41 — REAR BRAKE POWER CHAMBER
(#153073) — 21 parça
◀

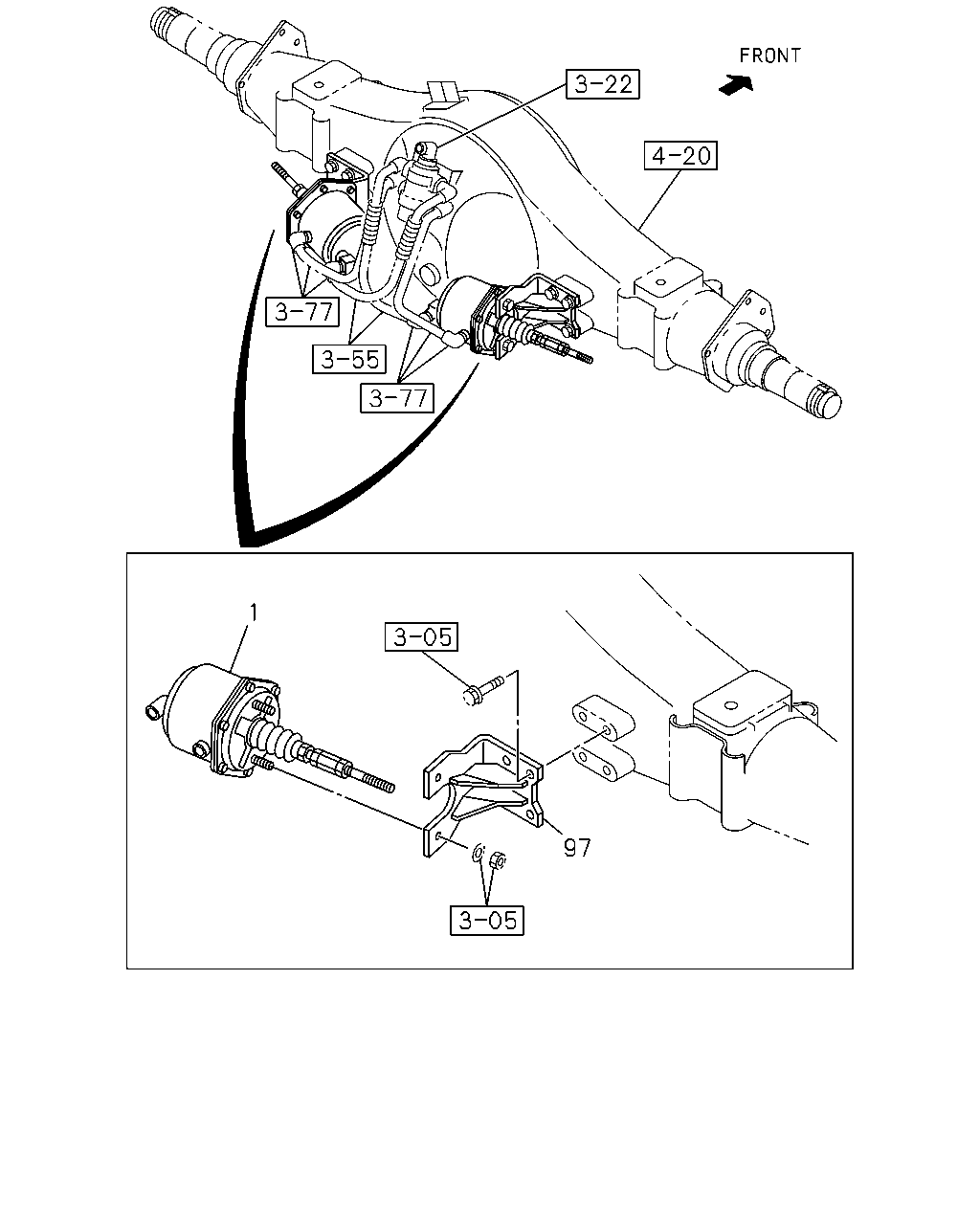

[341A] FIXING (3 parça)

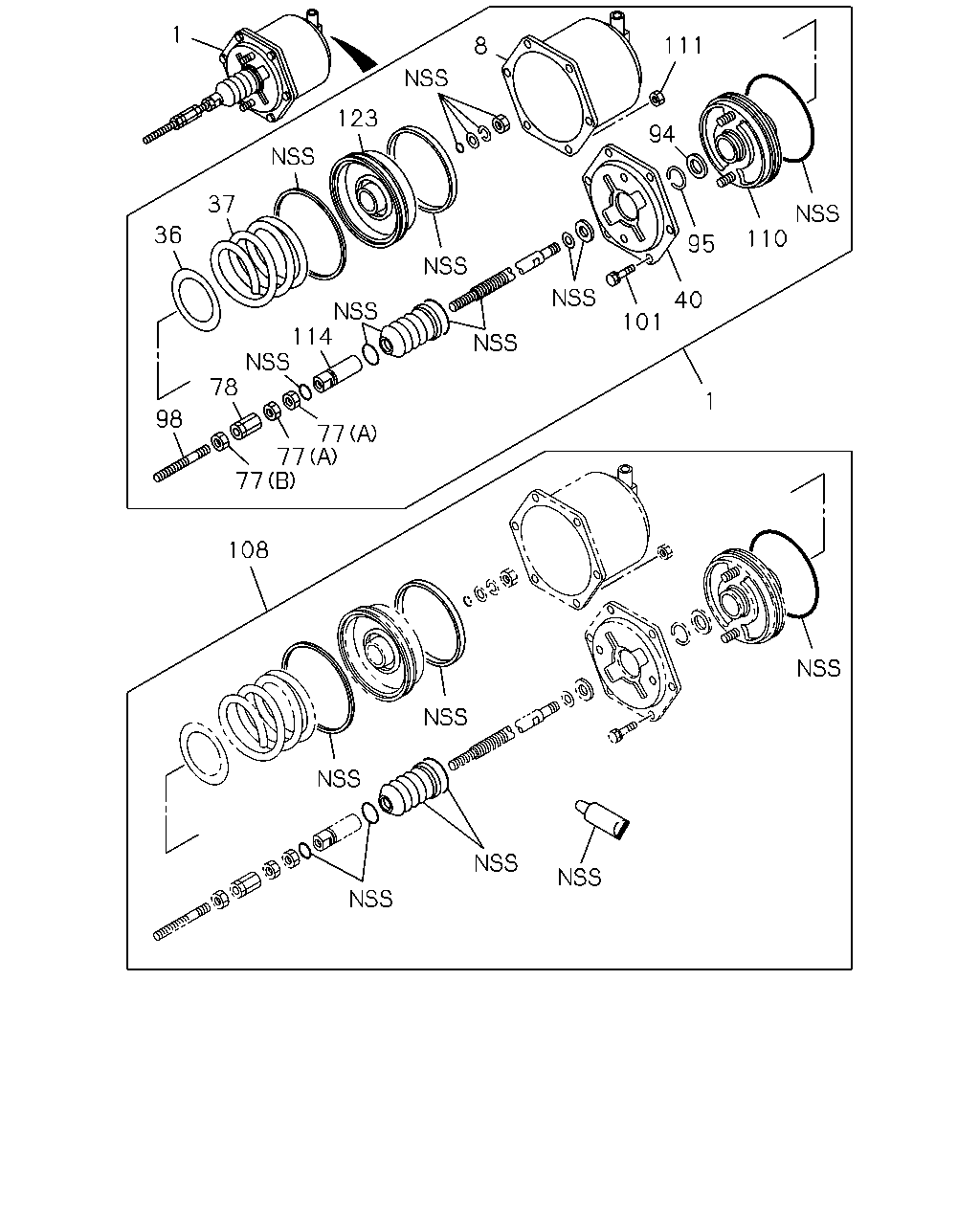

[341A] COMPONENT AND REPAIR KIT (18 parça)
▶
1
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-920-1
01
1
1412-
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-921-1
01
1
1412-
97
BRACKET; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48258-242-0
02
1
1412-
111
8
1
123
37
36
94
110
95
40
101
1
114
78
98
77
77
77
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-920-1
01
1
1412-
1
CHAMBER ASM; SPRING
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48250-921-1
01
1
1412-
8
SHELL; CYL,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48251-190-1
02
1
1412-
36
RETAINER; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-099-0
02
1
1412-
37
SPRING; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48265-009-0
02
1
1412-
40
COVER ASM; LWR,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48266-013-1
02
1
1412-
77
NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
1-48269-105-0
04
1
1412-
77
NUT; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B)
1-48269-114-0
02
1
1412-
78
TURNBACKLE; SPR CHAMBER BRK
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-113-0
02
1
1412-
94
PLATE; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-097-1
02
1
1412-
95
RING; RELEASE,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-098-0
02
1
1412-
98
ROD; CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48263-038-0
02
1
1412-
101
BOLT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-102-0
12
1
1412-
108
REPAIR KIT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) W/GREASE
1-85576-442-0
02
1
1412-
110
PLATE; MOUNTING,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48251-189-0
02
1
1412-
111
NUT; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-101-0
12
1
1412-
114
HOLDER; ROD,SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48269-250-0
02
1
1412-
123
PISTON ASM; SPR CHAMBER
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-48262-024-2
02
1
1412-
