Isuzu WW
▶
TRUCKS
▶
FRR
▶
11584 - FRR MIDDLE EAST SPACE CAB
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#153067) — 44 parça
◀

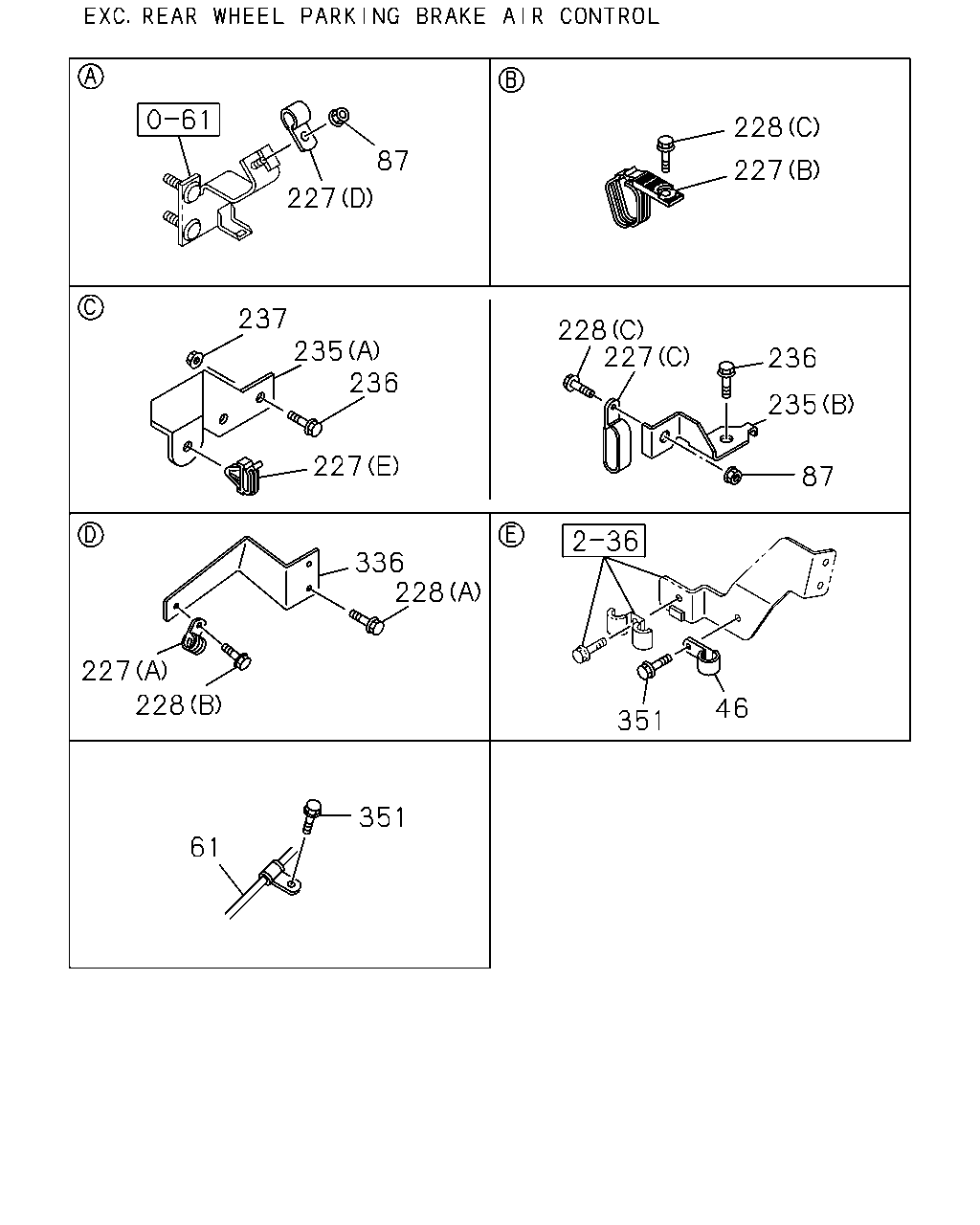

[311A] NO.2 (19 parça)
[311A] NO.1 (15 parça)
[311A] NO.3 (10 parça)
▶
351
46
87
235
236
227
228
227
228
87
227
237
235
236
227
336
228
227
228
61
351
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
CLIP; FRT CABLE TO FLOOR
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) ID=16 L=20
0-95235-535-0
01
1
1412-
61
CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4300
8-98167-241-2
01
1
1412-
87
NUT
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
1412-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (D) ID=16 L=20
0-95235-535-0
01
1
1412-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=26 L=26
1-09701-236-0
01
1
1412-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (E) ID=9.5
5-09709-020-0
01
1
1412-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) ID=13 & 13 L=32
8-97389-264-0
01
1
1412-
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 & 10 & 10 L=35.5
8-98023-991-0
01
1
1412-1504
227
CLIP; RAD
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=13 & 10 & 10 L=43.5
8-98292-921-0
01
1
1505-
228
BOLT; CLIP RAD MTG
(A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1412-
228
BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE
0-28050-816-0
01
1
1412-
228
BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE
0-28650-825-0
02
1
1412-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98126-426-0
01
1
1412-
235
BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98100-152-0
01
1
1412-
236
BOLT; BRKT TO FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
01
1
1412-
236
BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
03
1
1412-
237
NUT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
1412-
336
BRACKET; RADIATOR
8-98065-276-0
01
1
1412-
351
BOLT; CLIP
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 W/WASHER
0-51640-825-0
03
1
1412-
98
101
101
99
343
97
23
28
4
218
61
28
73
73
73
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
STEM; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-79996-565-0
01
1
1412-
23
SWITCH; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-82440-100-0
01
1
1412-
28
BOLT; HAND BRK LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
03
1
1412-
51
PIN; JOINT,RELAY LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A)
1-09987-243-1
01
1
1412-
61
CABLE; PARKING BRK
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) L=4300
8-98167-241-2
01
1
1412-
73
WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) ID=17 OD=30
0-91610-516-0
01
1
1412-
73
WASHER; PL,CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) ID=19
8-94206-429-1
02
1
1412-
97
GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98029-219-1
01
1
1412-
97
GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35
8-94122-971-0
01
1
1412-
98
BOLT; RR COVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10X30 FLANGE
0-28651-030-0
01
1
1412-
99
NUT; CONT CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M10 FLANGE
0-91180-210-0
02
1
1412-
101
NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8 FLANGE
0-91180-108-0
01
1
1412-
101
NUT; CABLE TO LEVER
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A) M8
1-46259-007-0
01
1
1412-
218
NUT; BRKT,PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8 FLANGE
0-91180-108-0
02
1
1412-
343
SEAL
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) OD=25 BLACK
1-76798-019-0
08
1
1412-
235
236
228
336
97
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
97
GROMMET; PARKING BRK CABLE
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98029-219-1
01
1
1412-
97
GROMMET; PARKING BRK CABLE
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) OD=35
8-94122-971-0
01
1
1412-
228
BOLT; CLIP RAD MTG
(A) M8X16 W/LK&PL WASHER
1-09980-498-0
02
1
1412-
228
BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (B) M8X16 FLANGE
0-28050-816-0
01
1
1412-
228
BOLT; CLIP RAD MTG
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (C) M8X25 FLANGE
0-28650-825-0
02
1
1412-
235
BRACKET; CONT CABLE TO FRAME
(B)
8-98126-426-0
01
1
1412-
235
BRACKET; CONT CABLE TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) (A)
8-98100-152-0
01
1
1412-
236
BOLT; BRKT TO FRAME
REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
01
1
1412-
236
BOLT; BRKT TO FRAME
EXC. REAR WHEEL PARKING BRAKE AIR CONTROL(B3A) M8X25 FLANGE
0-28650-825-0
03
1
1412-
336
BRACKET; RADIATOR
8-98065-276-0
01
1
1412-
