Isuzu WW
▶
TRUCKS
▶
CYJ
▶
11110 - CYJ NZ JAPAN NEW SHORT TERM 2004
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-50 - FRONT SEAT
▶
7-50 — FRONT SEAT
(#15306) — 79 parça
◀

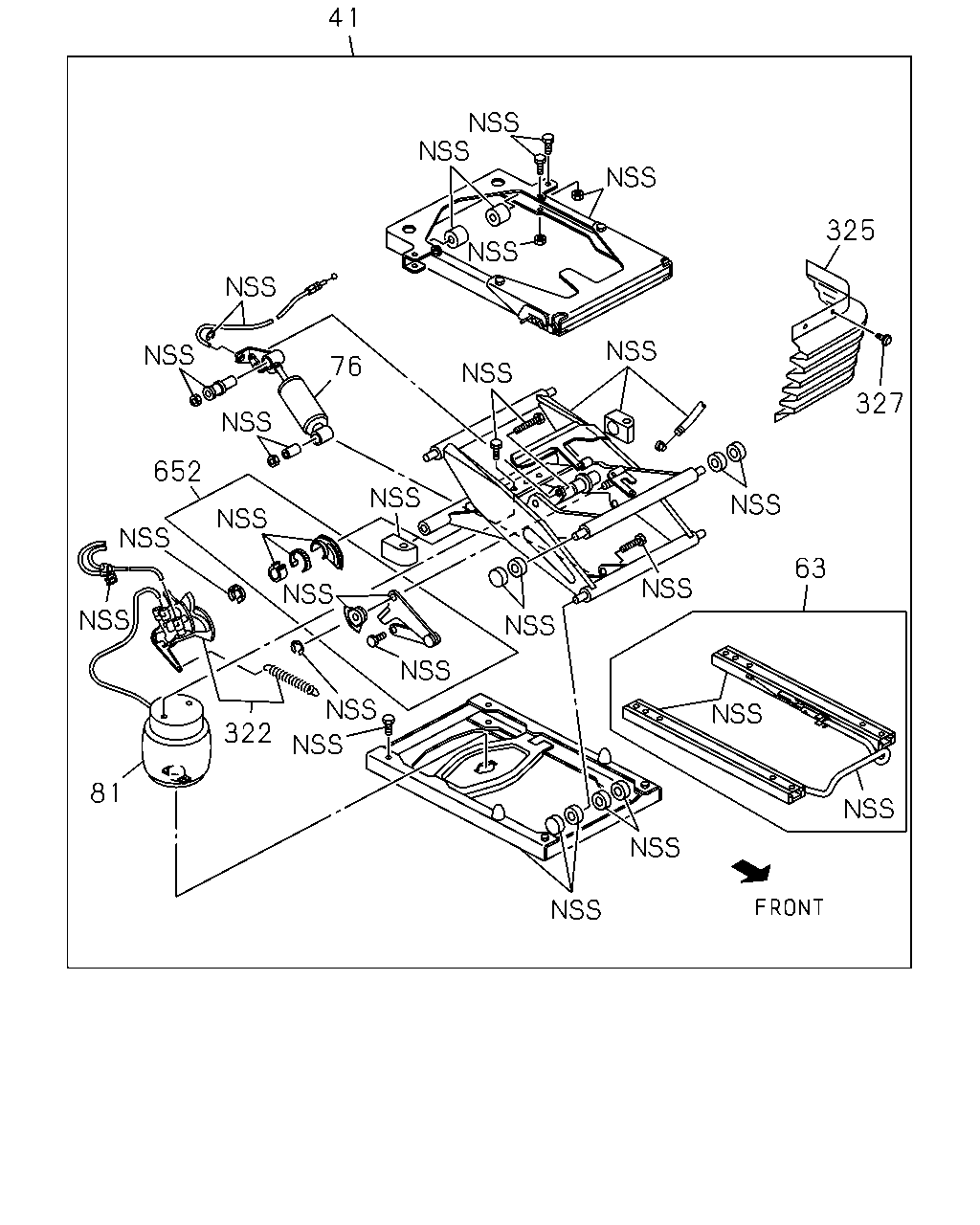

[750A] DRIVER NO.2 (9 parça)

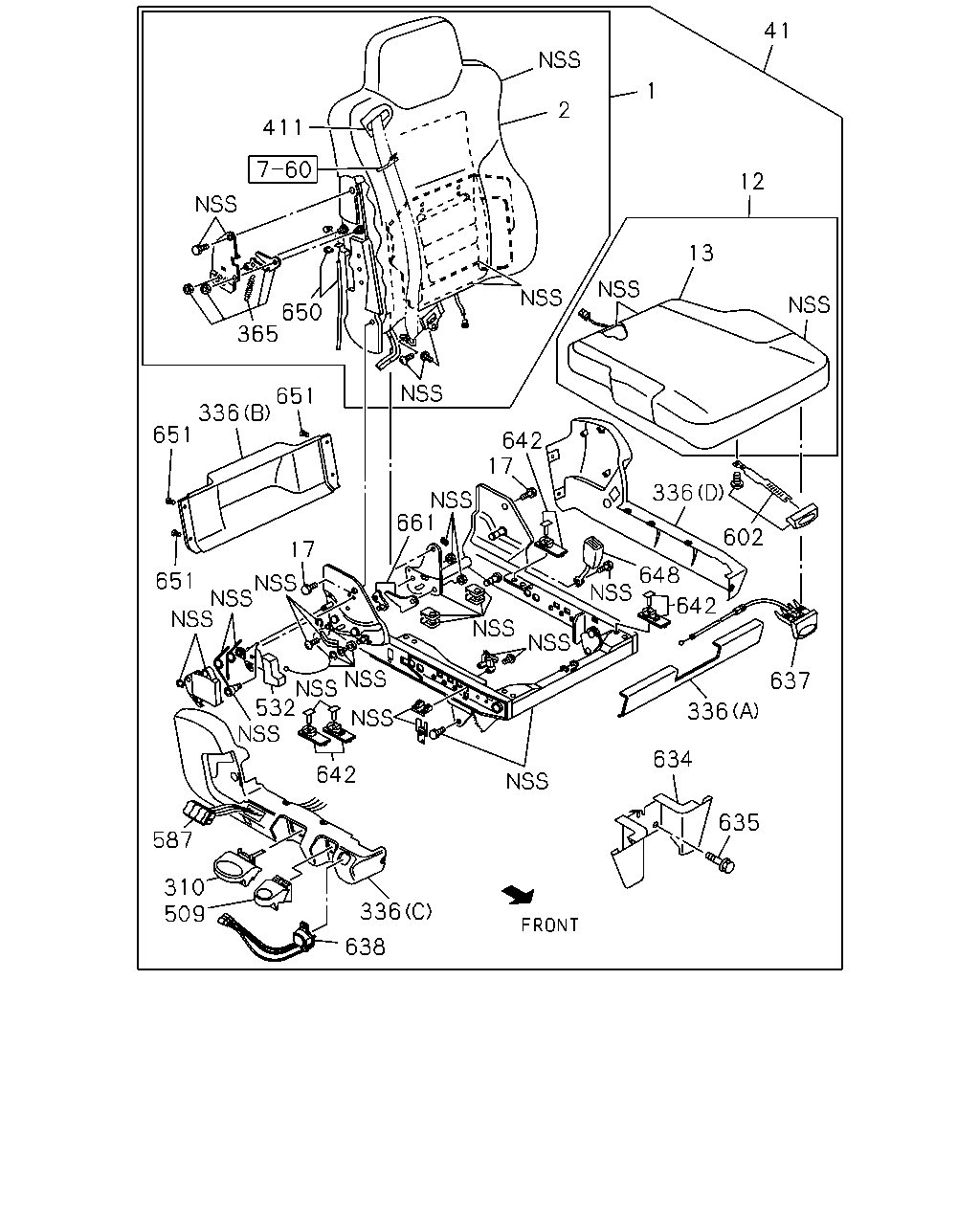

[750A] DRIVER NO.1 (29 parça)

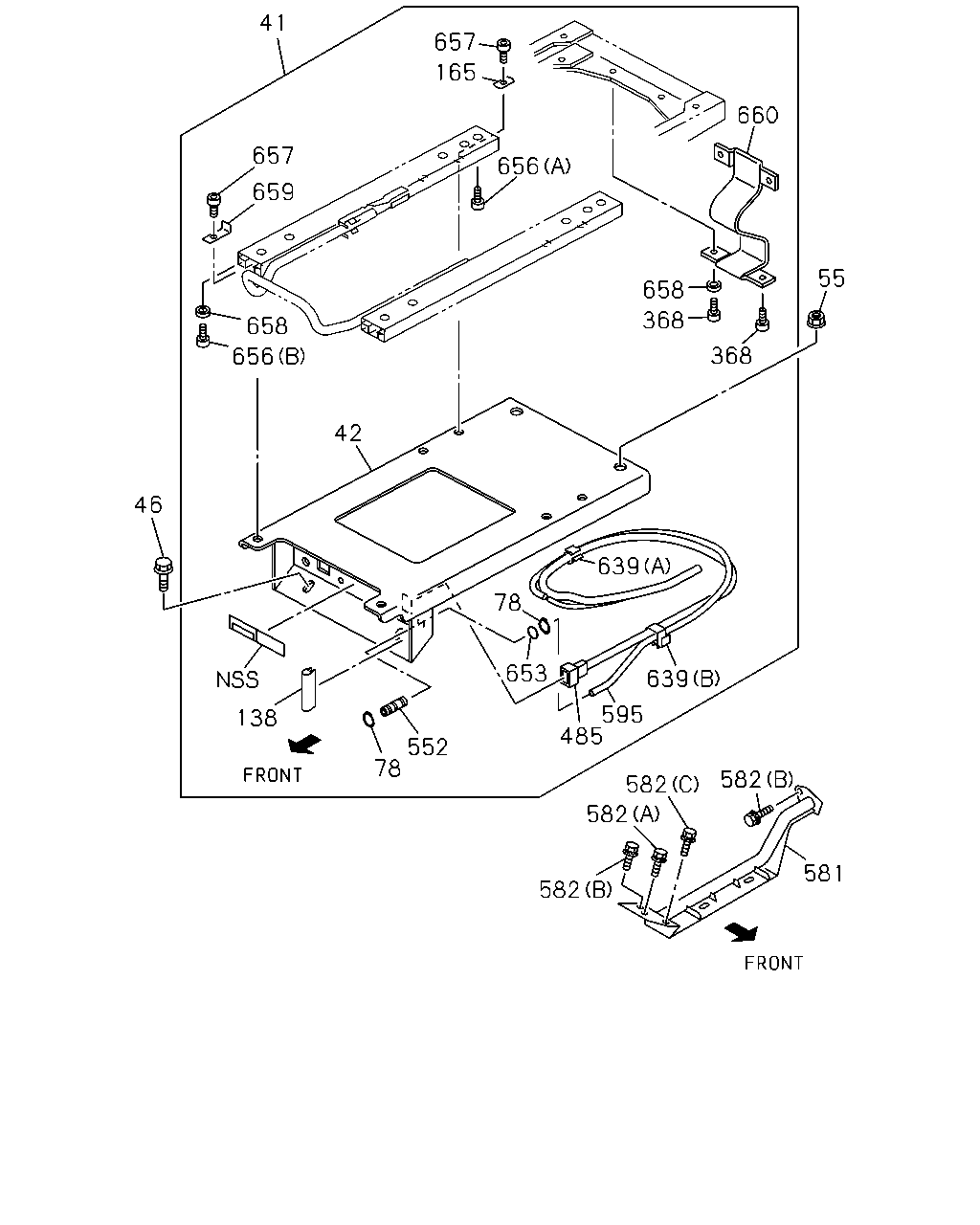

[750A] DRIVER NO.3 (26 parça)

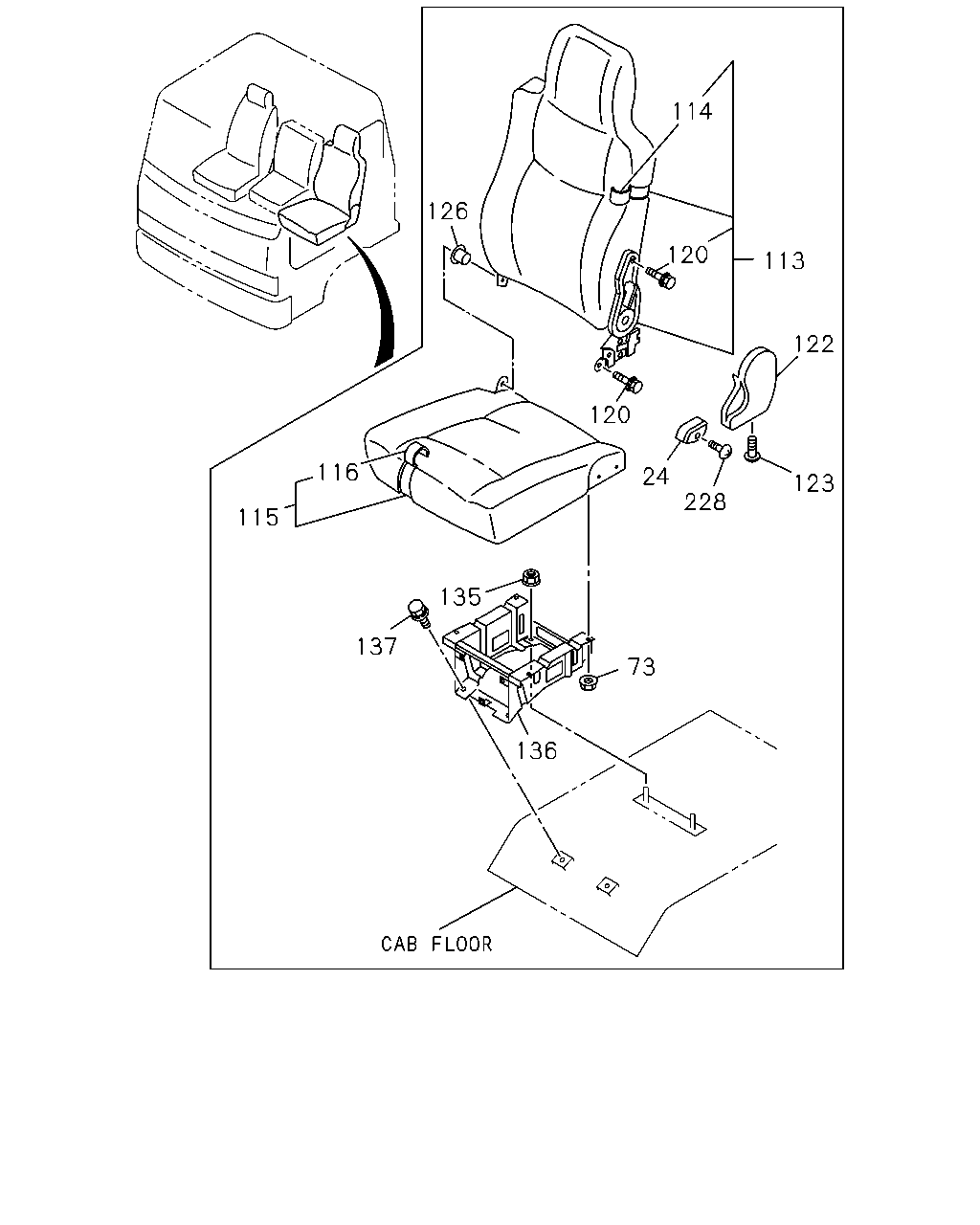

[750A] PASSENGER (15 parça)
▶
322
81
652
76
41
63
327
325
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
SEAT ASM; DRIVER
8-98036-942-2
01
1
0710-1212
41
SEAT ASM; DRIVER
8-98195-067-0
01
1
1301-
63
ADJUSTER; SEAT SLIDE
8-98098-005-0
01
1
0710-
76
DAMPER; AIR SUSP
8-98097-999-0
01
1
0710-
81
SPRING; AIR
8-98098-000-0
01
1
0710-
322
VALVE; AIR SPRING
8-98098-001-0
01
1
0710-
325
COVER; SUSPENSION DEVICE
8-98098-003-0
01
1
0710-
327
CLIP; COVER
8-98098-004-0
01
1
0710-
652
LOCK ASM; HEIGHT
8-98098-002-0
01
1
0710-
638
336
509
310
587
642
532
651
17
635
634
336
637
602
336
642
17
648
642
661
13
12
41
1
2
411
650
365
651
336
651
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BACK ASM; SEAT
8-98097-964-0
01
1
0710-
2
COVER; TRIM,FRT SEAT,BACK
8-98097-966-0
01
1
0710-1212
2
COVER; TRIM,FRT SEAT,BACK
8-98232-353-0
01
1
1301-
12
CUSHION; SEAT,FRT
8-98098-006-0
01
1
0710-
13
COVER; TRIM,FRT SEAT,CUSHION
8-98098-007-0
01
1
0710-
17
BOLT; RECLINING
8-98097-974-0
02
1
0710-
41
SEAT ASM; DRIVER
8-98036-942-2
01
1
0710-1212
41
SEAT ASM; DRIVER
8-98195-067-0
01
1
1301-
310
LEVER ASM; HEIGHT ADJ DRIVER SEAT
8-98097-992-0
01
1
0710-
336
COVER; DRIVER SEAT
(D)
8-98097-978-0
01
1
0710-
336
COVER; DRIVER SEAT
(C)
8-98097-984-0
01
1
0710-
336
COVER; DRIVER SEAT
(A)
8-98097-995-0
01
1
0710-
336
COVER; DRIVER SEAT
(B)
8-98097-996-0
01
1
0710-
365
LOCK ASM; SEAT
8-98097-972-0
01
1
0710-
411
GUIDE; SEAT BELT
8-98097-967-0
01
1
0710-
509
LEVER; DAMPER
8-98097-988-0
01
1
0710-
532
LEVER ASM; TILT
8-98097-982-0
01
1
0710-
587
VALVE; LUMBAR SUPPORT
8-98097-986-0
01
1
0710-
602
KNOB; ADJ,SEAT
8-98098-008-0
01
1
0710-
634
COVER; CONNECTOR,SEAT
8-98088-279-0
01
1
0710-
635
BOLT; COVER
M6X16
0-52000-616-0
02
1
0710-
637
LEVER; SLOPE ADJ
8-98097-989-0
01
1
0710-
638
VALVE; LOWERING
8-98097-994-0
01
1
0710-
642
SLIDER; CUSHION
8-98192-932-0
04
1
0710-
648
BUCKLE; SEAT BELT
8-98097-976-0
01
1
0710-
650
CABLE
8-98097-973-0
01
1
0710-1212
650
CABLE
8-98232-354-0
01
1
1301-
651
RIVET
8-98194-075-0
04
1
0710-
661
LOCK ASM; RECLINING
8-98097-980-0
01
1
0710-
581
582
485
639
582
582
582
595
552
138
46
42
41
657
659
657
165
658
656
658
368
660
55
368
78
653
639
656
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
41
SEAT ASM; DRIVER
8-98036-942-2
01
1
0710-1212
41
SEAT ASM; DRIVER
8-98195-067-0
01
1
1301-
42
STAND; DRIVER SEAT
8-98106-347-0
01
1
0710-
46
BOLT; STAND TO FLOOR
M10X20 FLANGE
0-28451-020-0
02
1
0710-
55
NUT; DRIVER SEAT STAND TO FLOOR PANEL
M10 FLANGE
0-91180-110-0
02
1
0710-
78
RING; SNAP
8-98101-900-0
02
1
0710-
138
PROTECTOR; SEAT STAND
8-98106-351-0
01
1
0710-
165
WASHER; PL
1-75590-086-0
04
1
0710-
368
BOLT; SEAT
8-98106-353-0
04
1
0710-
485
HARNESS; FRT SEAT
8-98106-360-0
01
1
0710-
552
CONNECTOR
8-98101-902-0
01
1
0710-
581
PIPE; SEAT
1-73907-605-2
01
1
0710-
582
BOLT; PIPE,SEAT
(B)
1-09980-619-1
02
1
0710-
582
BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0710-0904
582
BOLT; PIPE,SEAT
(A) M8X24.5 W/LK&PL WASHER
8-98059-720-0
01
1
0905-
582
BOLT; PIPE,SEAT
(C) M8X30 W/LK&PL WASHER
8-94279-210-0
01
1
0710-
595
TUBE; NYLON
8-98106-348-0
01
1
0710-
639
CLIP; SEAT
(A)
8-98106-349-0
01
1
0710-
639
CLIP; SEAT
(B)
8-98106-350-0
01
1
0710-
653
GASKET
8-98101-901-0
01
1
0710-
656
BOLT; SLIDER TO SEAT
(A)
1-75590-085-0
04
1
0710-
656
BOLT; SLIDER TO SEAT
(B)
8-98106-354-0
02
1
0710-
657
BOLT; SLIDER TO STAND
1-75590-085-0
06
1
0710-
658
SPACER; BOLT
8-98106-355-0
02
1
0710-
659
STOPPER
8-98106-356-0
02
1
0710-
660
BELT; TETHER
8-98106-357-0
01
1
0710-
114
120
113
122
123
228
24
120
126
116
115
137
135
73
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
KNOB; RECLINING,FRT,SEAT
1-75418-067-0
01
1
0710-
73
NUT; ADJ,HEIGHT CONT
M8 FLANGE
1-75538-207-0
04
1
0710-
113
BACK ASM; SEAT
8-98054-773-0
01
1
0710-
114
COVER; TRIM,PASSENGER SEAT,BACK
8-98054-777-0
01
1
0710-
115
CUSHION ASM; PASSENGER SEAT
8-98054-770-0
01
1
0710-
116
COVER; TRIM,PASSENGER SEAT,CUSHION
8-98054-775-0
01
1
0710-
120
BOLT; RECLINING ADJ
M8X20
8-97255-906-0
02
1
0710-
122
COVER; ADJ,RECLINING
DARK GRAY
8-97859-018-0
01
1
0710-
123
SCREW; COVER,RECLINING
M5X16 TAPPING W/PL WASHER
0-74360-516-0
01
1
0710-
126
BUSHING; HINGE,RECLINING
8-97854-087-0
01
1
0710-
135
NUT; SEAT STAND
M10 FLANGE
0-91180-110-0
02
1
0710-
136
STAND; PASSENGER SEAT
1-75558-601-3
01
1
0710-1305
136
STAND; PASSENGER SEAT
8-98242-298-0
01
1
1306-
137
BOLT; STAND
M10X20 FLANGE
0-28451-020-0
02
1
0710-
228
SCREW; KNOB
M4
8-98062-662-0
01
1
0710-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
